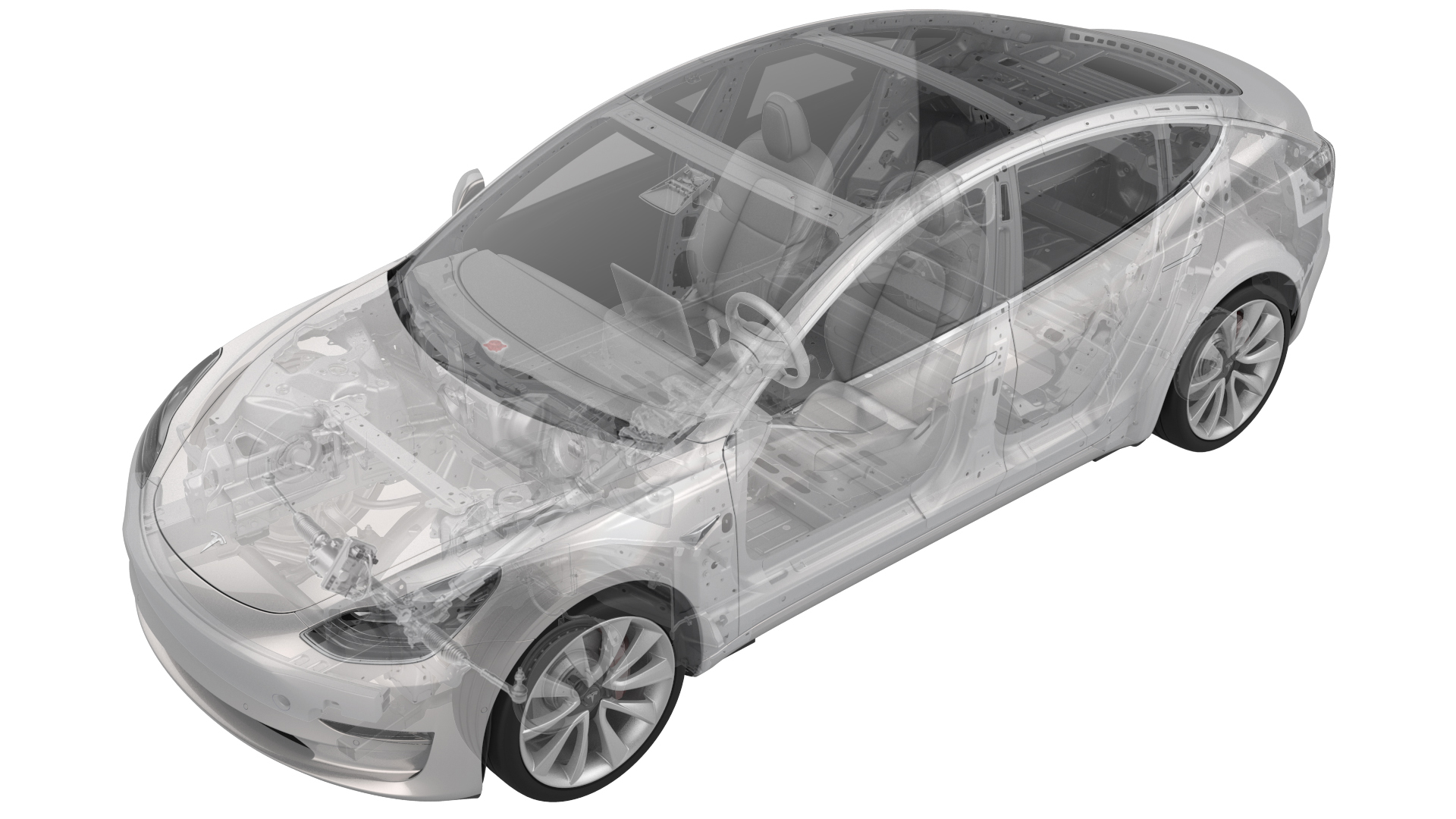

Tweeter - Dash (Remove and Replace)

Correction code 2121180221211802

Remove

Remove the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove and Replace).
Remove the LH and RH mid A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace).
Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
Remove the instrument panel speaker grille. See Grille - Speaker - Instrument Panel (Remove and Replace).

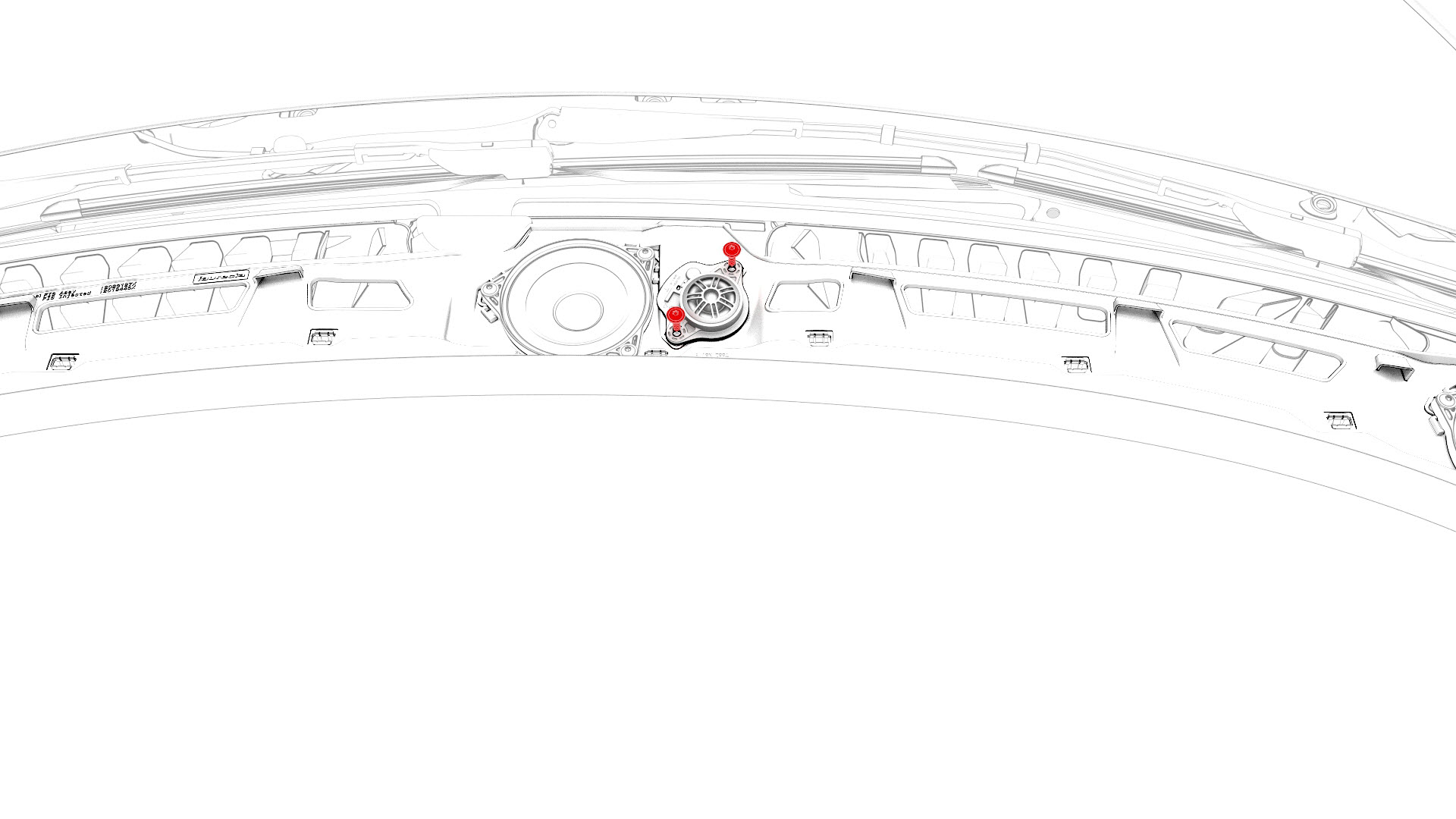

Remove the screws that attach the dash tweeter to the instrument panel, and then remove the tweeter from the vehicle.

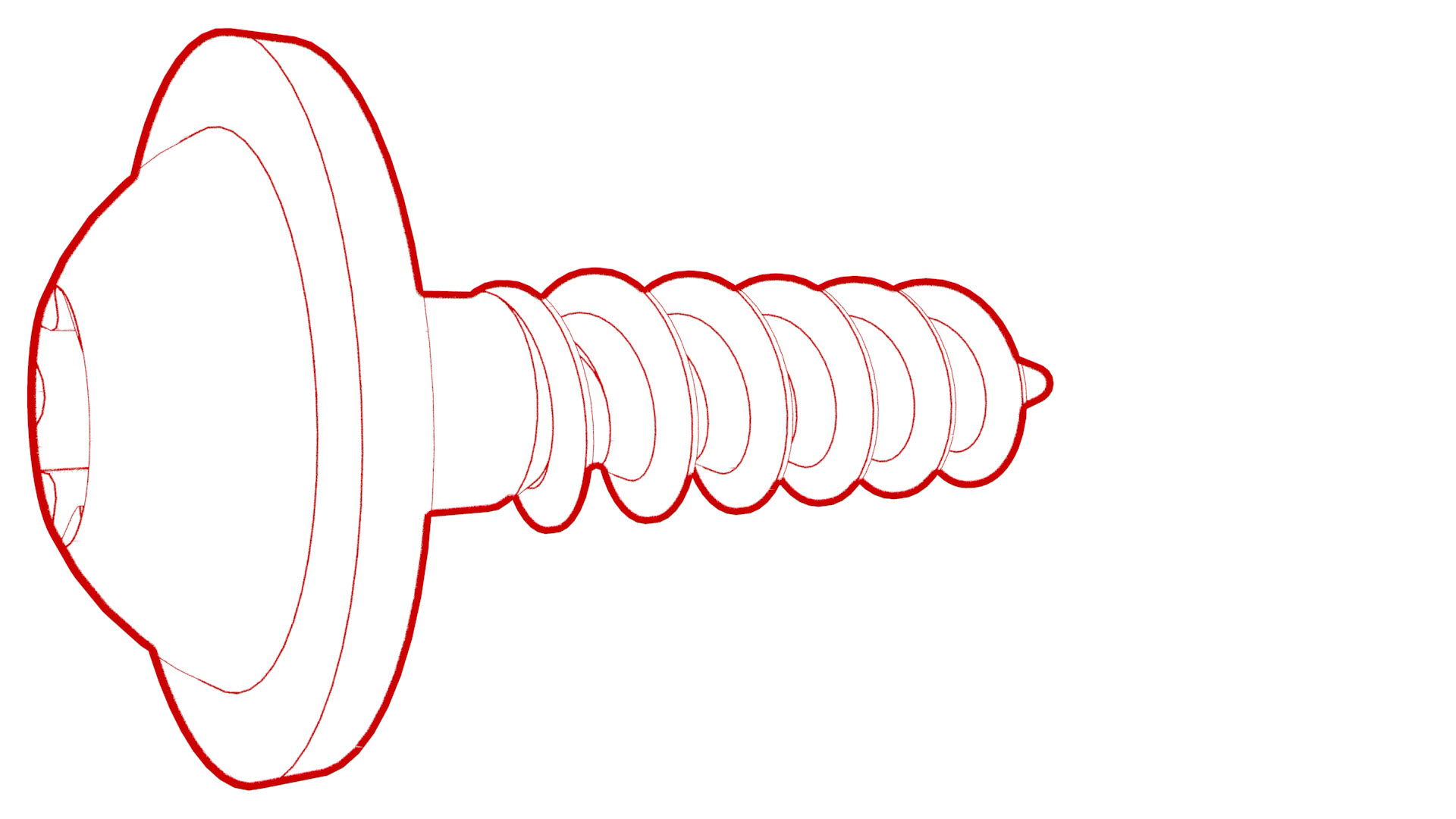

Torque 2.3 Nm
Disconnect the electrical harness from the dash tweeter connector, and then remove the tweeter from the vehicle.

		1	Remove the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove and Replace).
		2	Remove the LH and RH mid A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace).
		3	Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
		4	Remove the instrument panel speaker grille. See Grille - Speaker - Instrument Panel (Remove and Replace).
		5	Remove the screws that attach the dash tweeter to the instrument panel, and then remove the tweeter from the vehicle. Torque 2.3 Nm
		6	Disconnect the electrical harness from the dash tweeter connector, and then remove the tweeter from the vehicle.

Install

Installation procedure is the reverse of removal.
