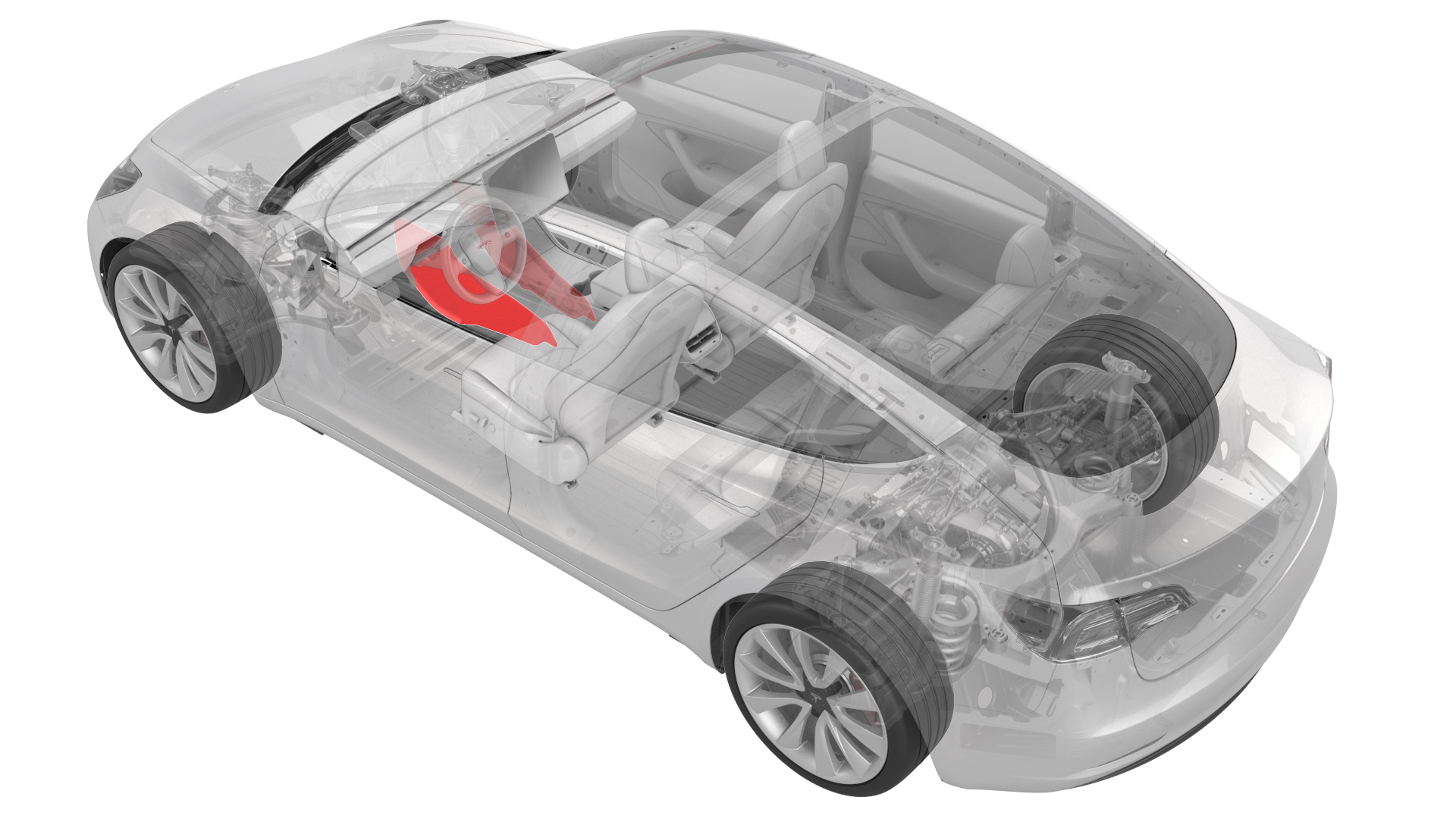

Carpet - Side Panel - Center Console - LH (Remove and Replace)

Correction code 1519540215195402

Remove

Note: Although the LH side is described, the procedure is the same for the RH side.

Move the front LH front seat fully rearward.
Remove the front LH floormat from the vehicle.

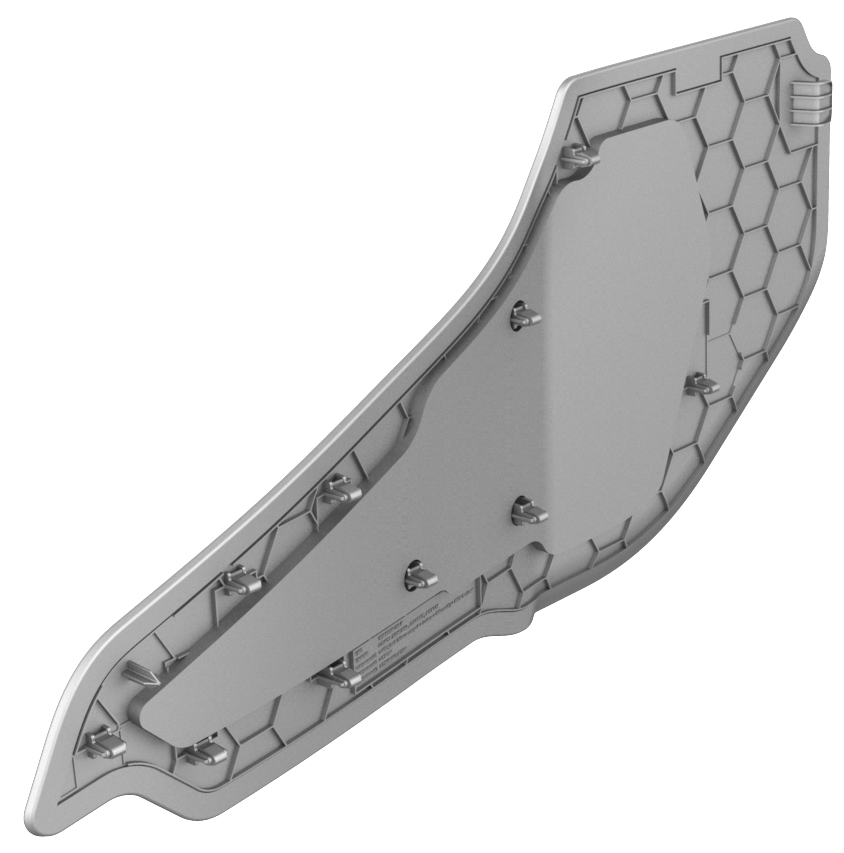

Release the clips and tabs that attach the center console side panel carpet to the center console, and then remove the side panel from the vehicle.

Note: Release the rearmost clips first and work toward the front of the vehicle. Transfer any clips that remain in the center console and the cross car beam to the center console side panel carpet.

		1	Move the front LH front seat fully rearward.
		2	Remove the front LH floormat from the vehicle.
		3	Release the clips and tabs that attach the center console side panel carpet to the center console, and then remove the side panel from the vehicle. Note: Release the rearmost clips first and work toward the front of the vehicle. Transfer any clips that remain in the center console and the cross car beam to the center console side panel carpet.

Install

Installation procedure is the reverse of removal, except for the following:

Align the tab in the front of the center console side panel carpet before attaching the clips.
