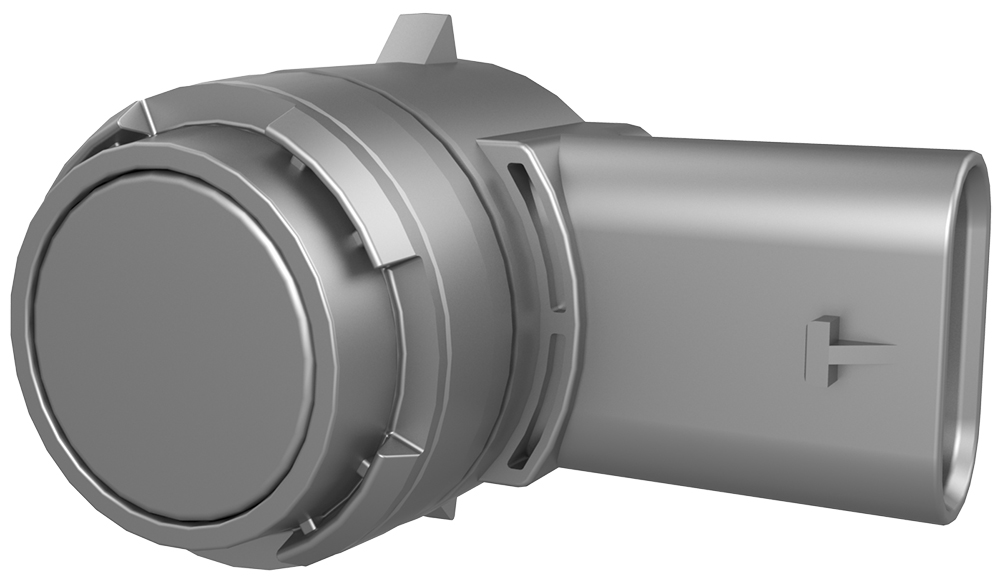

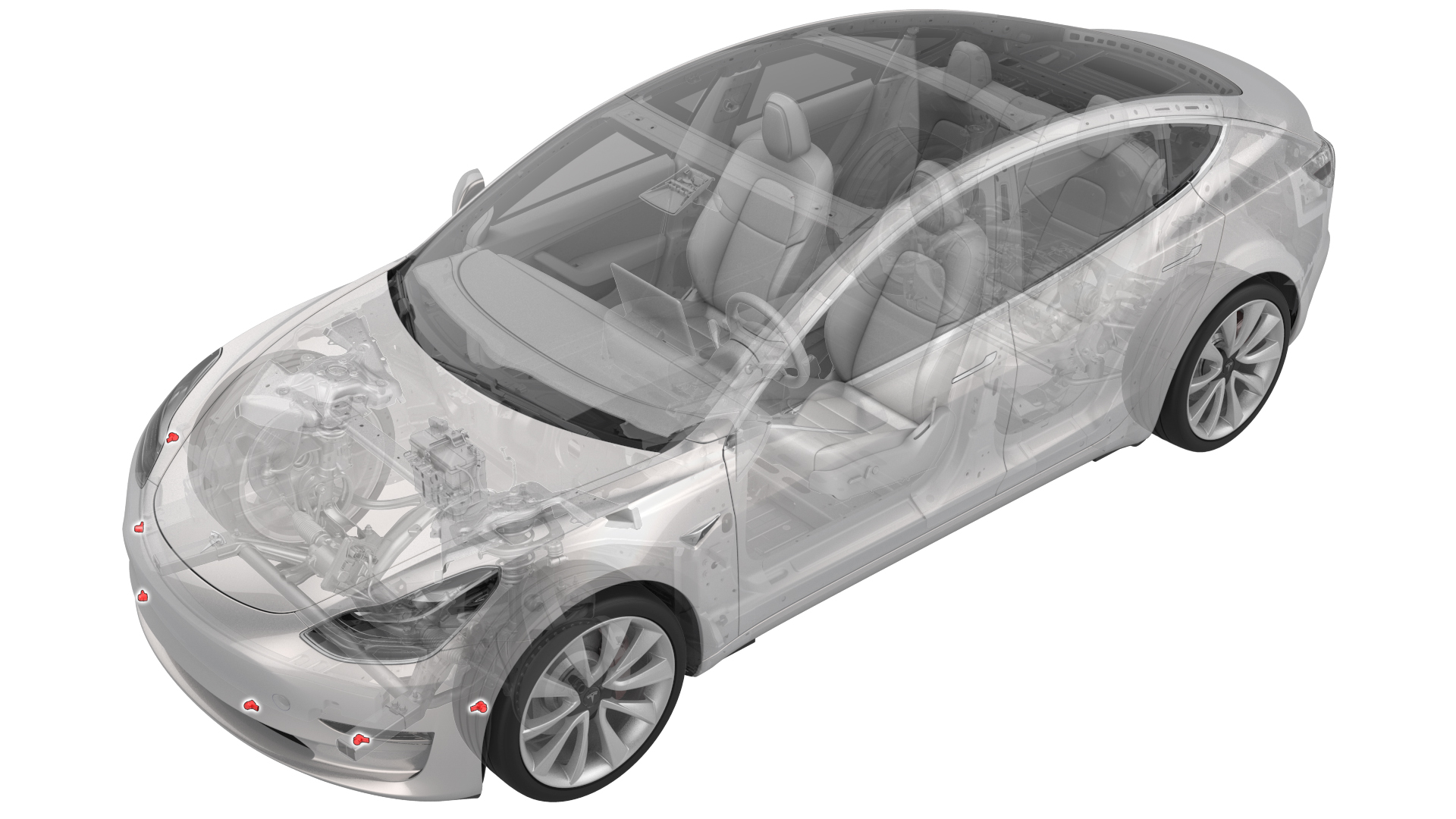

Sensor - Parking Distance - Front - Each (Remove and Replace)
Correction code 1727100217271002
Remove
-

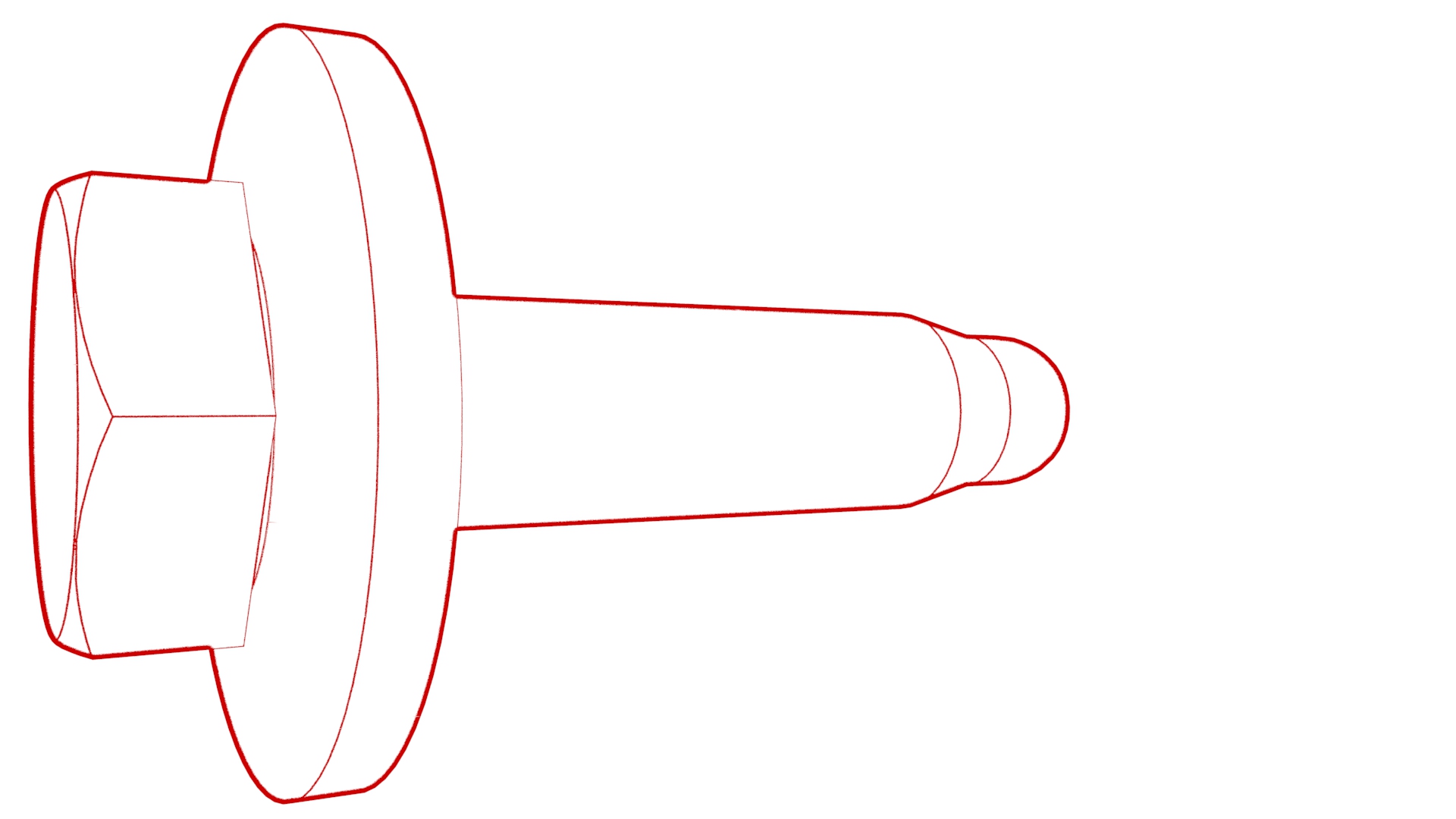

Remove the bolts that attach the top of the front fascia to the body.
Torque 4 Nm
-

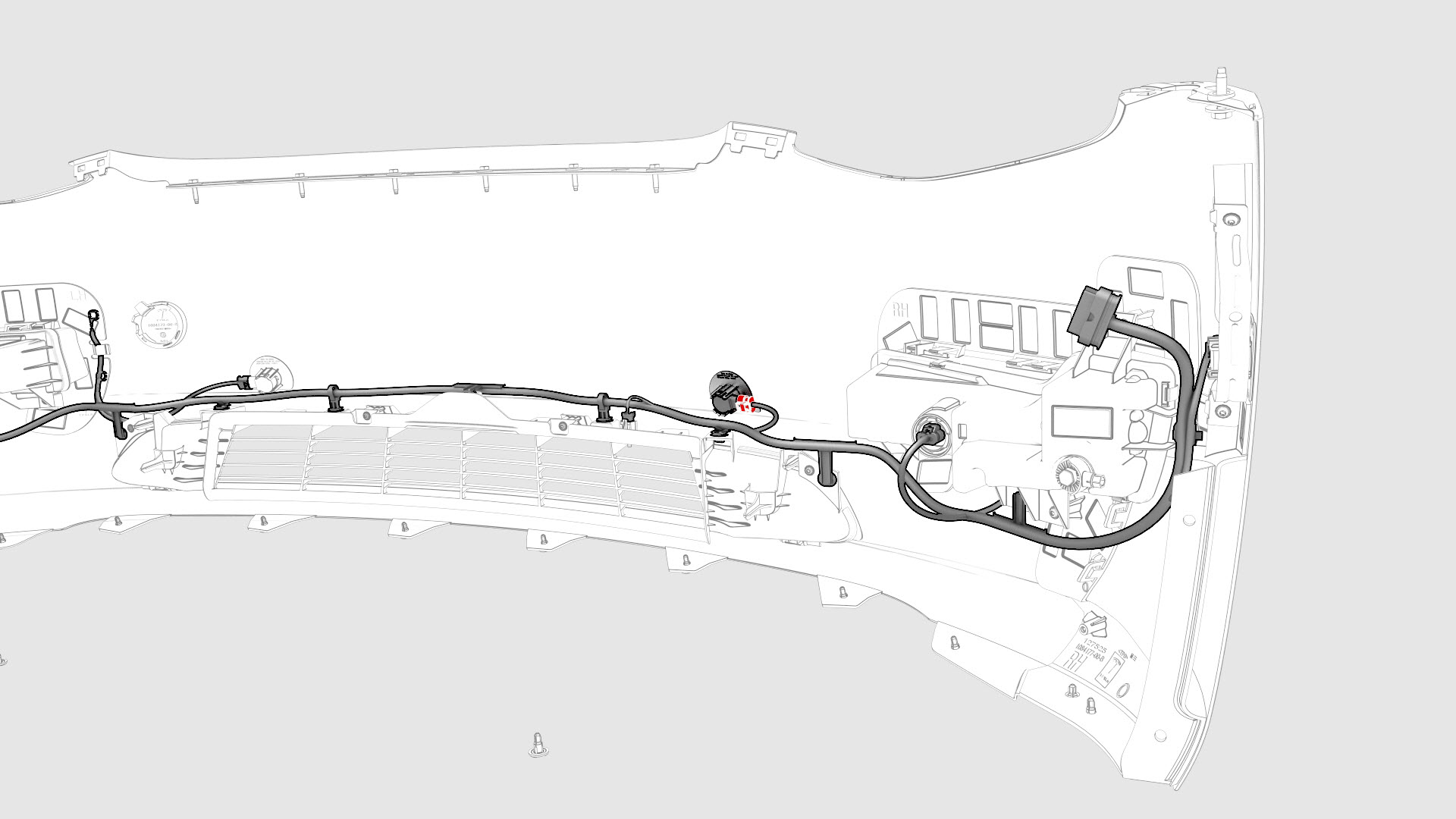

Disconnect the electrical connector from the front parking distance sensor.
-

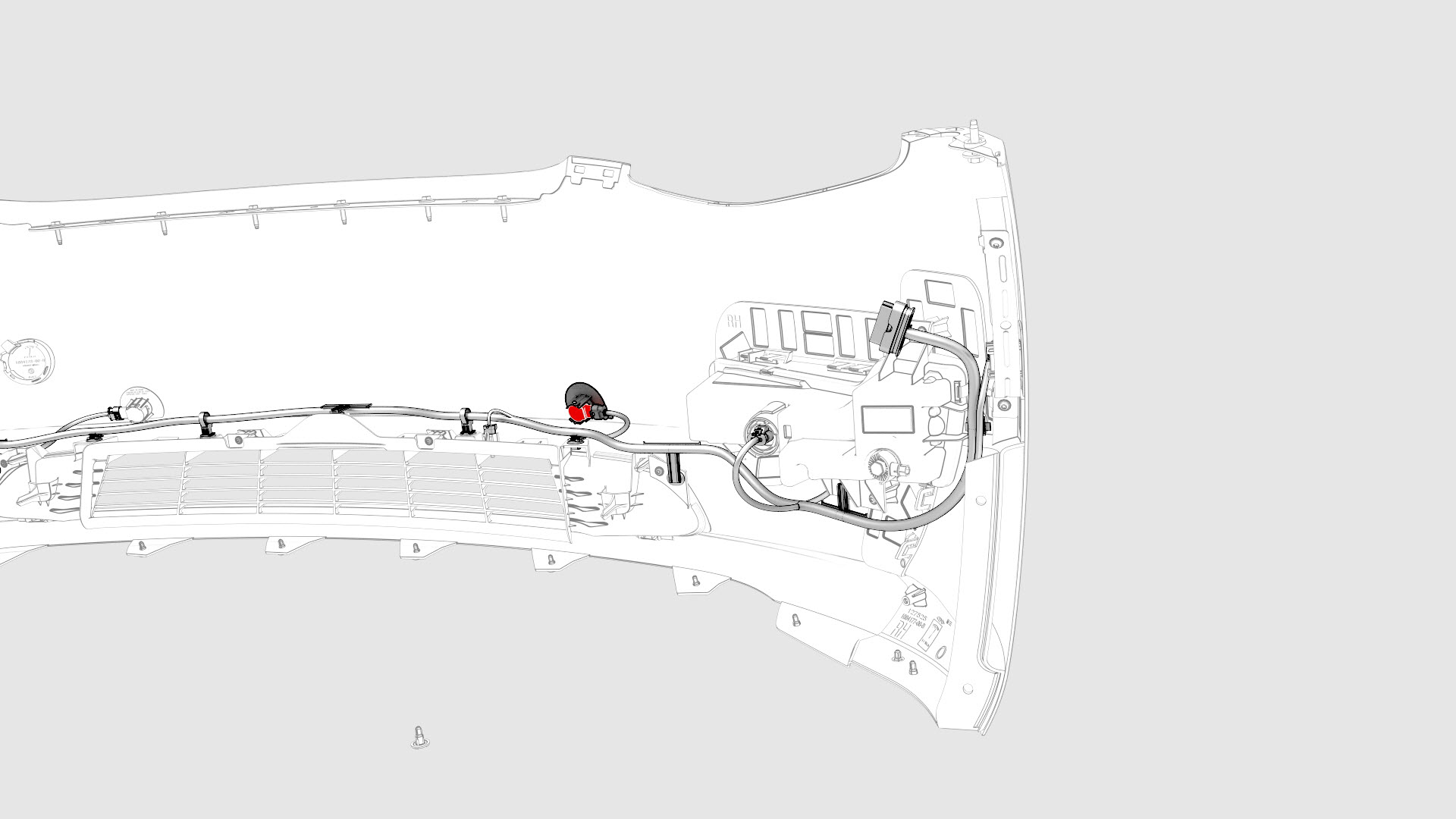

Release the tabs (x2) that attach the front parking distance sensor to the front fascia, and then remove the sensor from the fascia.
| 1 | Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace). | ||
| 2 | Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace). | ||
| 3 | Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace). | ||
| 4 | Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace). | ||
| 5 | Remove the bolts that attach the top of the front fascia to the body. Torque 4 Nm | |
| 6 | Remove the LH and RH front wheels. See Wheel (Remove and Install). | ||
| 7 | Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace). | ||
| 8 | Remove the front fascia valance. See Valance - Front Fascia (Remove and Replace). | ||
| 9 | Remove the front fascia. See Fascia - Front (Remove and Install). | ||
| 10 | Disconnect the electrical connector from the front parking distance sensor. | |
| 11 | Release the tabs (x2) that attach the front parking distance sensor to the front fascia, and then remove the sensor from the fascia. |
Install
Installation procedure is the reverse of removal.
