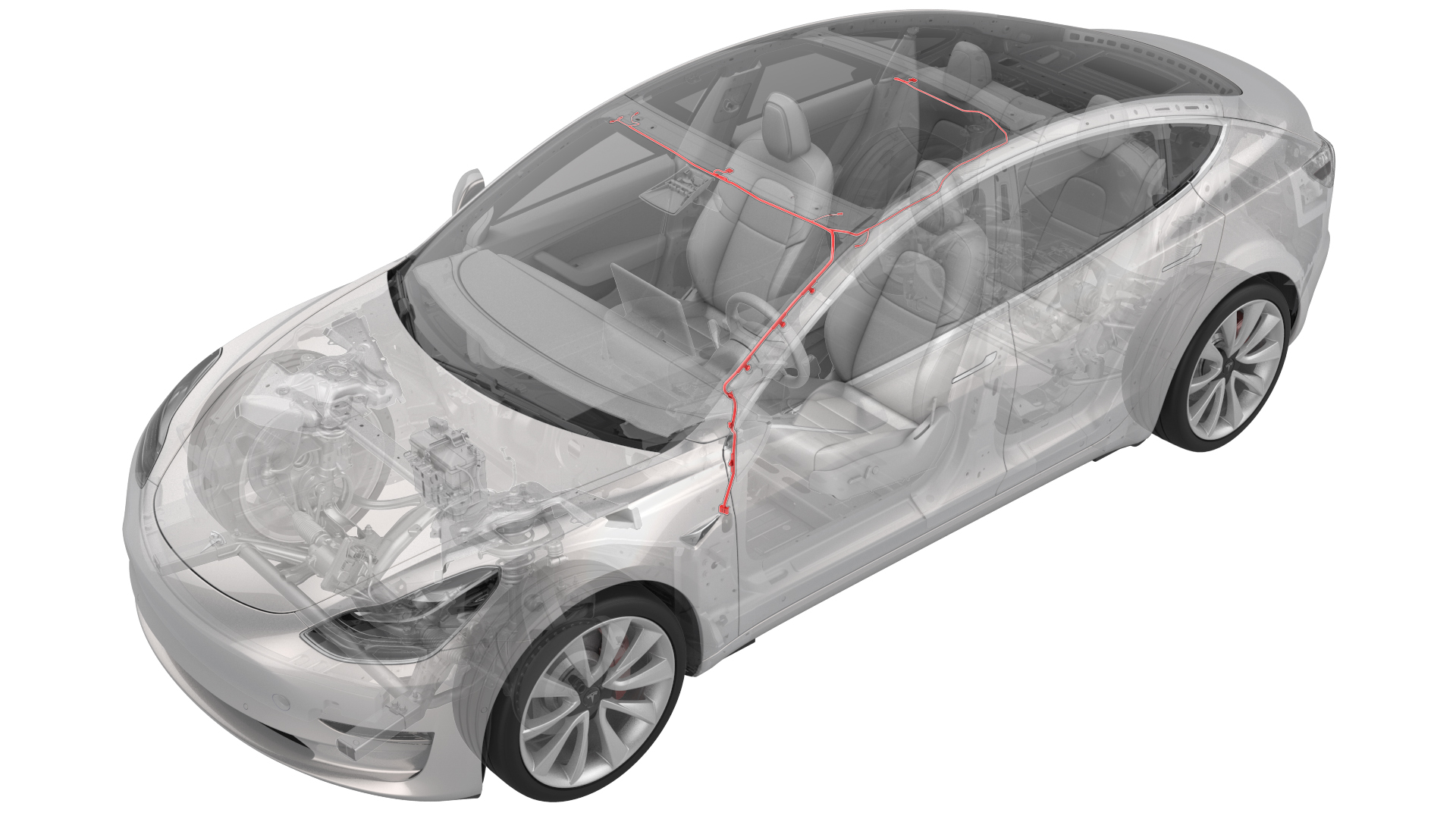

Harness - Headliner (Remove and Replace)

Correction code 1710250217102502

Remove

Remove the headliner. See Headliner (Remove and Install).
Disconnect the electrical harness from the LH headliner tweeter connector.
Disconnect the electrical harness from the front overhead console connector.
Disconnect the electrical harness from the RH headliner tweeter connector.
Disconnect the electrical harness from the rear overhead console connector.

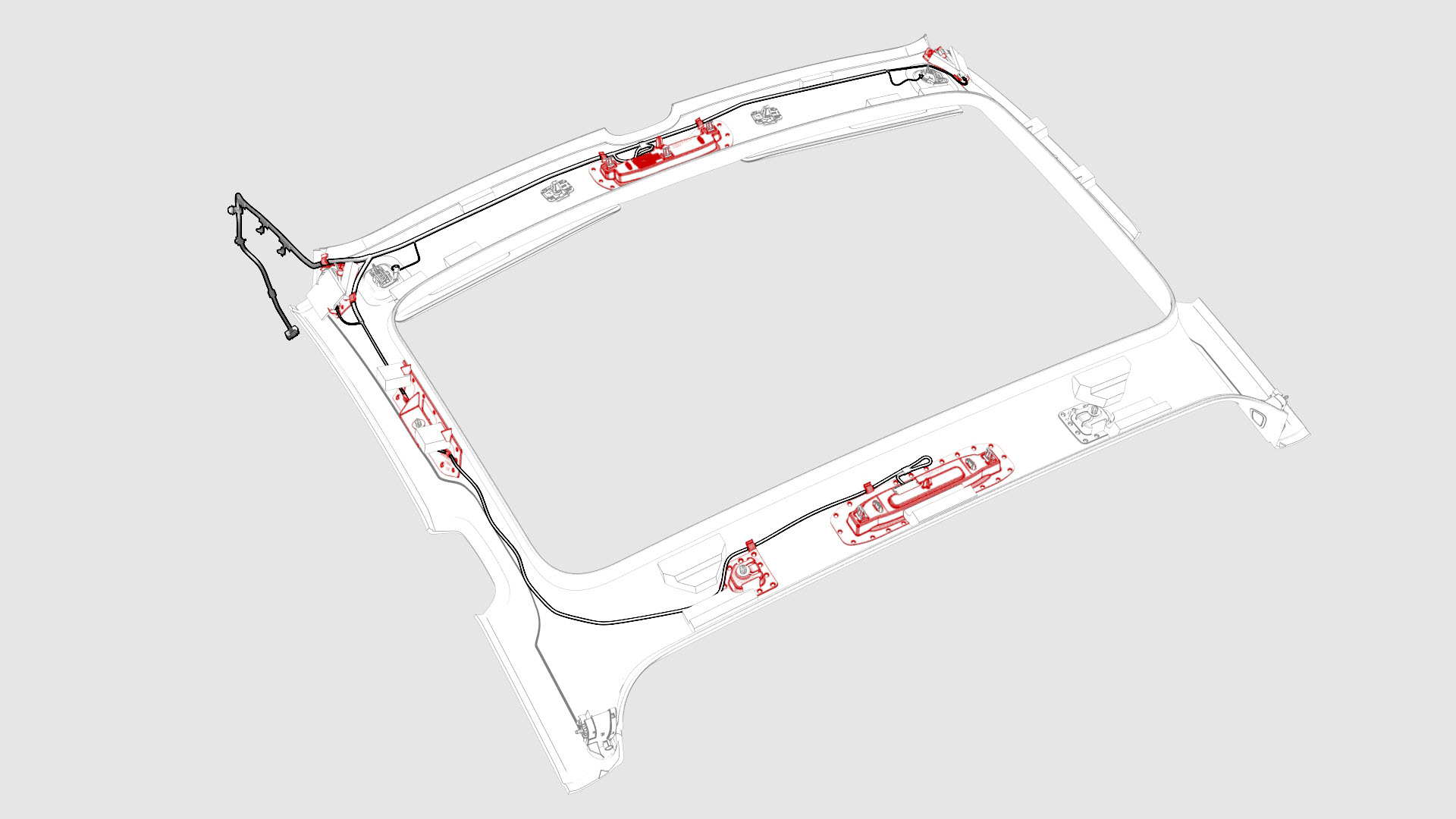

Separate the glue attaching points (x6) that attach the headliner harness to the headliner.
Release the clips that attach the headliner harness to the headliner, and then remove the harness from the headliner.

		1	Remove the headliner. See Headliner (Remove and Install).
		2	Disconnect the electrical harness from the LH headliner tweeter connector.
		3	Disconnect the electrical harness from the front overhead console connector.
		4	Disconnect the electrical harness from the RH headliner tweeter connector.
		5	Disconnect the electrical harness from the rear overhead console connector.
		6	Separate the glue attaching points (x6) that attach the headliner harness to the headliner.
		7	Release the clips that attach the headliner harness to the headliner, and then remove the harness from the headliner.

Install

Installation procedure is the reverse of removal, except for the following:

Use a glue gun to attach the headliner harness to the headliner. Allow time for the glue to set.
