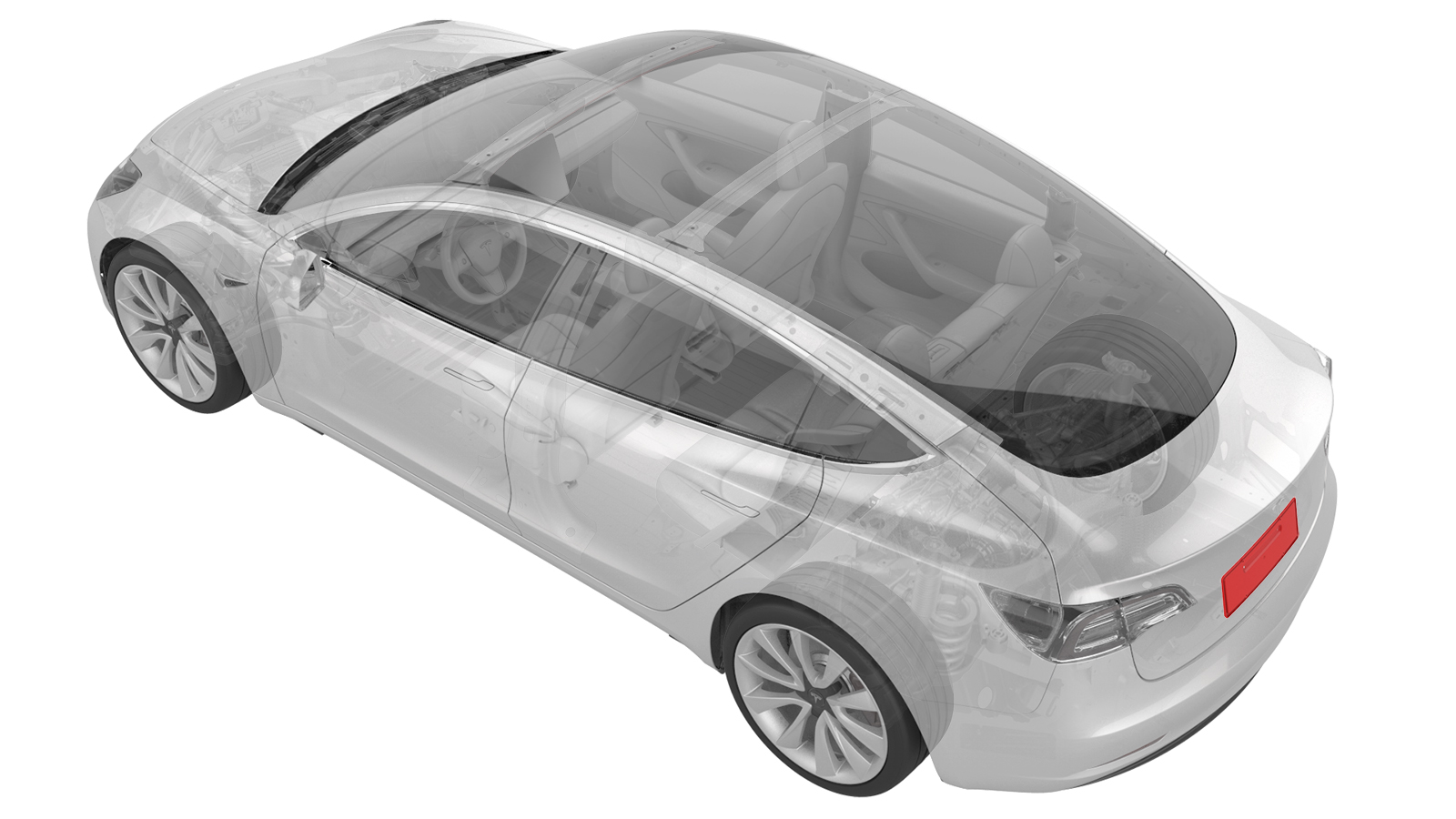

Bracket - License Plate - Rear (EMEA) (Remove and Replace)

Correction code 1207230212072302
Parent topic: 1207 - License Plate Mountings

Remove

  1. Remove the screws (x4) that attach the rear license plate to the rear license plate bracket, if a license plate is installed. Otherwise, skip to the next step.

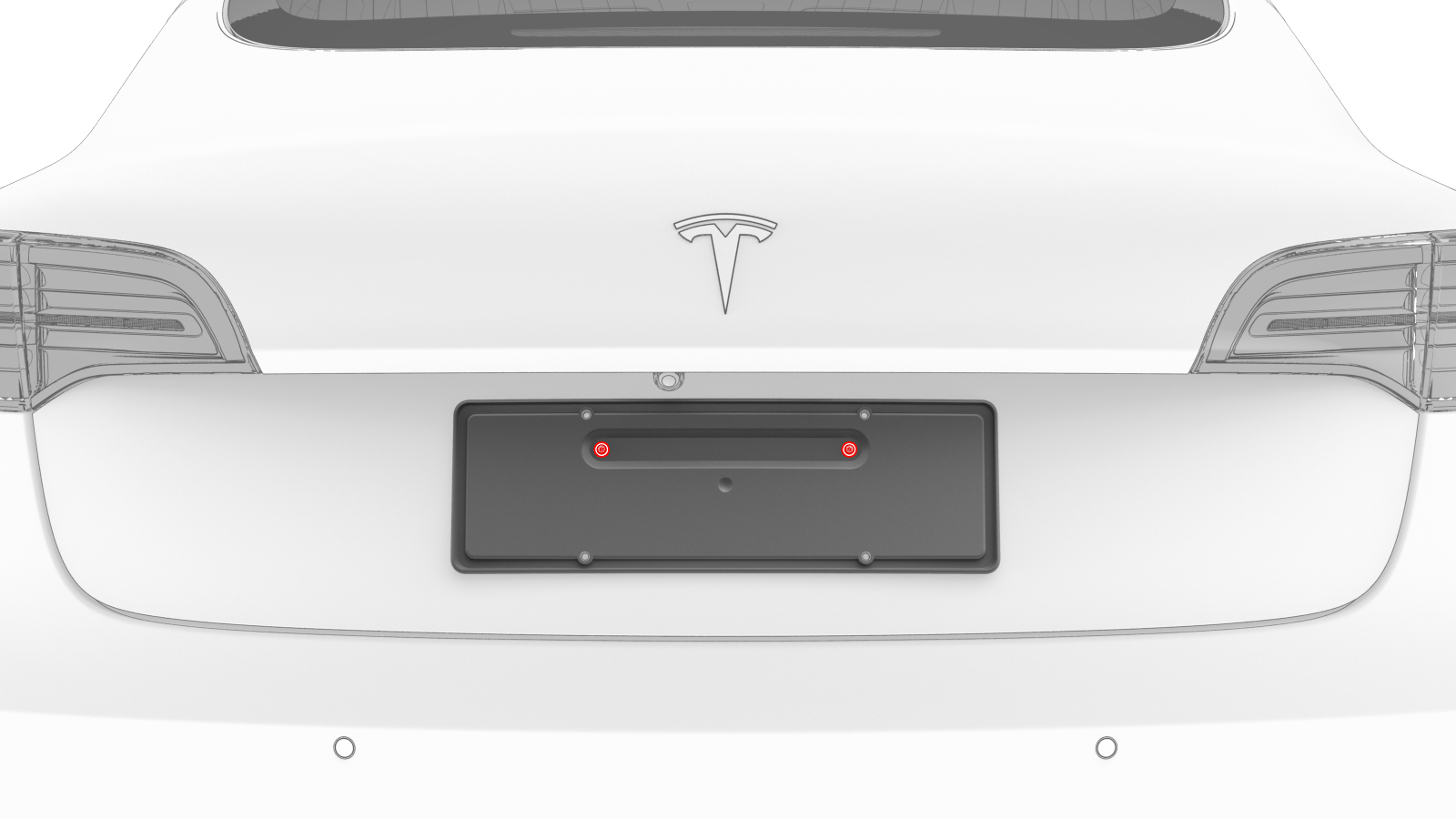

  2. Remove the screws (x2) that attach the rear license plate bracket to the vehicle, and then remove the bracket from the vehicle.
1Remove the screws (x4) that attach the rear license plate to the rear license plate bracket, if a license plate is installed. Otherwise, skip to the next step.
2Remove the screws (x2) that attach the rear license plate bracket to the vehicle, and then remove the bracket from the vehicle.

Install

  1. Verify that the thread inserts were not damaged during the removal of the screws.
  2. Clean the trunk lid surface with isopropyl alcohol (IPA) wipes, and then allow the surface to dry before continuing.
  3. Install the screws (x2) that attach the rear license plate bracket to the vehicle.
    Torque 1.2 Nm
  4. Install the screws (x4) that attach the rear license plate on the rear license plate bracket, if applicable.
    Torque 1.2 Nm
1Verify that the thread inserts were not damaged during the removal of the screws.
2Clean the trunk lid surface with isopropyl alcohol (IPA) wipes, and then allow the surface to dry before continuing.
3Install the screws (x2) that attach the rear license plate bracket to the vehicle.
Torque 1.2 Nm
4Install the screws (x4) that attach the rear license plate on the rear license plate bracket, if applicable.
Torque 1.2 Nm
