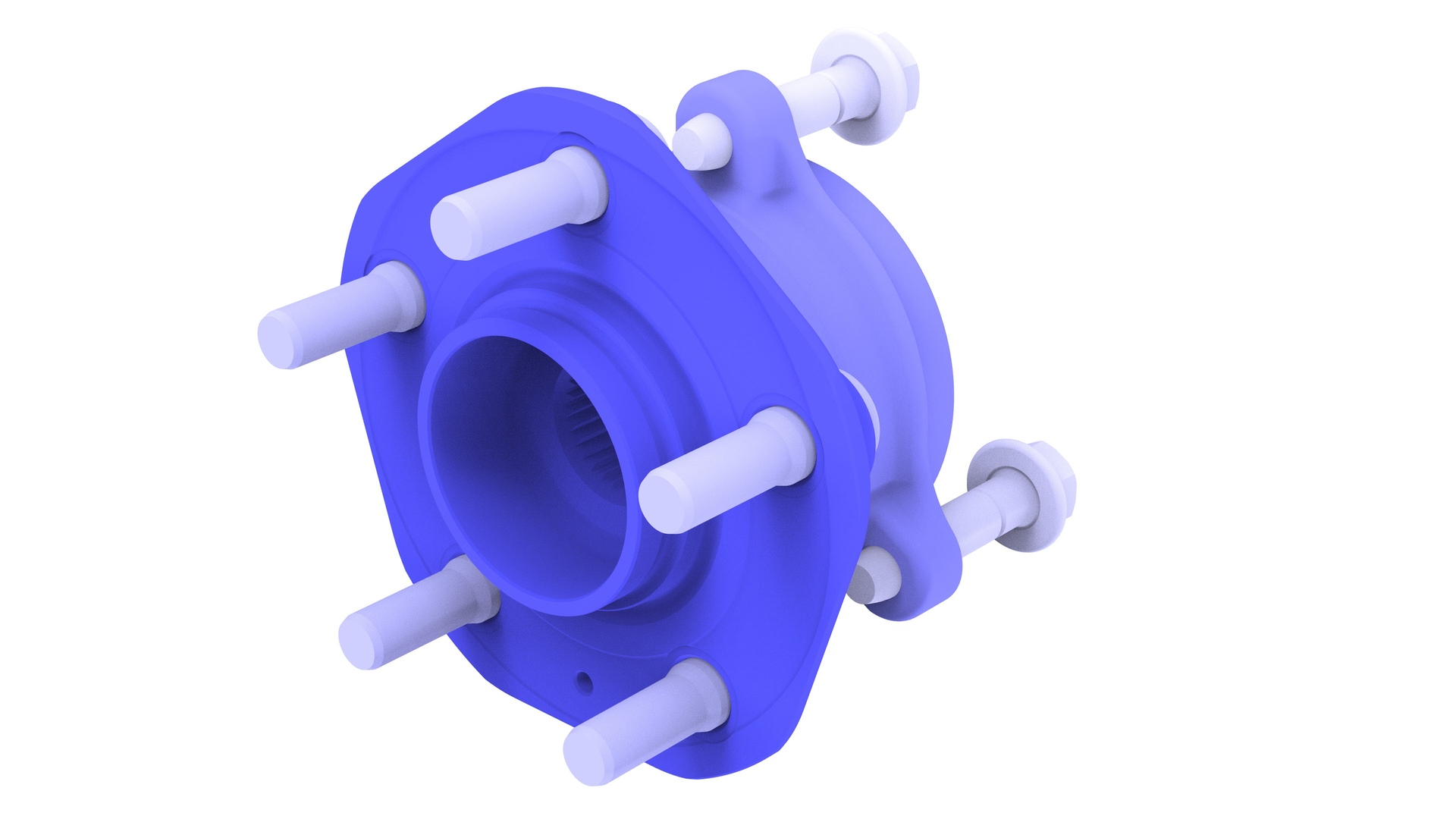

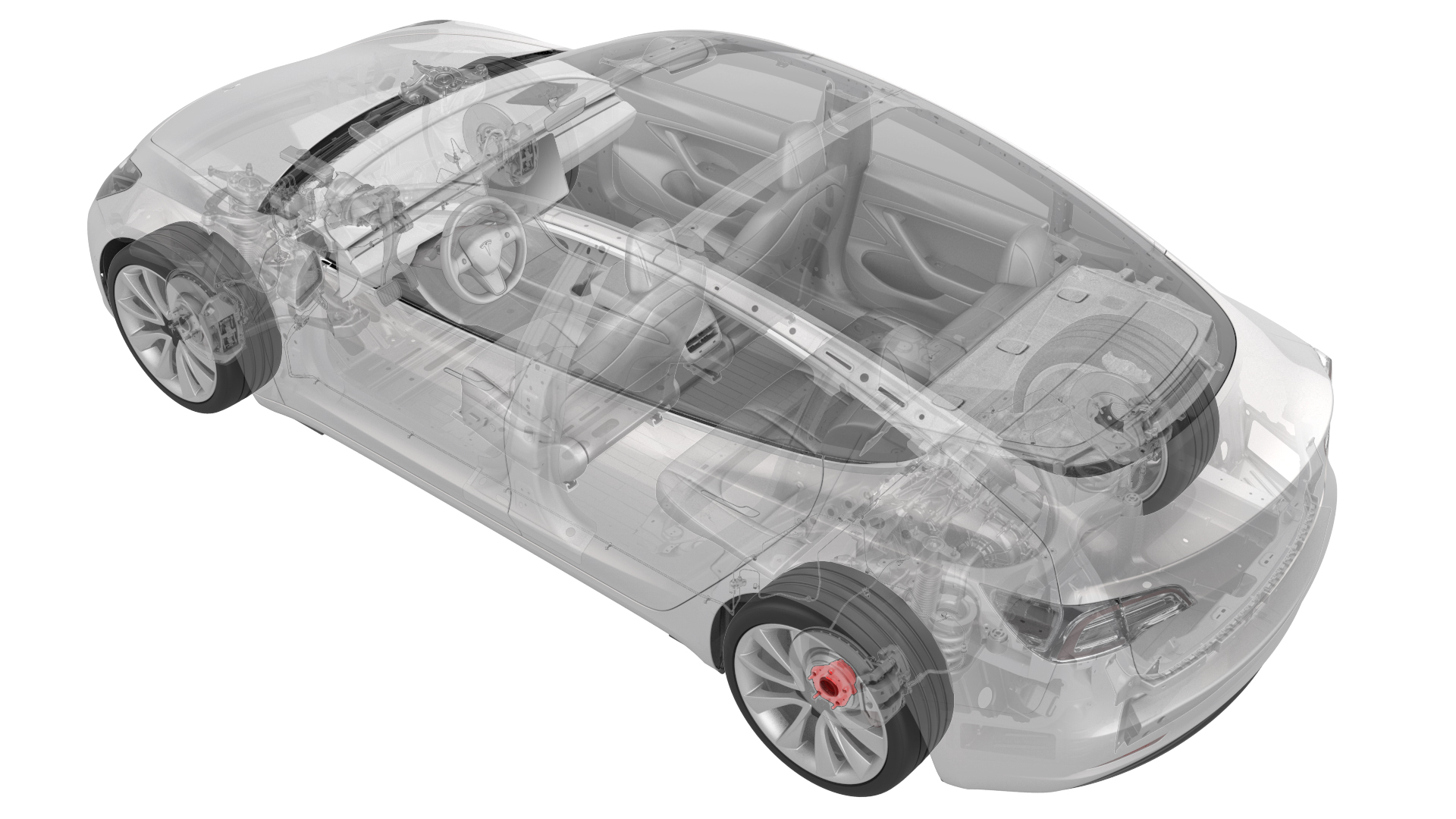

Hub - Rear - LH (Remove and Replace)

Correction code 3103060231030602
Parent topic: 3103 - Rear Suspension (Including Hubs)

Remove

  1. Remove the LH rear brake rotor. See Brake Rotor - Rear - LH (Remove and Replace).
  2. Remove the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).

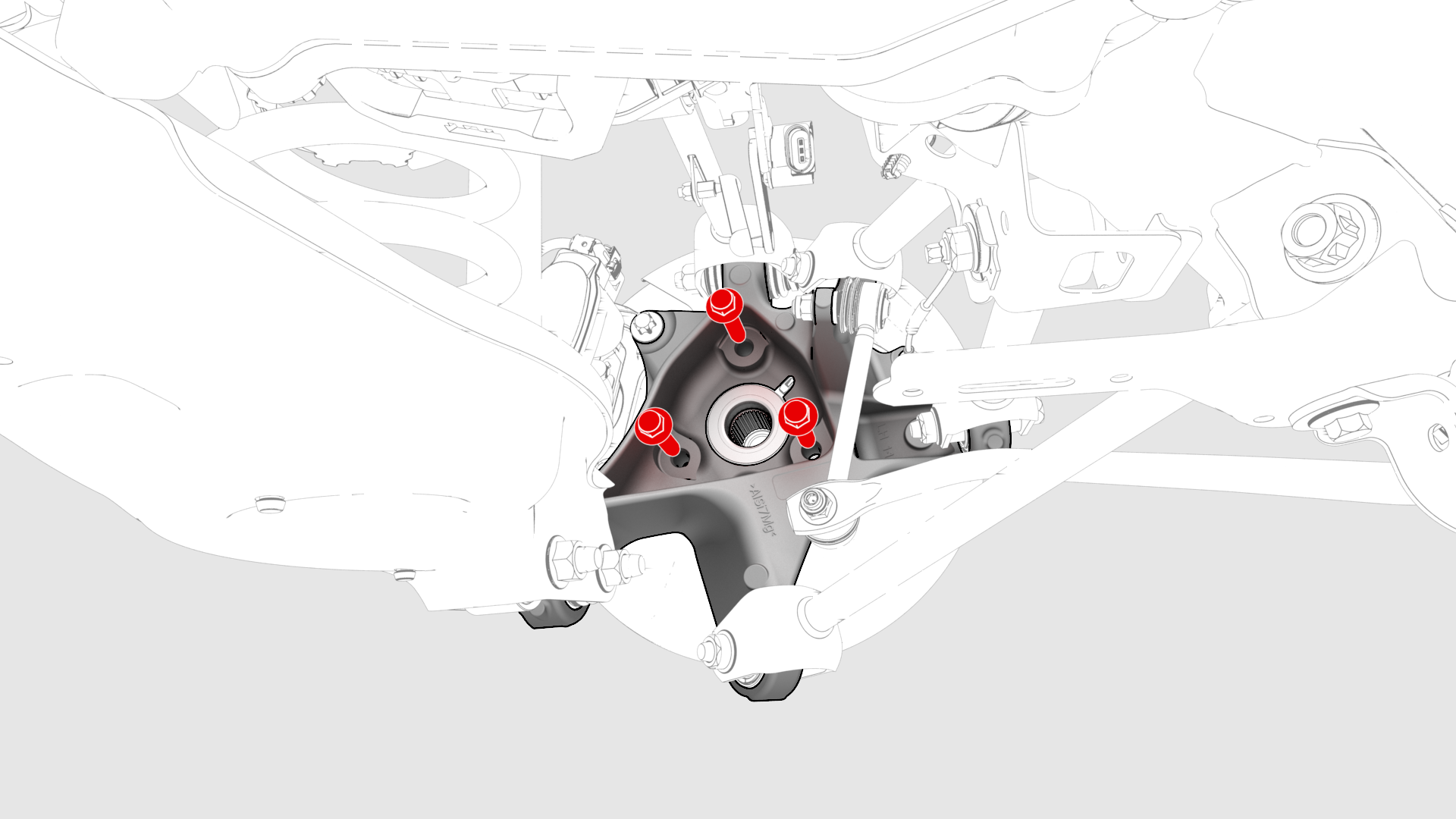

  3. Remove and discard the bolts that attach the LH rear hub to the knuckle, and remove the hub from the vehicle.
    Torque 85 Nm
1Remove the LH rear brake rotor. See Brake Rotor - Rear - LH (Remove and Replace).
2Remove the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
3Remove and discard the bolts that attach the LH rear hub to the knuckle, and remove the hub from the vehicle.
Torque 85 Nm

Install

Installation procedure is the reverse of removal, except for the following:

Caution:
Replace all patchbolts.
