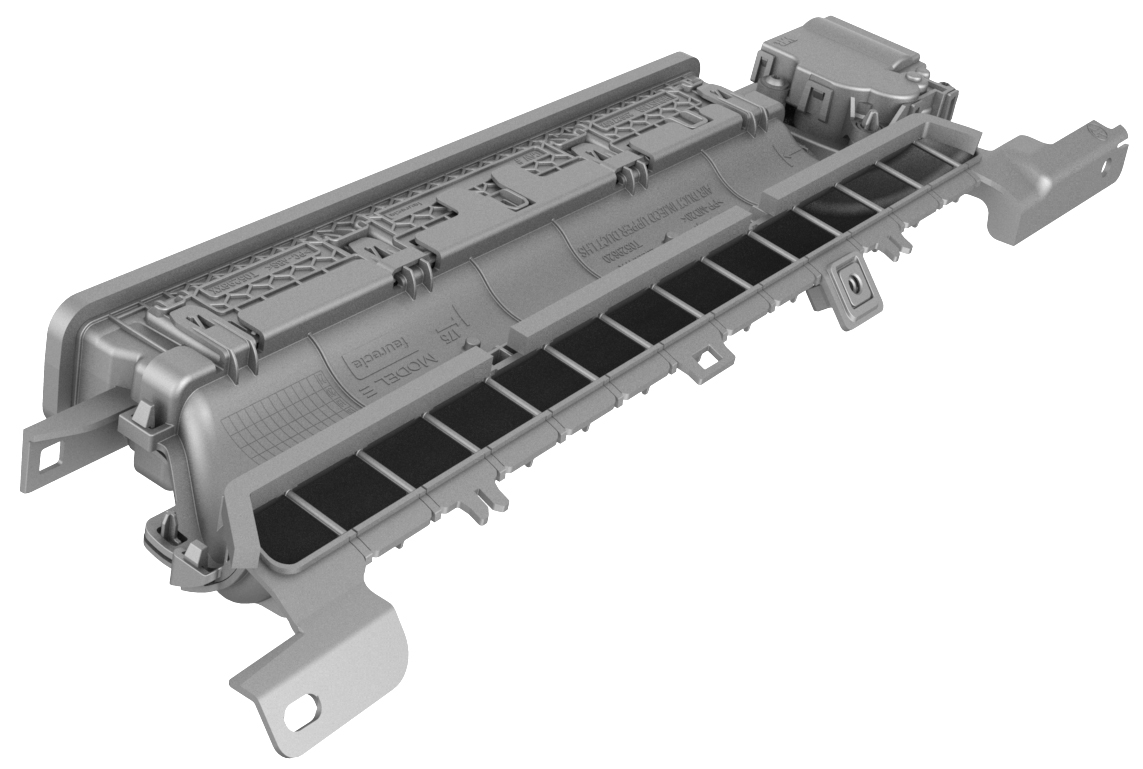

Vent - Front - LH (Remove and Replace)
Correction code 1405310214053102
Remove
-
Remove the screw that attaches the LH front vent, and then pull out the LH side of the LH front vent to release it from the instrument panel.
Torque 2.3 Nm
-
Disconnect the electrical connector from the LH front vent, and then remove the LH front vent from the vehicle.
| 1 | Remove the vent finisher. See Finisher - Vent (Remove and Replace). | ||
| 2 | Remove the screw that attaches the LH front vent, and then pull out the LH side of the LH front vent to release it from the instrument panel. Torque 2.3 Nm | |
| 3 | Disconnect the electrical connector from the LH front vent, and then remove the LH front vent from the vehicle. |
Install
Installation procedure is the reverse of removal, except for the following:
If the vehicle is left hand drive, make sure not to dislodge the foam block in the cavity where the front LH vent installs.
