Latch - Door - Rear - LH (Remove and Replace)

Correction code 1135370211353702
Parent topic: 1135 - Latches Strikers and Pinch Sensors

Remove

  1. Remove the LH rear window regulator. See Window Motor / Regulator Assembly - Rear - LH (Remove and Replace).

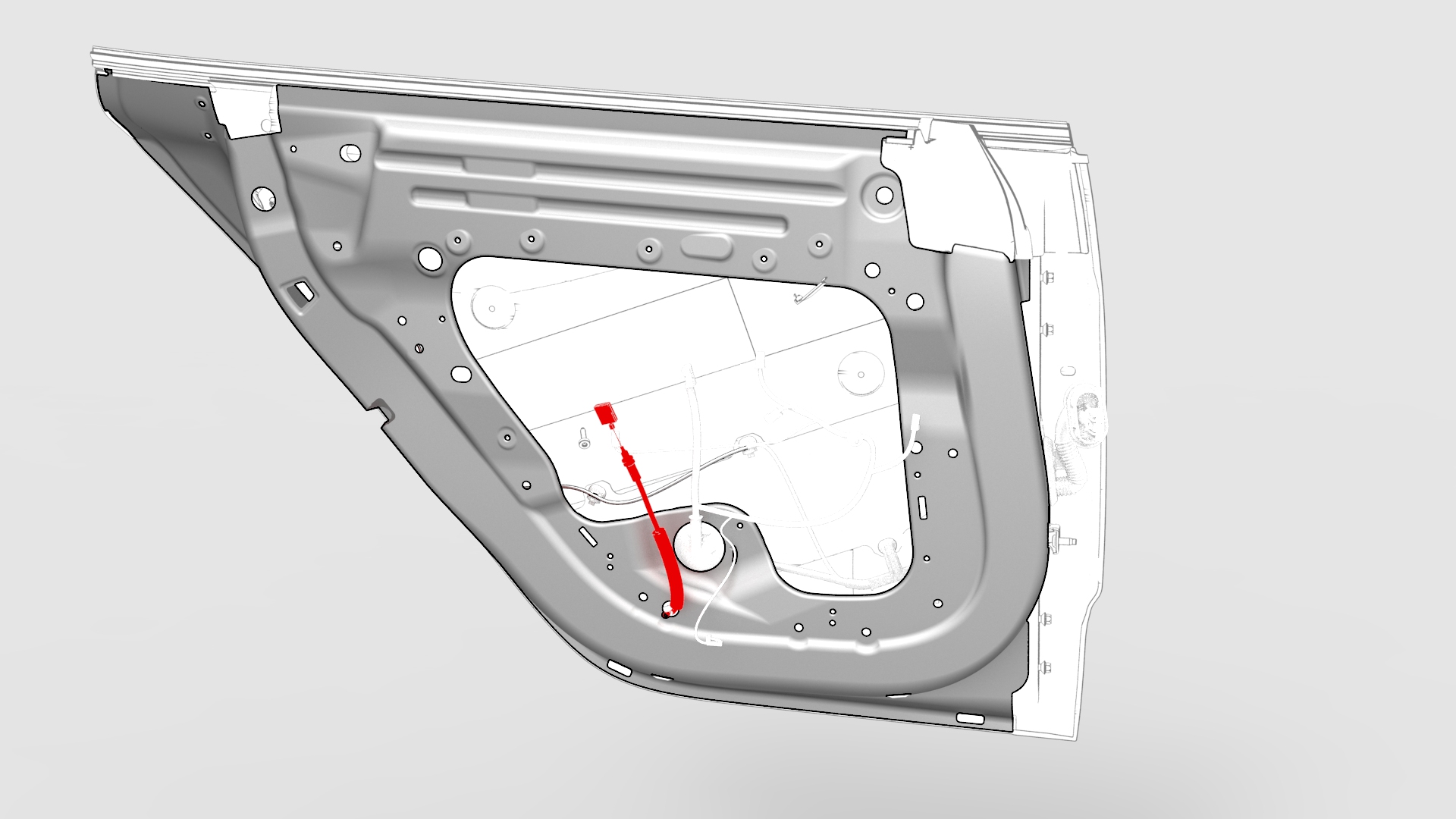

  2. Disconnect the LH rear door electrical harness from the LH rear door latch connector.

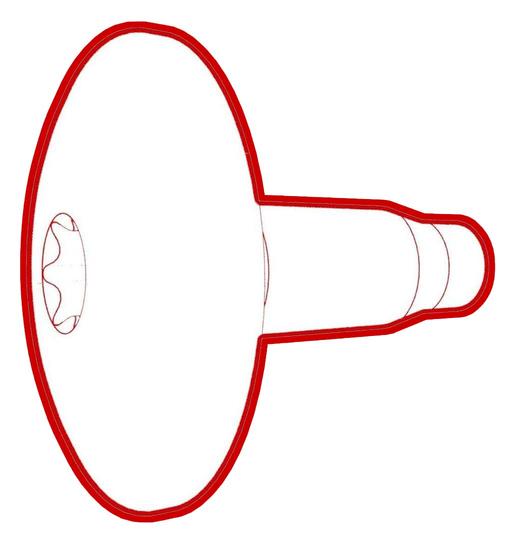

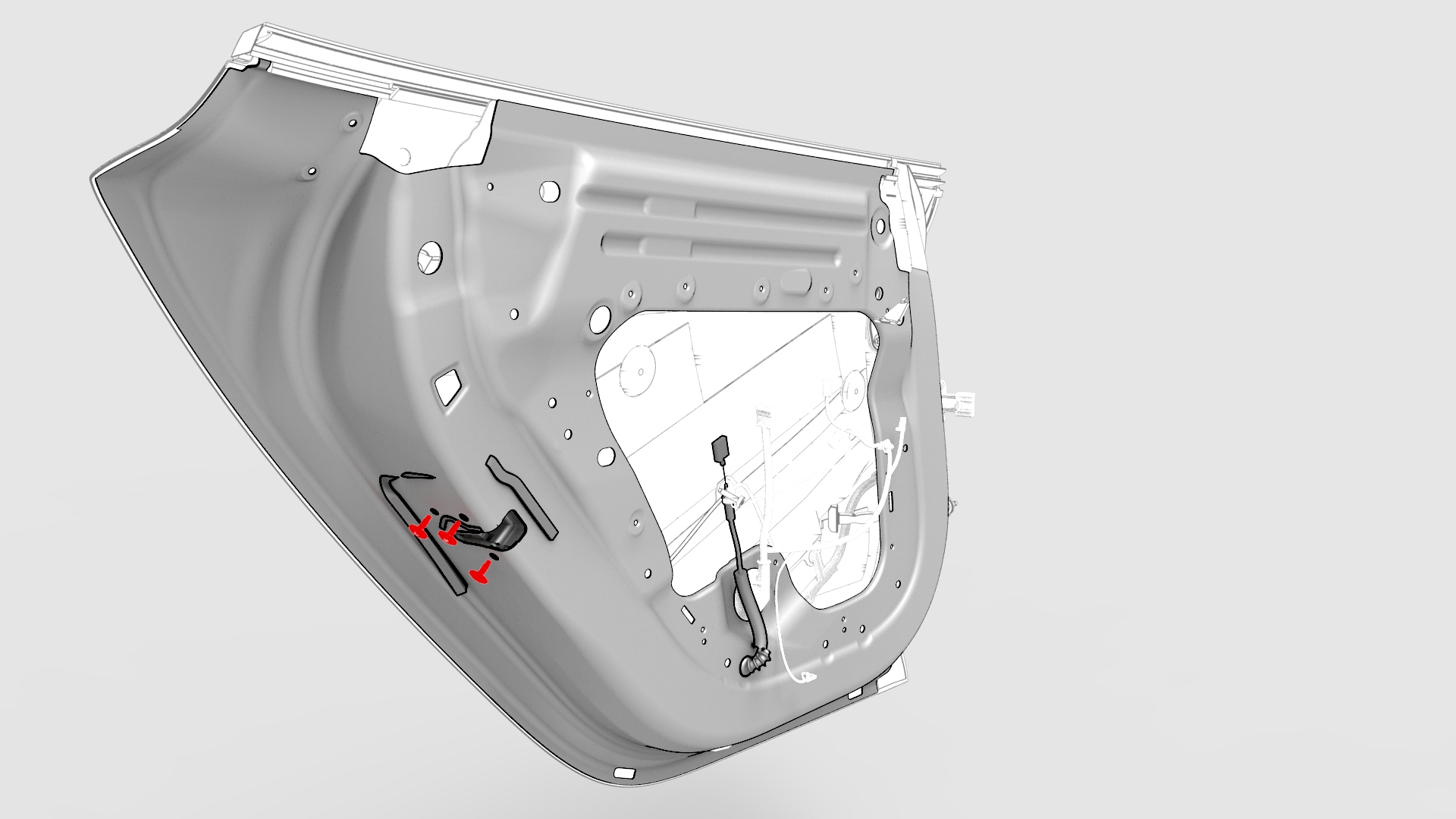

  3. Remove the bolts that attach the LH rear door latch to the rear of the LH rear door.

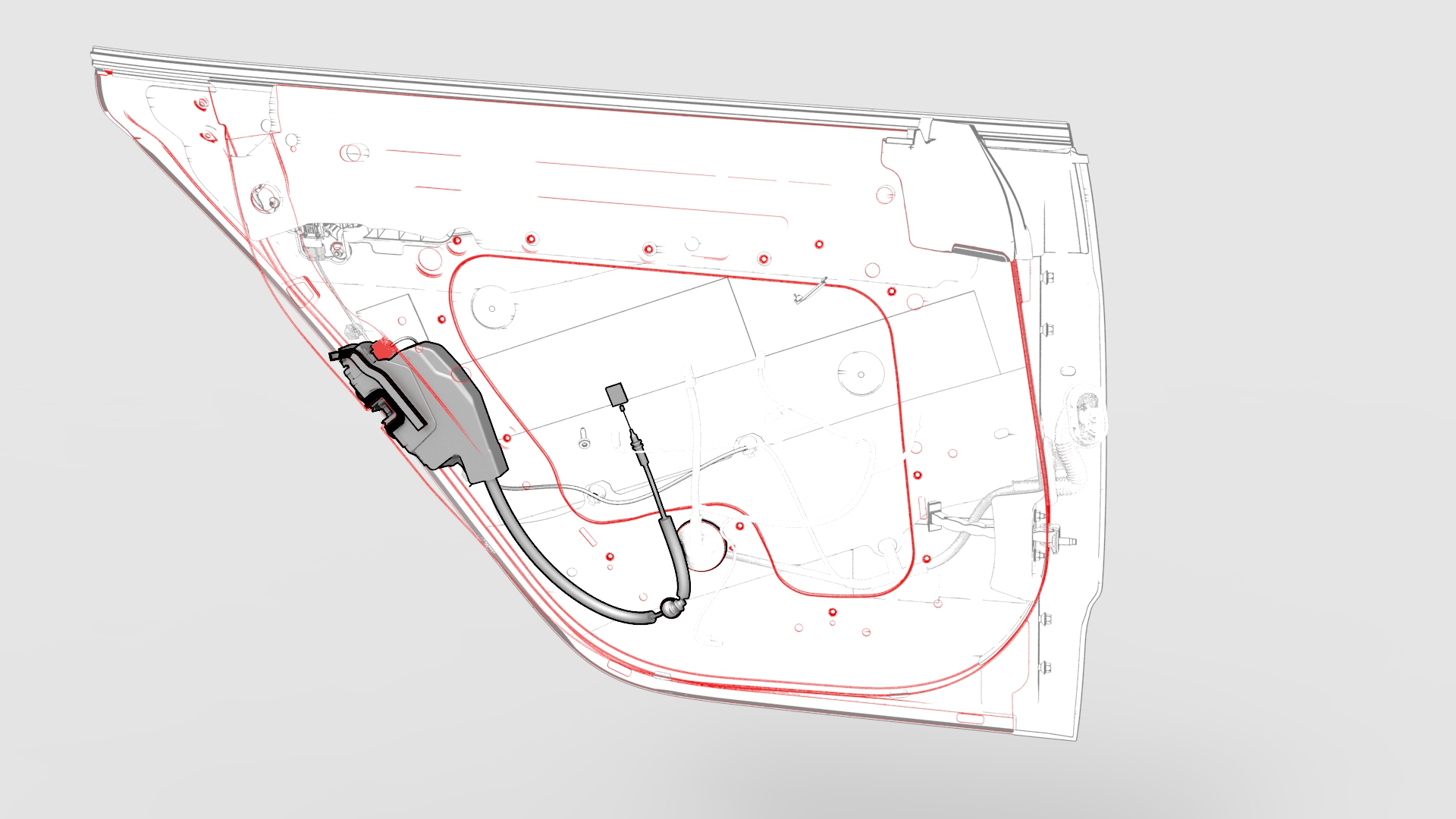

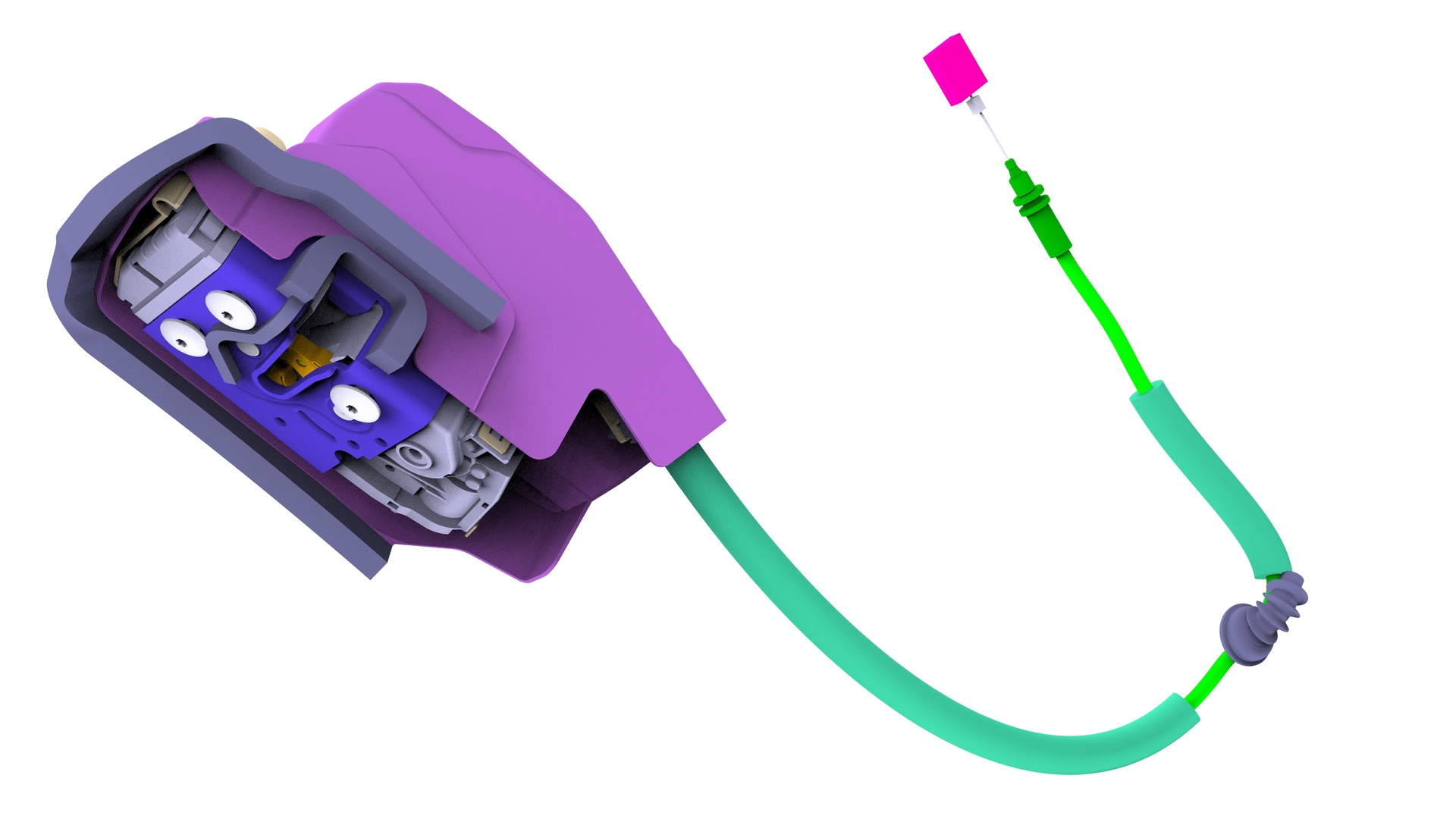

  4. Move the LH rear door latch cable grommet in through the LH rear door bulkhead, while at the same time, move the latch cable in and remove the latch from the door.
1Remove the LH rear window regulator. See Window Motor / Regulator Assembly - Rear - LH (Remove and Replace).
2Disconnect the LH rear door electrical harness from the LH rear door latch connector.
3Remove the bolts that attach the LH rear door latch to the rear of the LH rear door.
4Move the LH rear door latch cable grommet in through the LH rear door bulkhead, while at the same time, move the latch cable in and remove the latch from the door.

Install

  1. Install the LH rear door latch into the LH rear door, while at the same time, move the latch cable out through the door, and then secure the latch cable grommet in the door.
  2. Install and hand-tighten the bolts that attach the LH rear door latch to the rear of the LH rear door.
  3. Connect the LH rear door electrical harness to the LH door latch connector.
  4. Connect the LH rear door electrical harness to the puddle light, and remove the shop towel from the LH rear door striker.
  5. Adjust LH rear door gap and flush at the LH rear door striker.
  6. Torque the bolts that attach the LH rear door latch to the rear of the LH rear door.
    Torque 10 Nm
  7. Disconnect the LH rear door electrical harness from the puddle light, and re-install the shop towel into the LH rear door striker.
  8. Remove the LH rear window regulator. See Window Motor / Regulator Assembly - Rear - LH (Remove and Replace).
1Install the LH rear door latch into the LH rear door, while at the same time, move the latch cable out through the door, and then secure the latch cable grommet in the door.
2Install and hand-tighten the bolts that attach the LH rear door latch to the rear of the LH rear door.
3Connect the LH rear door electrical harness to the LH door latch connector.
4Connect the LH rear door electrical harness to the puddle light, and remove the shop towel from the LH rear door striker.
5Adjust LH rear door gap and flush at the LH rear door striker.
6Torque the bolts that attach the LH rear door latch to the rear of the LH rear door.
Torque 10 Nm
7Disconnect the LH rear door electrical harness from the puddle light, and re-install the shop towel into the LH rear door striker.
8Remove the LH rear window regulator. See Window Motor / Regulator Assembly - Rear - LH (Remove and Replace).
