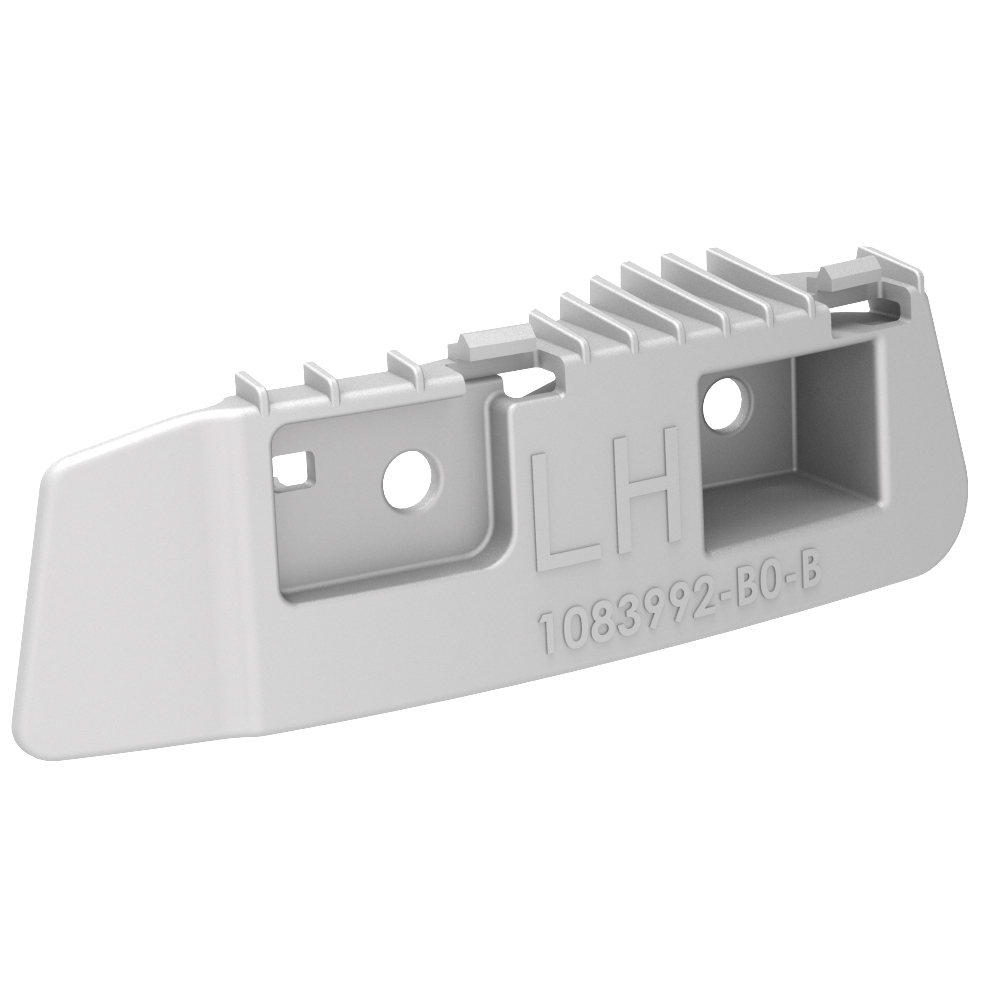

Bracket - Taillight - LH (Remove and Replace)

Correction code 1001710210017102
Parent topic: 1001 - Bumper / Fascia

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Open the trunk and remove the LH liftgate stop.
  3. Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
  4. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  5. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  6. Remove the LH 2nd row seatback. See Seat Back - 2nd Row - LH (Remove and Install).
  7. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  8. Remove the RH 2nd row seatback. See Seat Back - 2nd Row - RH (Remove and Install).
  9. Remove the rear trunk carpet. See Carpet - Rear Trunk (Remove and Replace).

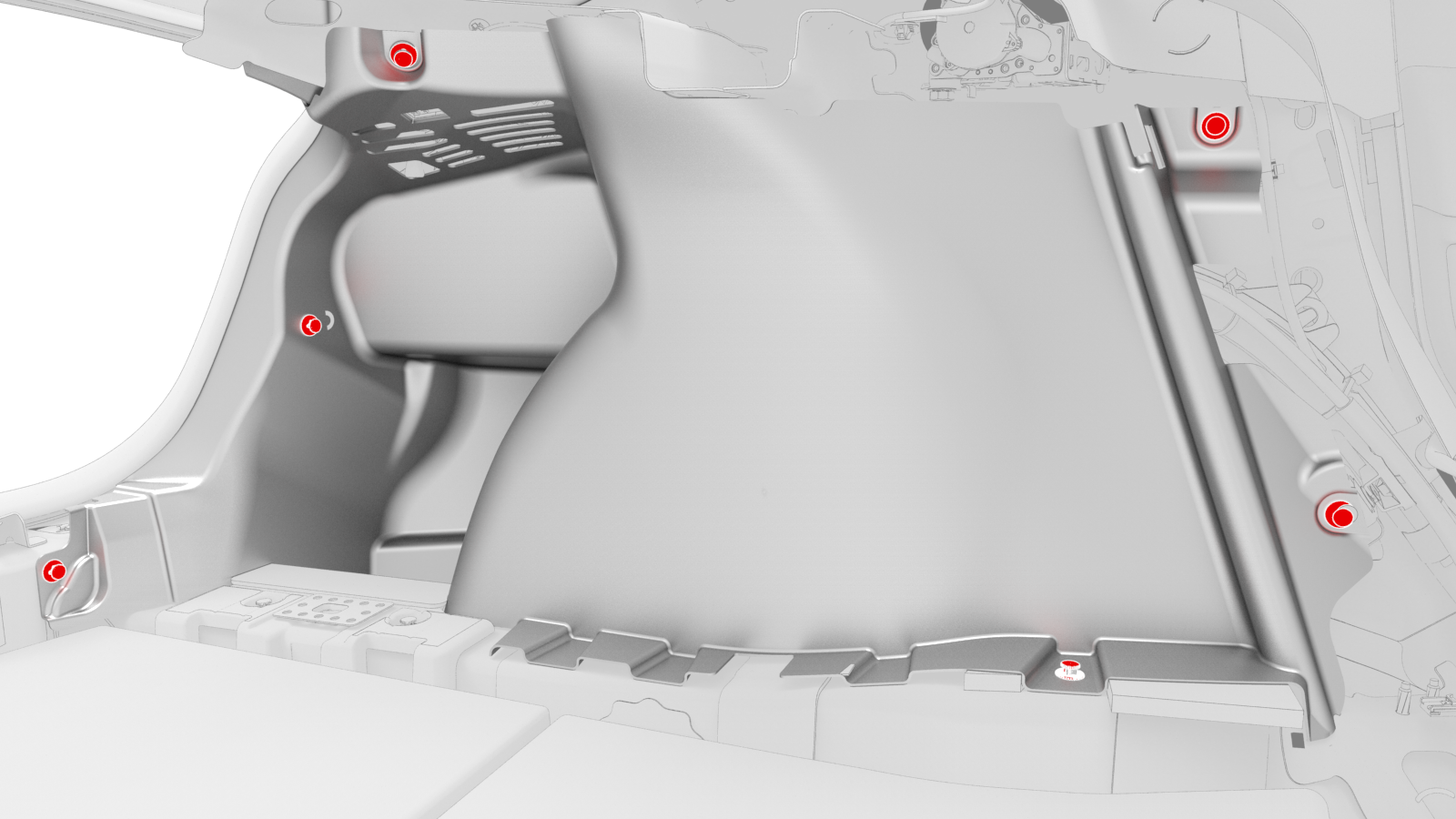

  10. Release the clips that attach the LH and RH trunk side trims to the vehicle.
    LH side shown, RH similar

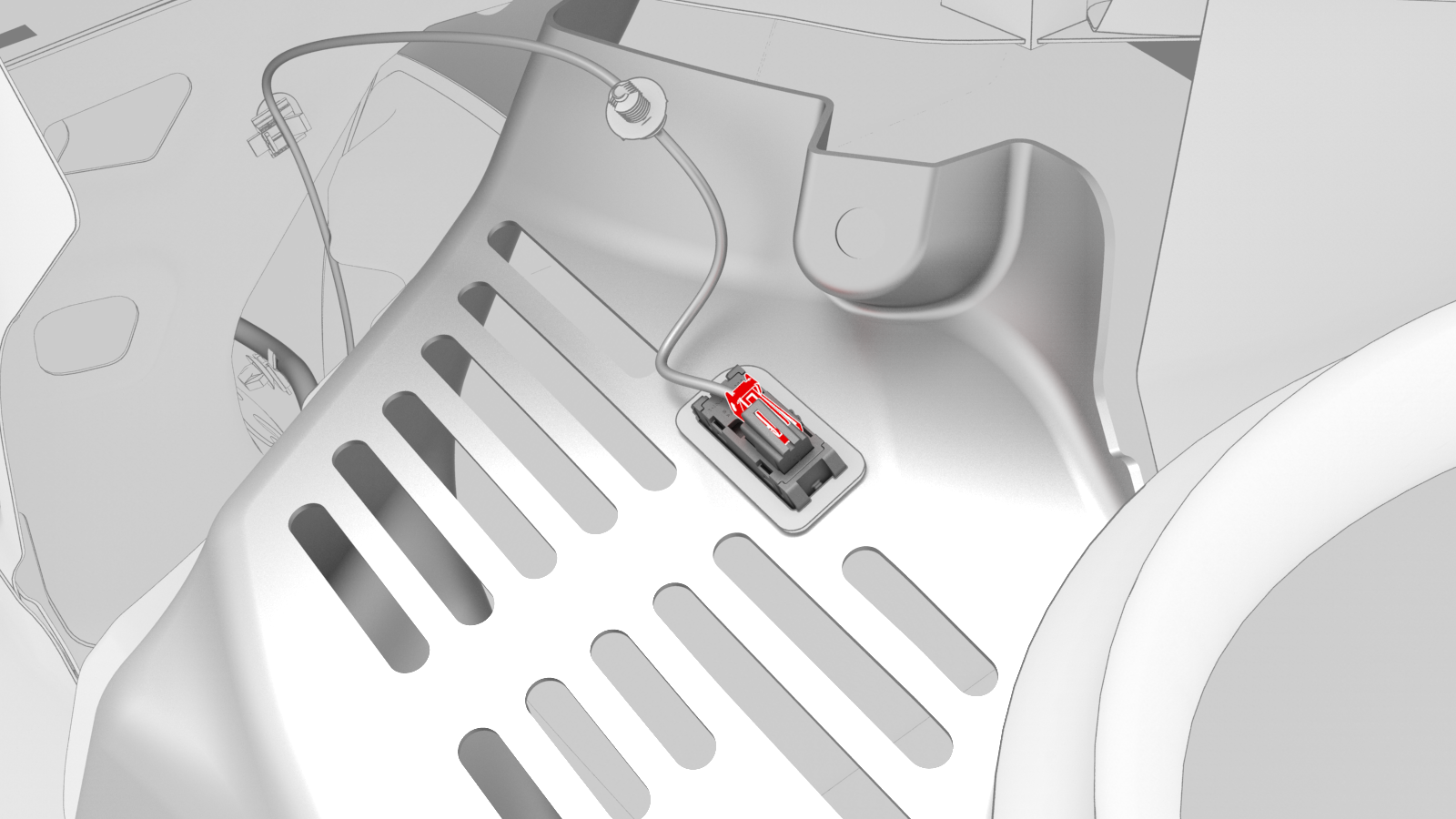

  11. Remove the puddle light connectors from the LH and RH trunk side trims.
    LH side shown, RH similar

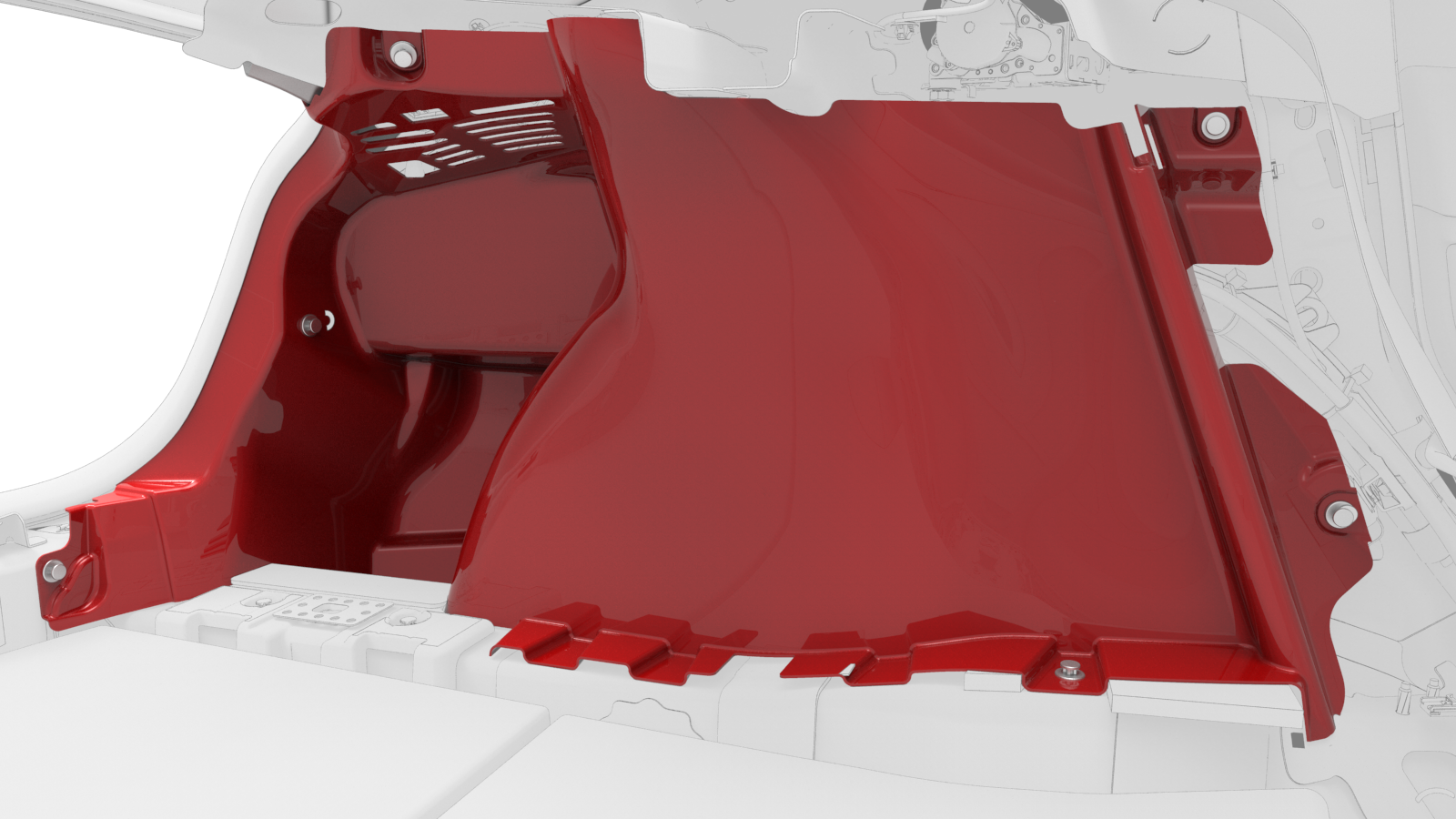

  12. Remove the LH and RH trunk side trims from the vehicle.
    LH side shown, RH similar

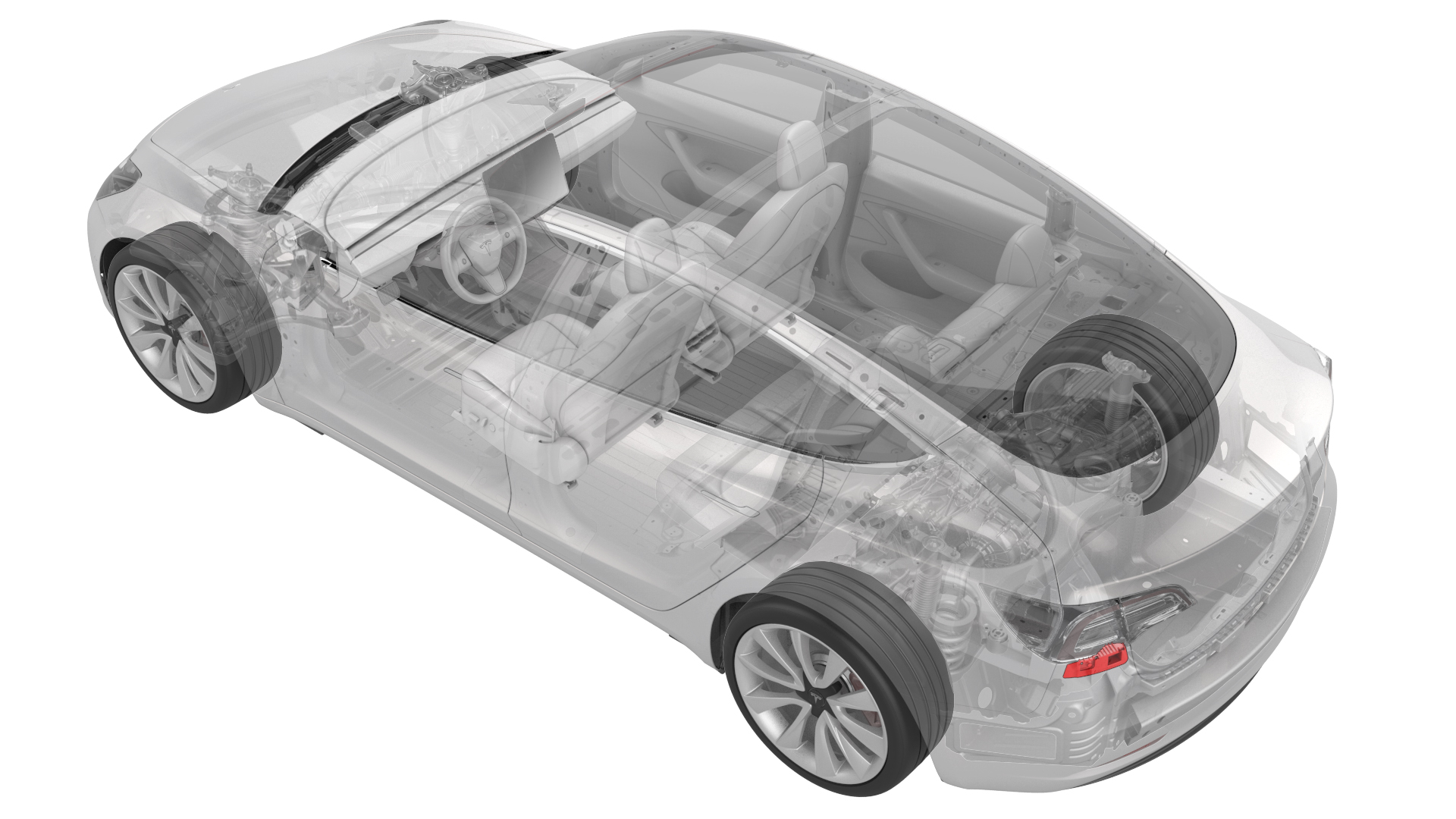

  13. Remove the LH and RH taillights. See Taillight - LH (Remove and Replace).
  14. Remove the rear fascia. See Fascia - Rear (Remove and Install).

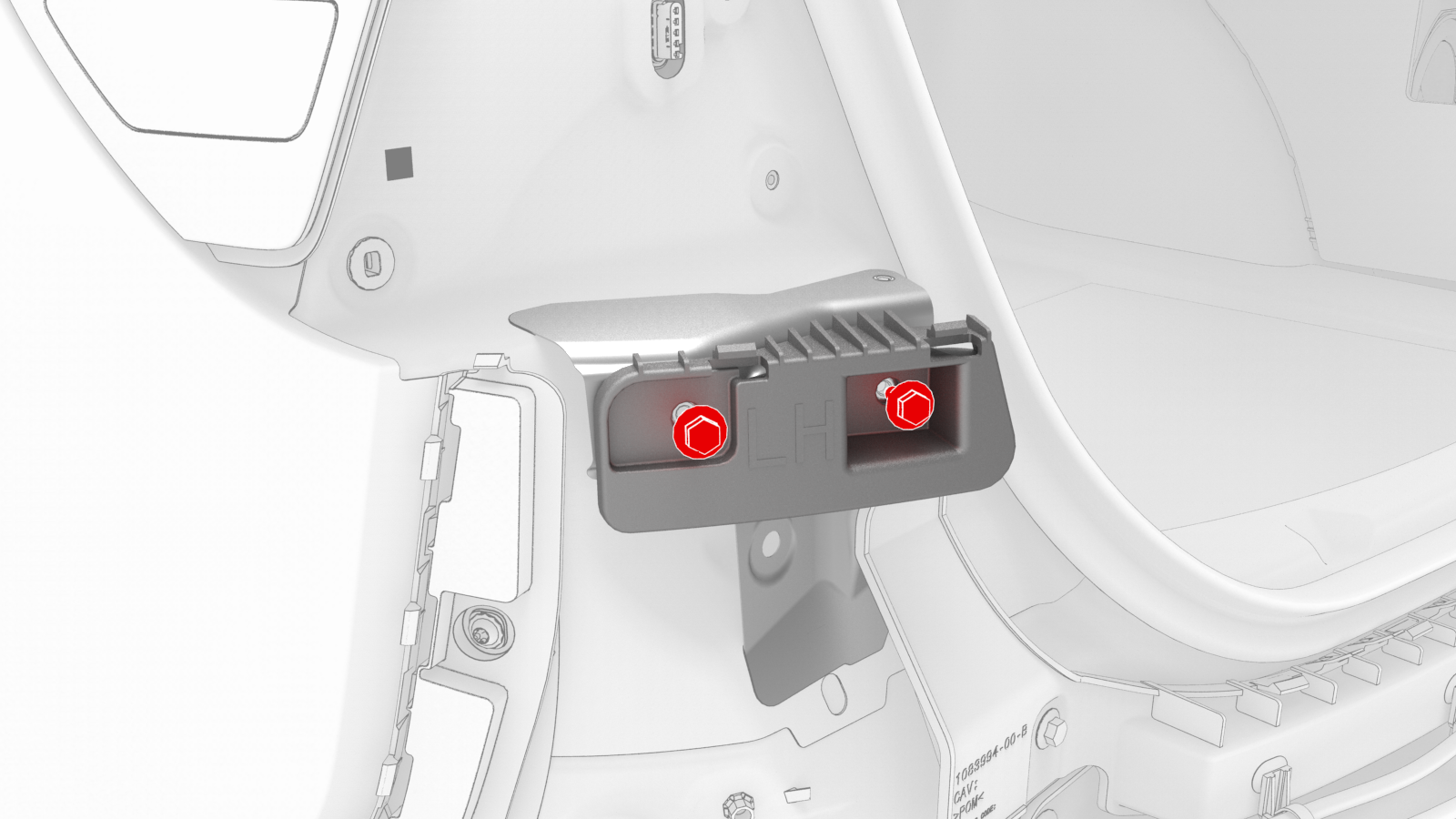

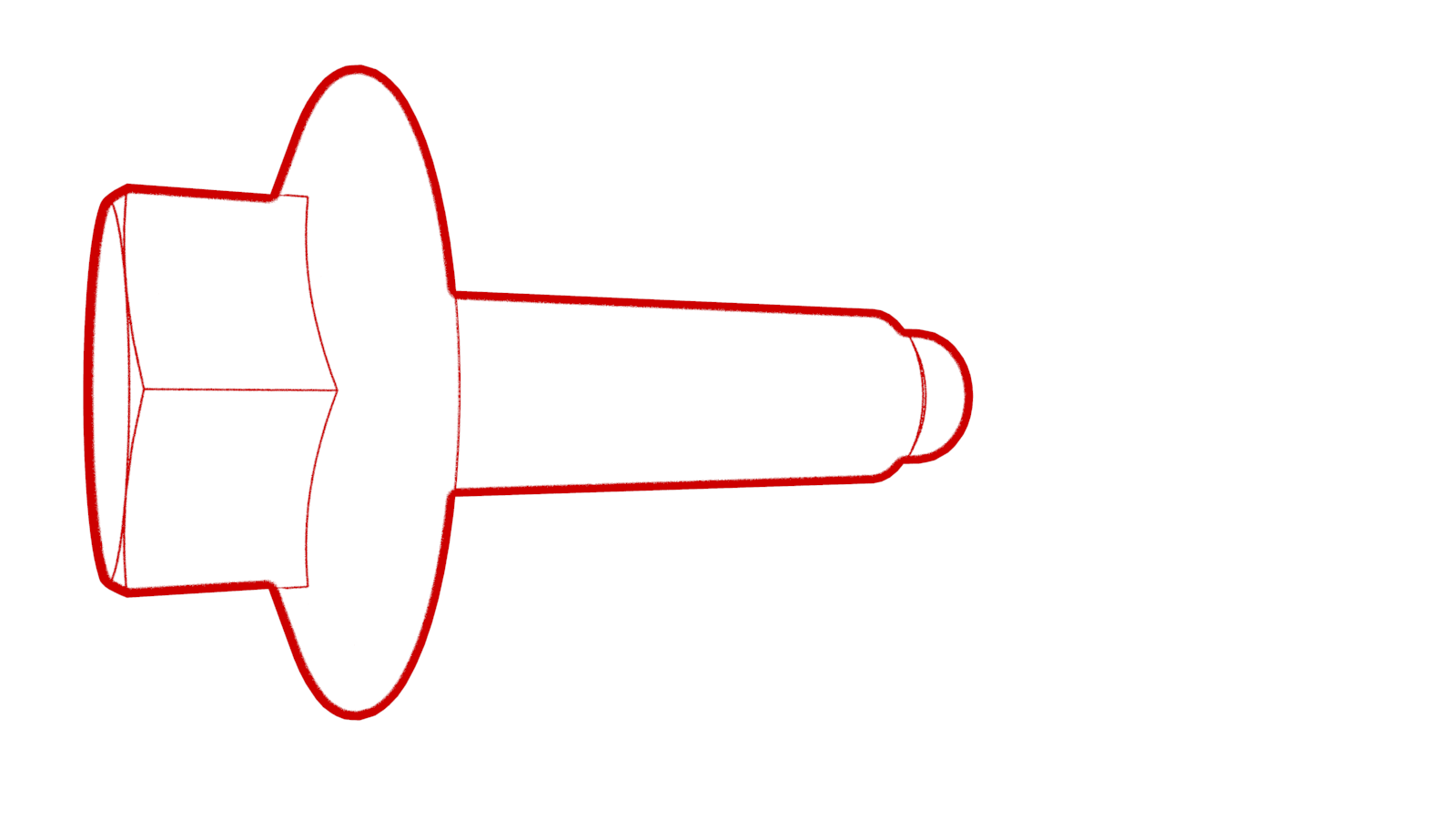

  15. Remove the bolts that attach the LH taillight bracket to the vehicle, and then remove the LH taillight bracket.
    Torque 4 Nm
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Open the trunk and remove the LH liftgate stop.
3Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
4Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
5Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
6Remove the LH 2nd row seatback. See Seat Back - 2nd Row - LH (Remove and Install).
7Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
8Remove the RH 2nd row seatback. See Seat Back - 2nd Row - RH (Remove and Install).
9Remove the rear trunk carpet. See Carpet - Rear Trunk (Remove and Replace).
LH side shown, RH similar
10Release the clips that attach the LH and RH trunk side trims to the vehicle.
LH side shown, RH similar
11Remove the puddle light connectors from the LH and RH trunk side trims.
LH side shown, RH similar
12Remove the LH and RH trunk side trims from the vehicle.
13Remove the LH and RH taillights. See Taillight - LH (Remove and Replace).
14Remove the rear fascia. See Fascia - Rear (Remove and Install).
15Remove the bolts that attach the LH taillight bracket to the vehicle, and then remove the LH taillight bracket.
Torque 4 Nm

Install

Installation procedure is the reverse of removal.
