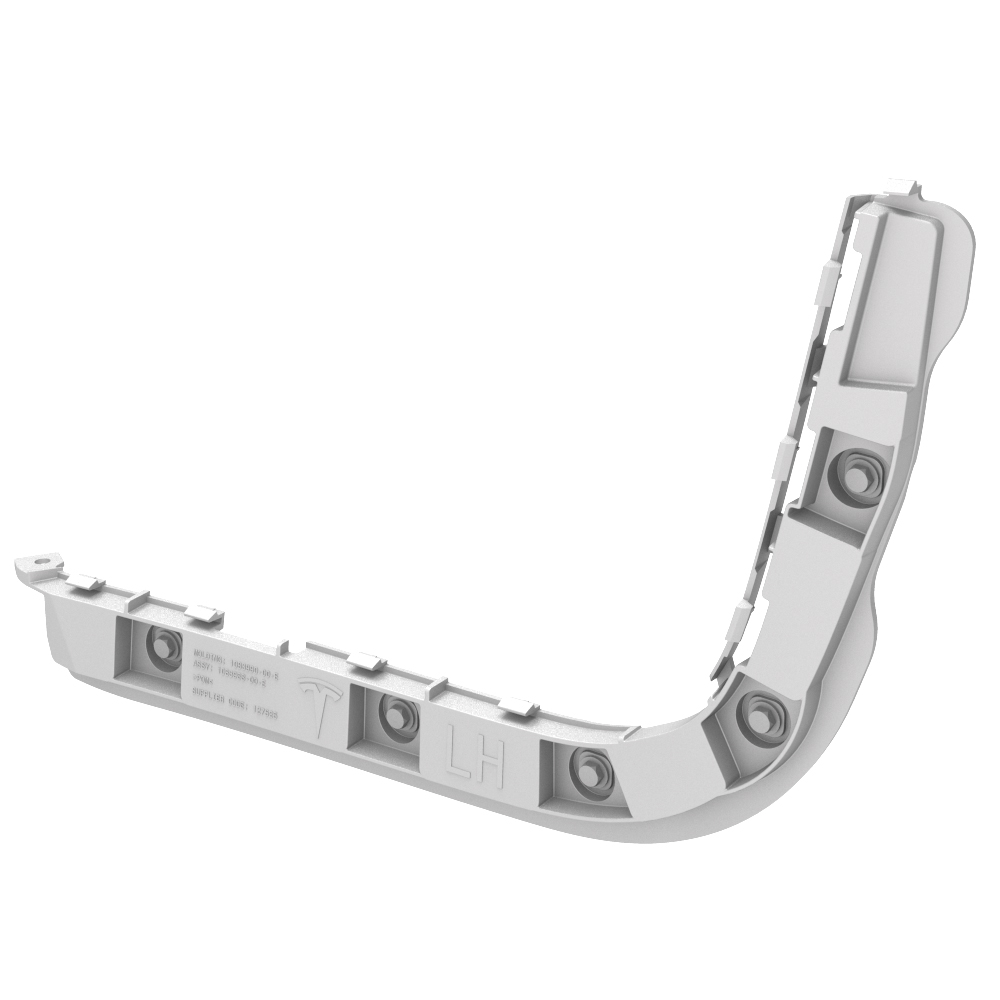

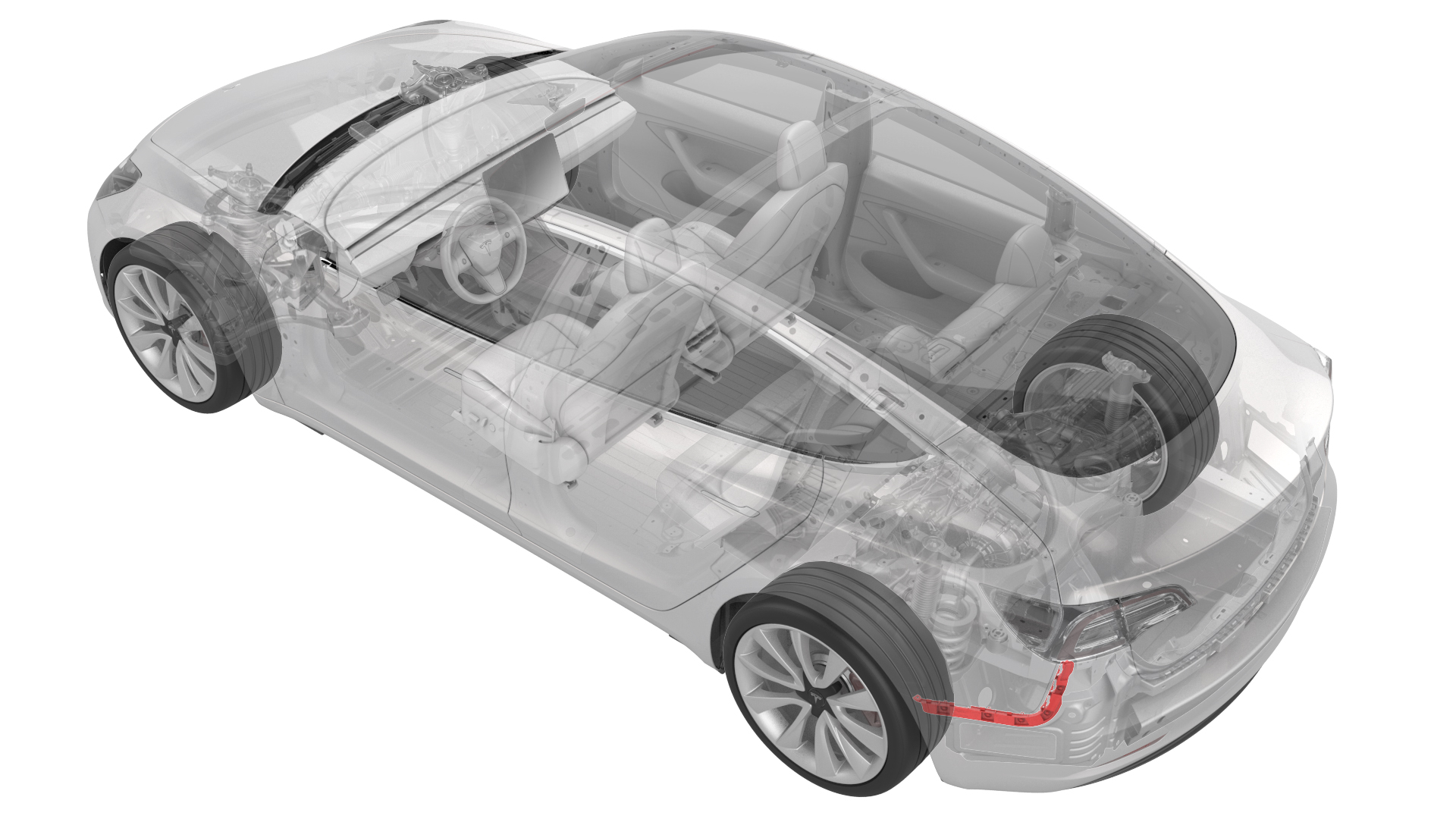

Bracket - Rear Wing - LH (Remove and Replace)

Correction code 1001201110012011
Parent topic: 1001 - Bumper / Fascia

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Open the trunk, and then remove the LH and RH trunk stops.
    LH shown, RH similar
  3. Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
  4. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  5. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  6. Remove the LH 2nd row seatback. See Seat Back - 2nd Row - LH (Remove and Install).
  7. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  8. Remove the RH 2nd row seatback. See Seat Back - 2nd Row - RH (Remove and Install).
  9. Remove the rear trunk carpet. See Carpet - Rear Trunk (Remove and Replace).
  10. Release the clips that attach the LH and RH trunk side trims to the vehicle.
    LH side shown, RH similar
  11. Remove the puddle light connector from the LH trunk side trim.
  12. Remove the LH and RH trunk side trims from the vehicle.
    LH side shown, RH similar
  13. Remove the LH and RH taillights. See Taillight - LH (Remove and Replace).
  14. Remove the rear fascia. See Fascia - Rear (Remove and Install).
  15. Remove the LH taillight bracket. See Bracket - Taillight - LH (Remove and Replace).

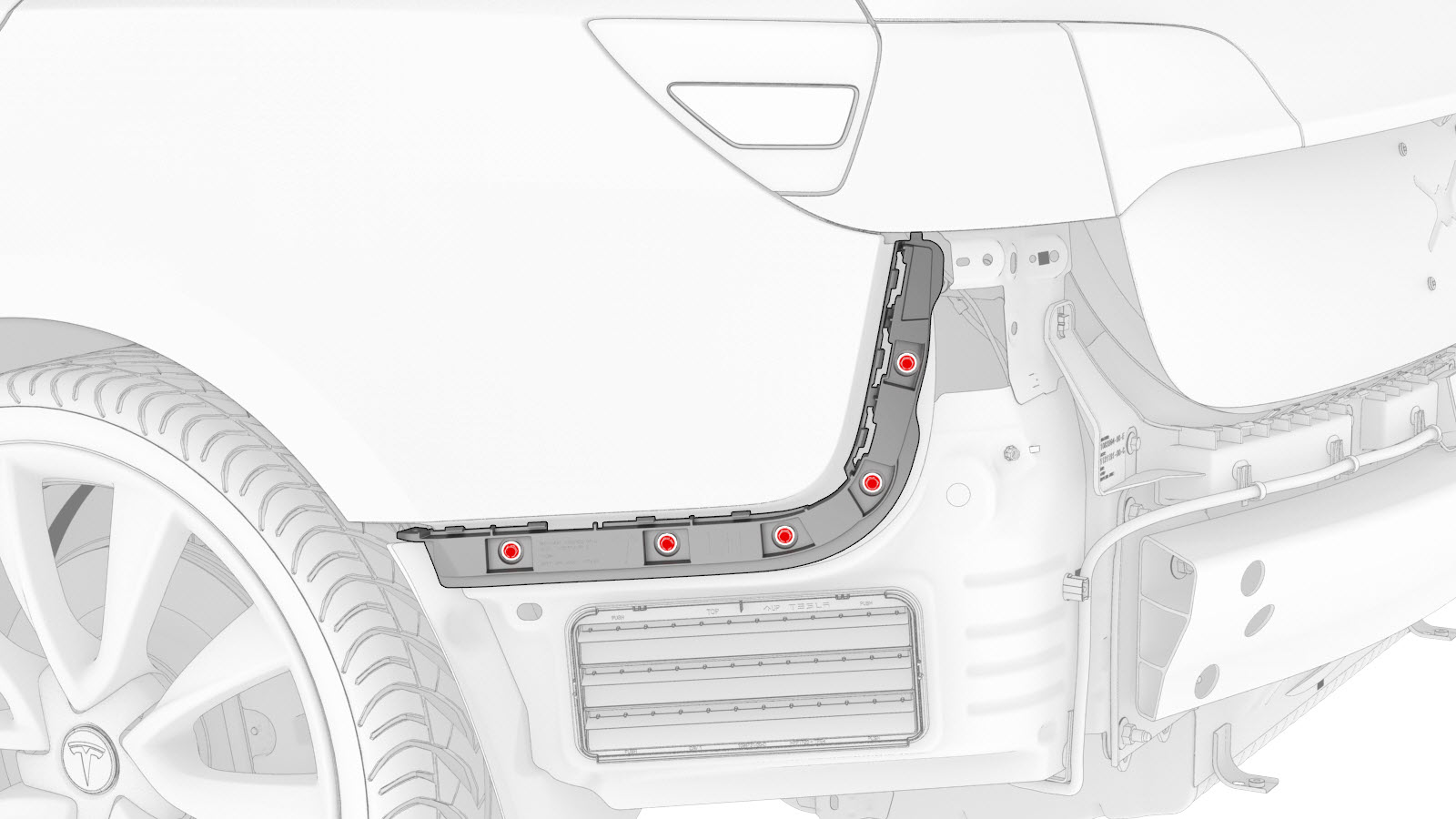

  16. Remove the bolts that attach the LH rear wing bracket to the vehicle.
    Torque 4 Nm
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
LH shown, RH similar
2Open the trunk, and then remove the LH and RH trunk stops.
3Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
4Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
5Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
6Remove the LH 2nd row seatback. See Seat Back - 2nd Row - LH (Remove and Install).
7Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
8Remove the RH 2nd row seatback. See Seat Back - 2nd Row - RH (Remove and Install).
9Remove the rear trunk carpet. See Carpet - Rear Trunk (Remove and Replace).
LH side shown, RH similar
10Release the clips that attach the LH and RH trunk side trims to the vehicle.
11Remove the puddle light connector from the LH trunk side trim.
LH side shown, RH similar
12Remove the LH and RH trunk side trims from the vehicle.
13Remove the LH and RH taillights. See Taillight - LH (Remove and Replace).
14Remove the rear fascia. See Fascia - Rear (Remove and Install).
15Remove the LH taillight bracket. See Bracket - Taillight - LH (Remove and Replace).
16Remove the bolts that attach the LH rear wing bracket to the vehicle.
Torque 4 Nm

Install

Installation procedure is the reverse of removal.
