Seal - Oil - Differential to Halfshaft - Front Drive Unit - LH (Remove and Replace)

Correction code 3930102239301022

1133386-00-A Tool, Axle Extraction, Model 3
1096075-00-A Tool, Hub Puller, Hydraulic
1131206-00-A Install Tool, Output Seal, Model 3
1052583-00-A Tool, Seal Puller, Adjustable

SPECIAL TOOLS

Tool, Axle Extraction, Model 3 (1133386-00-A)

Tool, Hub Puller, Hydraulic (1096075-00-A)

Install Tool, Output Seal, Model 3 (1131206-00-A)

Tool, Seal Puller, Adjustable (1052583-00-A)

Remove

Remove the LH front drive unit halfshaft. See Halfshaft - Front Drive Unit - LH (Remove and Replace).

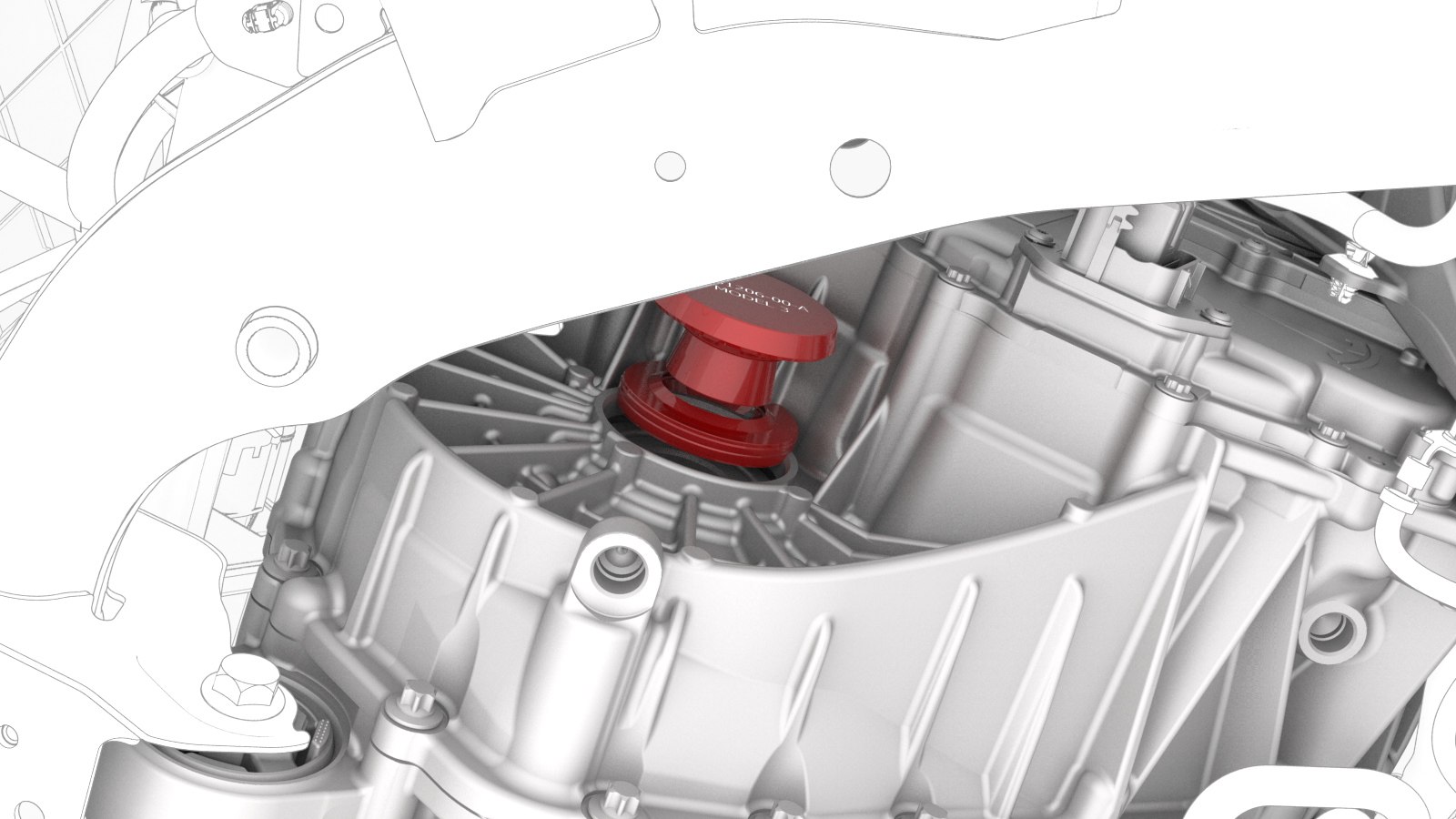

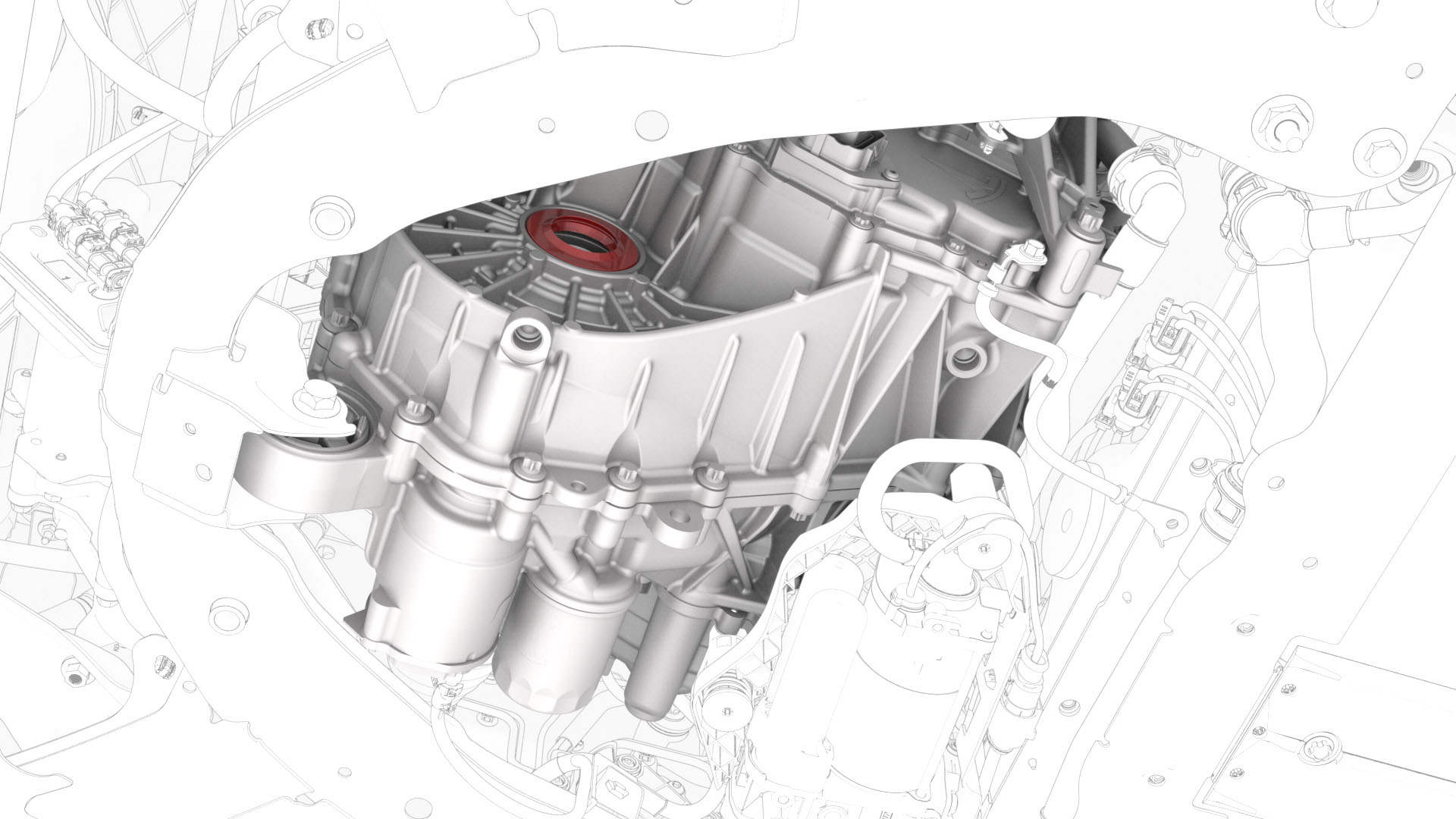

Use an adjustable seal puller tool to remove the LH front drive unit differential-halfshaft assembly oil seal.

Caution:
Take care not to scratch the inner bore of the front drive unit with the adjustable seal puller tool.

		1	Remove the LH front drive unit halfshaft. See Halfshaft - Front Drive Unit - LH (Remove and Replace).
		2	Use an adjustable seal puller tool to remove the LH front drive unit differential-halfshaft assembly oil seal. Caution: Take care not to scratch the inner bore of the front drive unit with the adjustable seal puller tool.

Install

Installation procedure is the reverse of removal, except for the following:

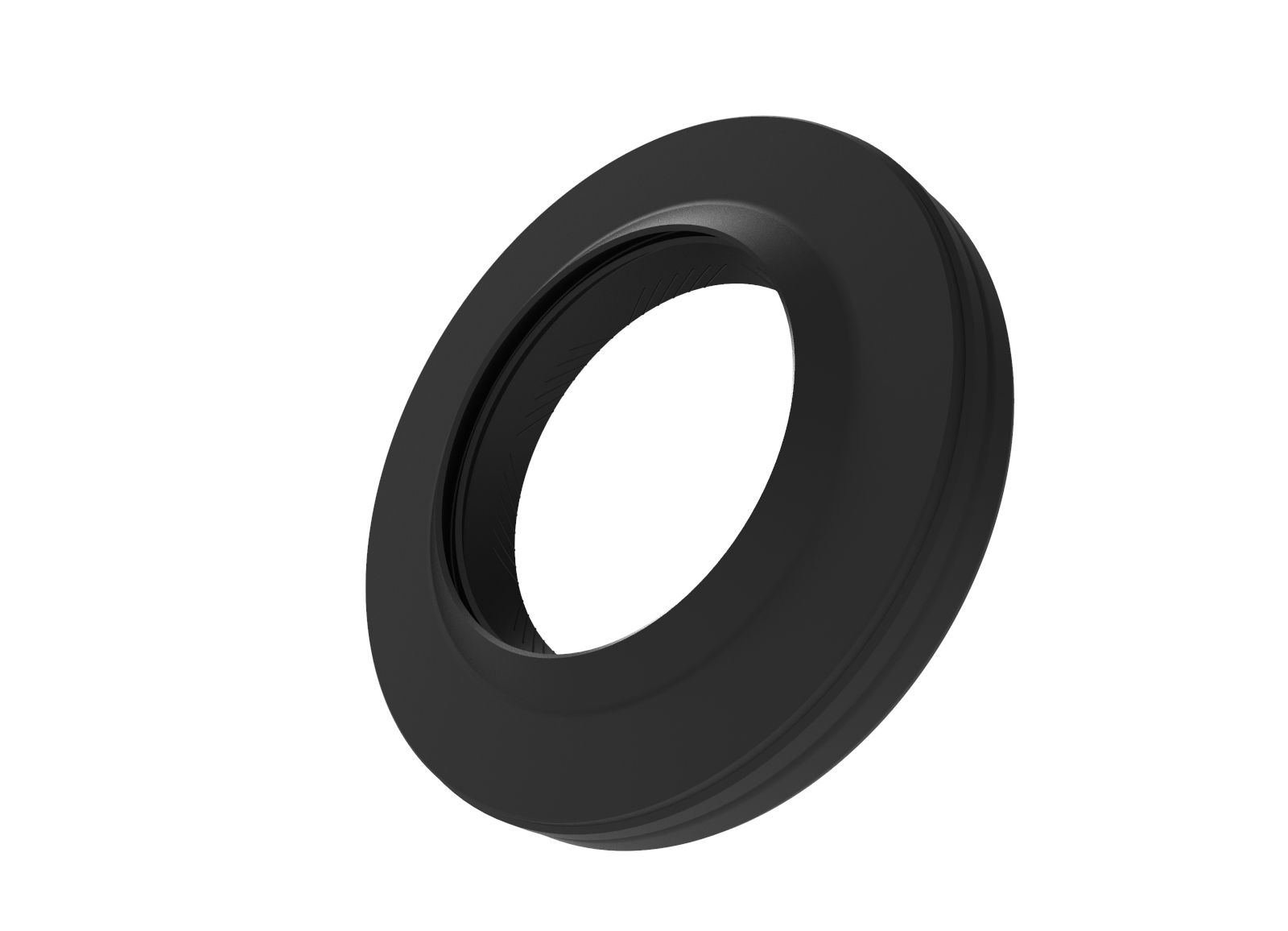

Use an output seal install tool and a dead blow hammer to install the new LH front drive unit differential-halfshaft assembly oil seal. Make sure the seal is flush with the front drive unit housing.
