Module - TPMS (Sensor ID Learn)
Correction code 3404110034041100

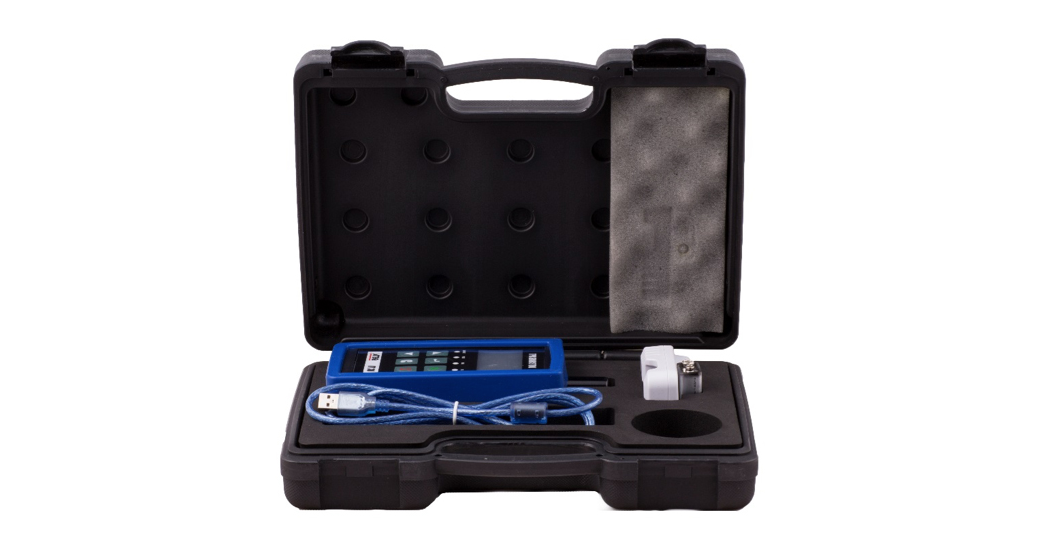

1050759-00-A
TOOL, TPMS SERVICE, ATEQ VT30
1050759-00-B TOOL, TPMS SERVICE, ATEQ VT36
SPECIAL TOOLS
TOOL, TPMS SERVICE, ATEQ VT30 (1050759-00-A) |
TOOL, TPMS SERVICE, ATEQ VT36 (1050759-00-B) |
Procedure
- Review the TPMS service tool profile.
- Use the TPMS service tool to read and record the wheel sensors in the order displayed on the tool's screen.
- In Toolbox 3, run the "PROC_TPMS_X_TPMS-SENSOR-LEARN" Action, and then update the TPMS sensor IDs with the values from the TPMS service tool.
- Test drive the vehicle to at least 15 mph for a short distance to reset the TPMS alert.
| 1 | Review the TPMS service tool profile. |
| 2 | Use the TPMS service tool to read and record the wheel sensors in the order displayed on the tool's screen. |
| 3 | In Toolbox 3, run the "PROC_TPMS_X_TPMS-SENSOR-LEARN" Action, and then update the TPMS sensor IDs with the values from the TPMS service tool. |
| 4 | Test drive the vehicle to at least 15 mph for a short distance to reset the TPMS alert. |
