Coat Hook - Rear - LH (Remove and Replace)

Correction code 1520400215204002

Remove

Remove the headliner. See Headliner (Remove and Install).

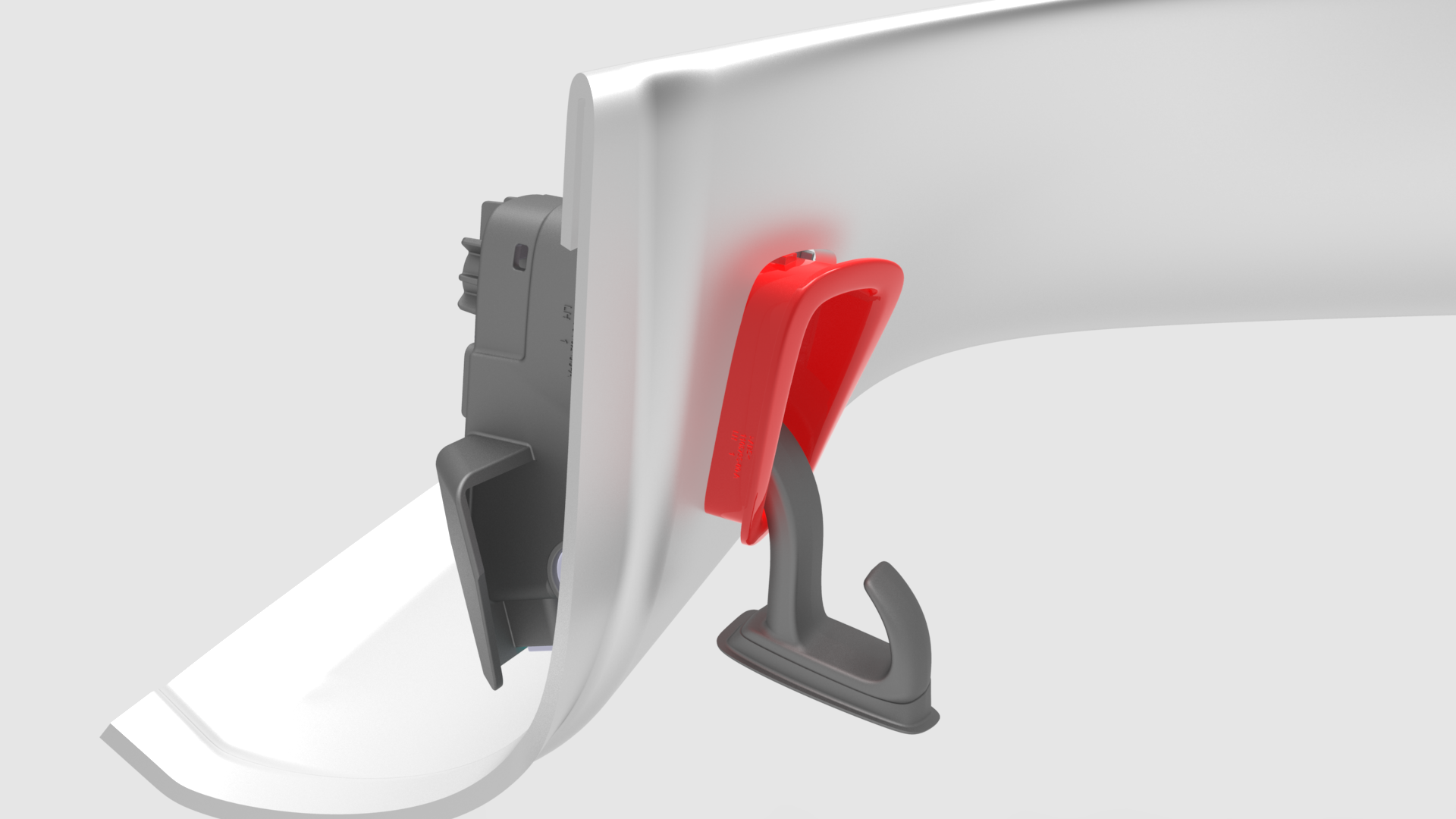

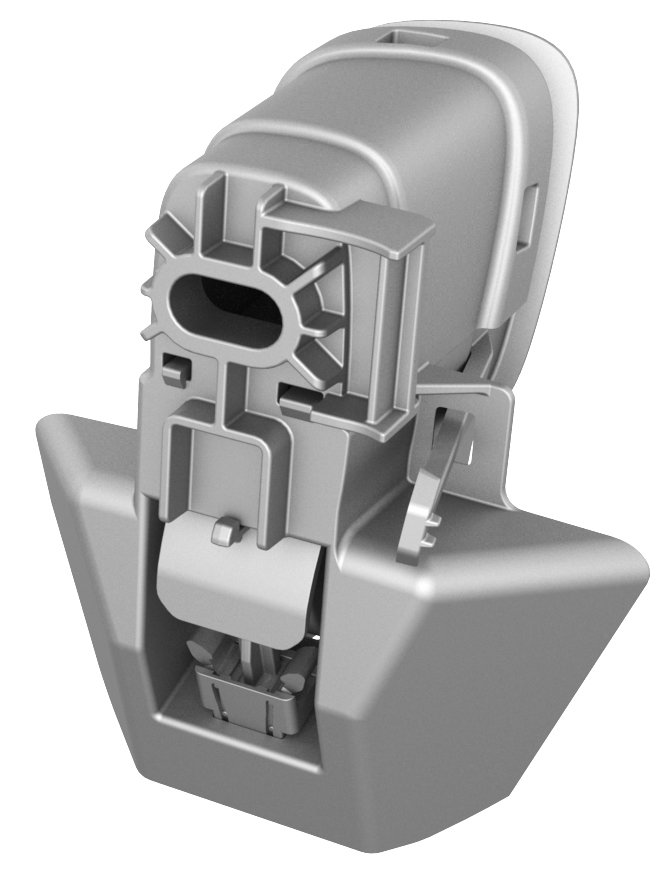

Release the clips that attach the bezel to the LH rear coat hook, and then remove the coat hook from the headliner.

		1	Remove the headliner. See Headliner (Remove and Install).
		2	Release the clips that attach the bezel to the LH rear coat hook, and then remove the coat hook from the headliner.

Install

Installation procedure is the reverse of removal.
