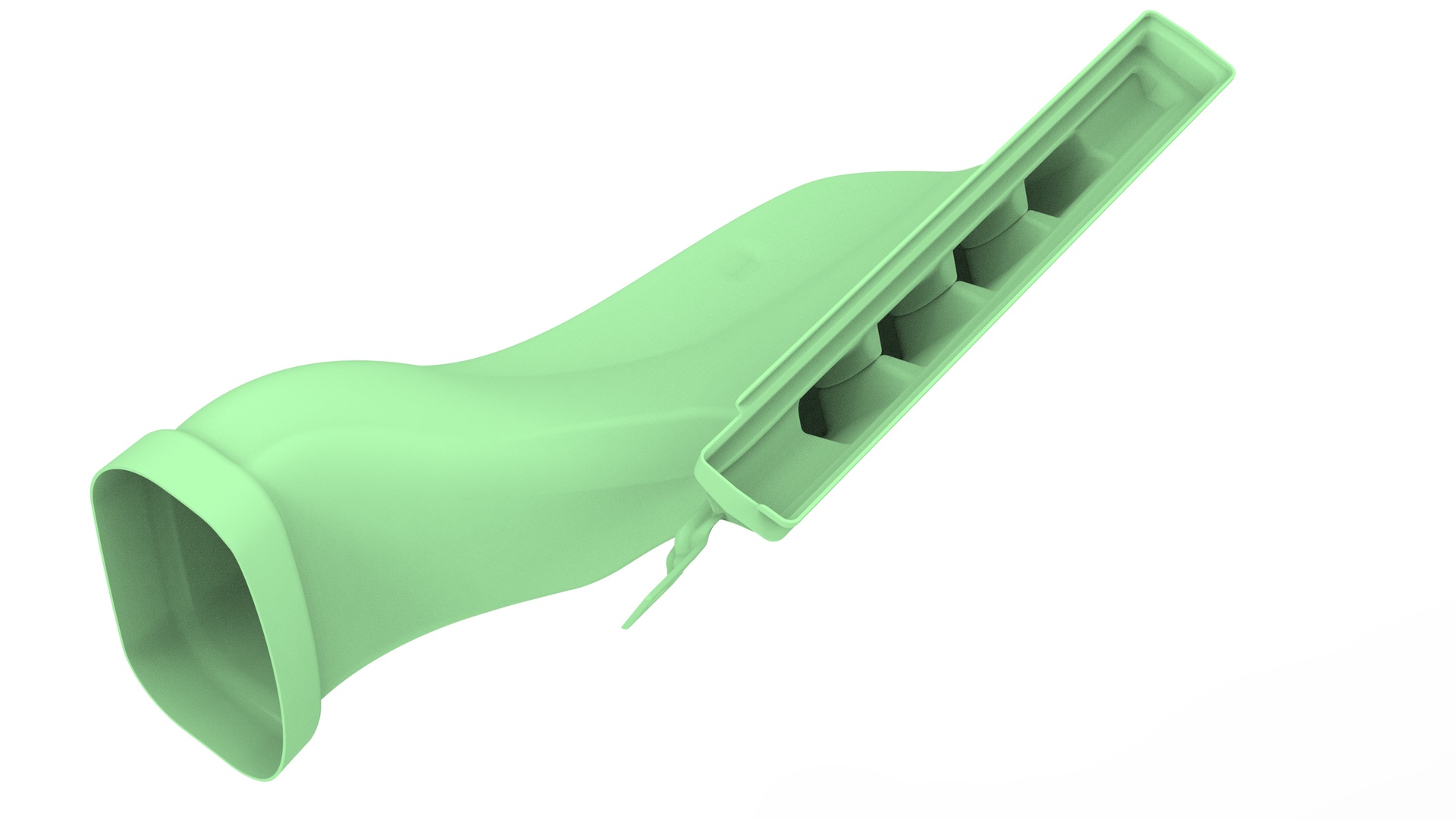

Duct - Air Wave - RH (Remove and Replace)

Correction code 1810810218108102

Remove

Remove the glove box. See Glove Box (LHD) (Remove and Replace).
Remove the RH footwell air duct from the HVAC module, and then remove the duct from the vehicle.

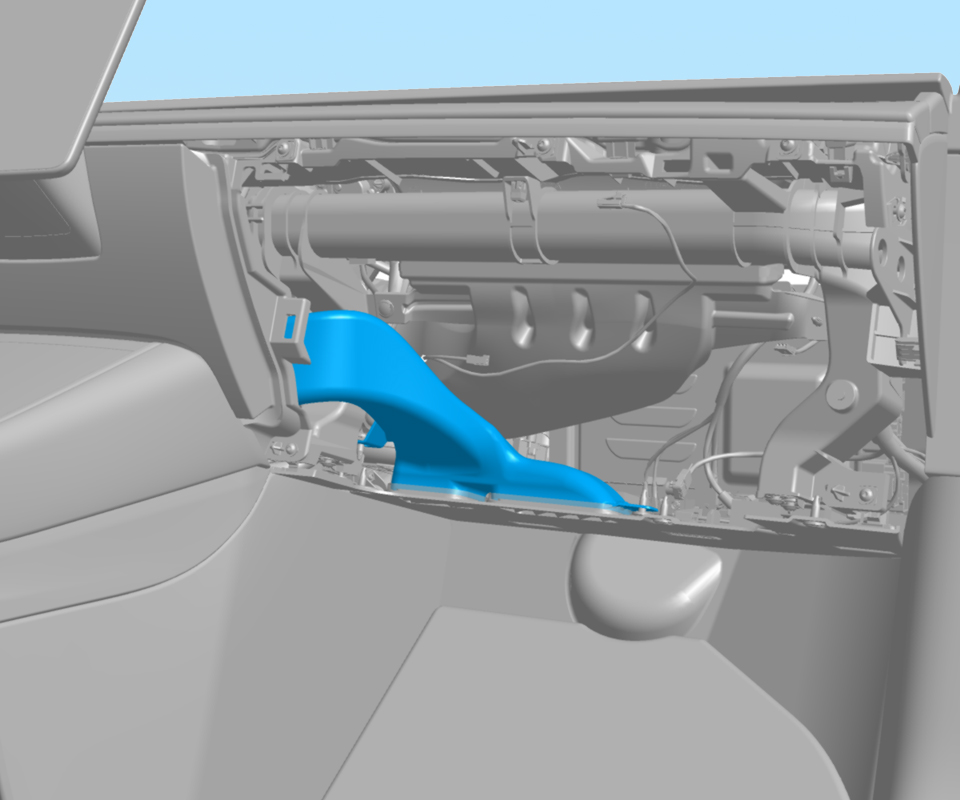

Release the clips that attach the RH air wave duct to the cross car beam, and then remove the duct from the cross car beam.

		1	Remove the glove box. See Glove Box (LHD) (Remove and Replace).
		2	Remove the RH footwell air duct from the HVAC module, and then remove the duct from the vehicle.
		3	Release the clips that attach the RH air wave duct to the cross car beam, and then remove the duct from the cross car beam.

Install

Installation procedure is the reverse of removal.
