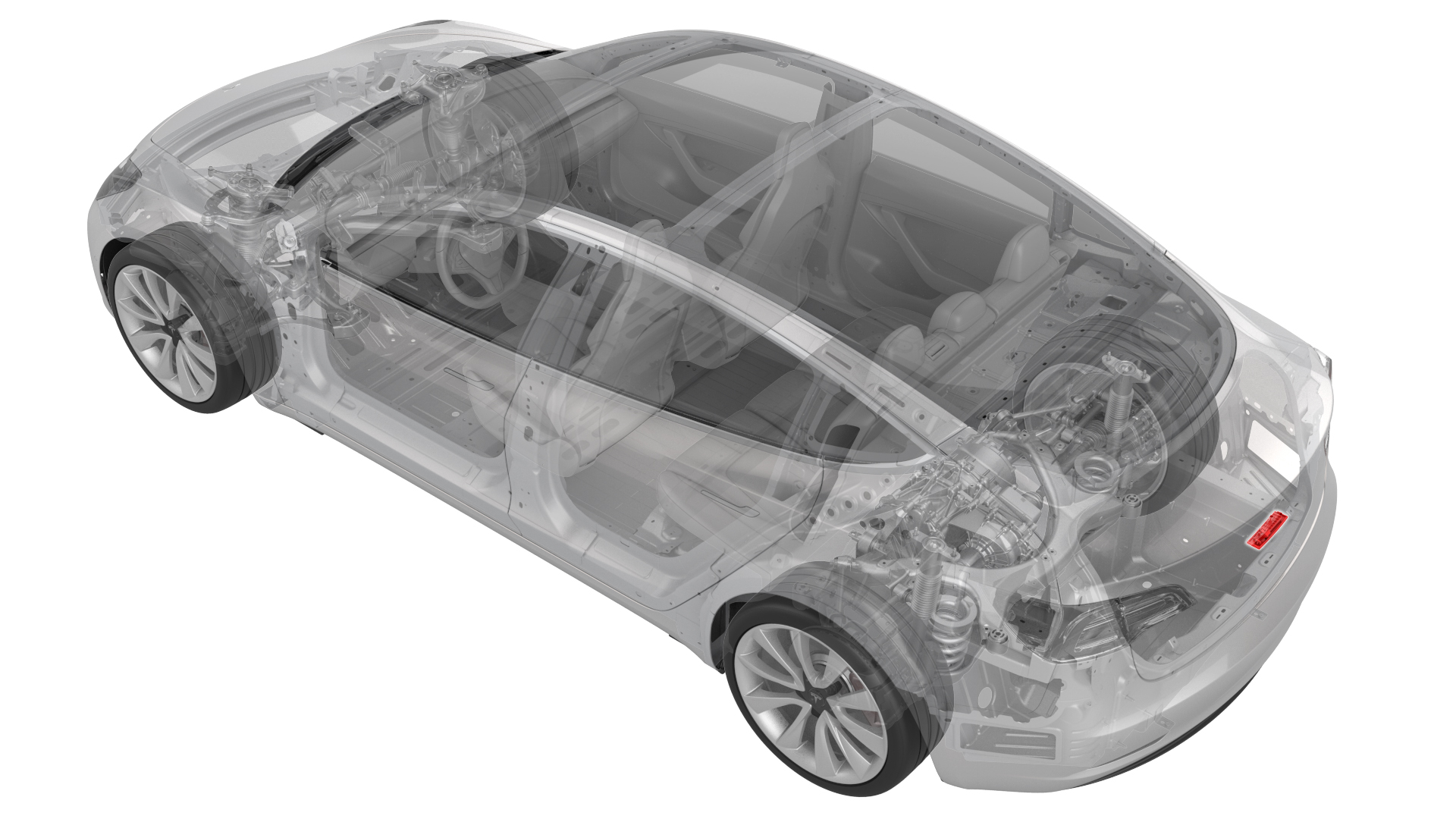

Switch - Exterior Release - Trunk (Remove and Replace)

Correction code 1135560211355602
Parent topic: 1135 - Latches Strikers and Pinch Sensors

Remove

  1. Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).

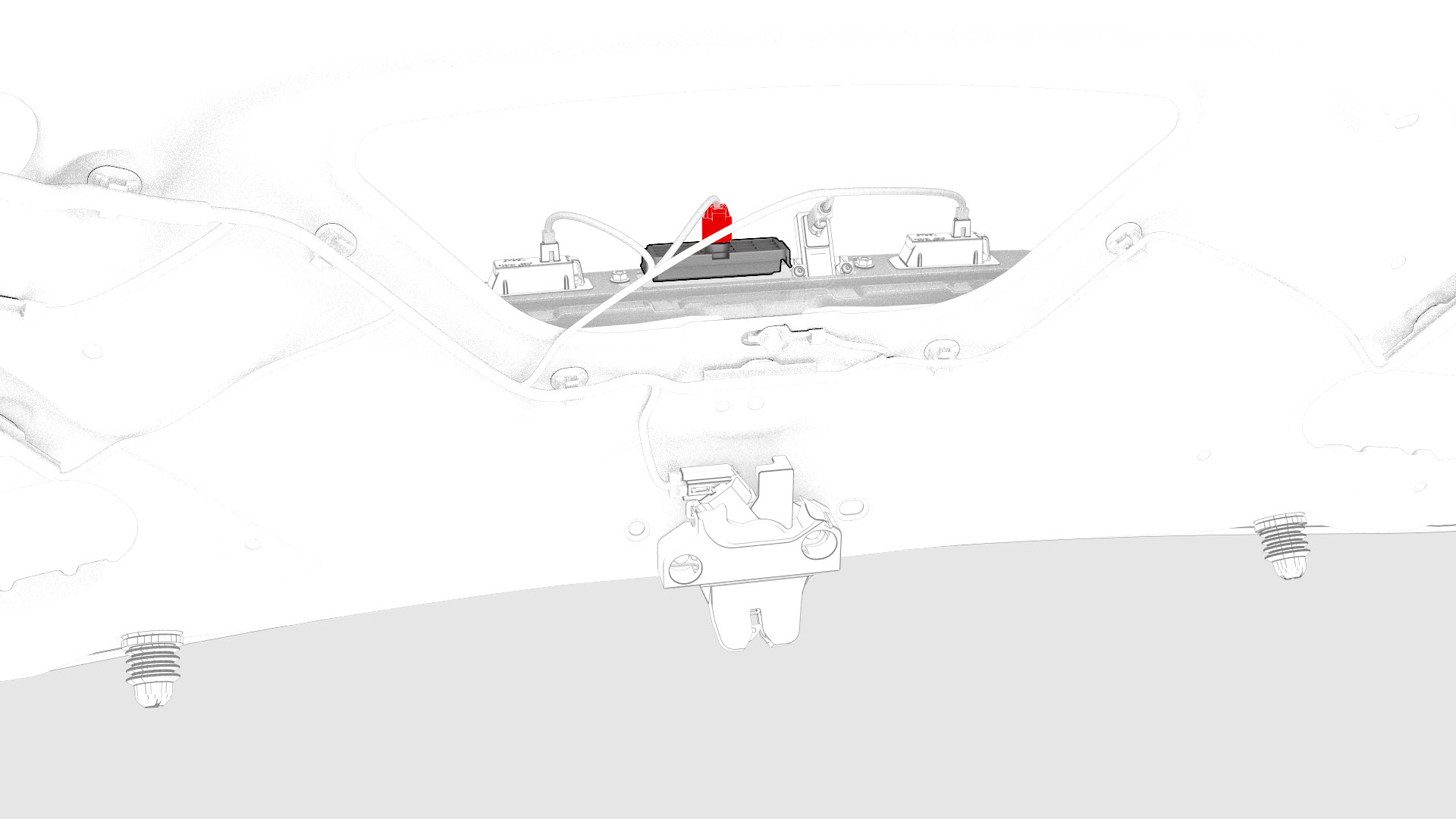

  2. Disconnect the electrical connectors from the trunk exterior release switch and the rear facing camera.

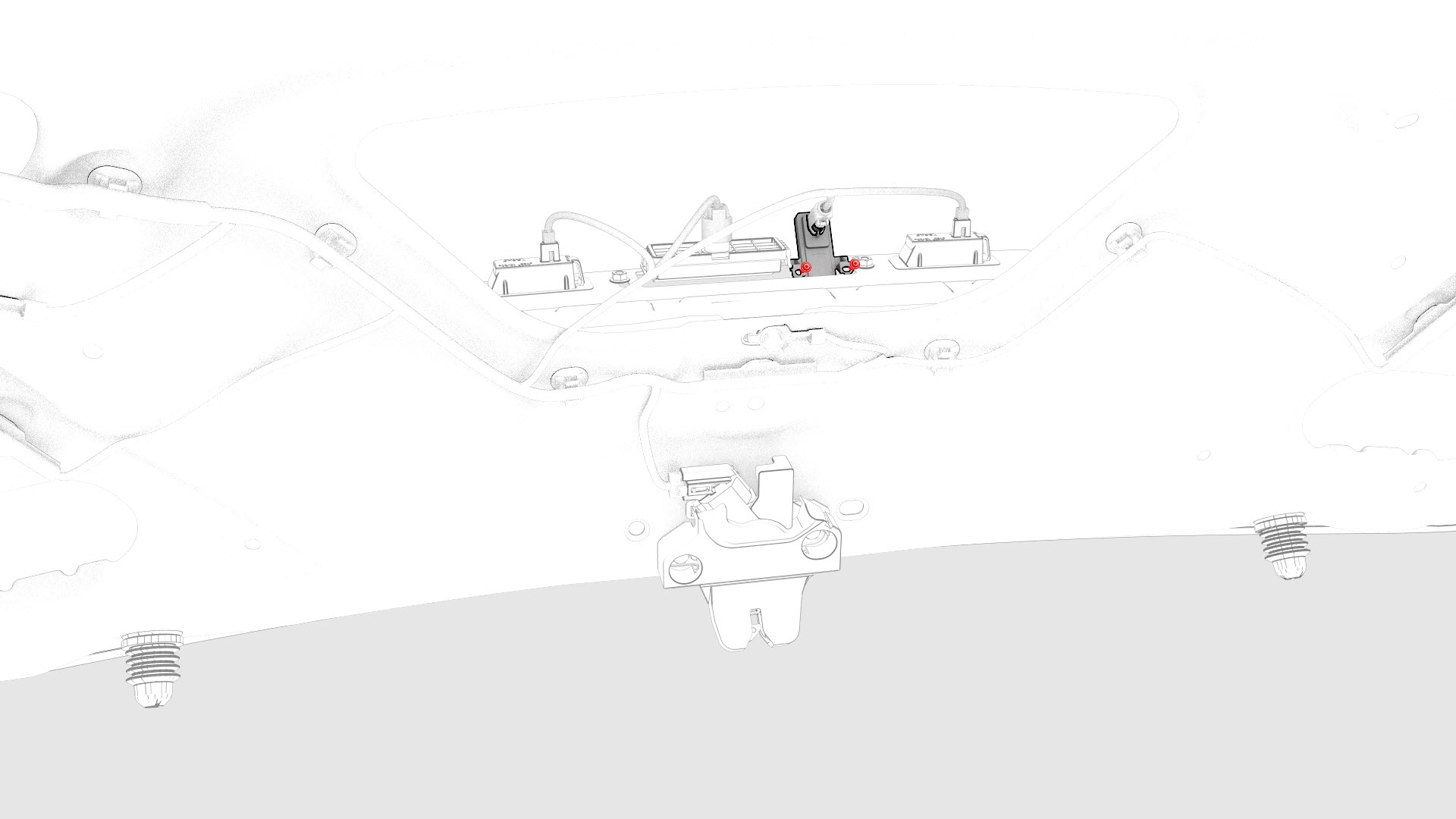

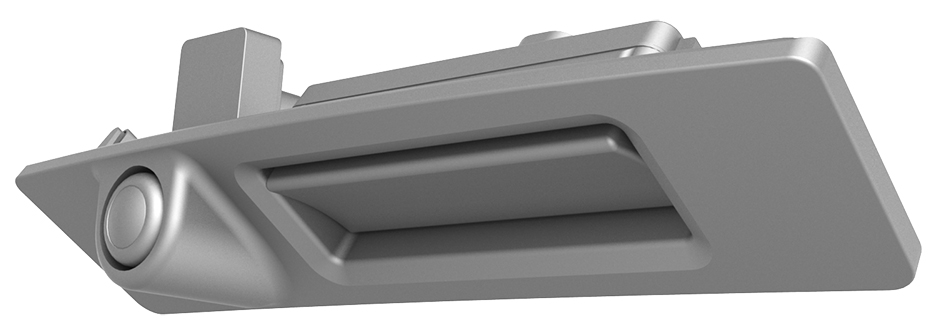

  3. Remove the bolts that attach the rear facing camera to the trunk exterior release switch, and remove the camera from the switch.

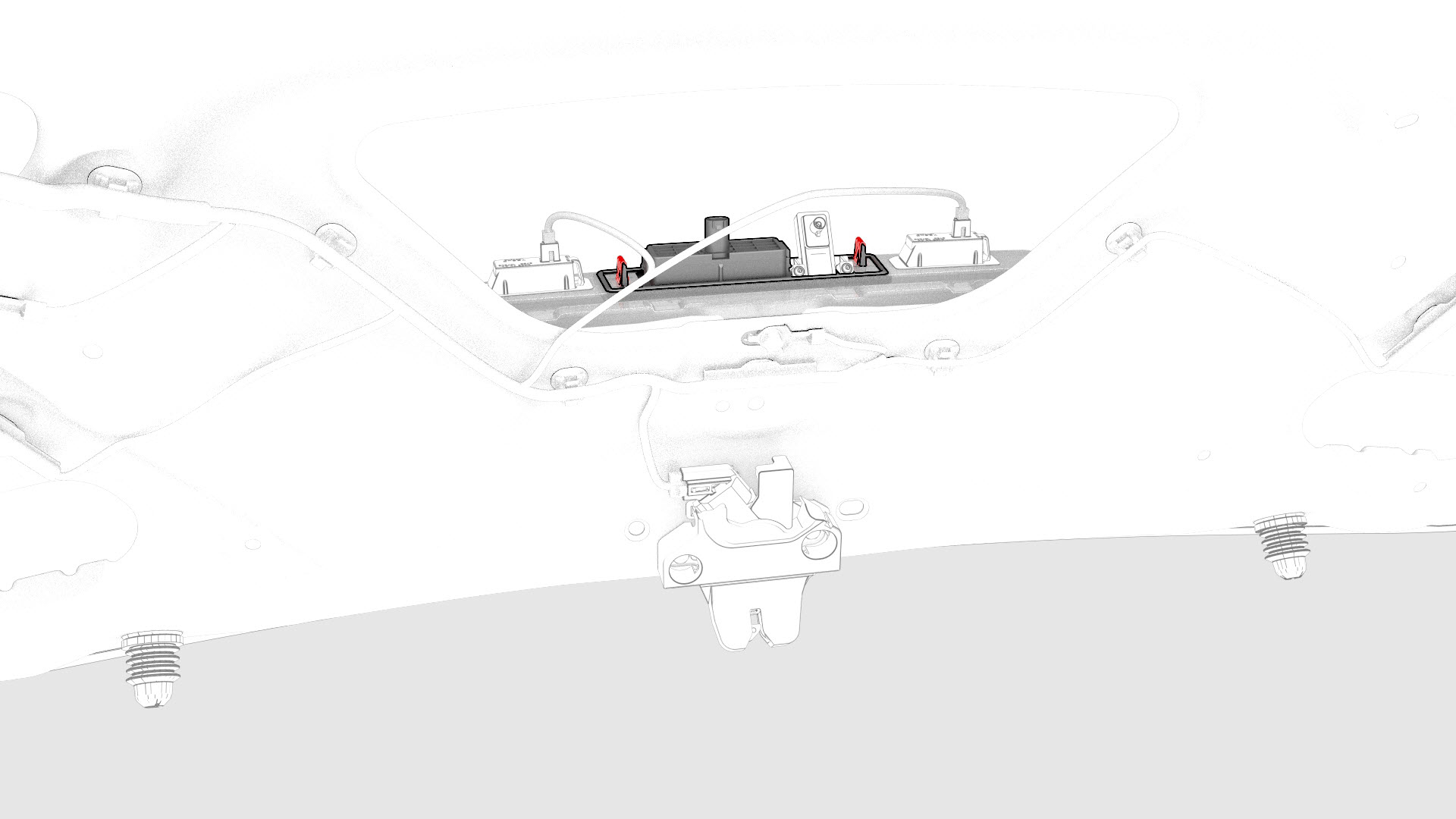

  4. Remove the nuts that attach the trunk exterior release switch to the trunk lid, and remove the switch from the vehicle.
    Torque 4 Nm
1Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
2Disconnect the electrical connectors from the trunk exterior release switch and the rear facing camera.
3Remove the bolts that attach the rear facing camera to the trunk exterior release switch, and remove the camera from the switch.
4Remove the nuts that attach the trunk exterior release switch to the trunk lid, and remove the switch from the vehicle.
Torque 4 Nm

Install

Installation procedure is the reverse of removal.
