Trim - A-Pillar - Middle - LH (Remove and Replace)

Correction code 1518260215182602
Parent topic: 1518 - Pillar and Sill Trim

Remove

  1. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).

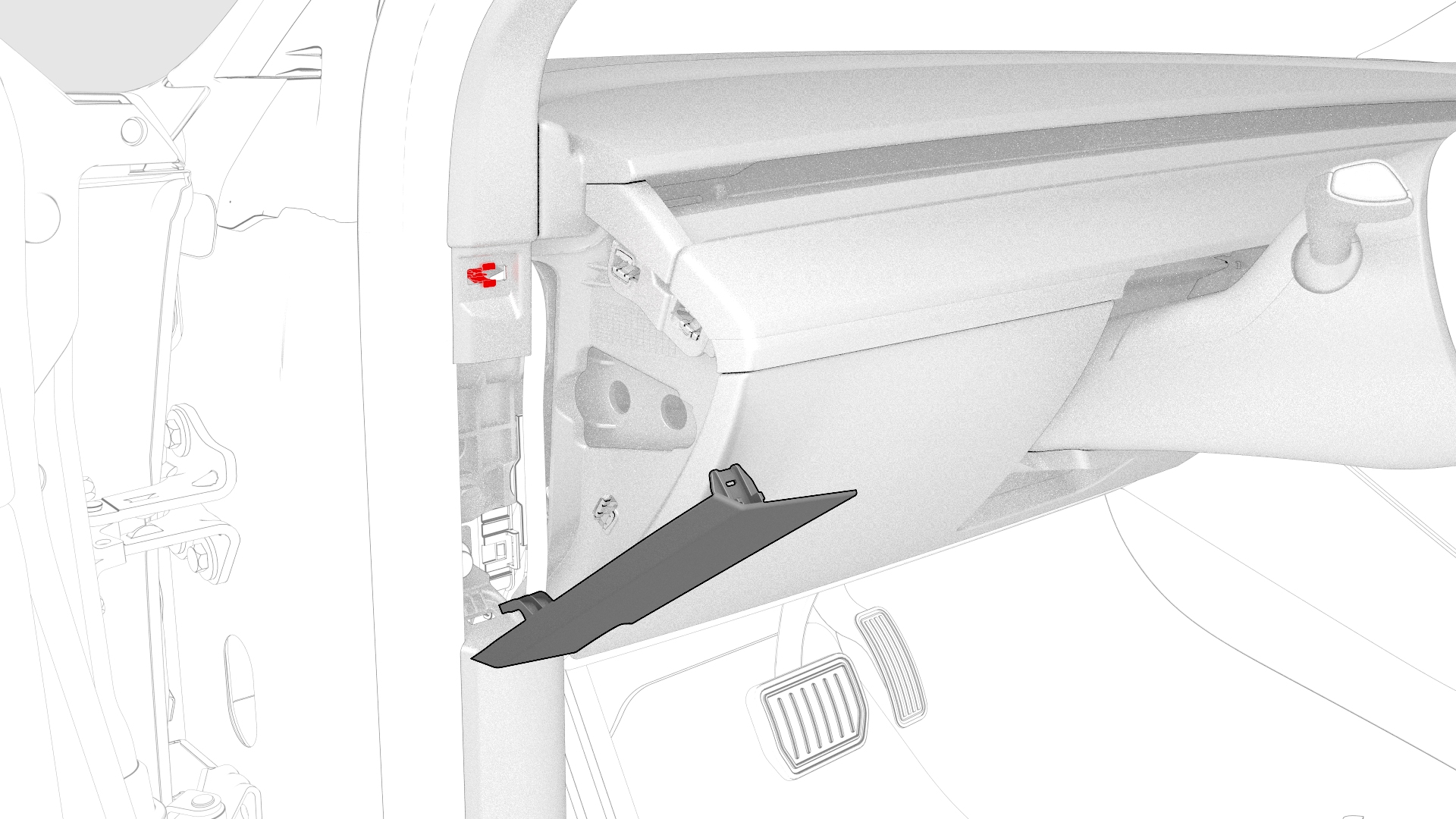

  2. Release the upper clip that attaches the LH middle A-Pillar trim, and then pull out the trim to remove it from the vehicle.
    Note: Remove any remaining LH middle A-pillar trim clip from the LH A-pillar, and if the LH middle A-pillar trim is to be later installed, remove the clip from the trim.
1Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
2Release the upper clip that attaches the LH middle A-Pillar trim, and then pull out the trim to remove it from the vehicle.
Note: Remove any remaining LH middle A-pillar trim clip from the LH A-pillar, and if the LH middle A-pillar trim is to be later installed, remove the clip from the trim.

Install

  1. If reusing the same LH middle A-pillar trim, install a new clip onto the trim.
  2. Align the bottom tab, and then push the top clip to fully seat the LH middle A-pillar trim.
    Note: Make sure that the seal seat is on top of the trim.
  3. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
1If reusing the same LH middle A-pillar trim, install a new clip onto the trim.
2Align the bottom tab, and then push the top clip to fully seat the LH middle A-pillar trim.
Note: Make sure that the seal seat is on top of the trim.
3Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
