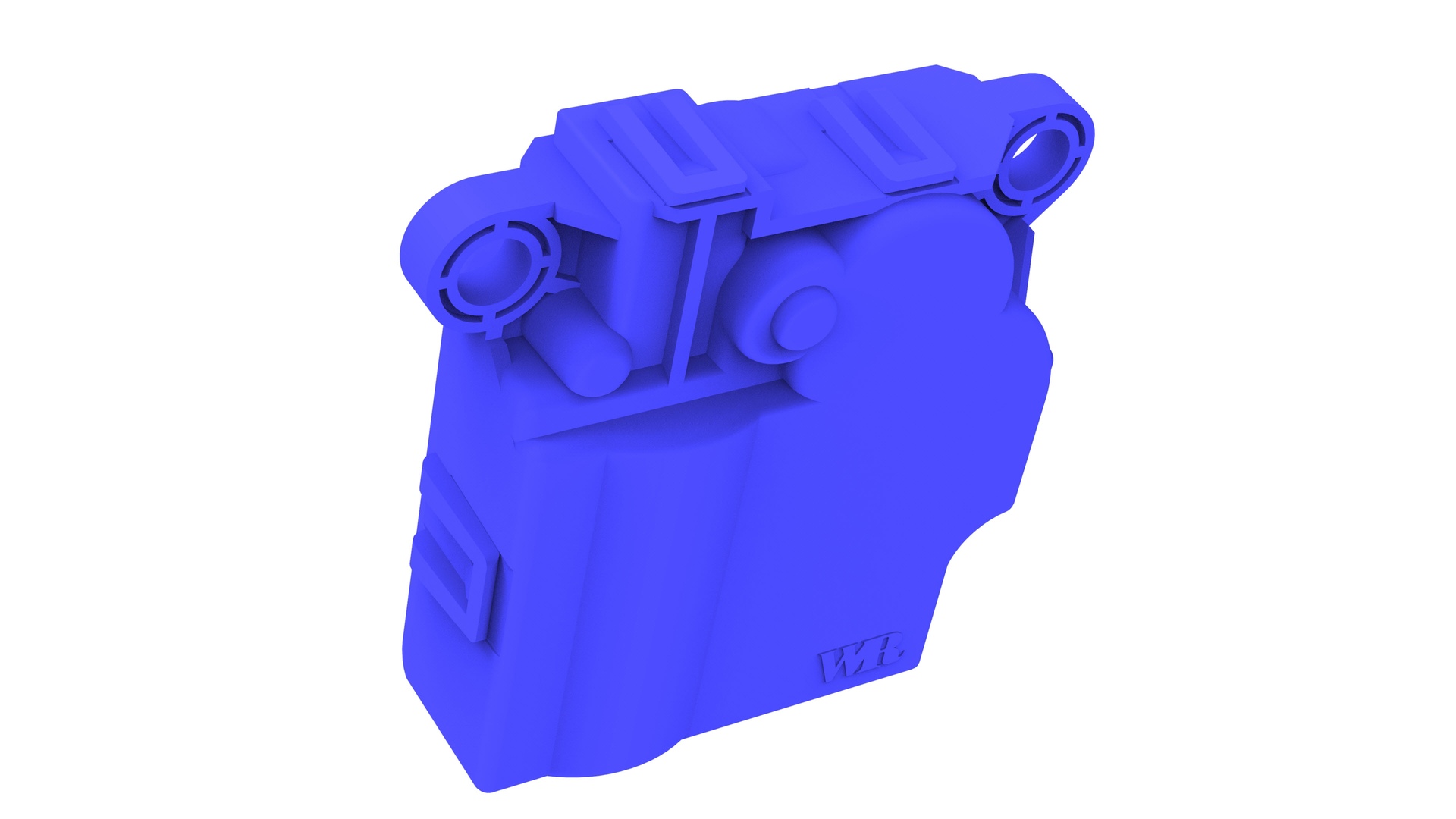

Actuator - Vent - RH (Remove and Replace)

Correction code 1810350218103502

Remove

Remove the RH front vent. See Vent - Front - RH (Remove and Replace).

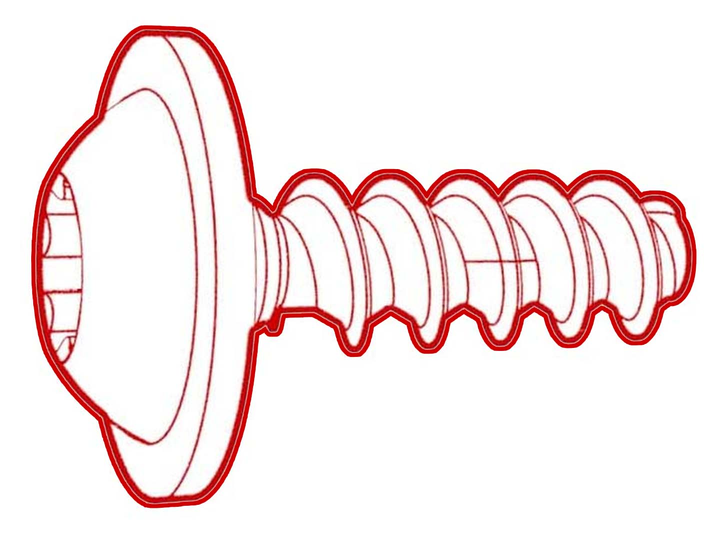

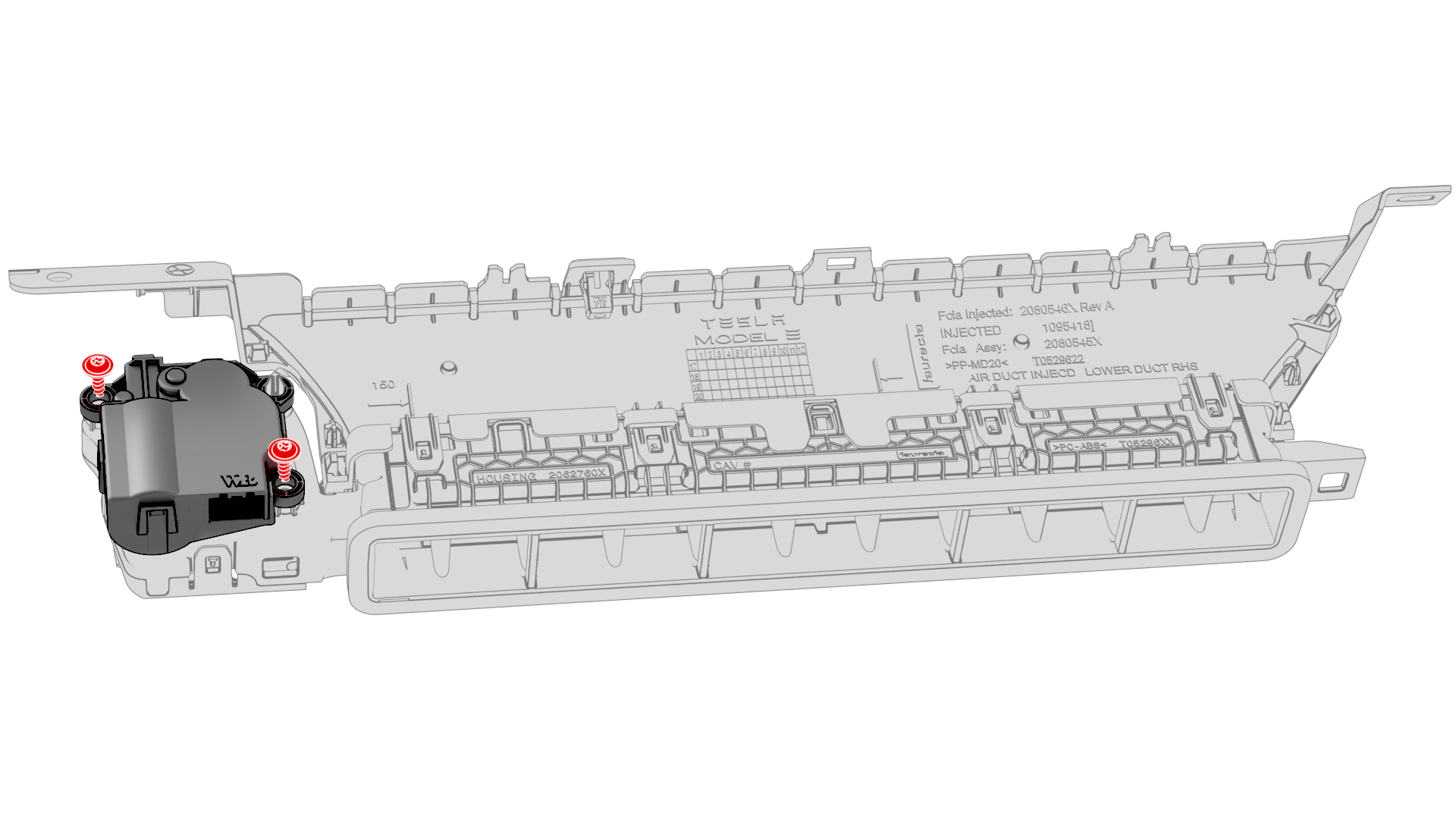

Remove the screws that attach the RH vent actuator to the RH front vent, and then remove the actuator from the vent.
Torque 1.3 Nm

		1	Remove the RH front vent. See Vent - Front - RH (Remove and Replace).
		2	Remove the screws that attach the RH vent actuator to the RH front vent, and then remove the actuator from the vent. Torque 1.3 Nm

Install

Installation procedure is the reverse of removal.
