Headliner (Remove and Replace)

Correction code 1520300215203002

Remove

Remove the headliner. See Headliner (Remove and Install).
Release the clips that attach the LH and RH headliner tweeter covers to the headliner, and remove the tweeter covers from the headliner.

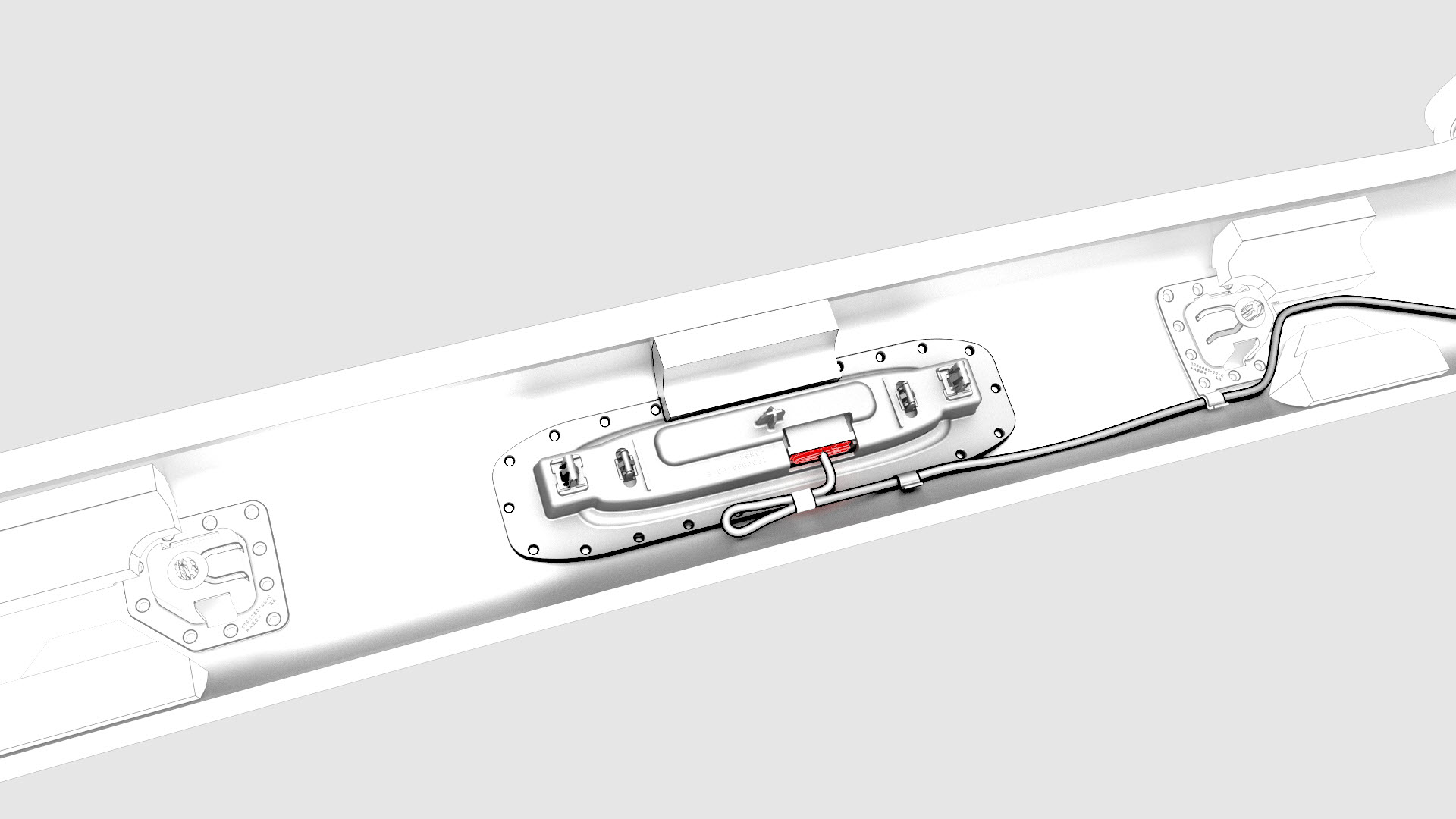

Disconnect the electrical harness from the front overhead console connector.

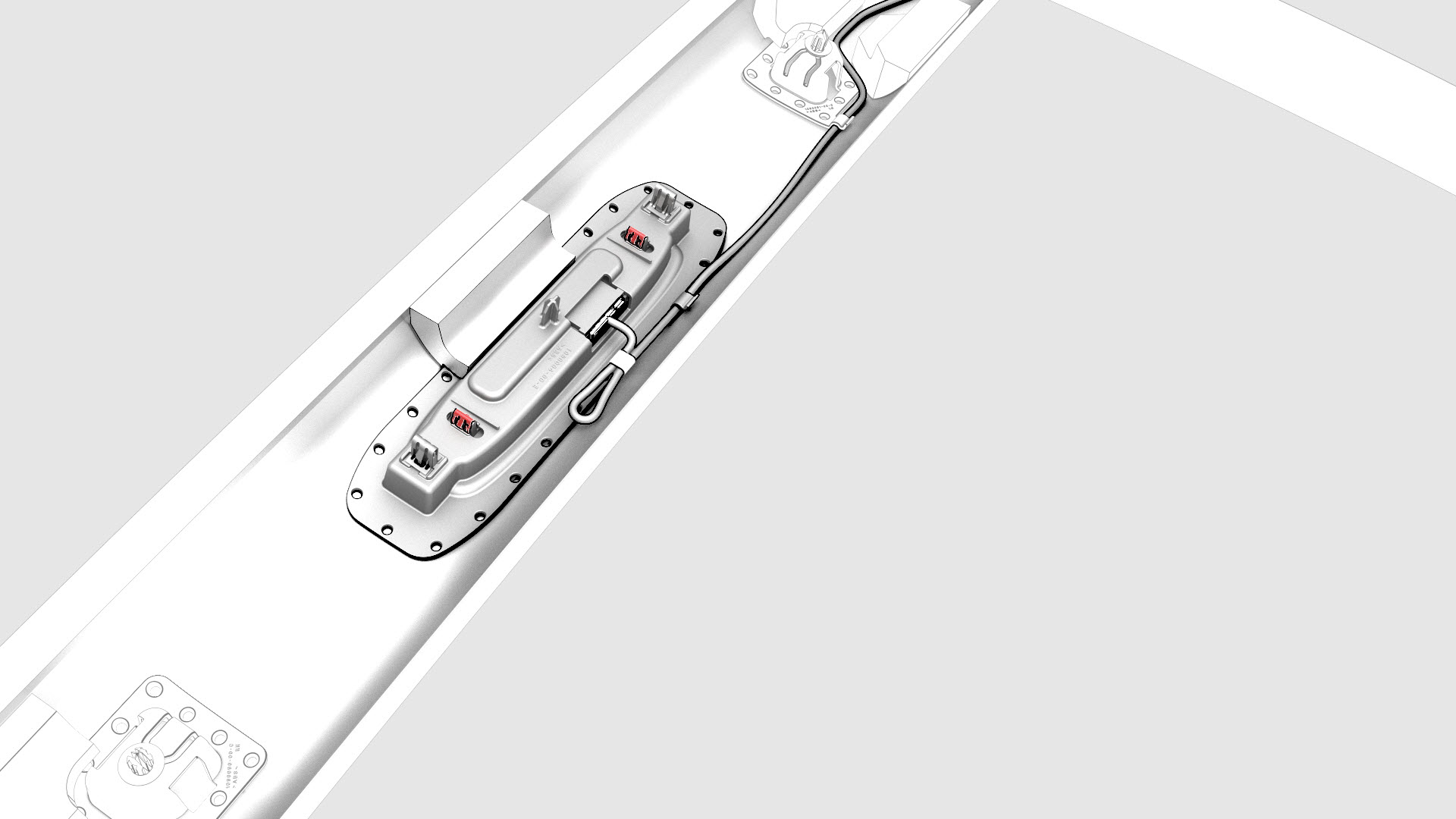

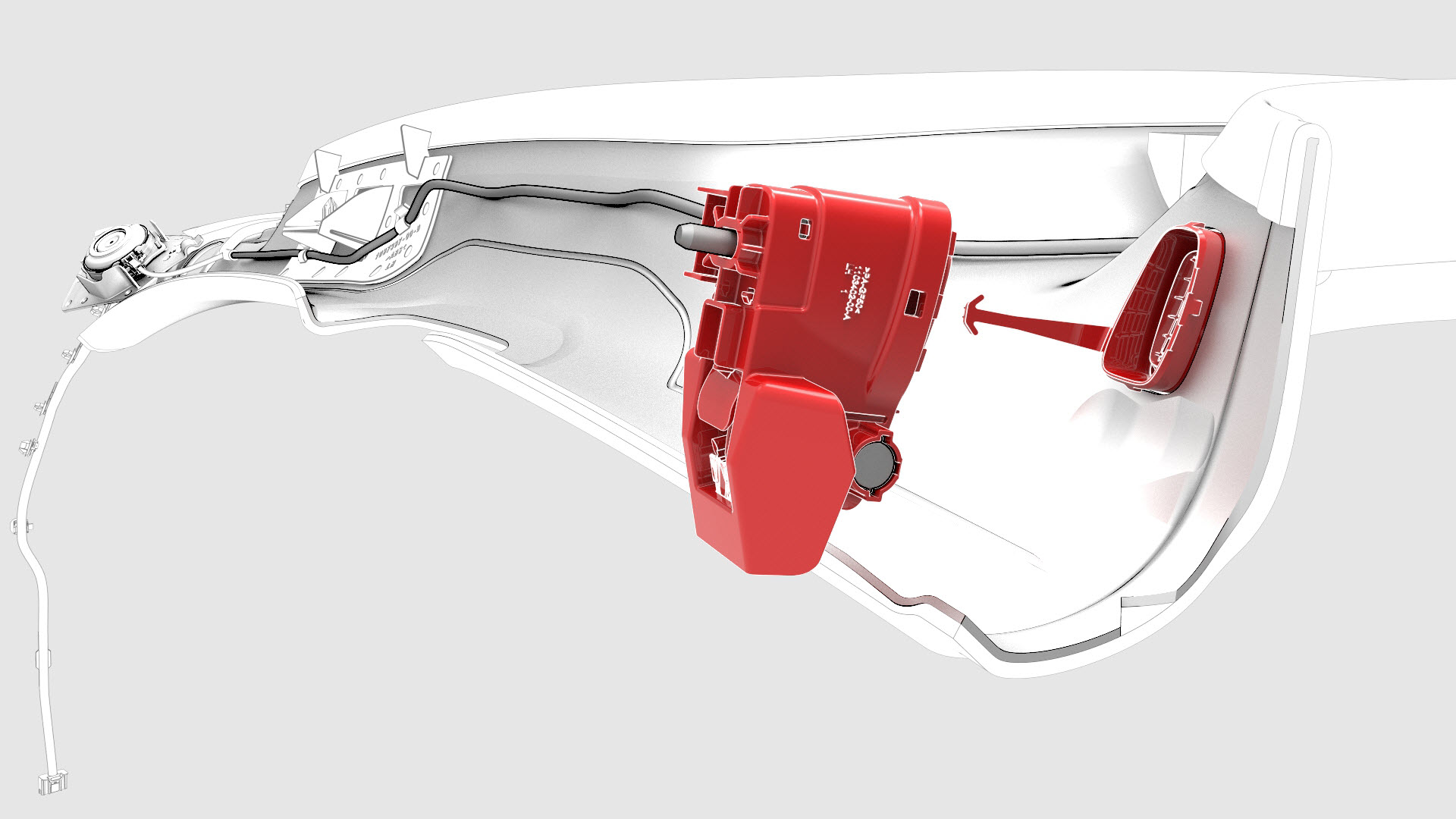

Release the clips that attach the front overhead console to the headliner, and then remove the console from the headliner.

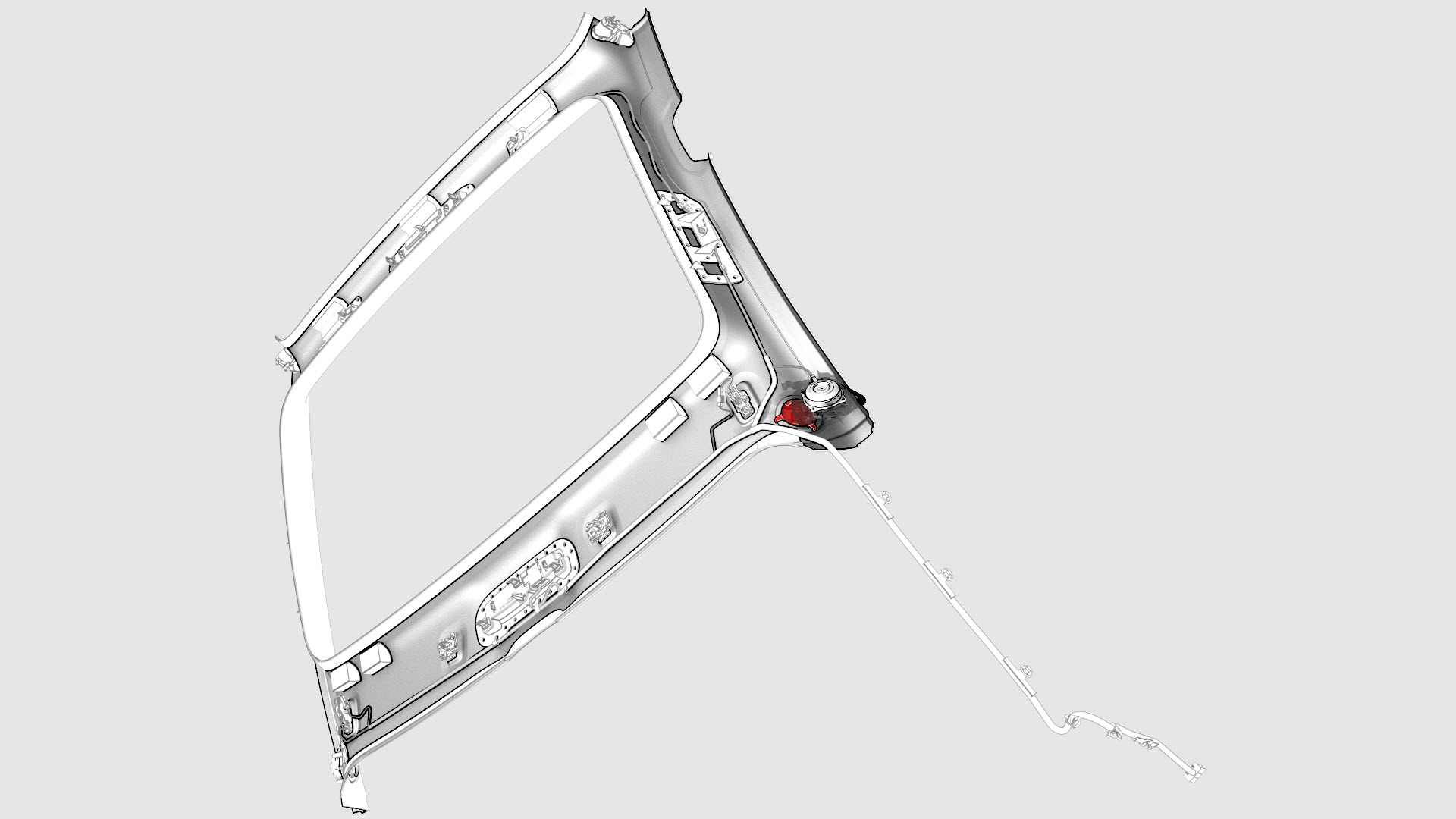

Disconnect the electrical harness from the rear overhead console connector.
Release the clips that attach the rear overhead console to the headliner, and then remove the console from the headliner.
Release the clips that attach the LH coat hook bezel to the LH coat hook assembly, and then remove the LH coat hook assembly from the headliner.
Release the clips that attach the RH coat hook bezel to the RH coat hook assembly, and then remove the RH coat hook assembly from the headliner.

		1	Remove the headliner. See Headliner (Remove and Install).
		2	Release the clips that attach the LH and RH headliner tweeter covers to the headliner, and remove the tweeter covers from the headliner.
		3	Disconnect the electrical harness from the front overhead console connector.
		4	Release the clips that attach the front overhead console to the headliner, and then remove the console from the headliner.
		5	Disconnect the electrical harness from the rear overhead console connector.
		6	Release the clips that attach the rear overhead console to the headliner, and then remove the console from the headliner.
		7	Release the clips that attach the LH coat hook bezel to the LH coat hook assembly, and then remove the LH coat hook assembly from the headliner.
		8	Release the clips that attach the RH coat hook bezel to the RH coat hook assembly, and then remove the RH coat hook assembly from the headliner.

Install

Installation procedure is the reverse of removal.
