Sensor - Airbag - Front - LH (Remove and Replace)

Correction code 2020030220200302

Remove

Remove the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
Disconnect the electrical wiring harness connector from the LH front airbag sensor.

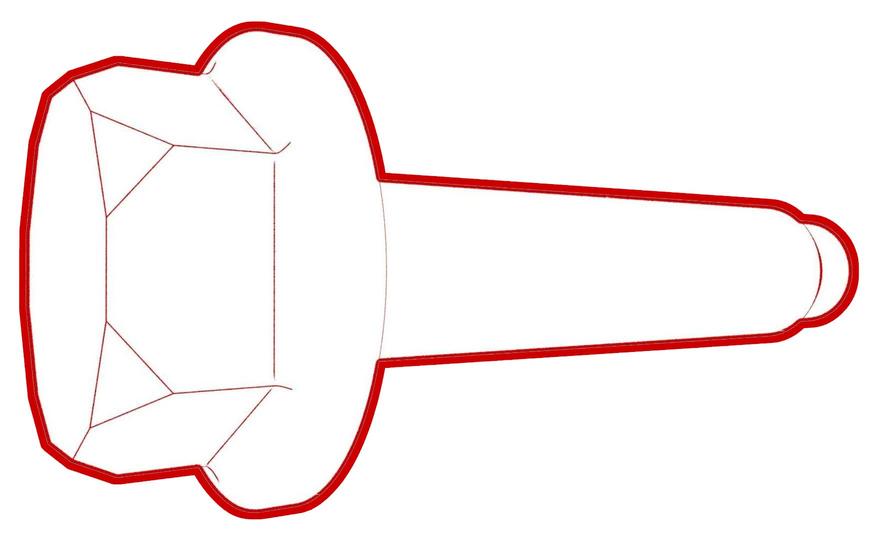

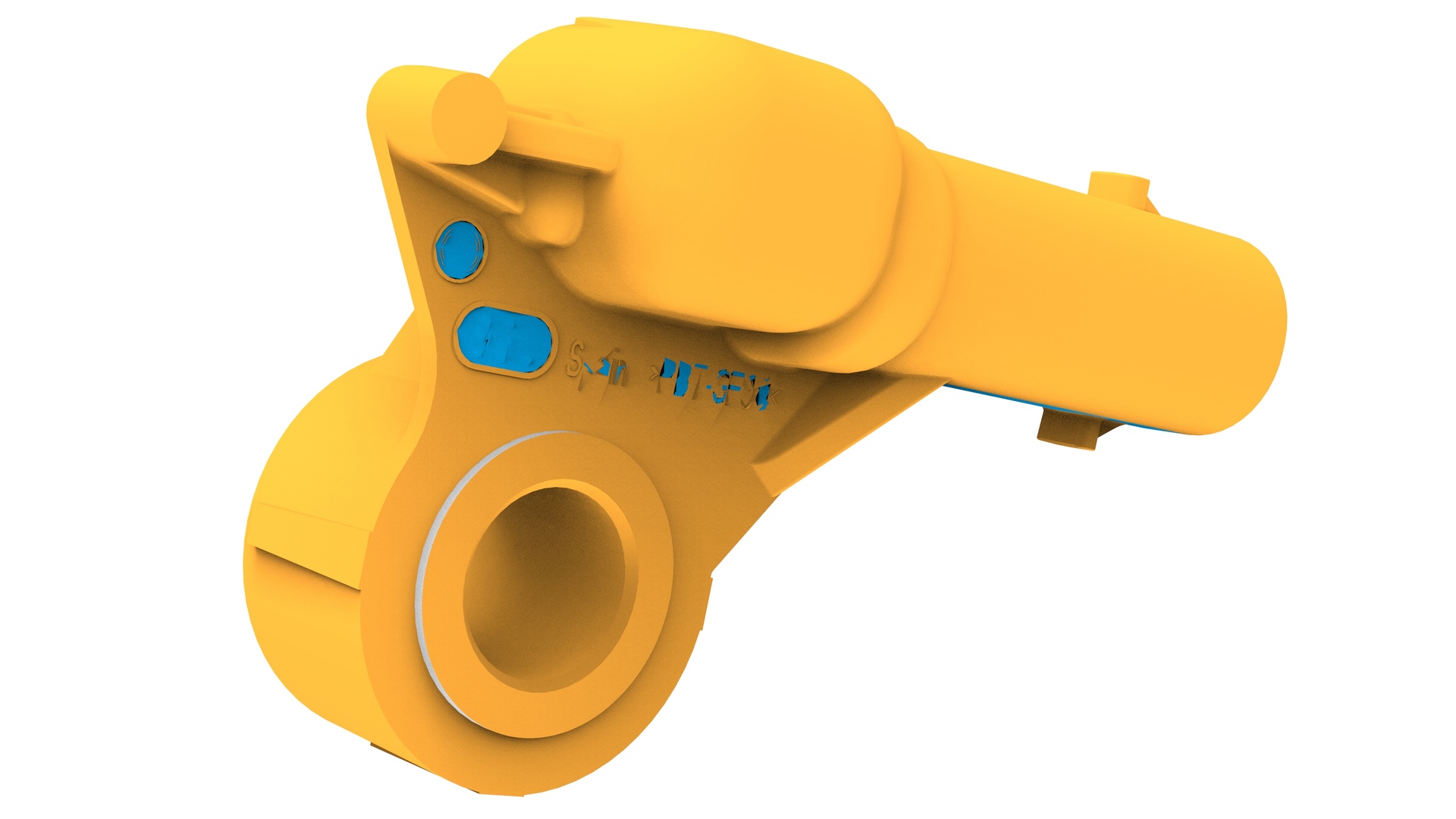

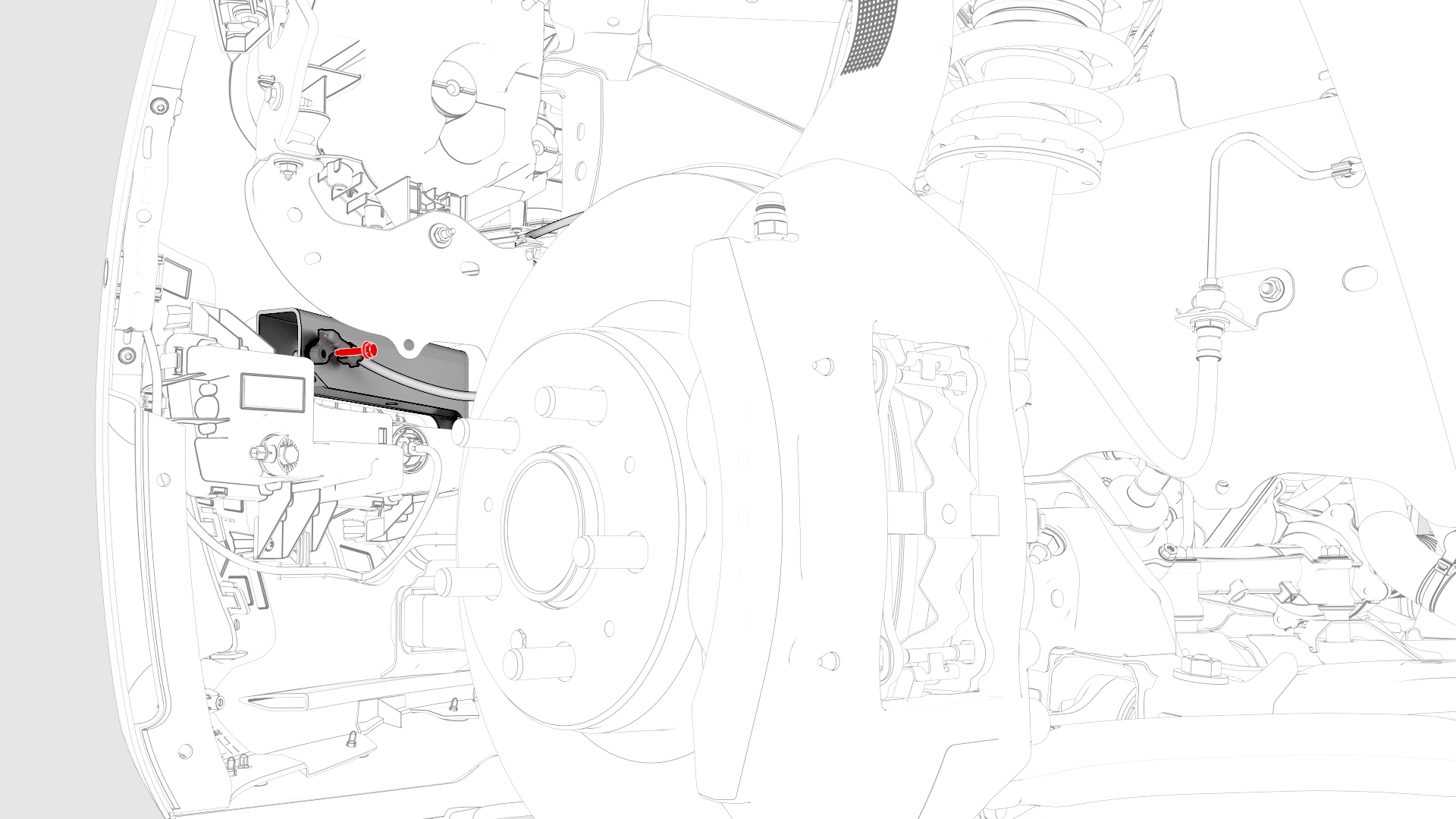

Remove the bolt that attaches the airbag sensor to the front end carrier, and then remove the sensor from the vehicle.
Torque 8 Nm

		1	Remove the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
		2	Disconnect the electrical wiring harness connector from the LH front airbag sensor.
		3	Remove the bolt that attaches the airbag sensor to the front end carrier, and then remove the sensor from the vehicle. Torque 8 Nm

Install

Installation procedure is the reverse of removal.
