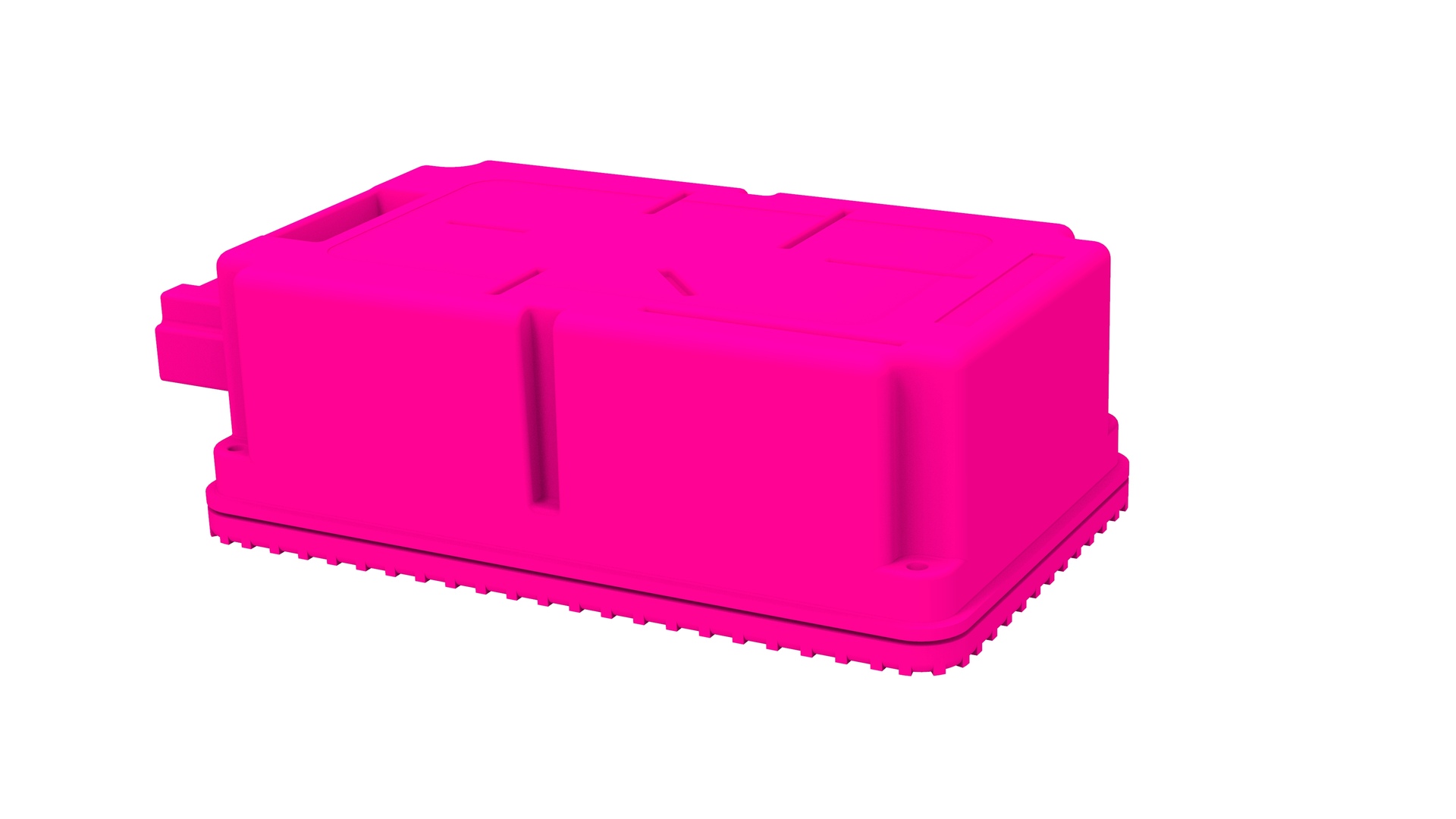

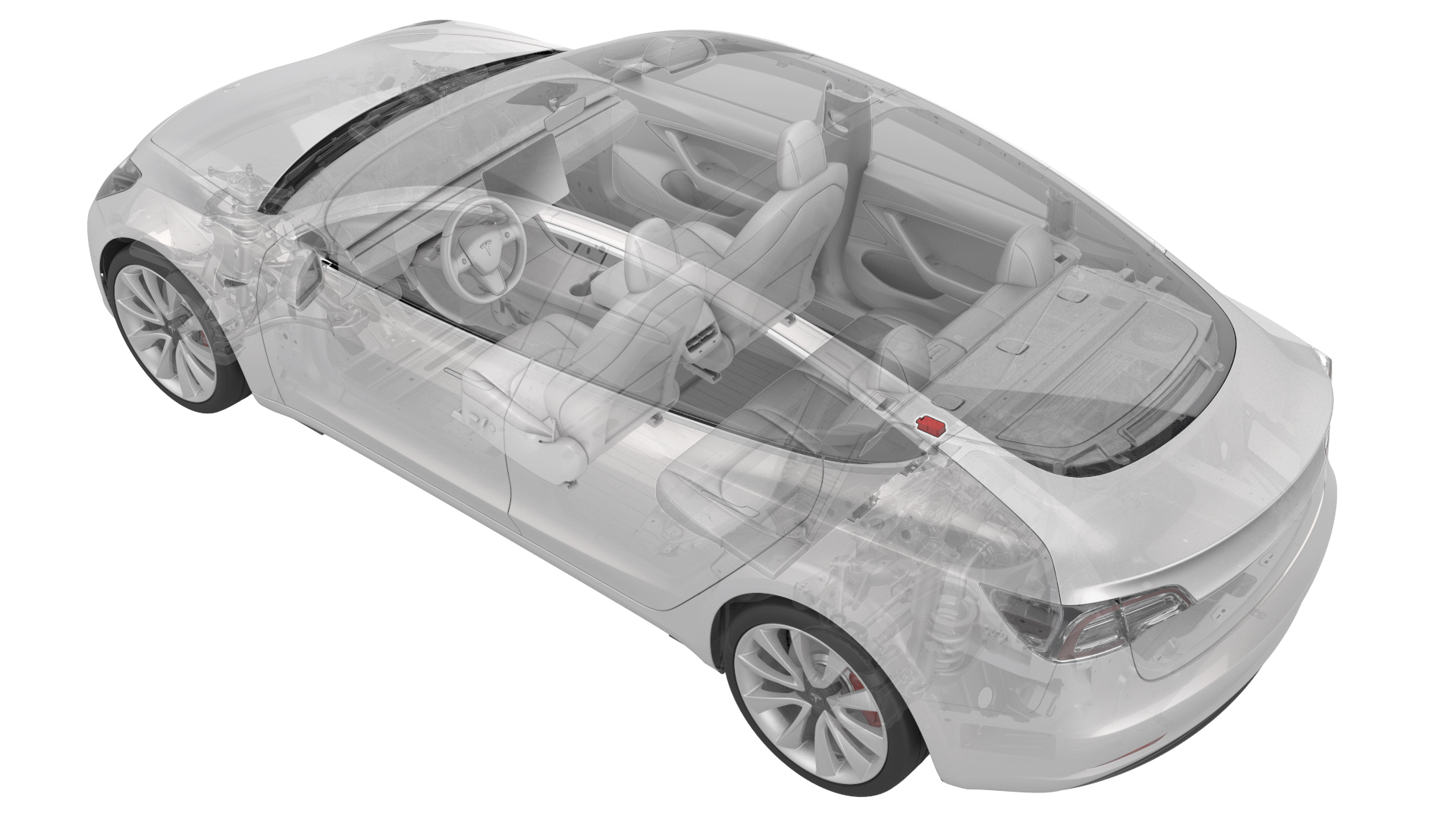

Module - TPMS (Remove and Replace)

Correction code 3404300234043002
Parent topic: 3404 - Tire Pressure Monitoring System (TPMS)

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
  4. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  6. Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
  7. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  8. Remove the package tray trim. See Trim - Package Tray (Remove and Install).

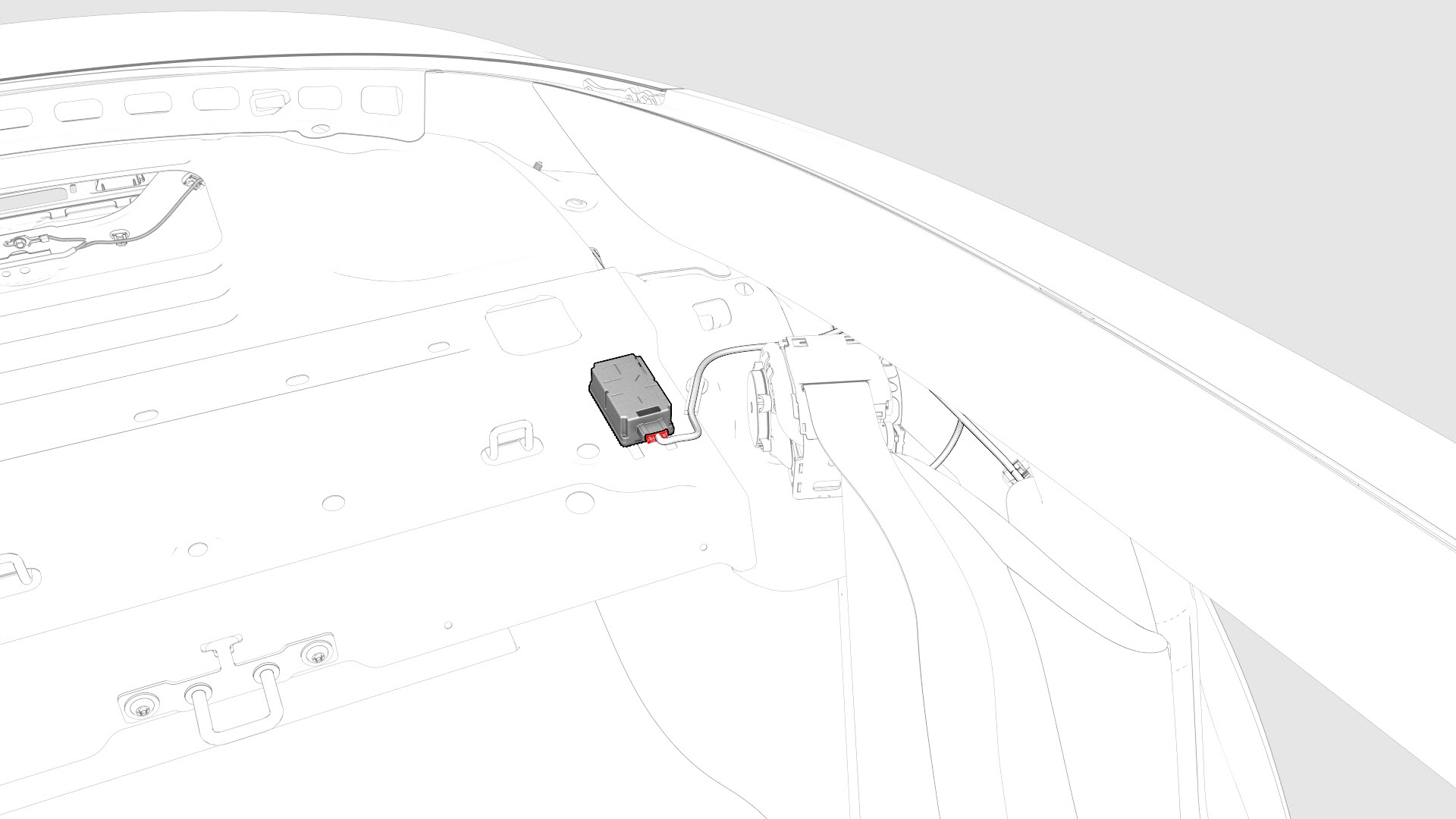

  9. Disconnect the TPMS module electrical connector.
  10. Release the tab and slide the TPMS module towards the front of the vehicle, and then remove the module from the vehicle.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
3Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
4Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
5Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
6Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
7Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
8Remove the package tray trim. See Trim - Package Tray (Remove and Install).
9Disconnect the TPMS module electrical connector.
10Release the tab and slide the TPMS module towards the front of the vehicle, and then remove the module from the vehicle.

Install

  1. Install the TPMS module on the vehicle by sliding the TPMS module towards the rear of the vehicle until the tab is attached.
  2. Connect the TPMS module electrical connector.
  3. Install the package tray trim. See Trim - Package Tray (Remove and Install).
  4. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
  6. Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  7. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  8. Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
  9. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  10. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  11. Update the vehicle firmware.
  12. Perform the TPMS module sensor ID learn procedure. See Module - TPMS (Sensor ID Learn).
1Install the TPMS module on the vehicle by sliding the TPMS module towards the rear of the vehicle until the tab is attached.
2Connect the TPMS module electrical connector.
3Install the package tray trim. See Trim - Package Tray (Remove and Install).
4Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
5Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
6Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
7Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
8Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Install)..
9Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
10Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
11Update the vehicle firmware.
12Perform the TPMS module sensor ID learn procedure. See Module - TPMS (Sensor ID Learn).
