Pressure Transducer - Low Pressure (Remove and Replace)

Correction code 1820560218205602

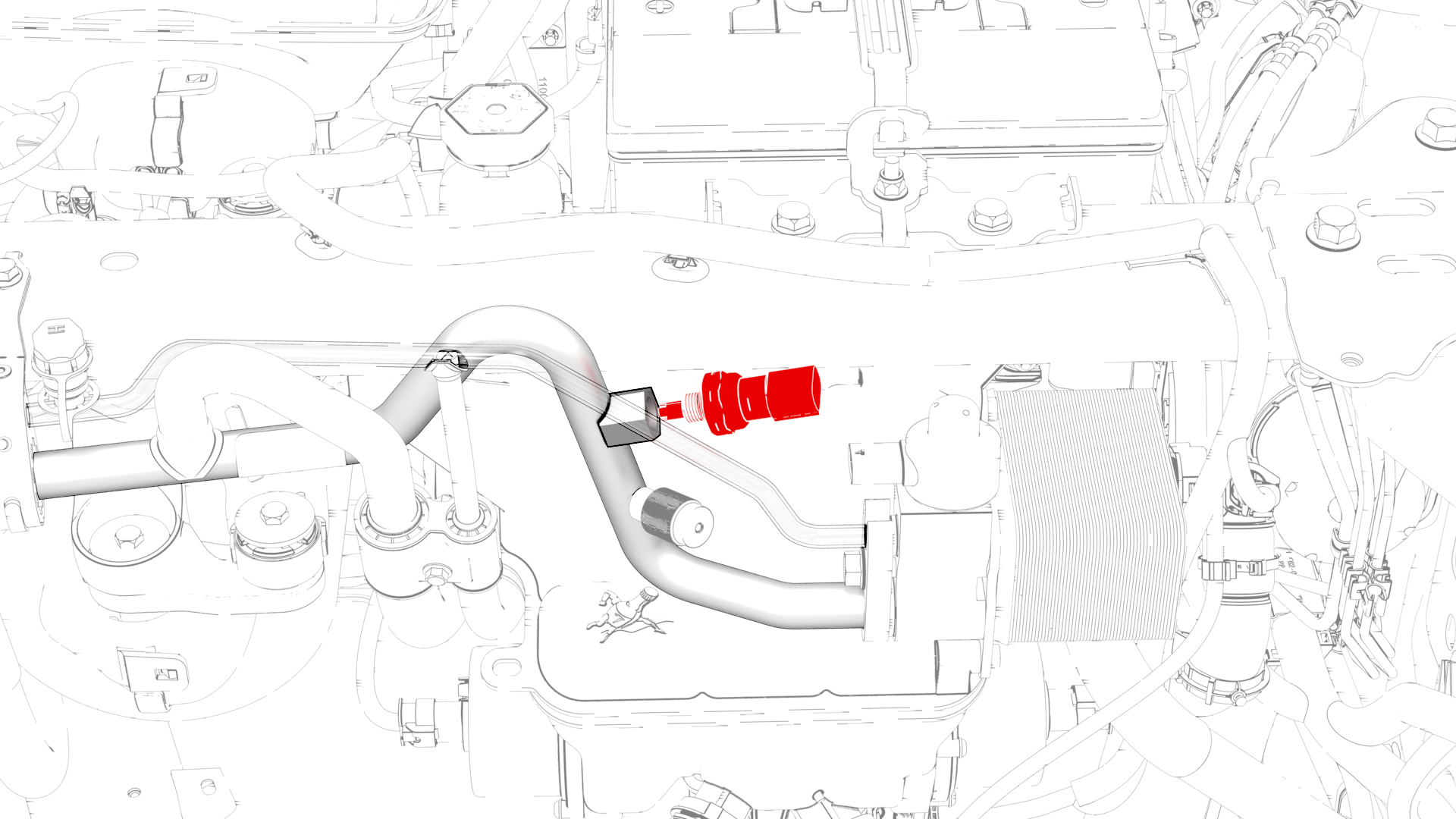

Remove

Recover the A/C refrigerant. See A/C Refrigerant (Recovery and Recharge).

Note: Completely recover the refrigerant before continuing this procedure.
Disconnect 12V power. See 12V Power (Disconnect and Connect).
Disconnect the electrical connector to the low pressure transducer.
Remove the transducer from the pipe.
Torque 7 Nm

		1	Recover the A/C refrigerant. See A/C Refrigerant (Recovery and Recharge). Note: Completely recover the refrigerant before continuing this procedure.
		2	Disconnect 12V power. See 12V Power (Disconnect and Connect).
		3	Disconnect the electrical connector to the low pressure transducer.
		4	Remove the transducer from the pipe. Torque 7 Nm

Install

Installation procedure is the reverse of removal, except for the following:

After installing the transducer, refill the refrigerant. See A/C Refrigerant (Recovery and Recharge).
