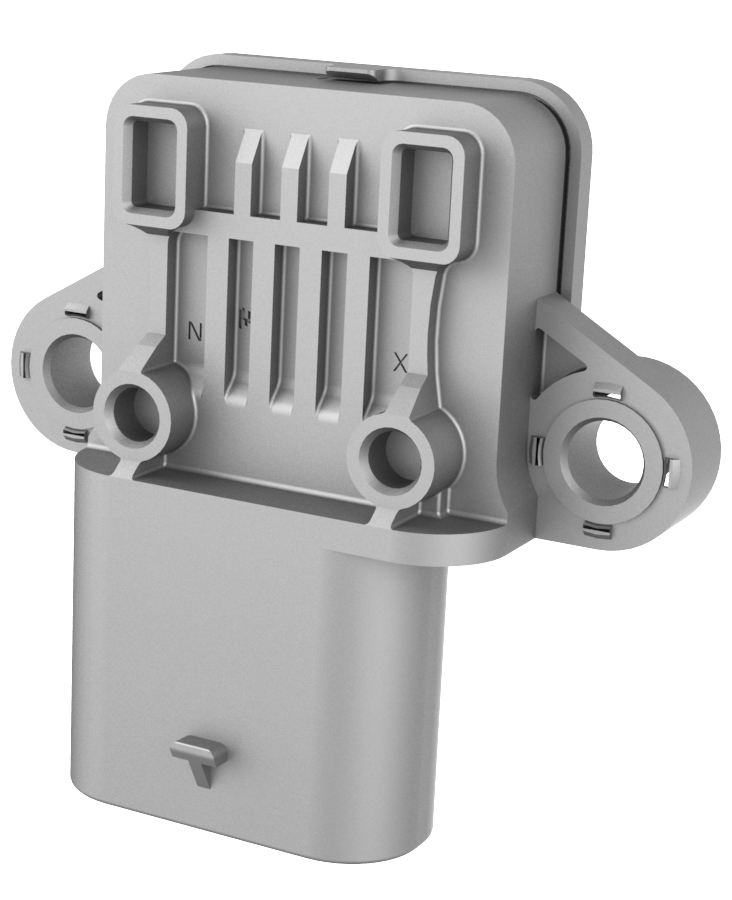

Hall Sensor - Exterior Release - Door - Front - LH (Remove and Replace)

Correction code 1145500211455002

Remove

Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
Remove the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
Remove the front LH door glass. See Glass - Door - LH - Front (Remove and Replace).
Remove the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
Remove the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
Remove the front LH door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove and Replace).

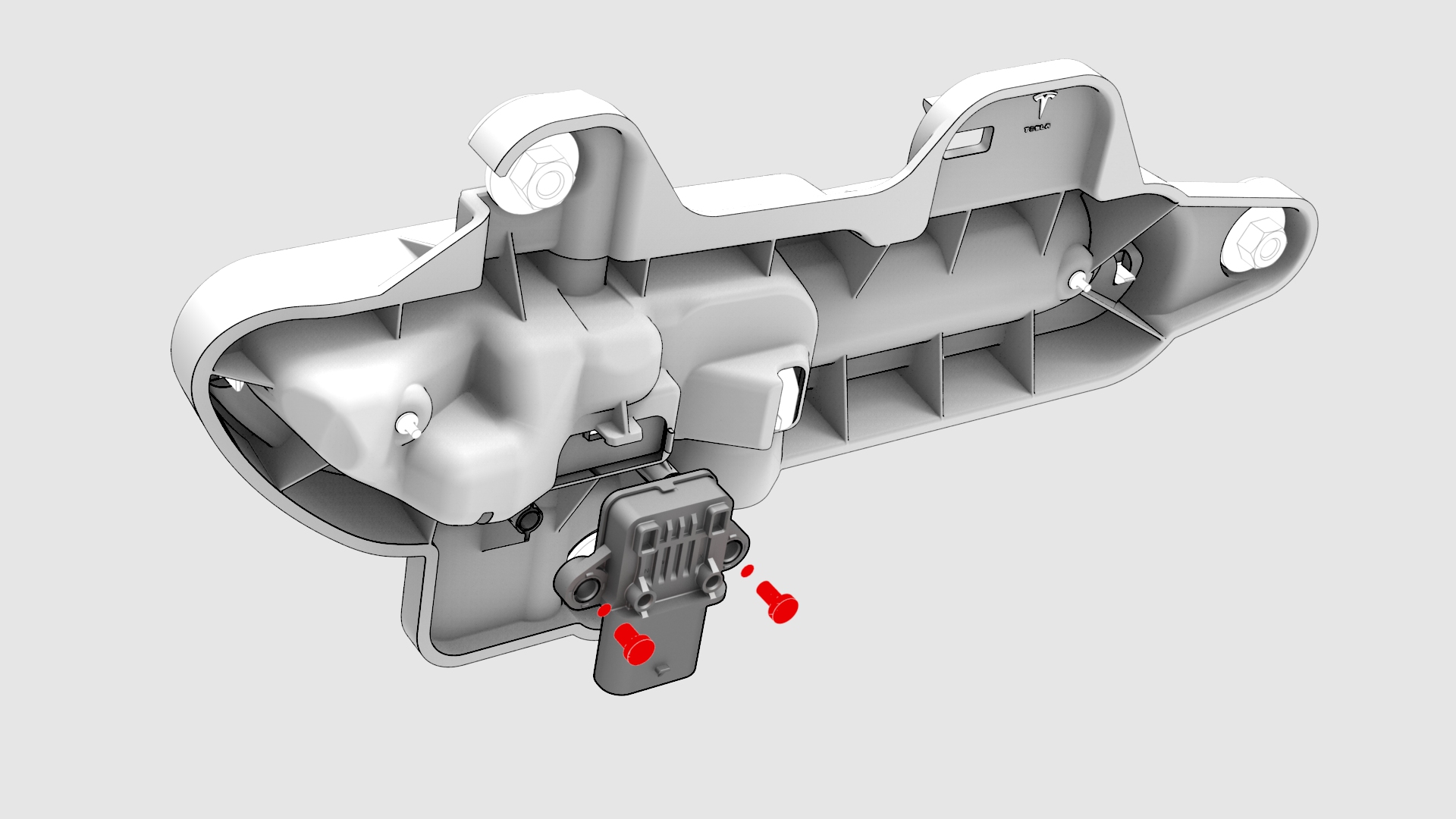

Remove the screws that attach the hall sensor to the LH door exterior release handle, and then remove the hall sensor from the release handle.

		1	Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
		2	Remove the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
		3	Remove the front LH door glass. See Glass - Door - LH - Front (Remove and Replace).
		4	Remove the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
		5	Remove the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
		6	Remove the front LH door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove and Replace).
		7	Remove the screws that attach the hall sensor to the LH door exterior release handle, and then remove the hall sensor from the release handle.

Install

Install the screws that attach the hall sensor to the LH door exterior release handle.
Torque 1.2 Nm
Install the front LH door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove and Replace).
Install the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
Install the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
Install the front LH door glass. See Glass - Door - LH - Front (Remove and Replace).
Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

		1	Install the screws that attach the hall sensor to the LH door exterior release handle. Torque 1.2 Nm
		2	Install the front LH door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove and Replace).
		3	Install the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Install).
		4	Install the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
		5	Install the front LH door glass. See Glass - Door - LH - Front (Remove and Replace).
		6	Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
