Bushing – Front Drive Unit – RH (Remove and Replace)

Correction code 3901110239011102
Parent topic: 3901 - Front Drive Unit Assembly

Remove

  1. Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
  2. Install the bushing tool on the RH front drive unit bushing.

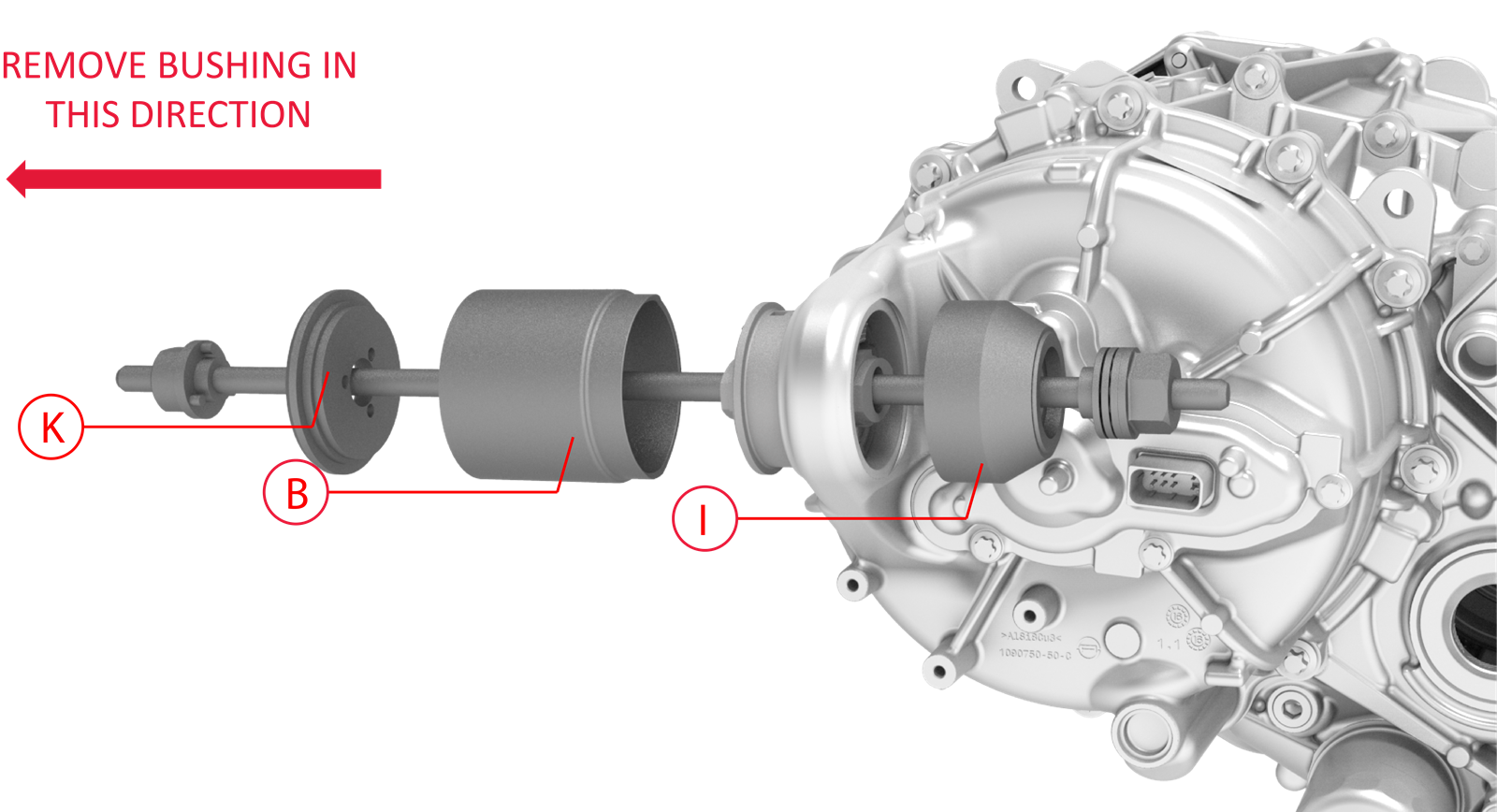

    Note: Use cups "K", "B", and "I" when assembling the special tool, as shown.
    Other assemblies hidden for clarity
  3. Turn the bearing-side bushing tool nut with a wrench while holding the opposite nut in place.
    Caution:
    Apply torque only to the bearing-side bushing tool nut.

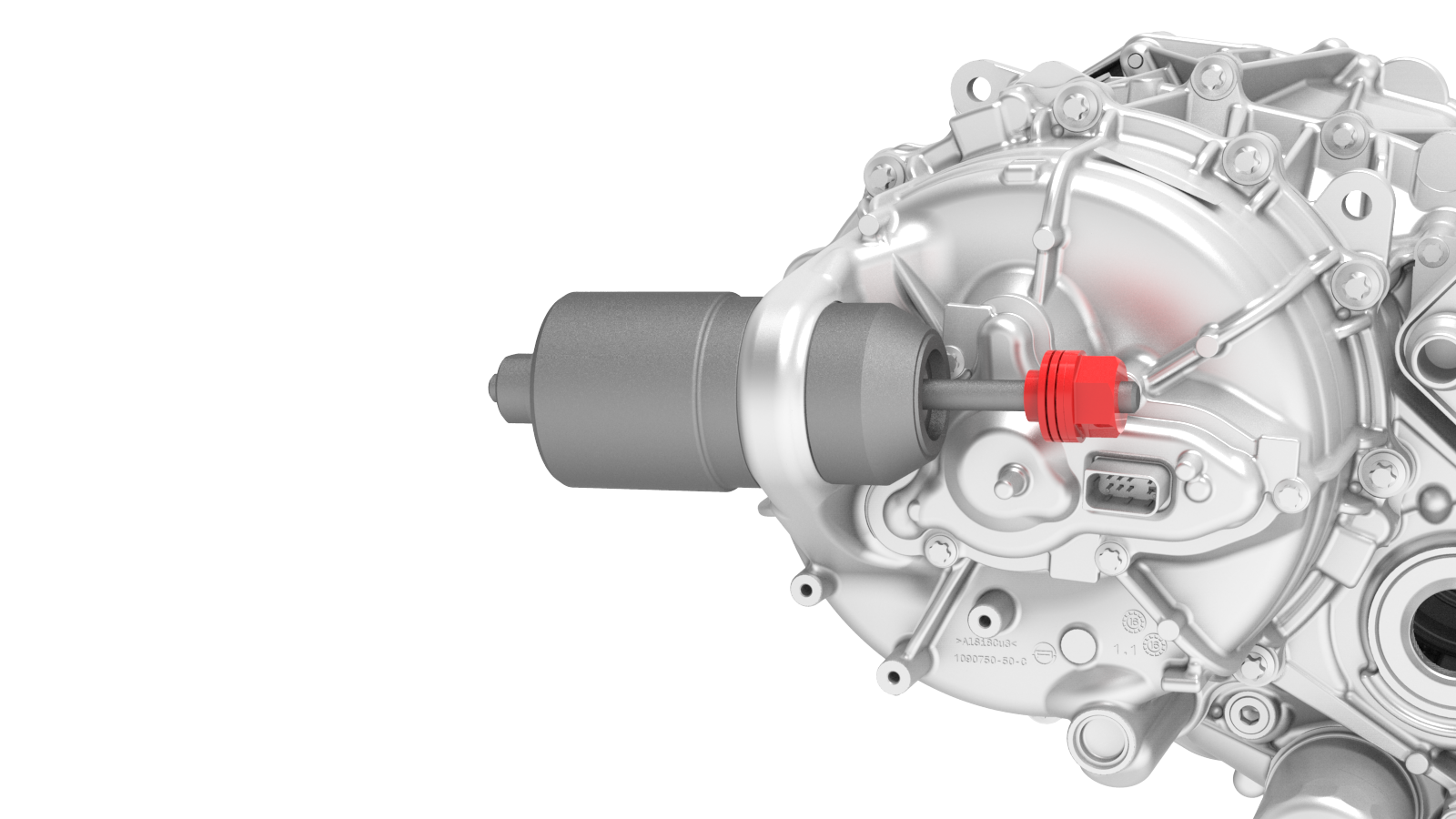

    Apply torque only to the nut highlighted red

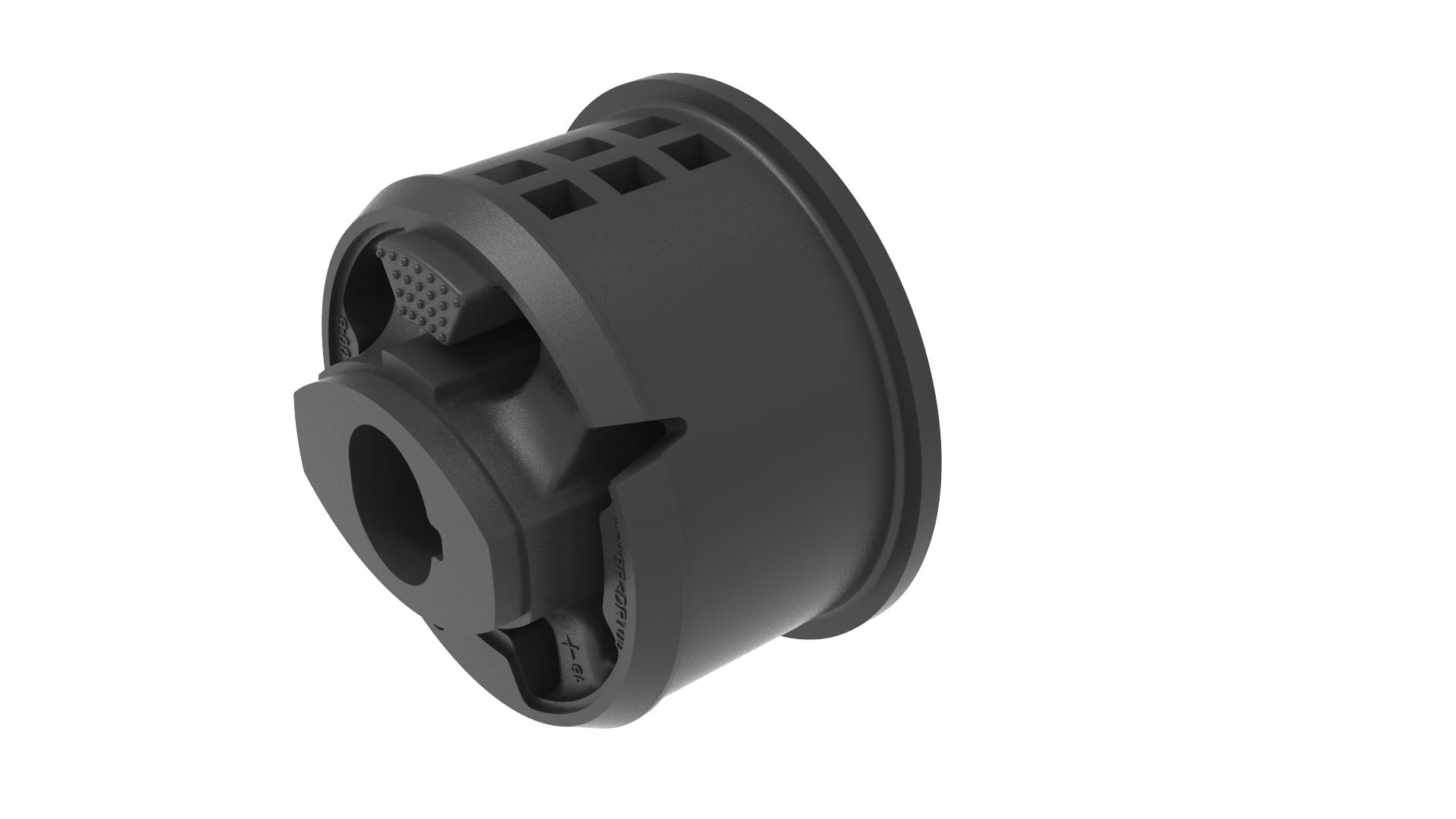

  4. When the bushing has been pushed out of the front drive unit, separate the bushing tool, and then remove the bushing.
1Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
Other assemblies hidden for clarity
2Install the bushing tool on the RH front drive unit bushing.
Note: Use cups "K", "B", and "I" when assembling the special tool, as shown.
Apply torque only to the nut highlighted red
3Turn the bearing-side bushing tool nut with a wrench while holding the opposite nut in place.
Caution:
Apply torque only to the bearing-side bushing tool nut.
4When the bushing has been pushed out of the front drive unit, separate the bushing tool, and then remove the bushing.

Install

  1. Set up the bushing tool to press in the new bushing.
    Note: Use cups "L", "J", and "C" when assembling the special tool, as shown.
    Note: Make sure the rubber tab is visible at the top of cup "J".

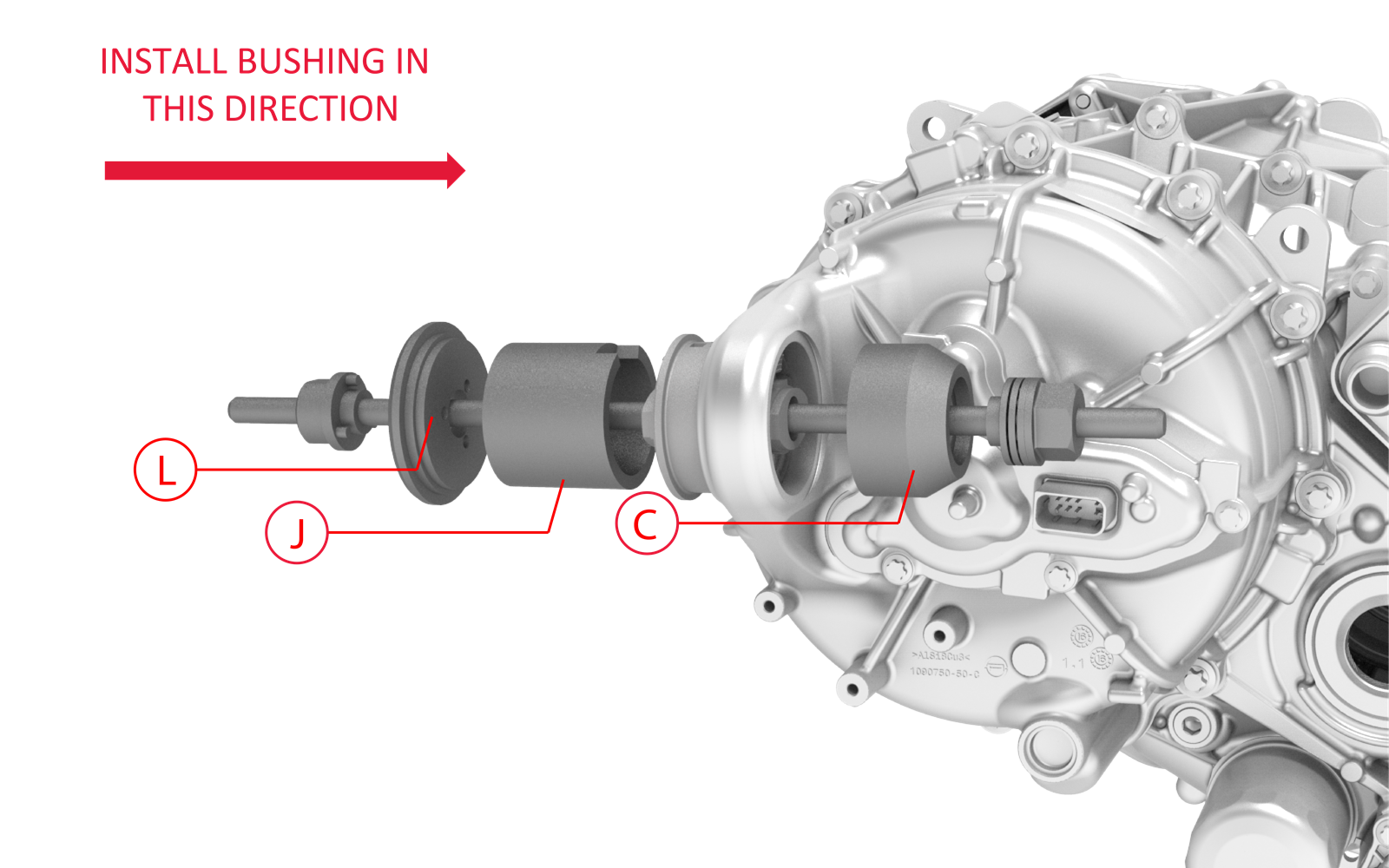

    Cups "L", "J", and "C" used to install the bushing

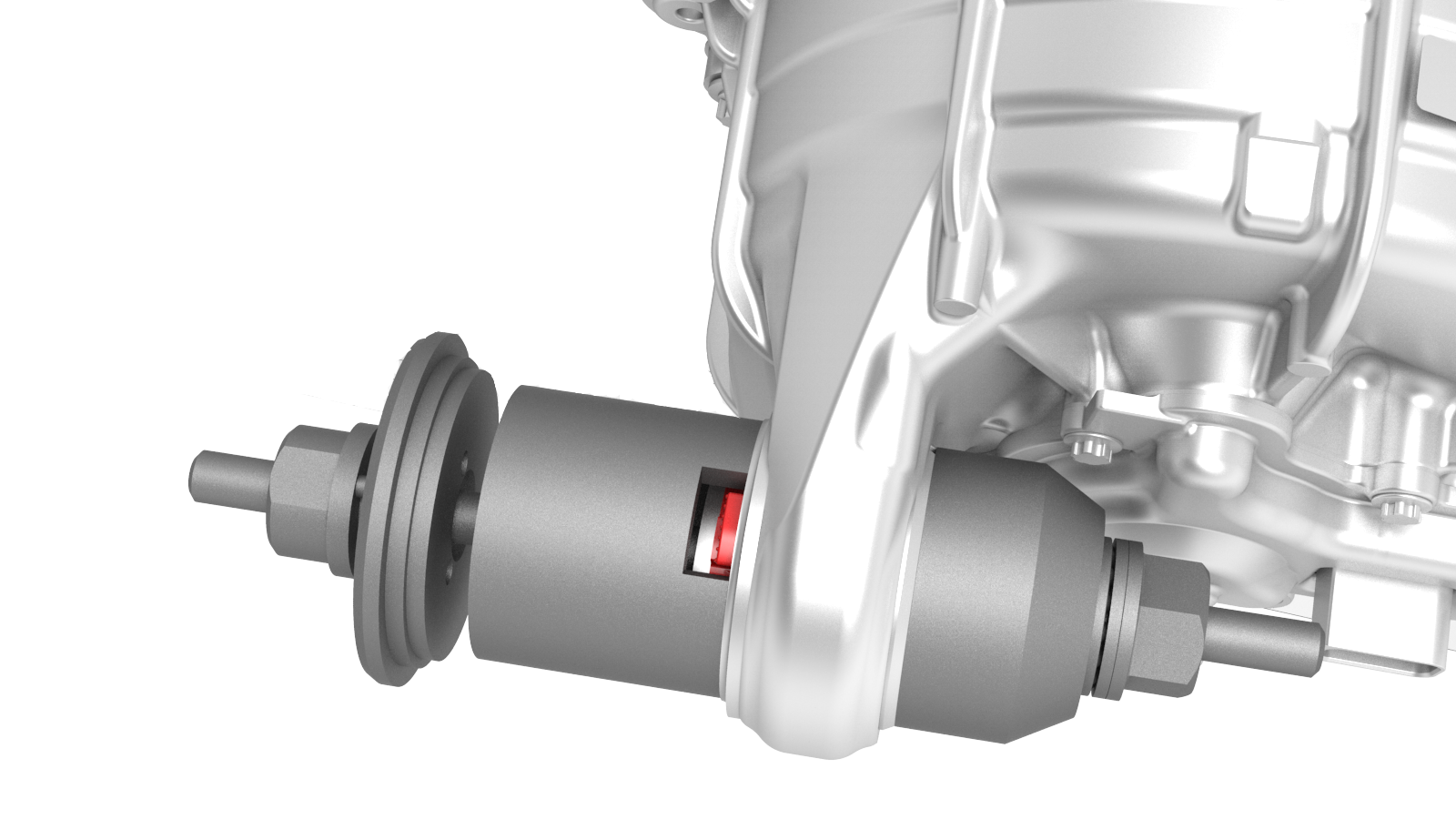

    Rubber tab visible at the top of cup "J"
  2. Turn the bearing-side bushing tool nut with a wrench until the bushing flange makes contact with the front drive unit.
    Caution:
    Apply torque only to the bearing-side bushing tool nut.
    Note: While installing the bushing, make sure the rubber tab remains visible at the top of cup "J".
    Apply torque only to the nut highlighted red
  3. Separate the bushing tool, and then remove it from the drive unit.

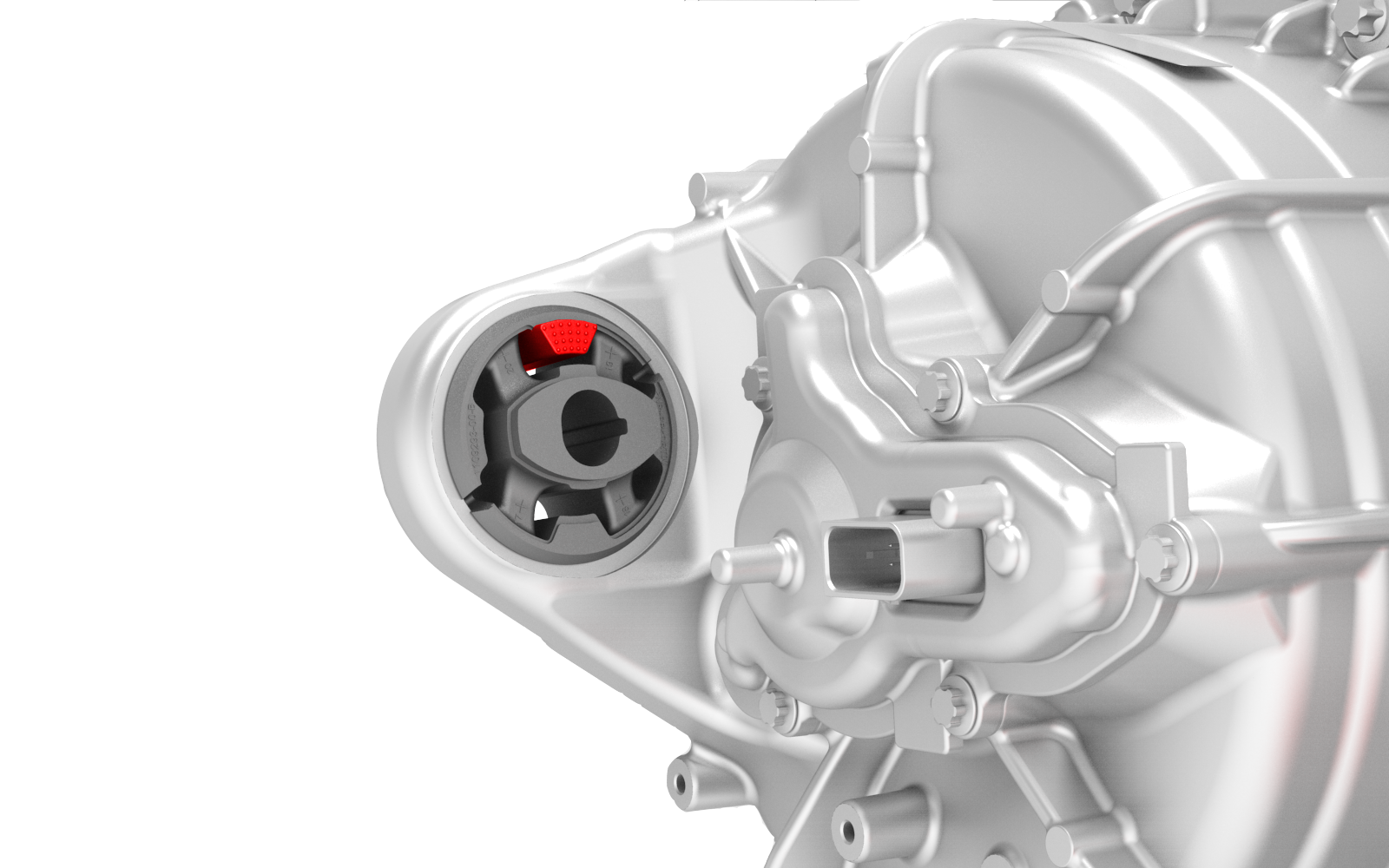

  4. Make sure the bushing alignment lug is oriented to 12 o'clock.
    Other assemblies hidden for clarity
  5. Install the front subframe assembly on the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
Cups "L", "J", and "C" used to install the bushing
Rubber tab visible at the top of cup "J"
1Set up the bushing tool to press in the new bushing.
Note: Use cups "L", "J", and "C" when assembling the special tool, as shown.
Note: Make sure the rubber tab is visible at the top of cup "J".
Apply torque only to the nut highlighted red
2Turn the bearing-side bushing tool nut with a wrench until the bushing flange makes contact with the front drive unit.
Caution:
Apply torque only to the bearing-side bushing tool nut.
Note: While installing the bushing, make sure the rubber tab remains visible at the top of cup "J".
3Separate the bushing tool, and then remove it from the drive unit.
Other assemblies hidden for clarity
4Make sure the bushing alignment lug is oriented to 12 o'clock.
5Install the front subframe assembly on the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
