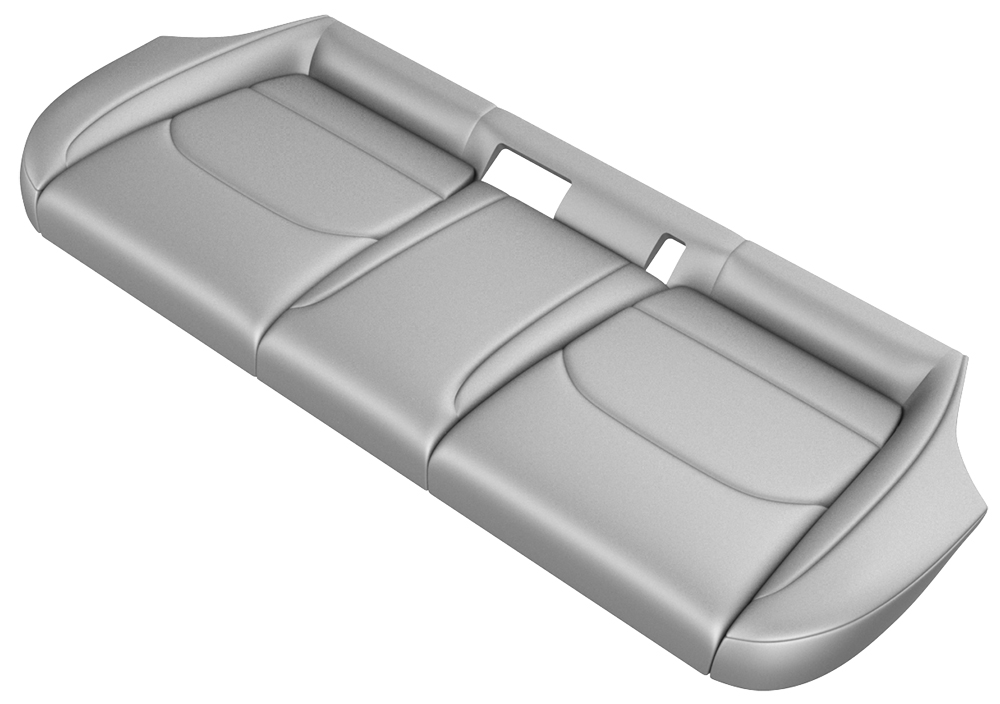

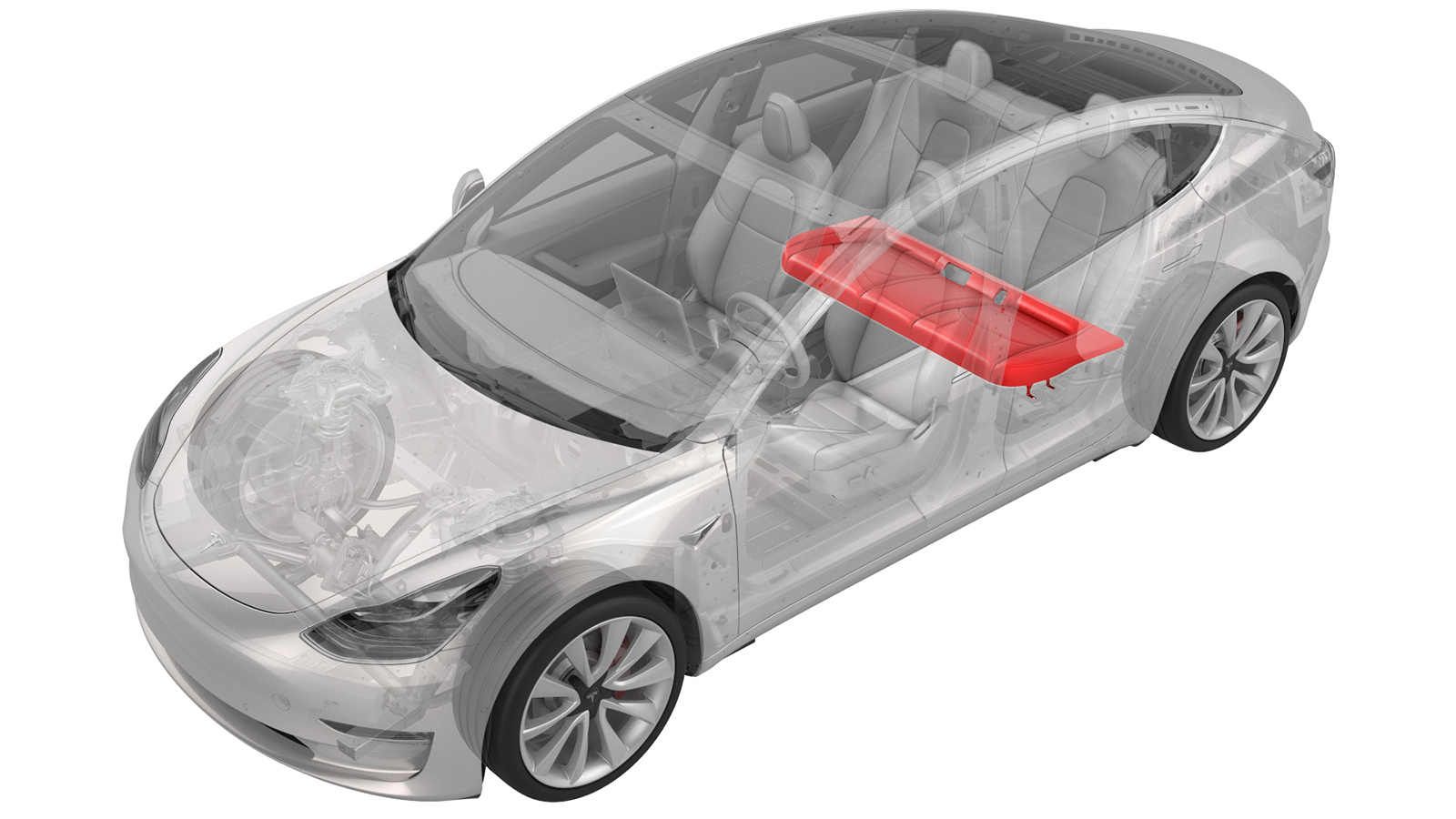

Seat Cushion - Lower - 2nd Row (Remove and Replace)

Correction code 1305100213051002

Remove

Move the driver seat and the front passenger seat fully forward.

Note: Note the position of the driver seat and the front passenger seat prior to movement so that both seats are restored to their original position during installation.

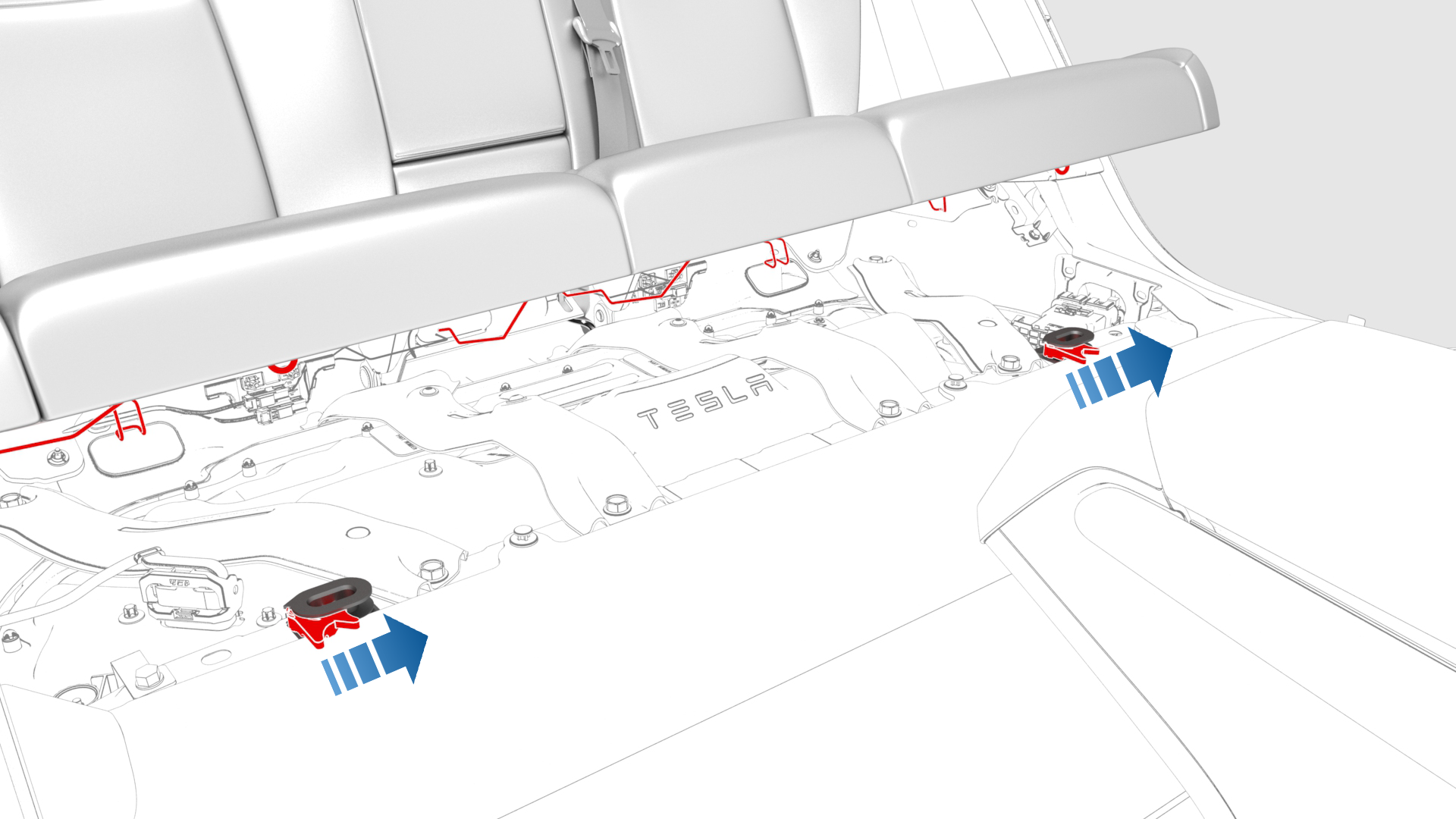

While pressing the LH and RH tabs towards the LH side of the vehicle, lift the front edge of the seat cushion.
Disconnect the electrical connectors on each end of the seat cushion, and then remove the seat cushion from the vehicle.

		1	Move the driver seat and the front passenger seat fully forward. Note: Note the position of the driver seat and the front passenger seat prior to movement so that both seats are restored to their original position during installation.
		2	While pressing the LH and RH tabs towards the LH side of the vehicle, lift the front edge of the seat cushion.
		3	Disconnect the electrical connectors on each end of the seat cushion, and then remove the seat cushion from the vehicle.

Install

Position the seat cushion in the vehicle.
Connect the electrical connectors on each side of the seat cushion.
Insert the seat belt buckles through the seat cushion holes.
Slide the seat cushion inward, align the front guide tabs to the locking tabs, and then push the seat cushion into the tabs.
Make sure that the seat cushion is fully seated with a "push and pull" test near the tabs.
Move the driver seat and the front passenger seat to their original position.

		1	Position the seat cushion in the vehicle.
		2	Connect the electrical connectors on each side of the seat cushion.
		3	Insert the seat belt buckles through the seat cushion holes.
		4	Slide the seat cushion inward, align the front guide tabs to the locking tabs, and then push the seat cushion into the tabs.
		5	Make sure that the seat cushion is fully seated with a "push and pull" test near the tabs.
		6	Move the driver seat and the front passenger seat to their original position.
