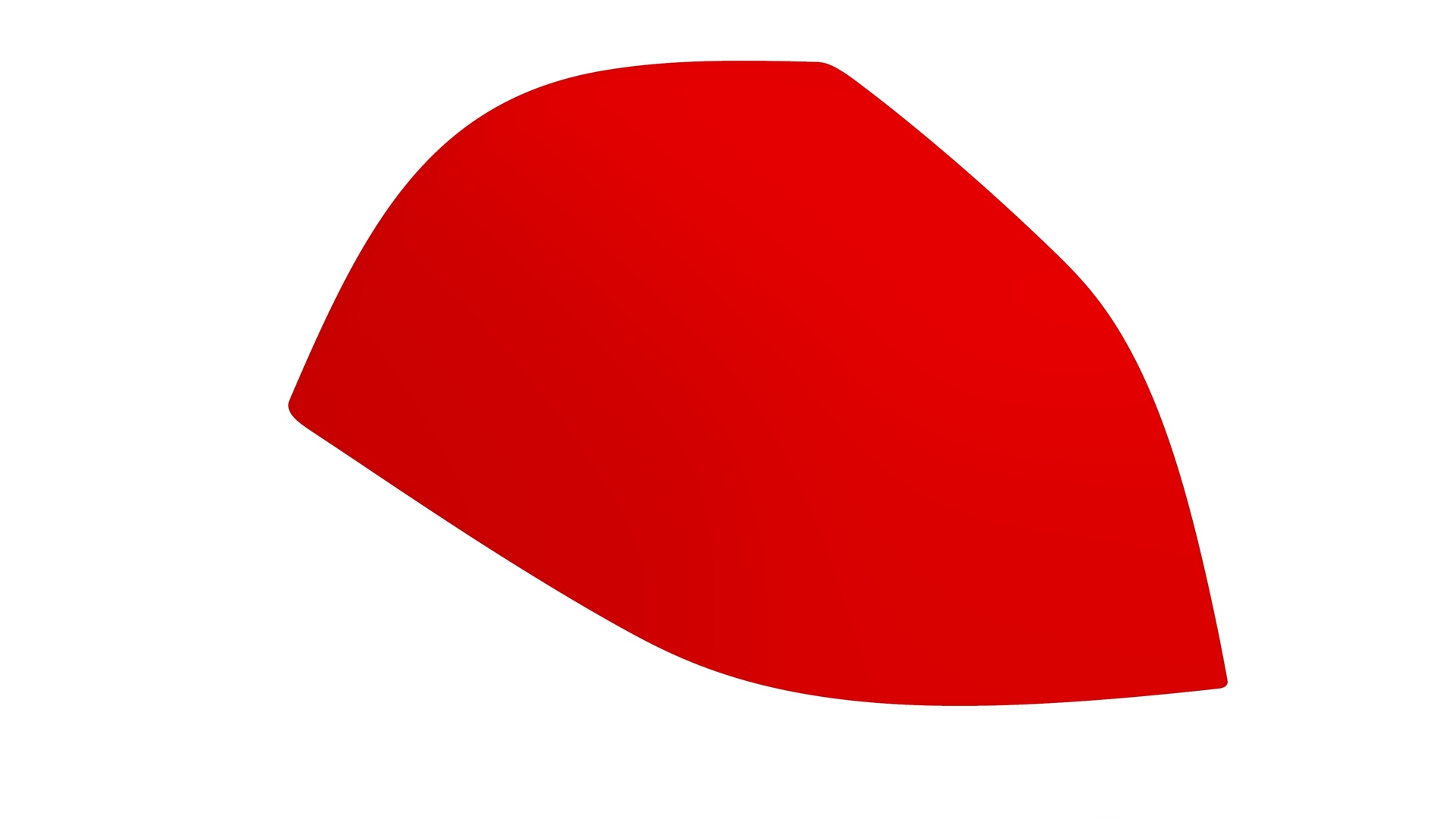

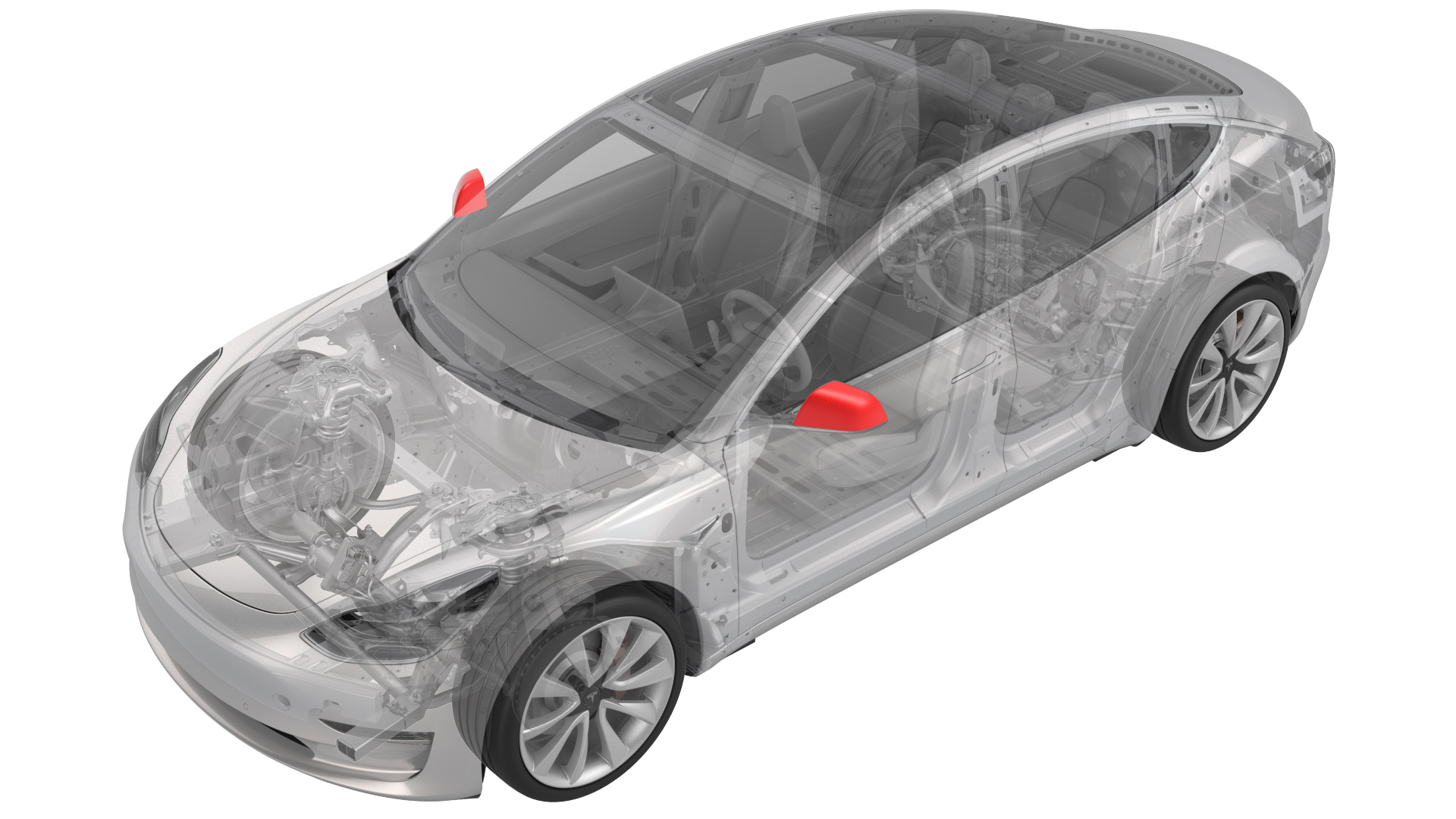

Skull Cap - Door Mirror - LH (Remove and Replace)
Correction code 1209170212091702
Remove
-

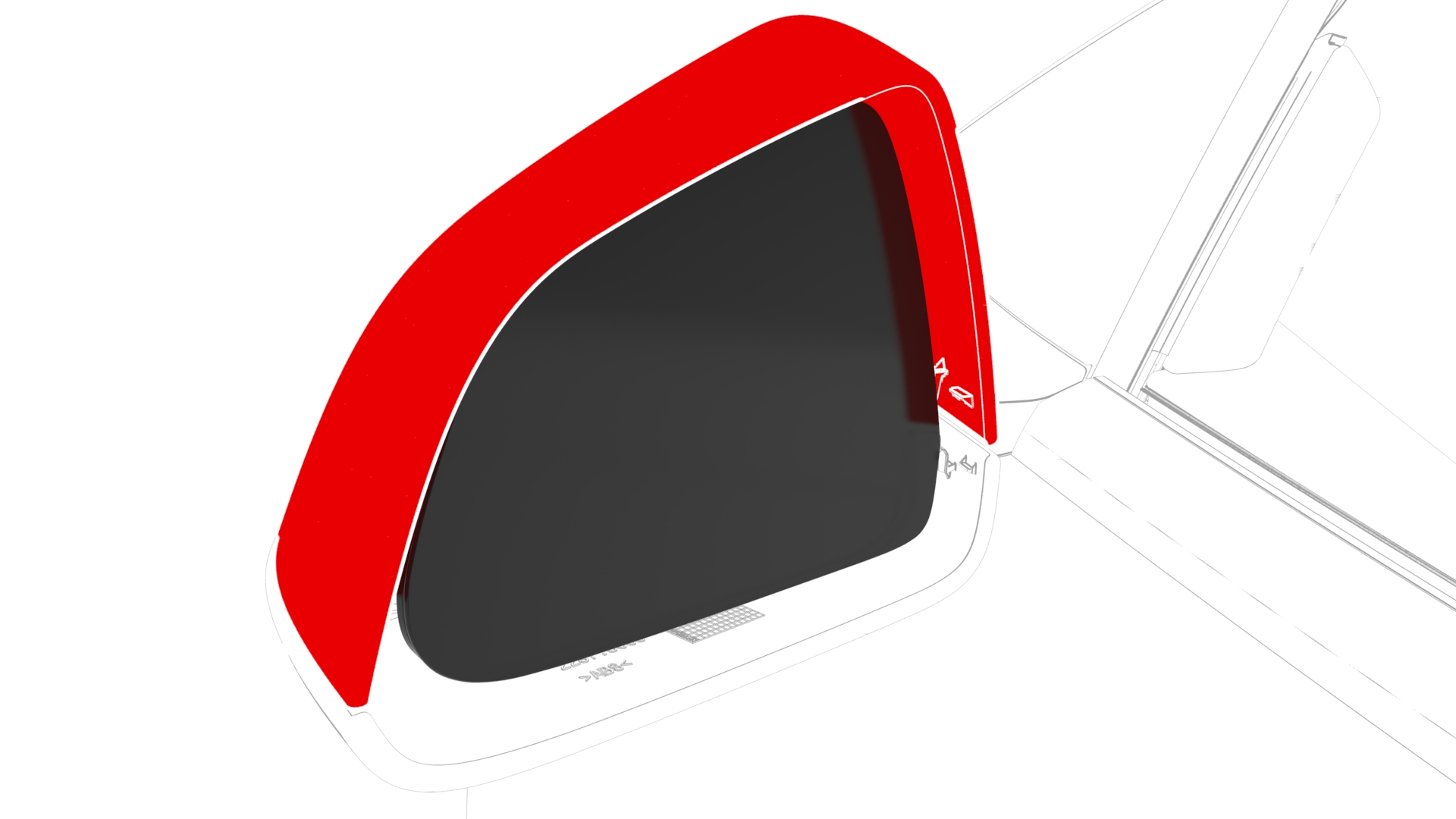

Pull outward to release the clips that attach the rear of the LH door mirror skull cap to the LH door mirror.
Outside Edge of Skull Cap
Inside Edge of Skull Cap -

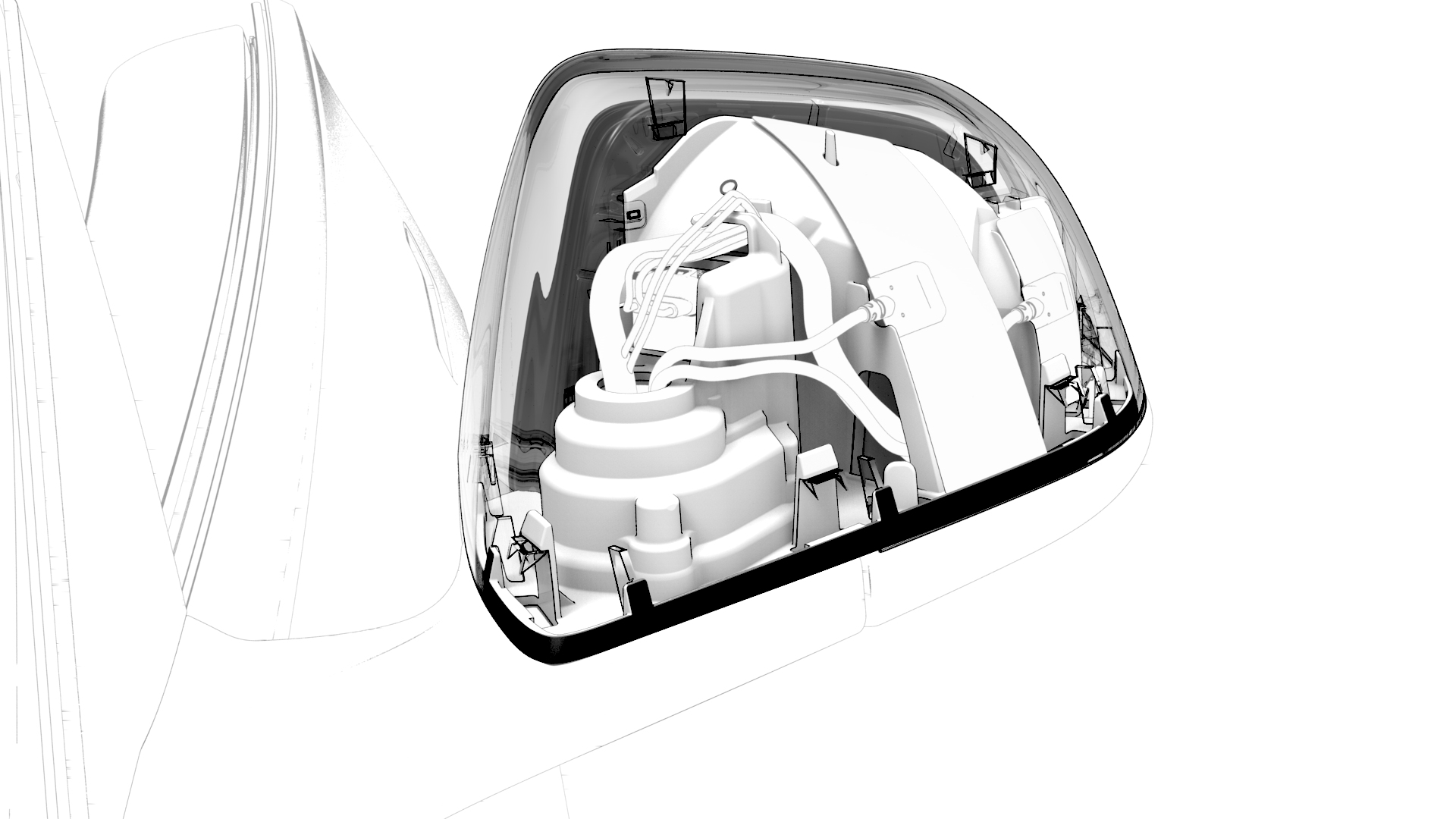

Release the remaining clips that attach the LH door mirror skull cap to the LH door mirror, and then remove the skull cap from the door mirror.
Outside Edge of Skull Cap
Inside Edge of Skull Cap
| 1 | Pull outward to release the clips that attach the rear of the LH door mirror skull cap to the LH door mirror. | |
| 2 | Pry up along the inside and outside edge of the LH door mirror skull cap, working toward the front of the skull cap. | ||
| 3 | Release the remaining clips that attach the LH door mirror skull cap to the LH door mirror, and then remove the skull cap from the door mirror. |
Install
Installation procedure is the reverse of removal.
-
Position the LH door mirror skull cap over the LH door mirror, and align the skull cap tabs to the door mirror.
-
Push down on the top of the LH door mirror skull cap to fasten the clips that attach the skull cap to the LH door mirror.
Note: Press at the inside and outside edges of the skull cap, until an audible click is heard.
Outside Edge of Skull Cap
Inside Edge of Skull Cap
| 1 | Position the LH door mirror skull cap over the LH door mirror, and align the skull cap tabs to the door mirror. | |
Outside Edge of Skull Cap
Inside Edge of Skull Cap
| 2 | Push down on the top of the LH door mirror skull cap to fasten the clips that attach the skull cap to the LH door mirror. Note: Press at the inside and outside edges of the skull cap, until an audible click is heard.
|
