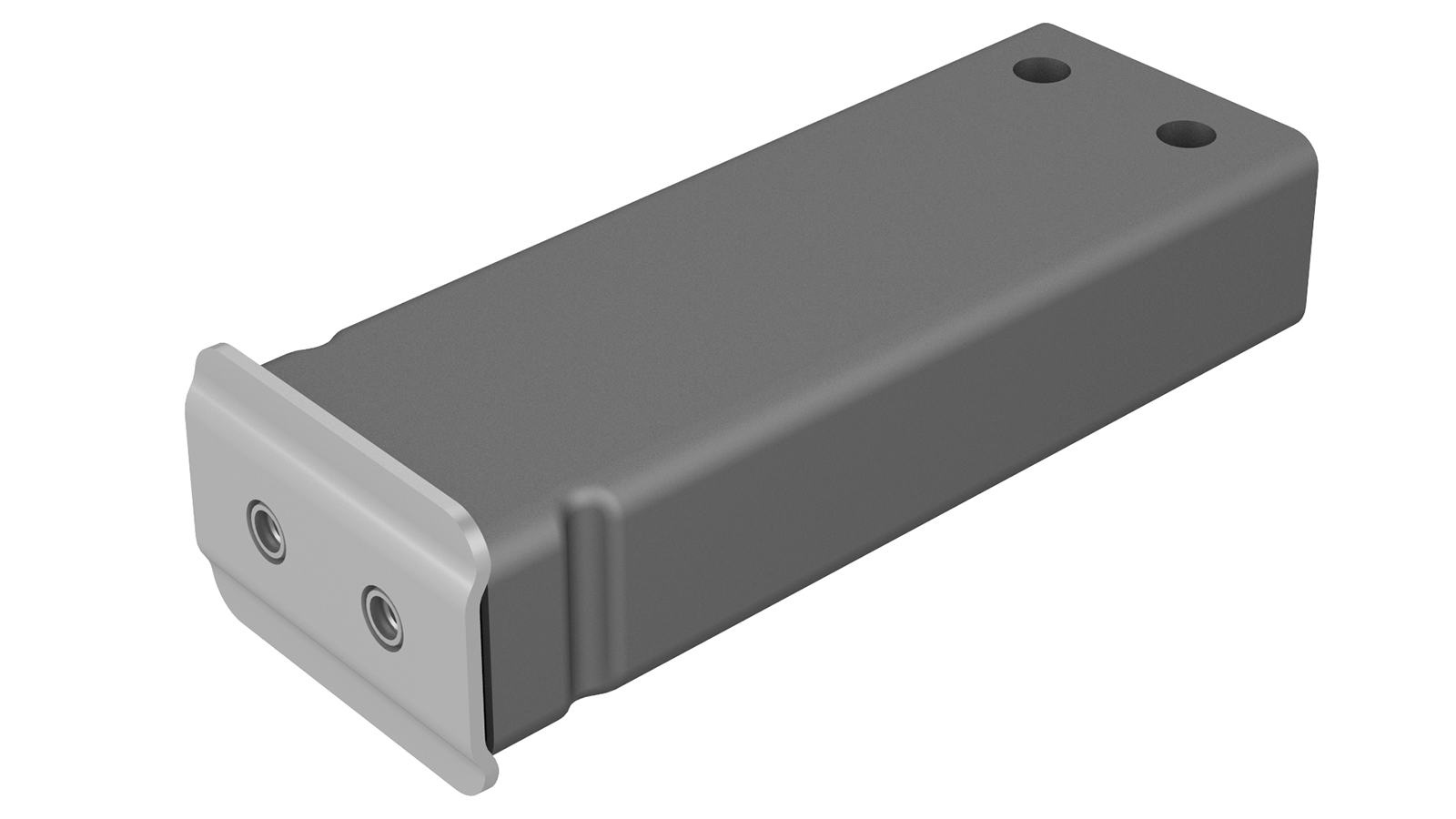

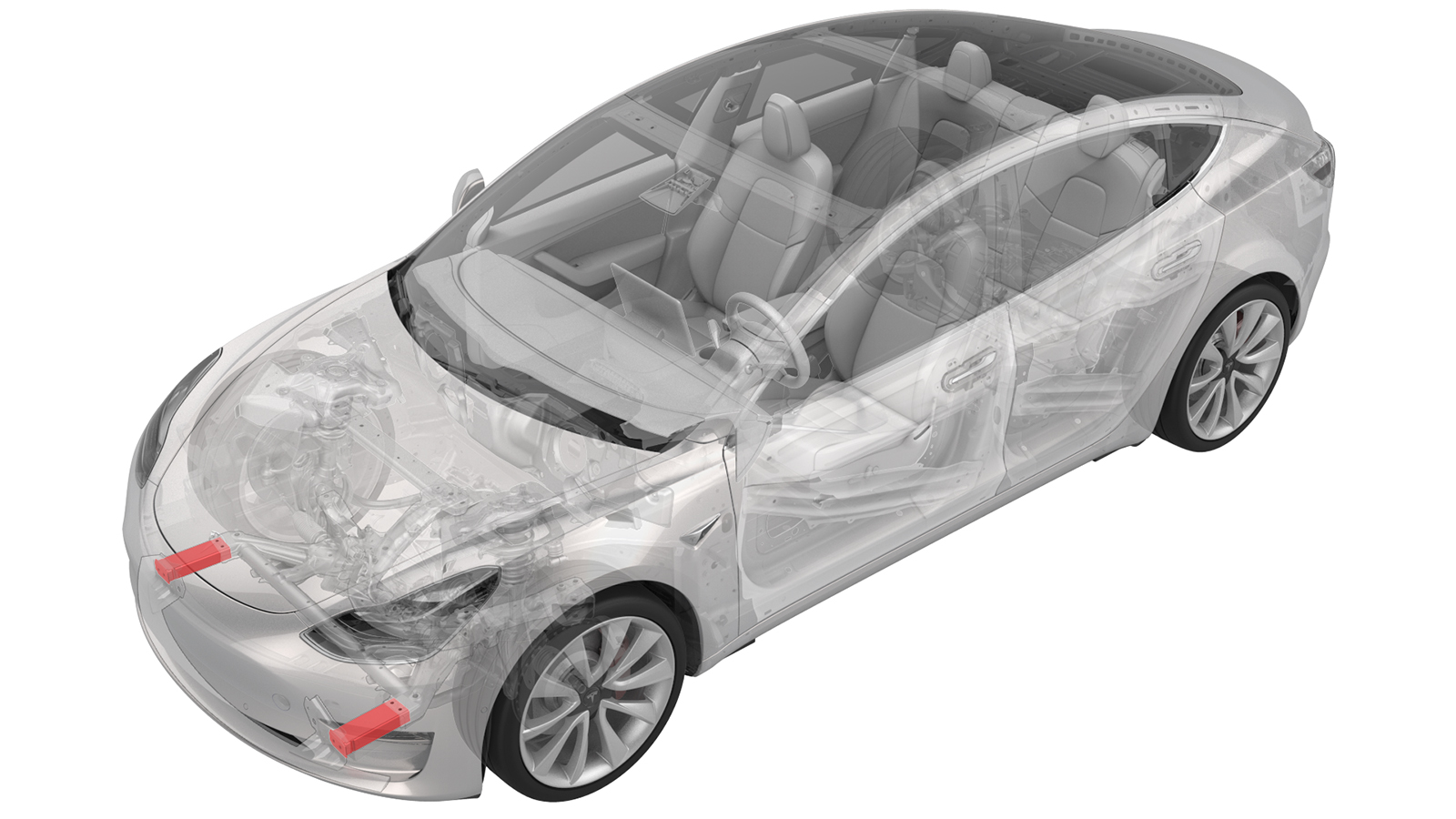

Bracket - Crash Can - LH (Remove and Replace)

Correction code 1010160210101602

DRAFT

from-cad

Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

1133185-00-ASkt, 3/8in Dr, XZN M14, Tri-Square

SPECIAL TOOLS

Skt, 3/8in Dr, XZN M14, Tri-Square (1133185-00-A)

Remove

Remove the front end carrier. See Carrier - Front End (Remove and Replace).

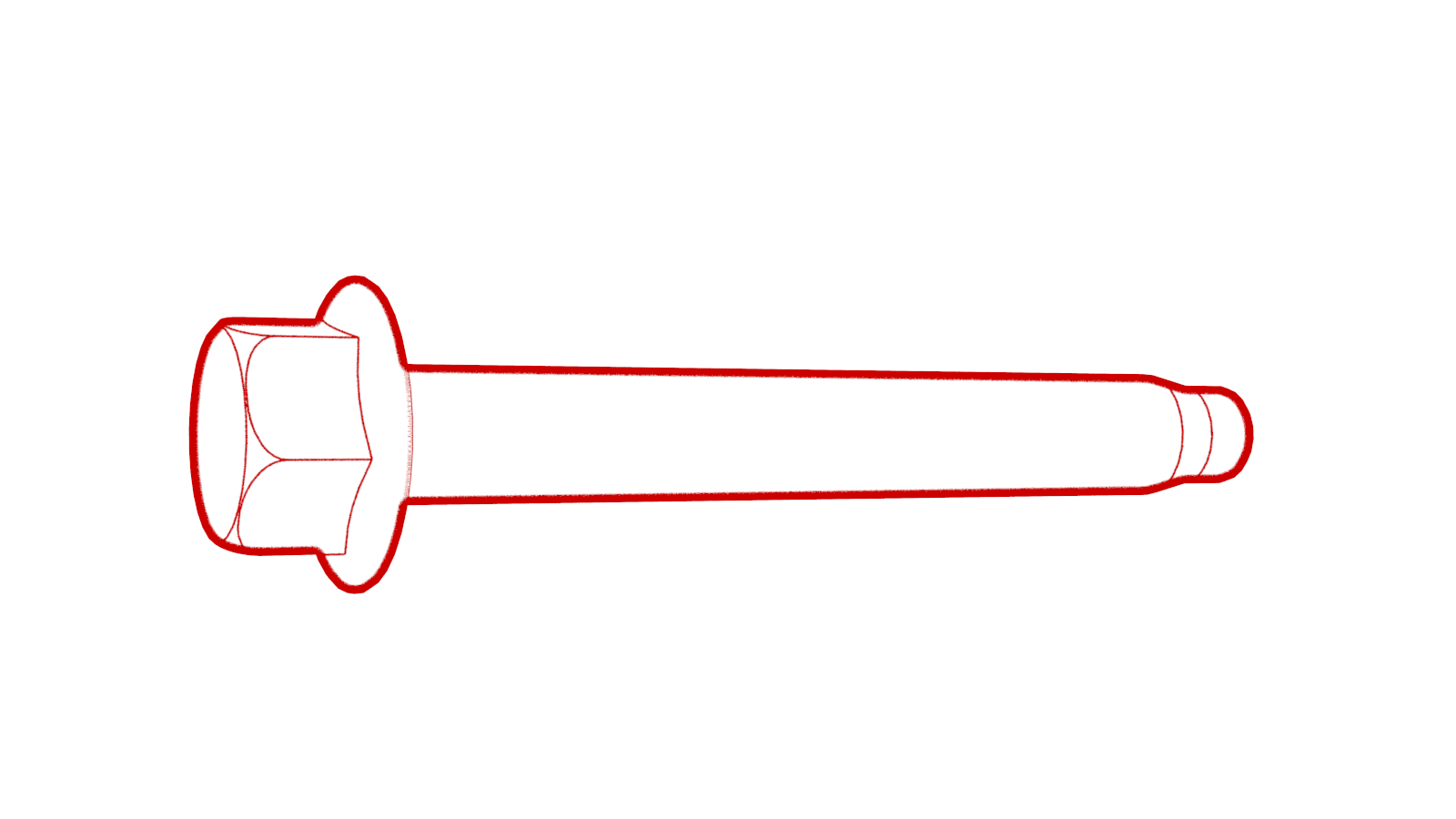

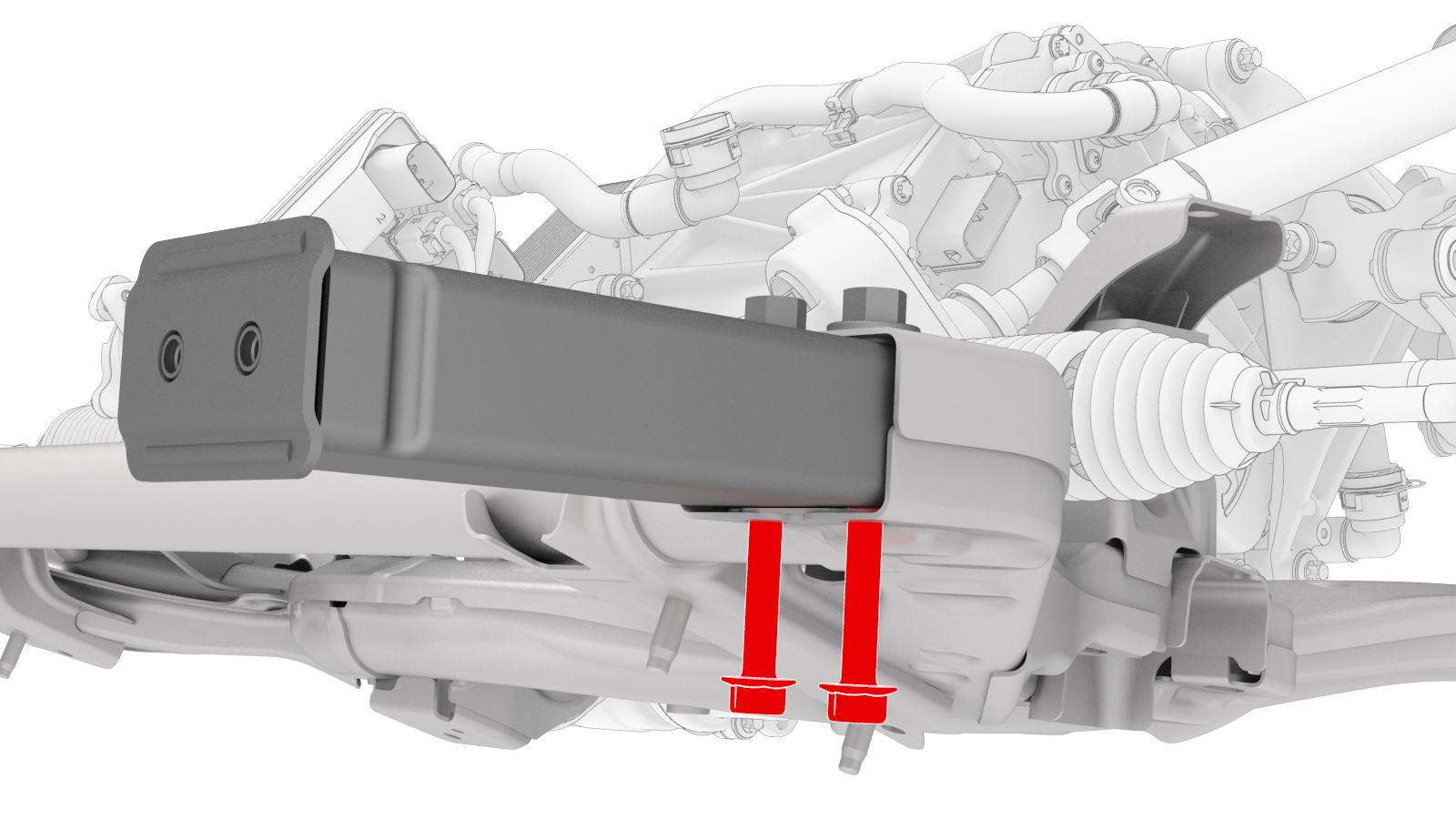

Remove the bolts that attach the LH crash can bracket to the front subframe, and remove the bracket from the subframe.
Torque 53 Nm

		1	Remove the front end carrier. See Carrier - Front End (Remove and Replace).
		2	Remove the bolts that attach the LH crash can bracket to the front subframe, and remove the bracket from the subframe. Torque 53 Nm

Install

Installation procedure is the reverse of removal.
