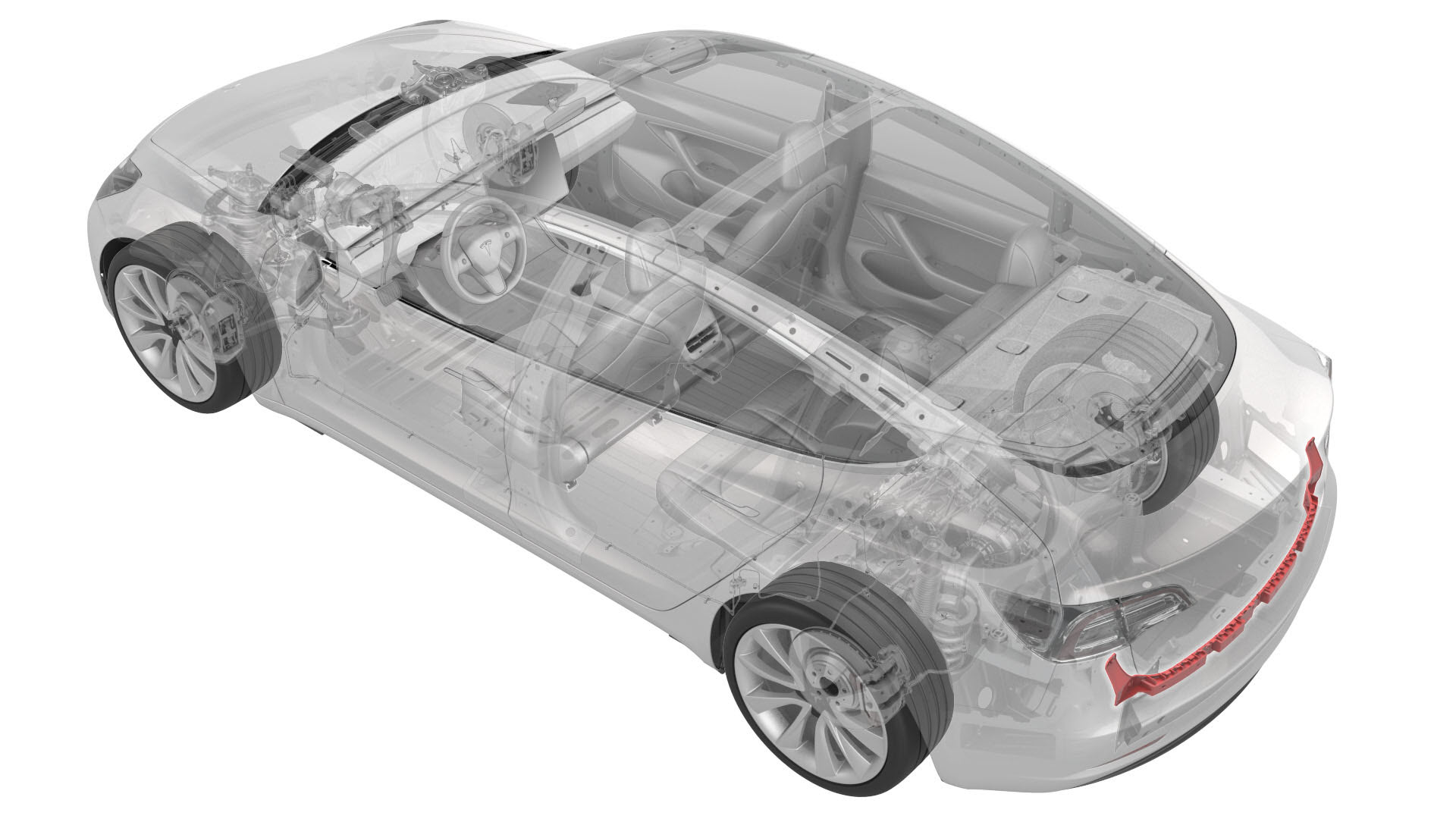

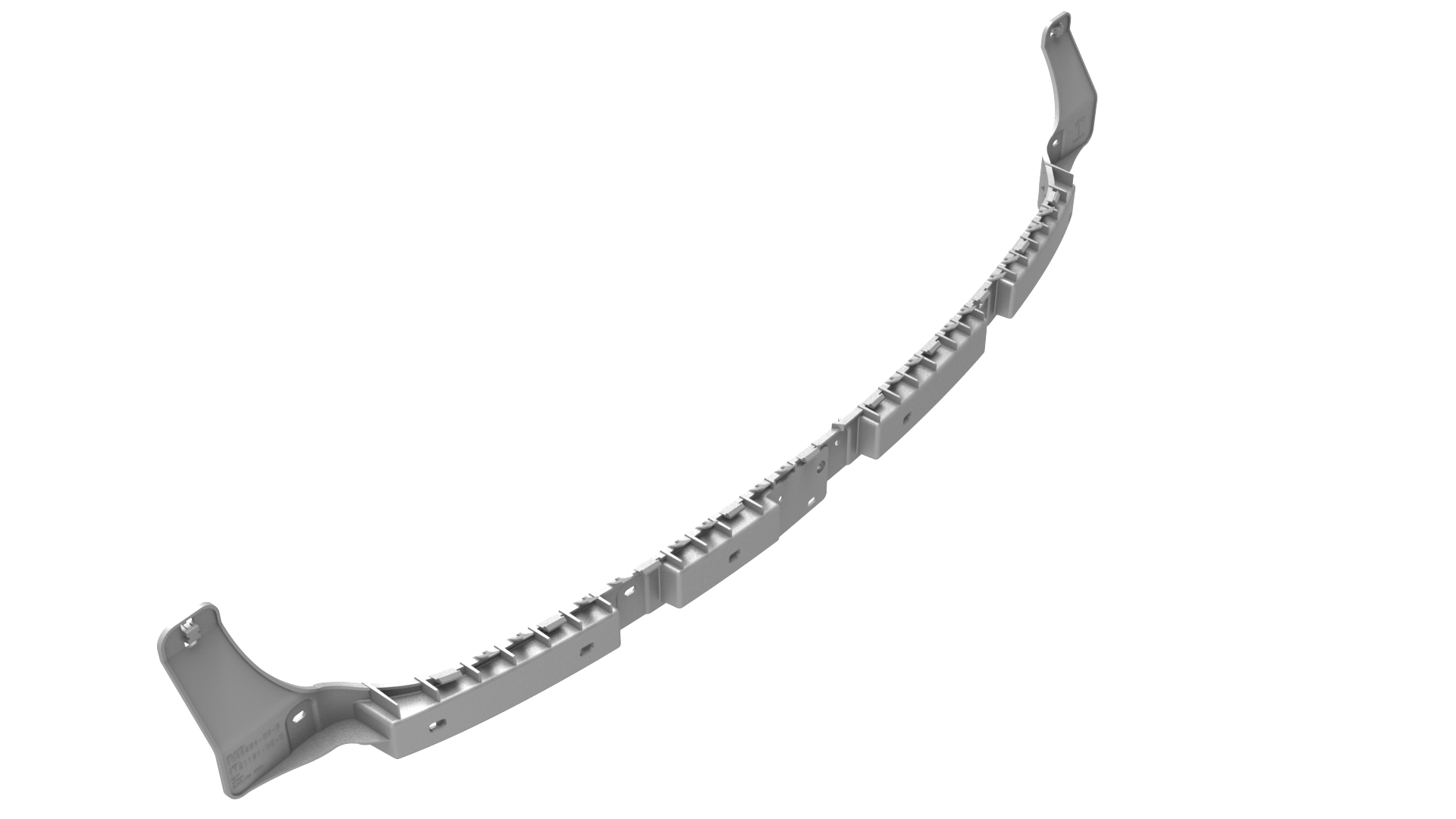

Bracket - Rear - Center (Remove and Replace)

Correction code 1001430210014302

Remove

Remove the rear fascia. See Fascia - Rear (Remove and Install).
Release the clips that attach the rear Bluetooth passive entry antenna electrical harness to the center rear bracket assembly.
Remove rear Bluetooth passive entry antenna. See Antenna - Bluetooth Passive Entry - Rear (Remove and Replace).

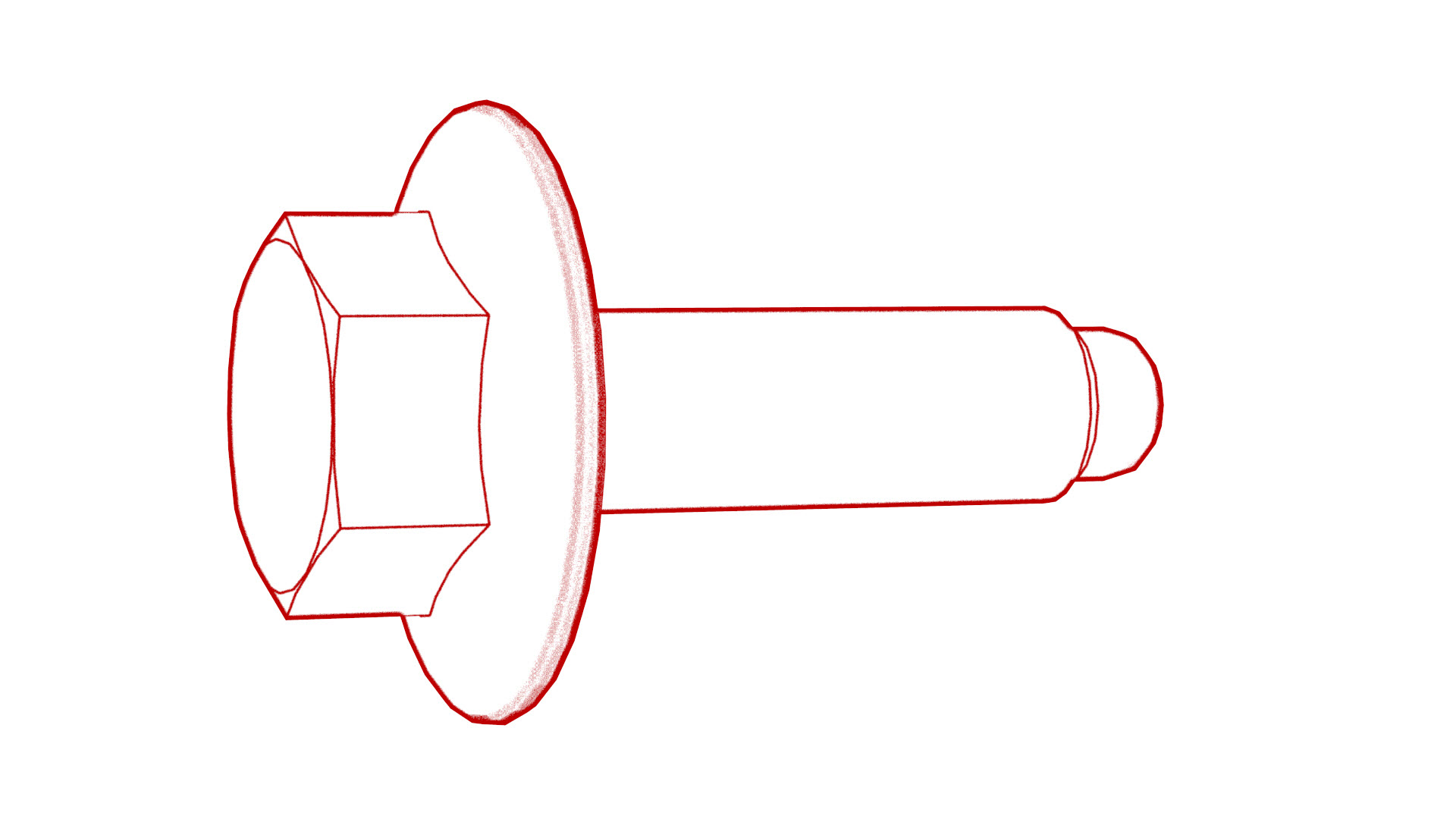

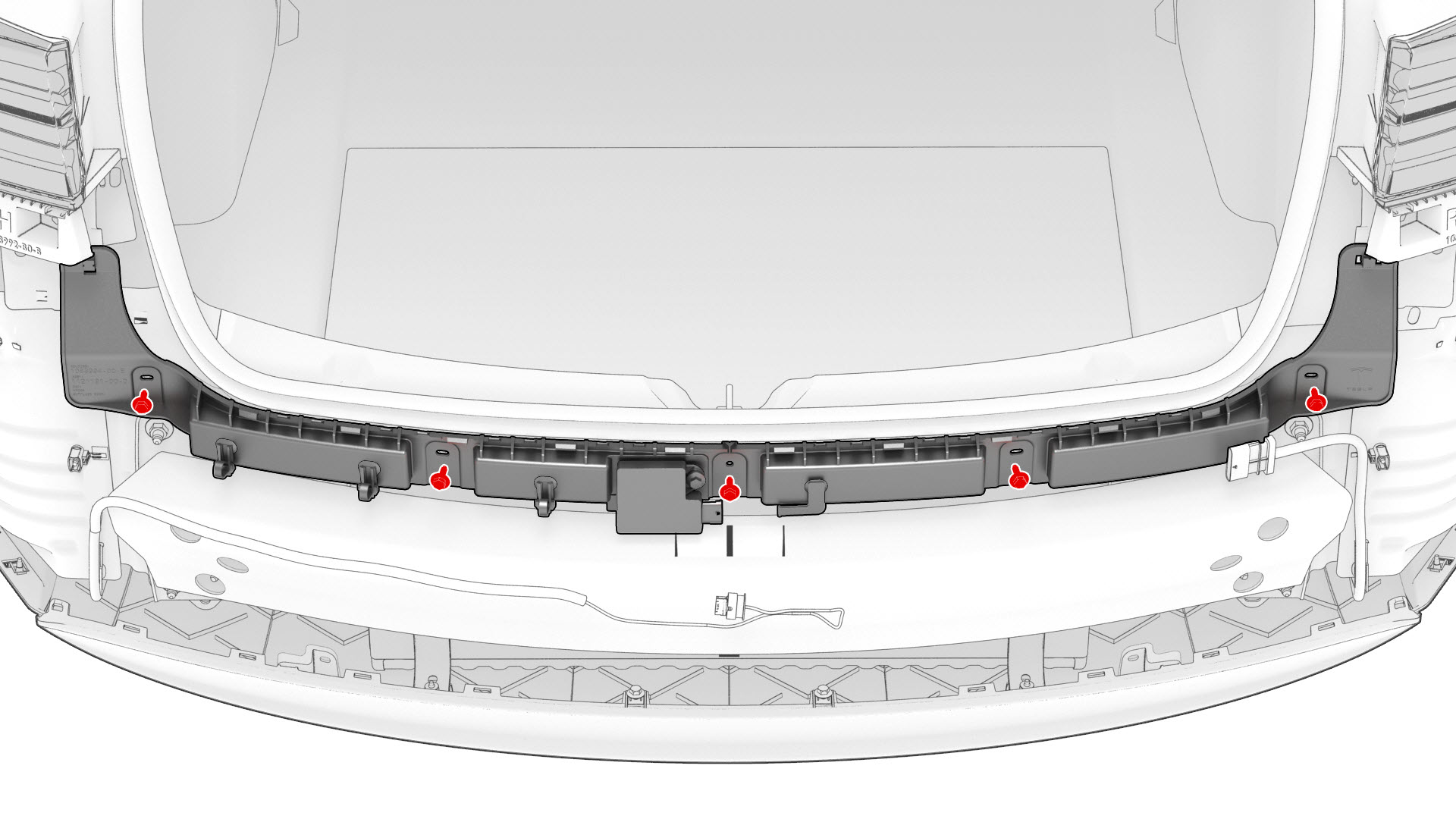

Remove the bolts that attach the center rear bracket to the body, and then remove the bracket from the vehicle.

		1	Remove the rear fascia. See Fascia - Rear (Remove and Install).
		2	Release the clips that attach the rear Bluetooth passive entry antenna electrical harness to the center rear bracket assembly.
		3	Remove rear Bluetooth passive entry antenna. See Antenna - Bluetooth Passive Entry - Rear (Remove and Replace).
		4	Remove the bolts that attach the center rear bracket to the body, and then remove the bracket from the vehicle.

Install

Position the center rear bracket on the vehicle, and then install the bolts that attach the bracket to the body.
Torque 4 Nm
Install rear Bluetooth passive entry antenna. See Antenna - Bluetooth Passive Entry - Rear (Remove and Replace).
Install the clips that attach the rear Bluetooth passive entry antenna electrical harness to the center rear bracket.
Install the rear fascia. See Fascia - Rear (Remove and Install).

		1	Position the center rear bracket on the vehicle, and then install the bolts that attach the bracket to the body. Torque 4 Nm
		2	Install rear Bluetooth passive entry antenna. See Antenna - Bluetooth Passive Entry - Rear (Remove and Replace).
		3	Install the clips that attach the rear Bluetooth passive entry antenna electrical harness to the center rear bracket.
		4	Install the rear fascia. See Fascia - Rear (Remove and Install).
