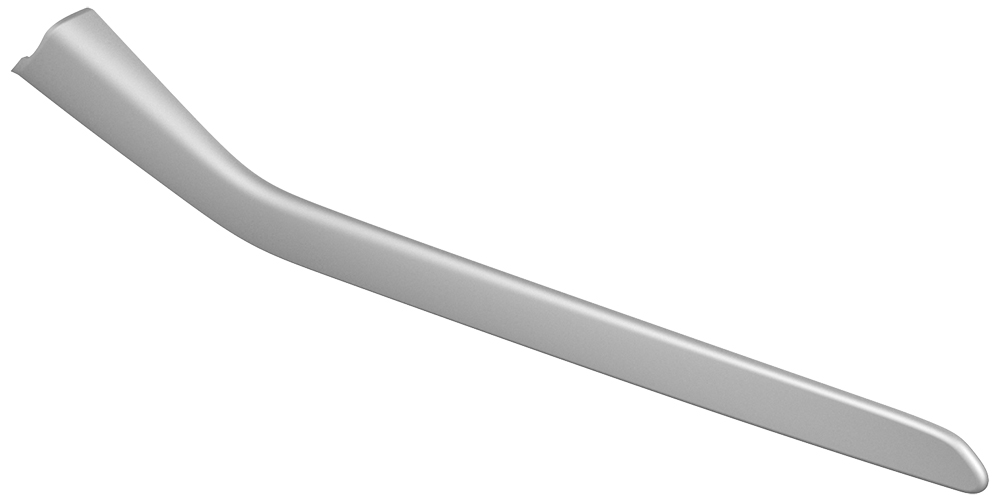

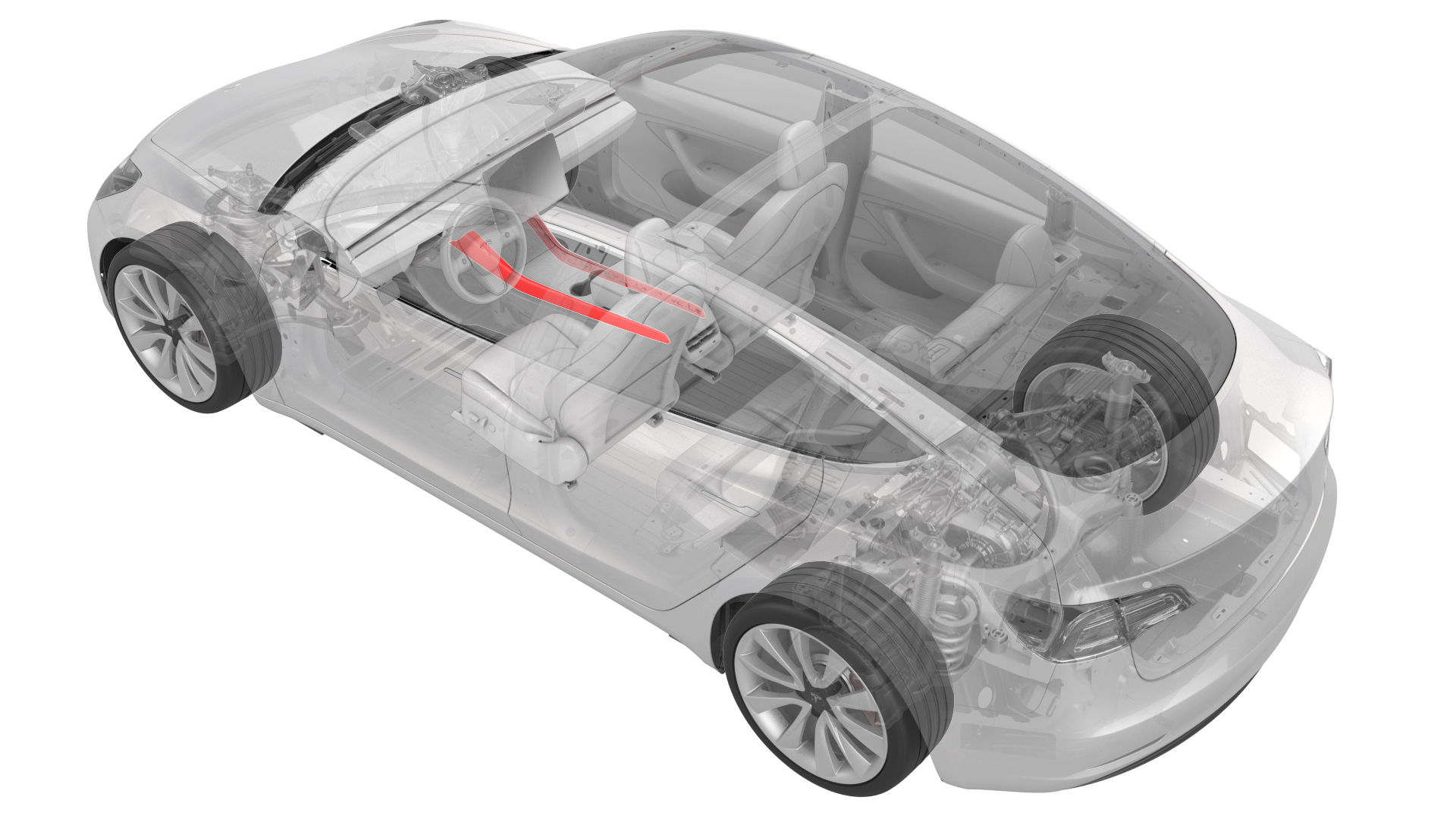

Decor Trim - Center Console (Remove and Replace)

Correction code 1519160215191602
Parent topic: 1519 - Center Console

Remove

  1. Open the LH front door.
  2. Move the LH front seat to the lowest and most rearward position.
  3. Release the clips (x9) that attach the LH center console decor trim to the center console, and then remove the decor trim.

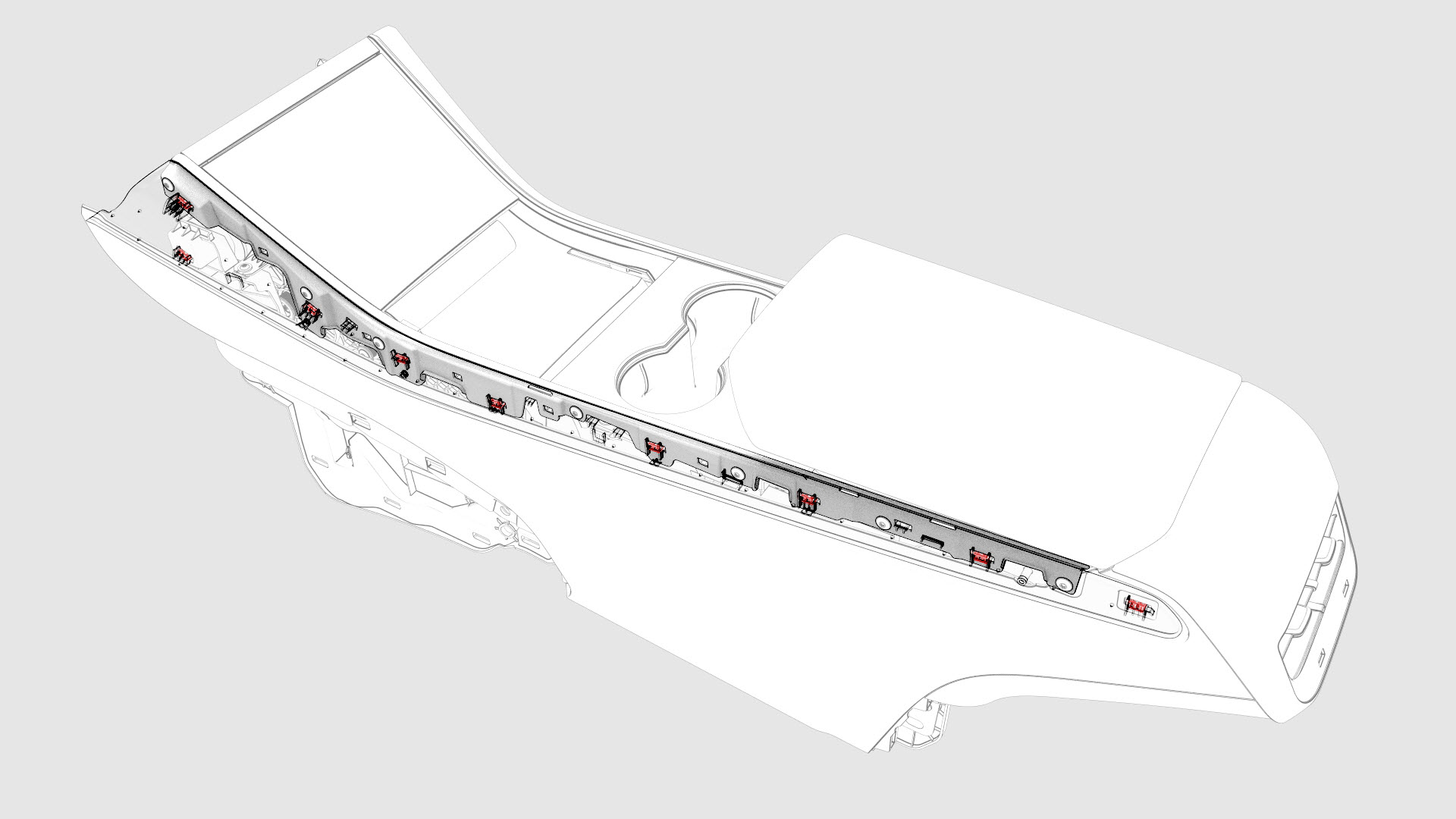

    Clip Locations on Center Console

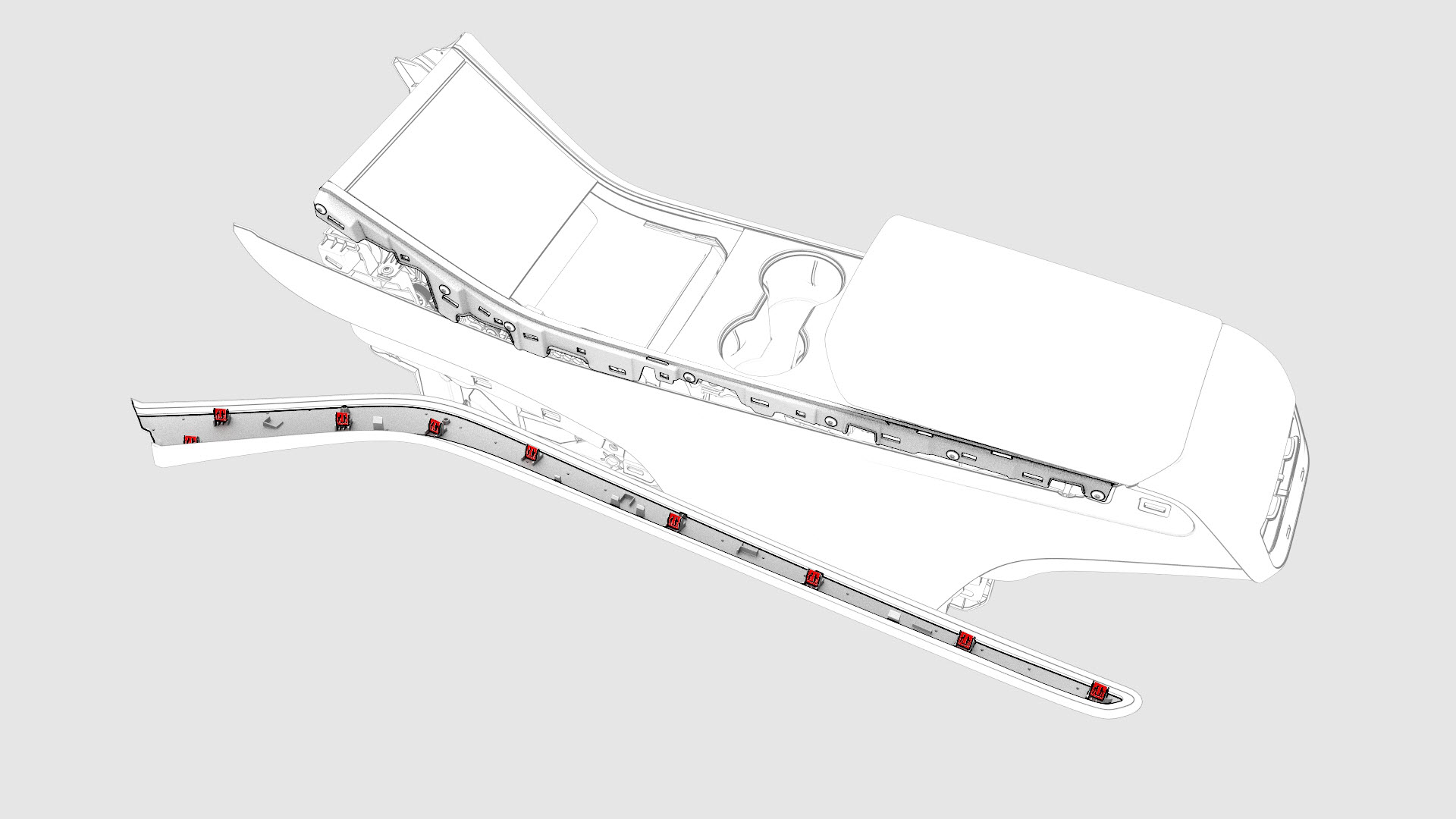

    Clip Locations on Decor Trim
  4. Repeat step 1 through step 3 to remove the RH center console decor trim, if necessary.
1Open the LH front door.
2Move the LH front seat to the lowest and most rearward position.
Clip Locations on Center Console
Clip Locations on Decor Trim
3Release the clips (x9) that attach the LH center console decor trim to the center console, and then remove the decor trim.
4Repeat step 1 through step 3 to remove the RH center console decor trim, if necessary.

Install

Installation procedure is the reverse of removal.
