Fascia - Front (Remove and Replace)

Correction code 1001100210011002

Remove

Remove the front license plate bracket. See Bracket - License Plate - Front (Remove and Replace).
Remove the front fascia. See Fascia - Front (Remove and Install).
Disconnect the electrical harness from the RH front turn signal/fog light connector.

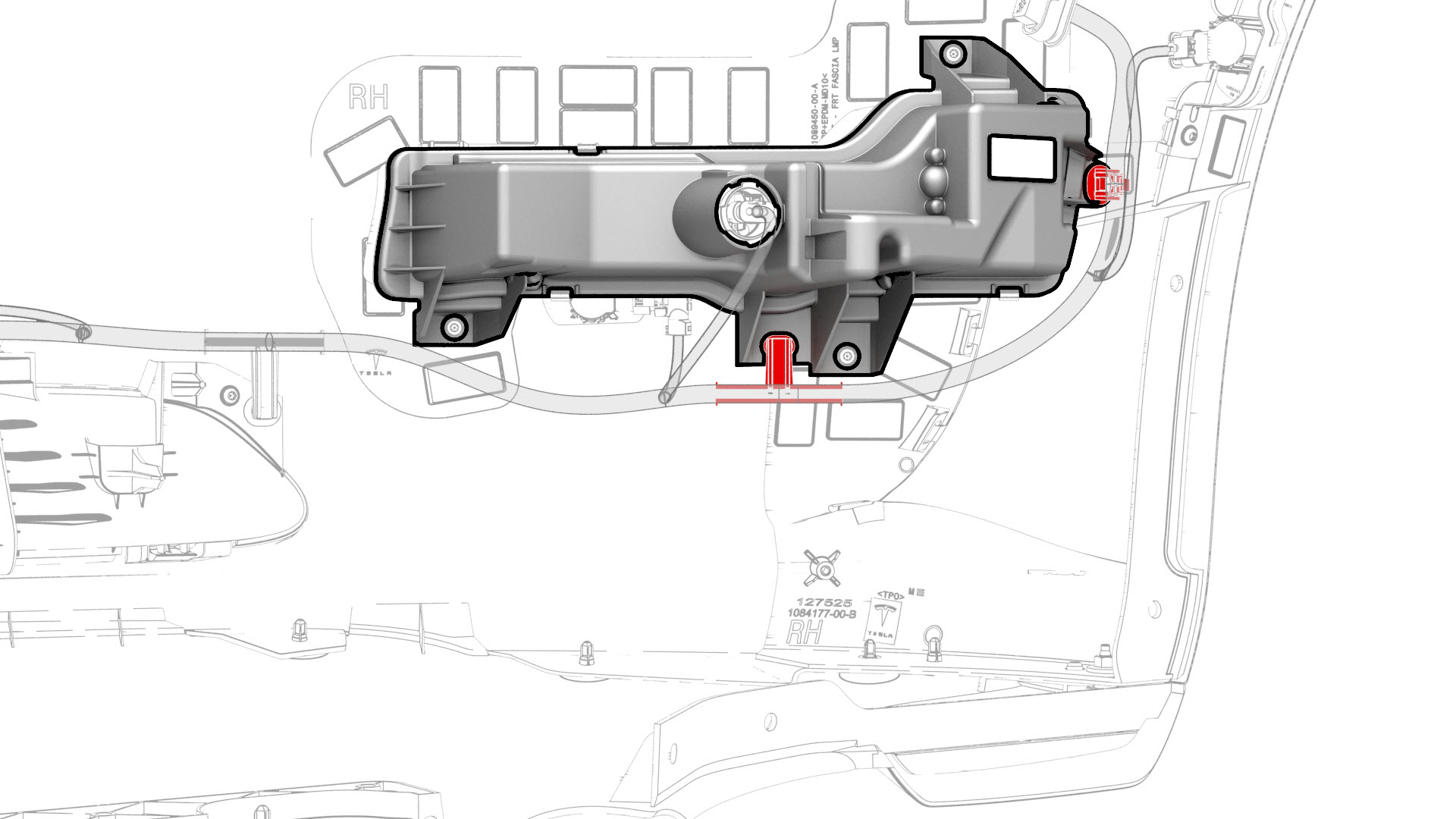

Release the clips that attach the electrical harness to the front turn signal/fog light.

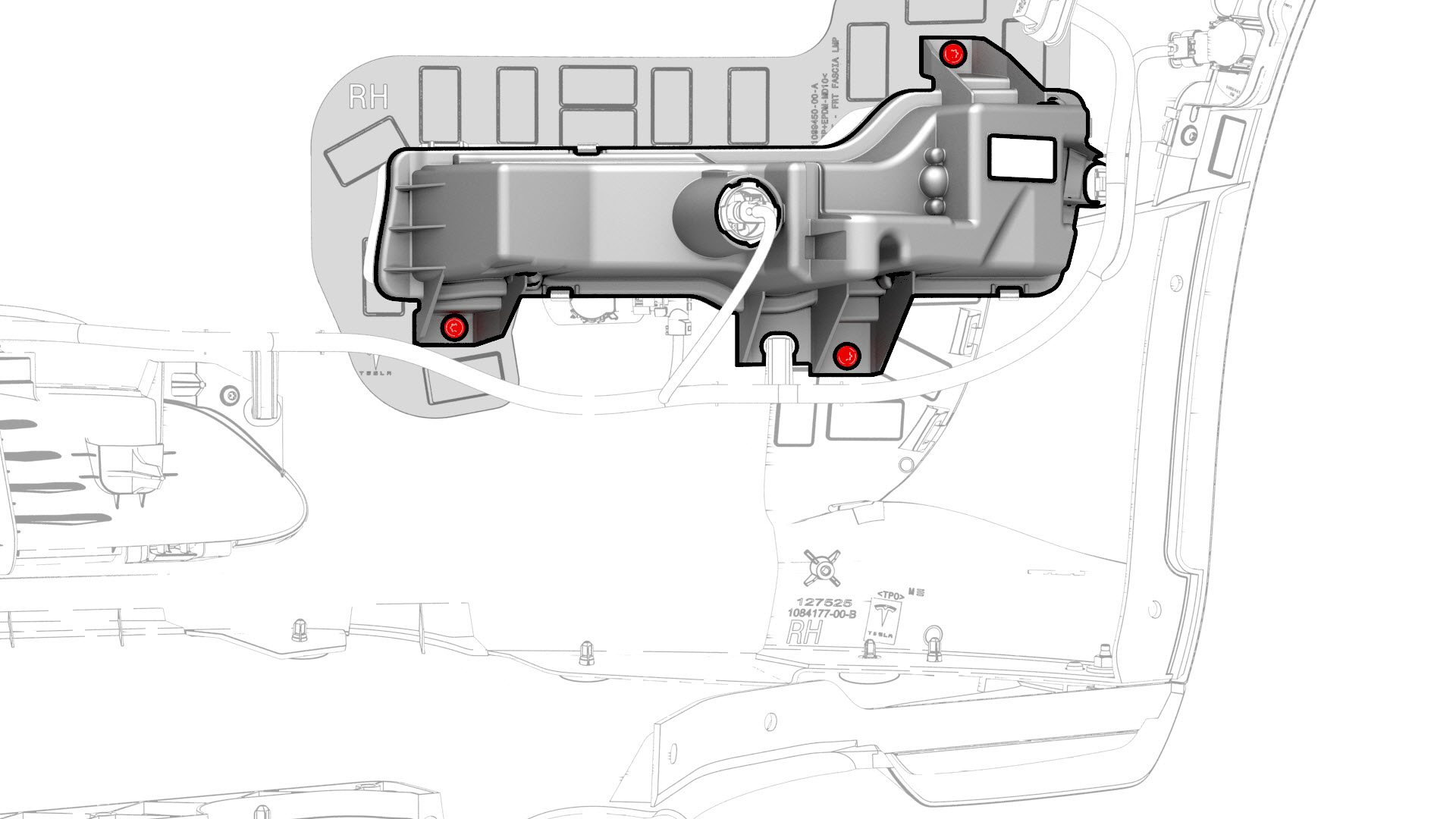

Remove the screws that attach the front turn signal/fog light to the front fascia.
Use a trim tool to release the tabs (x4) that attach the front turn signal/fog light to the front fascia, and then remove the light from the front fascia.
Repeat step 3 through step 5 for the LH front turn signal/fog light.

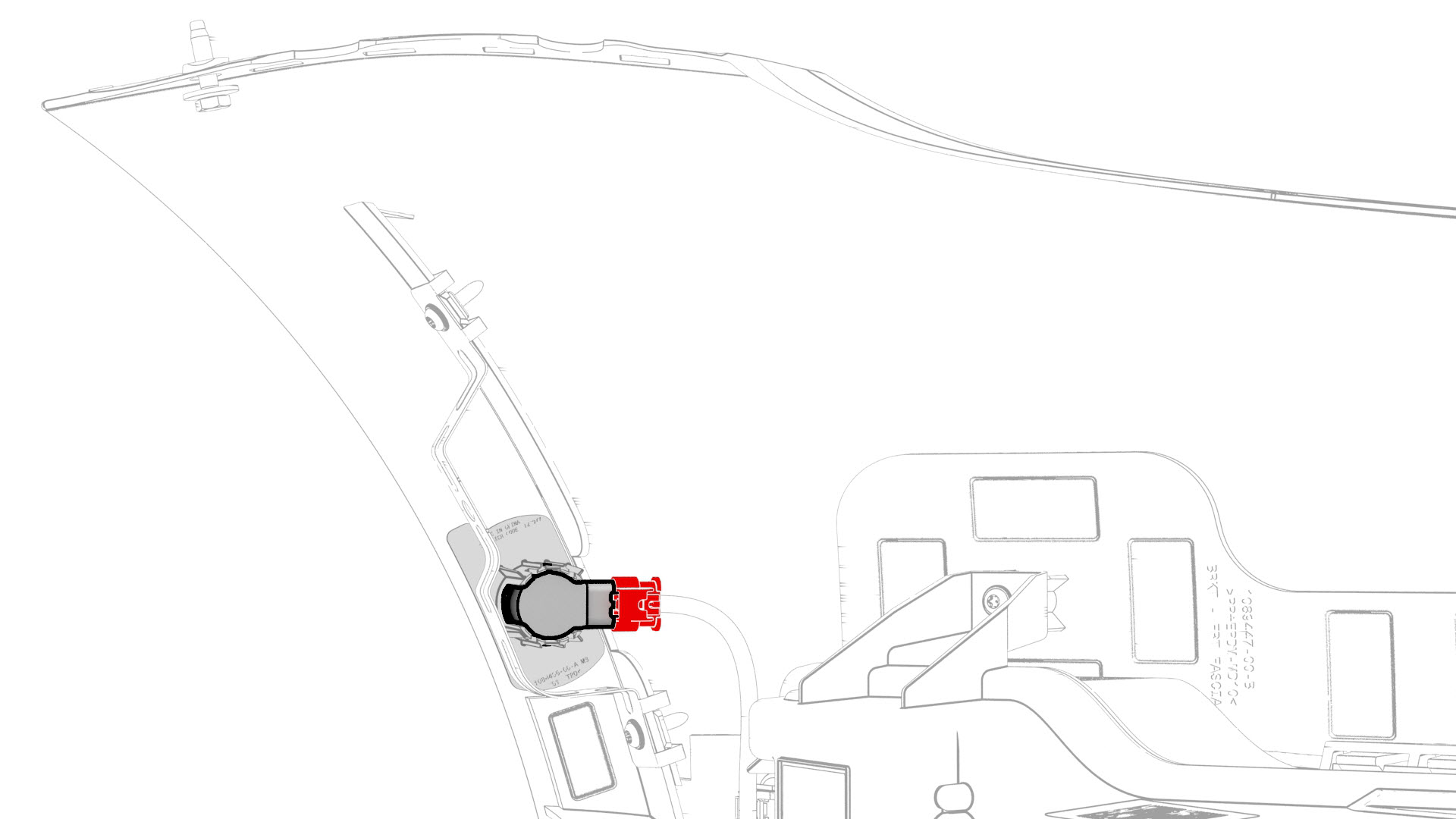

Disconnect the electrical harness from all of the front parking distance sensors connectors (x6).

LH Front Parking Assist Sensor Shown
Release the clips that attach the parking distance sensors to the front fascia, and then remove the sensors (x6) from the fascia.

LH Front Parking Assist Sensor Shown

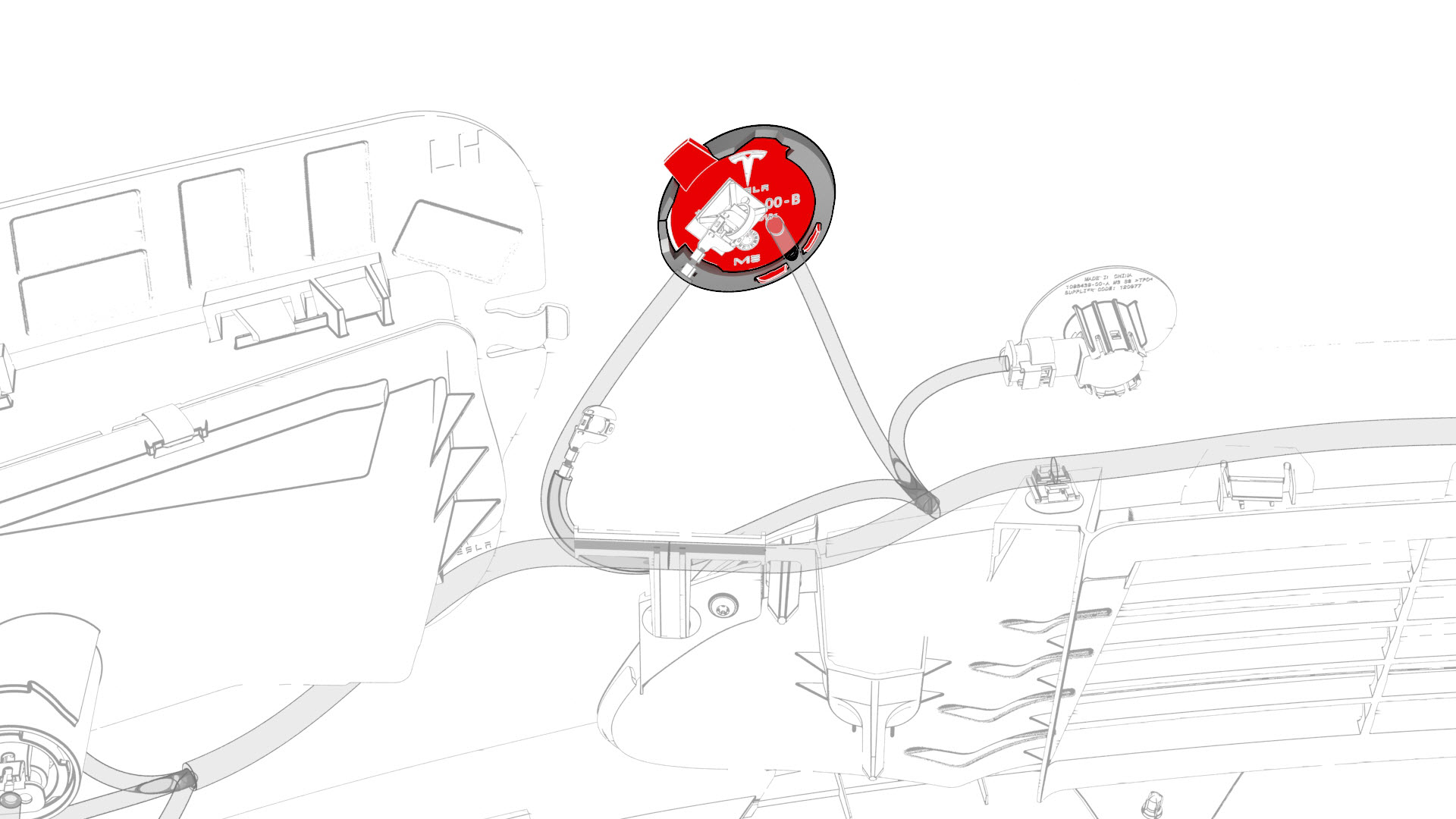

Disconnect the electrical harness from the ambient air temperature sensor connector.

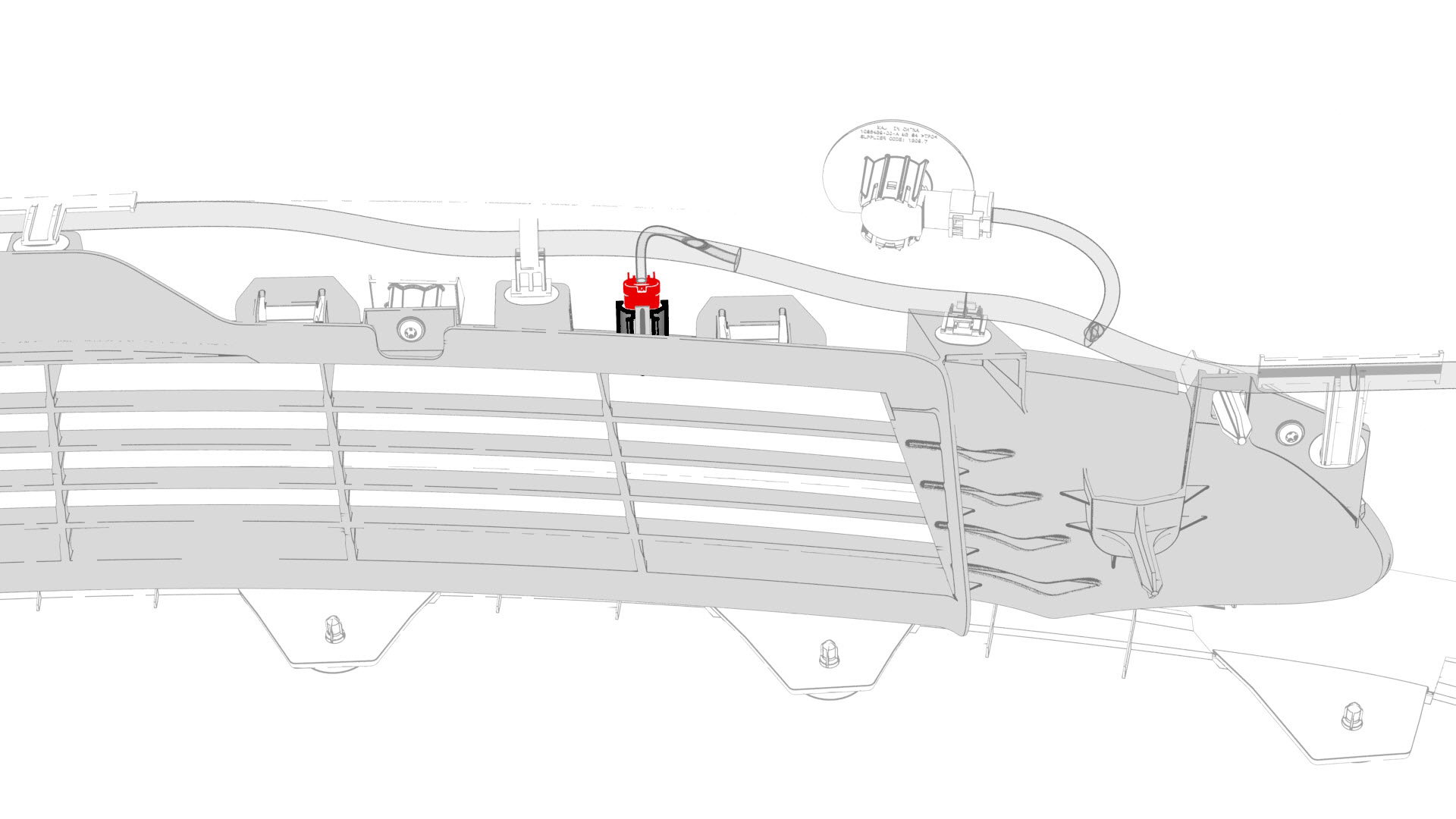

Release the clips that attach the electrical harness to the front fascia, and then remove the electrical harness from the fascia.
Release the clips that attach the tow hook cover to the front fascia, and then remove the cover from the fascia.

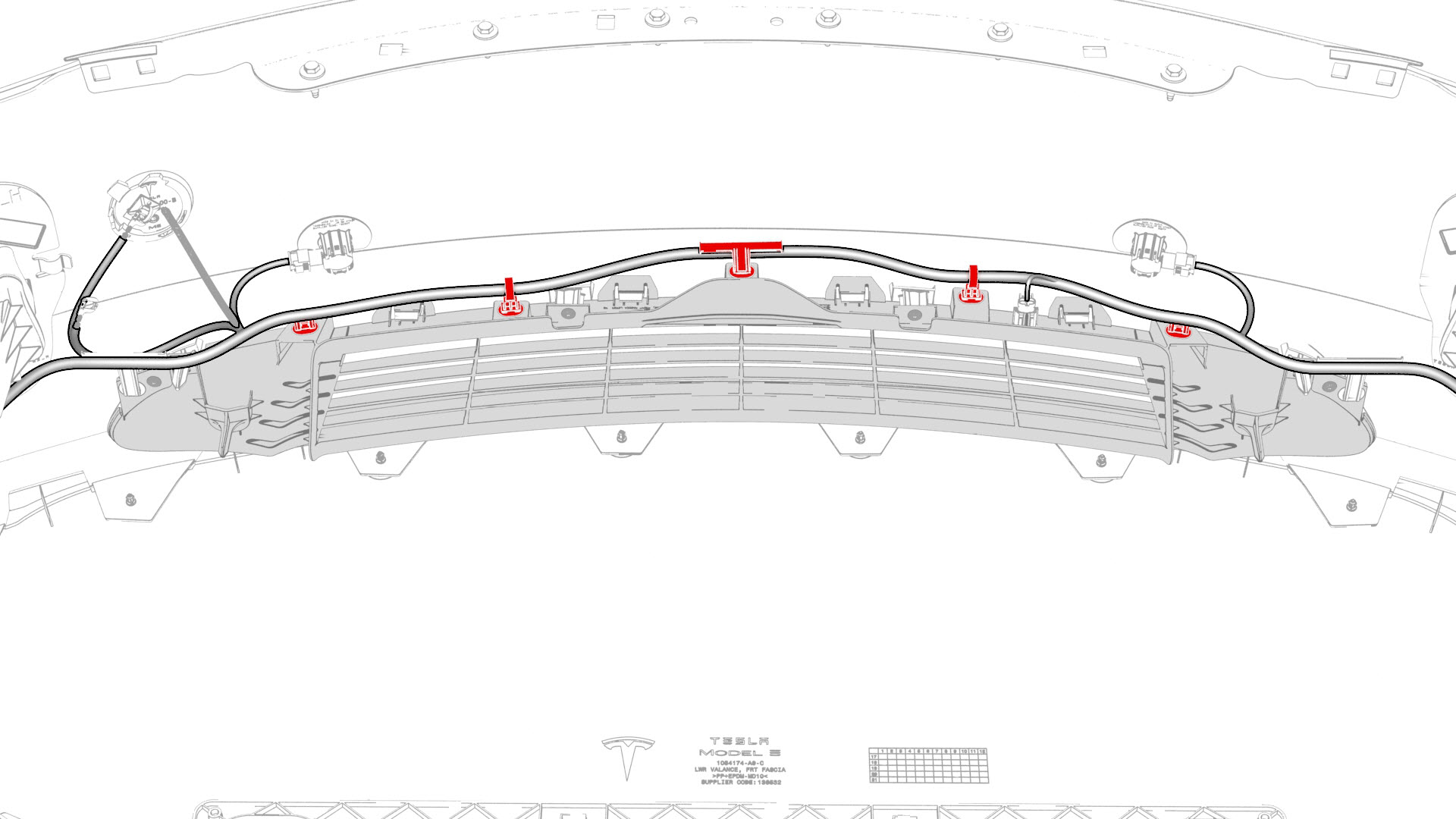

Remove the screws that attach the front fascia grille to the front fascia.

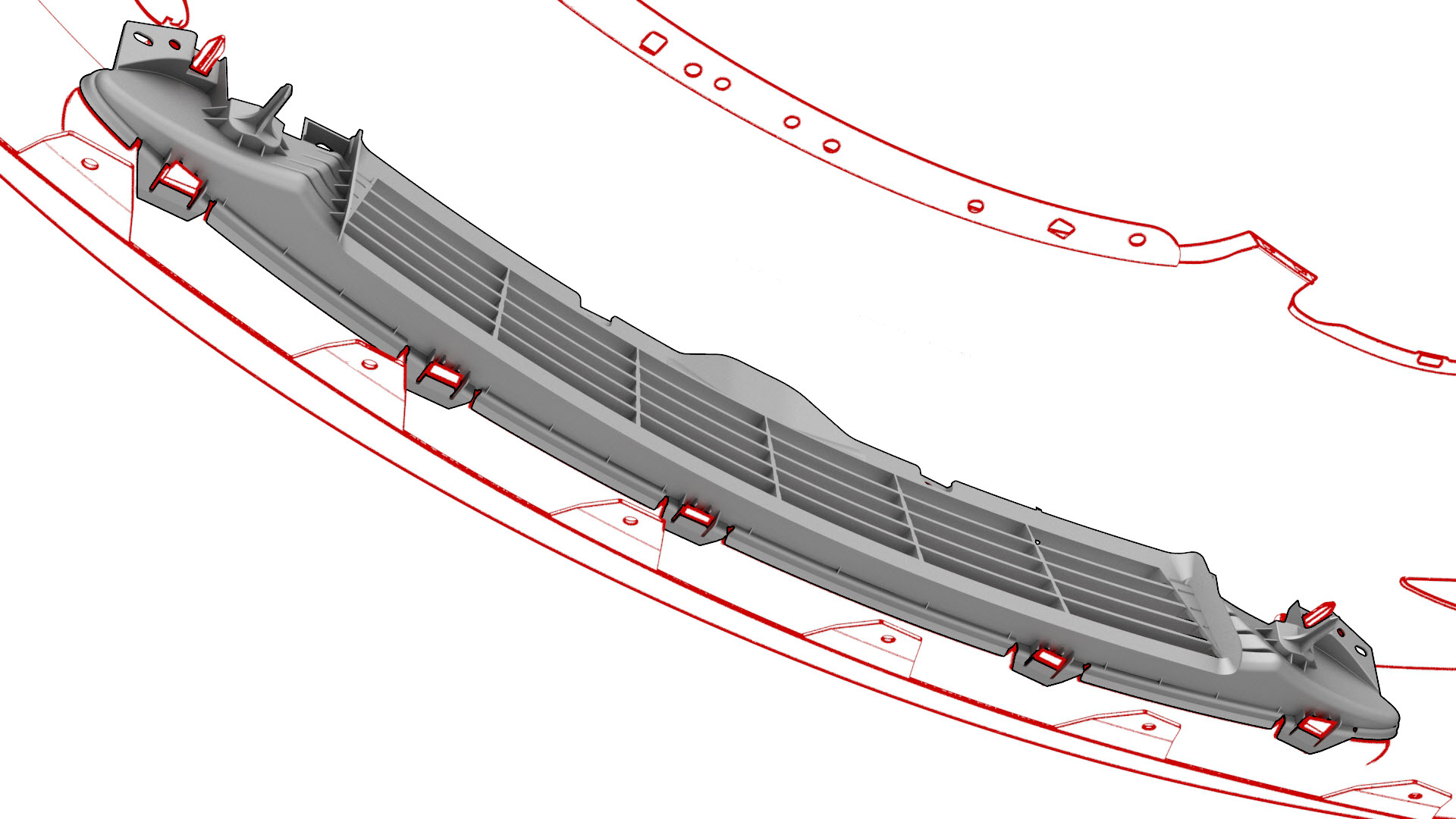

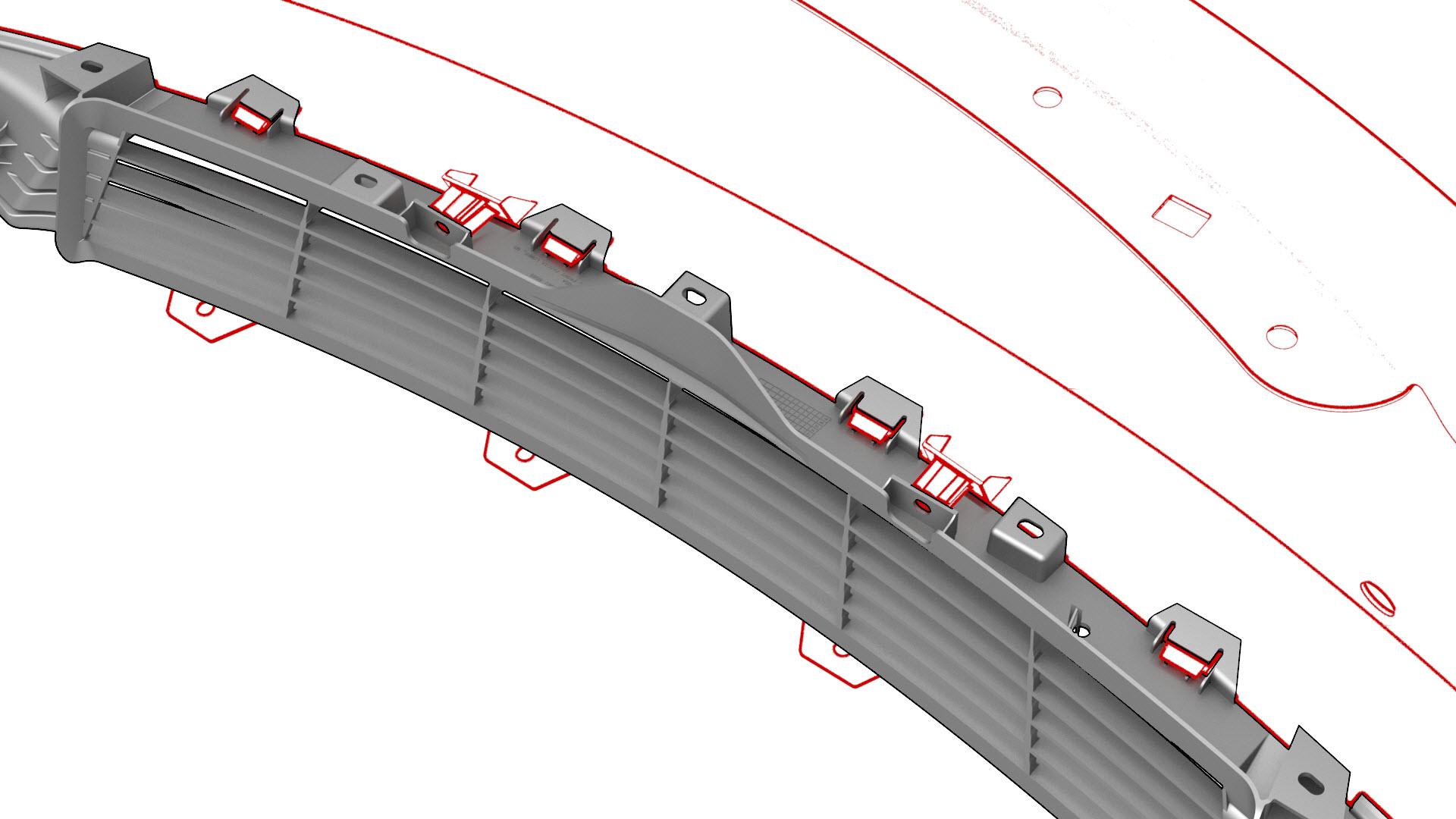

Release the clips (x9) that attach the front fascia grille to the front fascia, and then remove grille from the fascia.

Top

Bottom

	1	Remove the front license plate bracket. See Bracket - License Plate - Front (Remove and Replace).
	2	Remove the front fascia. See Fascia - Front (Remove and Install).
	3	Disconnect the electrical harness from the RH front turn signal/fog light connector.
	4	Release the clips that attach the electrical harness to the front turn signal/fog light.
	5	Remove the screws that attach the front turn signal/fog light to the front fascia.
	6	Use a trim tool to release the tabs (x4) that attach the front turn signal/fog light to the front fascia, and then remove the light from the front fascia.
	7	Repeat step 3 through step 5 for the LH front turn signal/fog light.
LH Front Parking Assist Sensor Shown	8	Disconnect the electrical harness from all of the front parking distance sensors connectors (x6).
LH Front Parking Assist Sensor Shown	9	Release the clips that attach the parking distance sensors to the front fascia, and then remove the sensors (x6) from the fascia.
	10	Disconnect the electrical harness from the ambient air temperature sensor connector.
	11	Release the clips that attach the electrical harness to the front fascia, and then remove the electrical harness from the fascia.
	12	Release the clips that attach the tow hook cover to the front fascia, and then remove the cover from the fascia.
	13	Remove the screws that attach the front fascia grille to the front fascia.
Top Bottom	14	Release the clips (x9) that attach the front fascia grille to the front fascia, and then remove grille from the fascia.

Installation procedure is the reverse of removal.

Install the front fascia grille onto the front fascia, and then fasten the clips (x9) that attach the grille to the fascia.

Top

Bottom
Install the screws that attach the front fascia grille to the front fascia.
Torque 1.8 Nm
Install the tow hook cover to the front fascia, and then fasten the clips that attach the cover to the fascia.
Install the electrical harness to the front fascia, and then fasten the clips that attach the electrical harness to the fascia.
Connect the electrical harness to the ambient air temperature sensor connector.
Install the parking distance sensors (x6) to the front fascia, and then fasten the clips that attach the sensors to the fascia.

LH Front Parking Assist Sensor Shown
Connect the electrical harness to all of the front parking distance sensors connectors (x6).

LH Front Parking Assist Sensor Shown
Install the front turn signal/fog light to the front fascia, and then fasten the tabs (x4) that attach the light to the fascia.
Install the screws that attach the front turn signal/fog light to the front fascia.
Torque 2.8 Nm
Fasten the clips that attach the electrical harness to the front turn signal/fog light.
Connect the electrical harness to the RH front turn signal/fog light connector.
Install the front fascia. See Fascia - Front (Remove and Install).
Install the front license plate bracket. See Bracket - License Plate - Front (Remove and Replace).

Top Bottom	1	Install the front fascia grille onto the front fascia, and then fasten the clips (x9) that attach the grille to the fascia.
	2	Install the screws that attach the front fascia grille to the front fascia. Torque 1.8 Nm
	3	Install the tow hook cover to the front fascia, and then fasten the clips that attach the cover to the fascia.
	4	Install the electrical harness to the front fascia, and then fasten the clips that attach the electrical harness to the fascia.
	5	Connect the electrical harness to the ambient air temperature sensor connector.
LH Front Parking Assist Sensor Shown	6	Install the parking distance sensors (x6) to the front fascia, and then fasten the clips that attach the sensors to the fascia.
LH Front Parking Assist Sensor Shown	7	Connect the electrical harness to all of the front parking distance sensors connectors (x6).
	8	Install the front turn signal/fog light to the front fascia, and then fasten the tabs (x4) that attach the light to the fascia.
	9	Install the screws that attach the front turn signal/fog light to the front fascia. Torque 2.8 Nm
	10	Fasten the clips that attach the electrical harness to the front turn signal/fog light.
	11	Connect the electrical harness to the RH front turn signal/fog light connector.
	12	Install the front fascia. See Fascia - Front (Remove and Install).
	13	Install the front license plate bracket. See Bracket - License Plate - Front (Remove and Replace).
