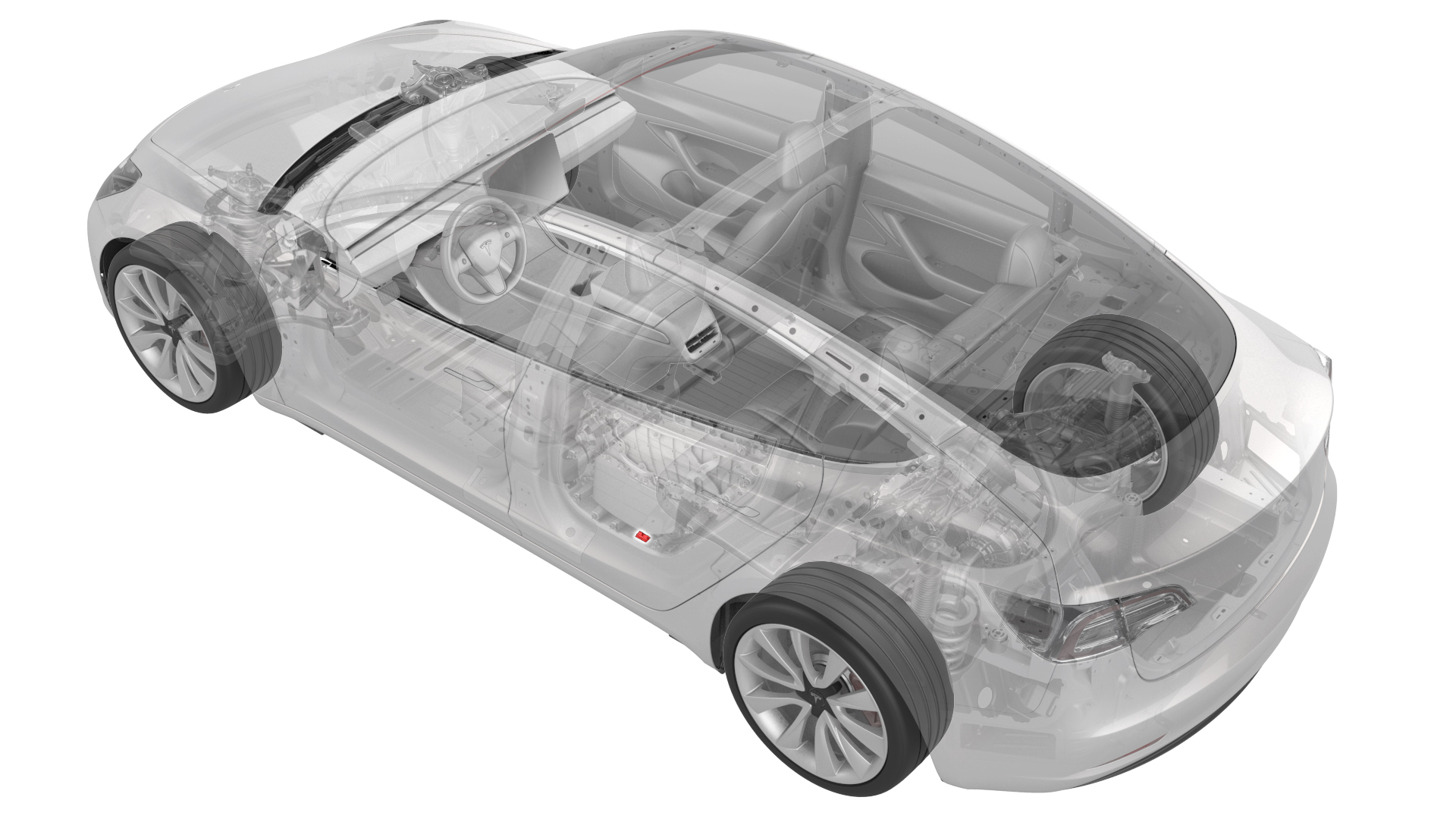

Puddle Light - Rear Door - LH (Remove and Replace)
Correction code 1735220217352202
Remove
-
Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the rear LH door trim panel.
-
Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel.
Caution:The light electrical harness is very short. Do not pull on the harness.
-
Disconnect the electrical harness from the puddle light connector, and then remove the light from the vehicle.
| 1 | Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the rear LH door trim panel. | |
| 2 | Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel. Caution: The light electrical harness is very short. Do not pull on the harness.
| |
| 3 | Disconnect the electrical harness from the puddle light connector, and then remove the light from the vehicle. |
Install
Installation procedure is the reverse of removal, except for the following:
Align the slot of the light toward the front of the vehicle.
