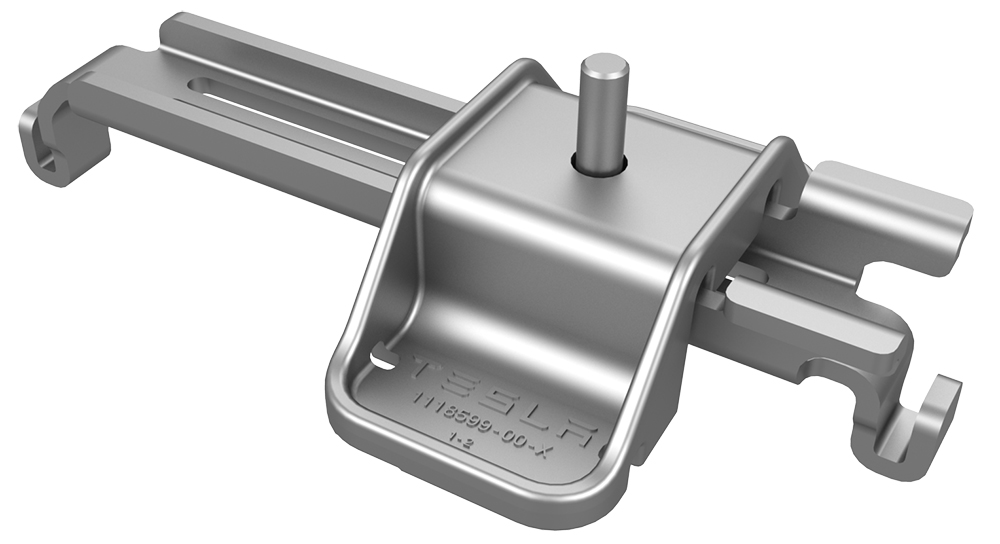

Strap - 12V Battery (Remove and Replace)
Correction code 1701420217014202
Remove
-

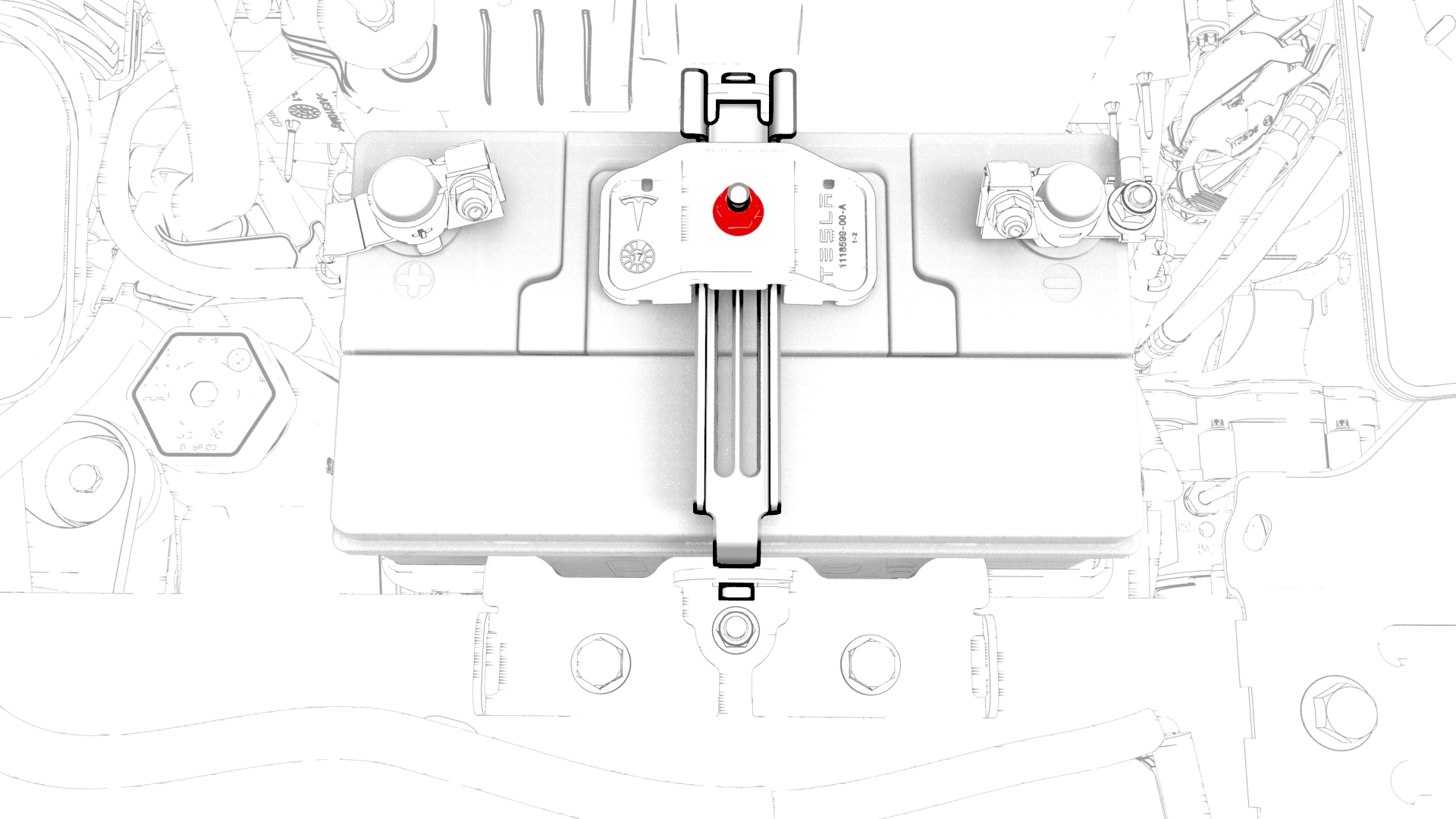

Loosen the nut that attaches the 12V battery upper tie down bracket to the 12V battery strap.
Torque 5 Nm
-

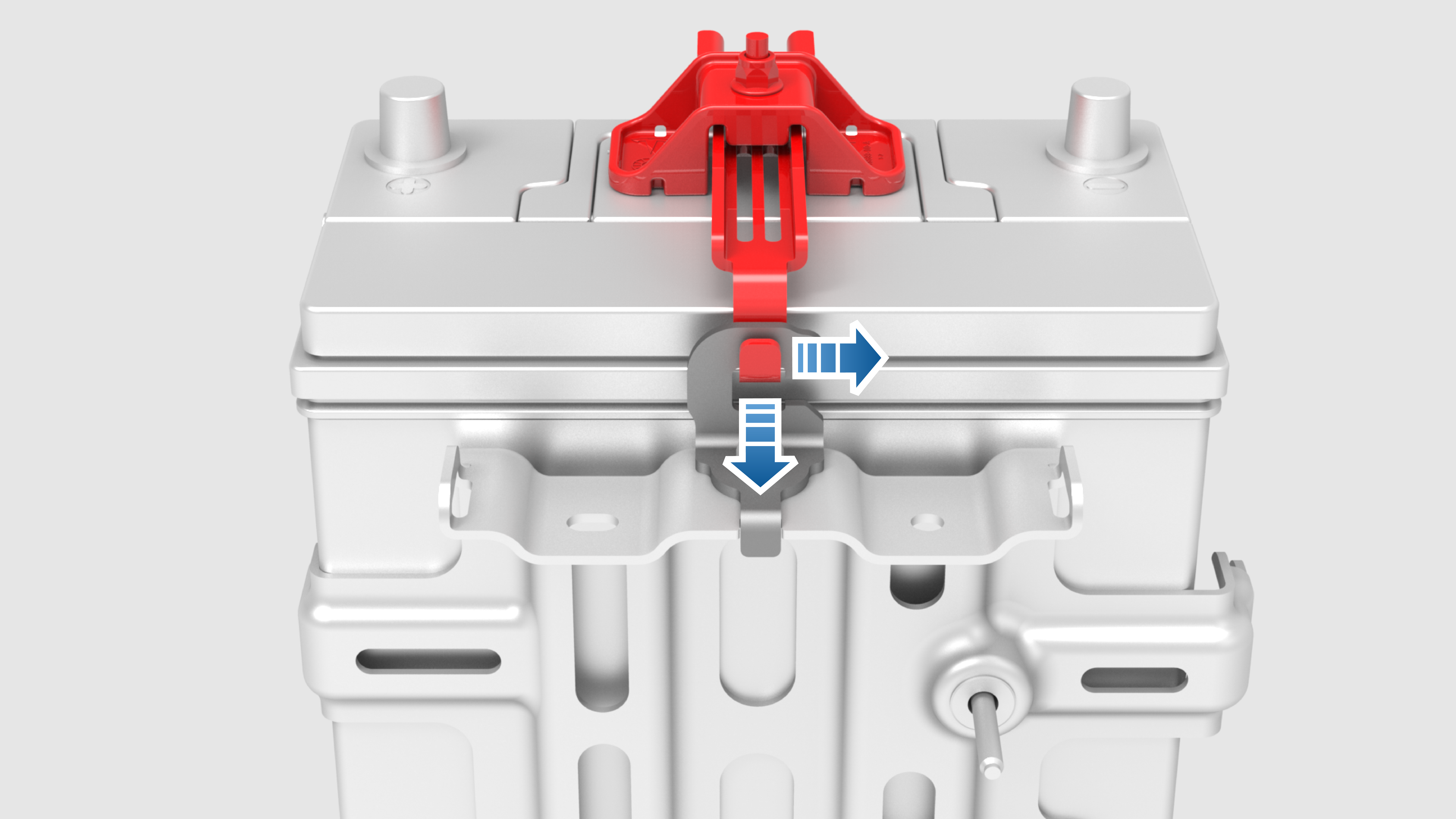

Push down and slide the 12V battery strap to the right to release it from the front hook and rear tie down assembly.
-
Remove the 12V battery strap from the vehicle.
| 1 | Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace). | ||
| 2 | Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace). | ||
| 3 | Loosen the nut that attaches the 12V battery upper tie down bracket to the 12V battery strap. Torque 5 Nm | |
| 4 | Push down and slide the 12V battery strap to the right to release it from the front hook and rear tie down assembly. | |
| 5 | Remove the 12V battery strap from the vehicle. |
Install
Installation procedure is the reverse of removal.
