Seal - Oil - Differential to Halfshaft - Rear Drive Unit - LH (Remove and Replace)

Correction code 4030100240301002

1130942-00-BAdapter, Coolant Reservoir Pressure Test
1131206-00-A Install Tool, Output Seal, Model 3

SPECIAL TOOLS

Adapter, Coolant Reservoir Pressure Test (1130942-00-B)

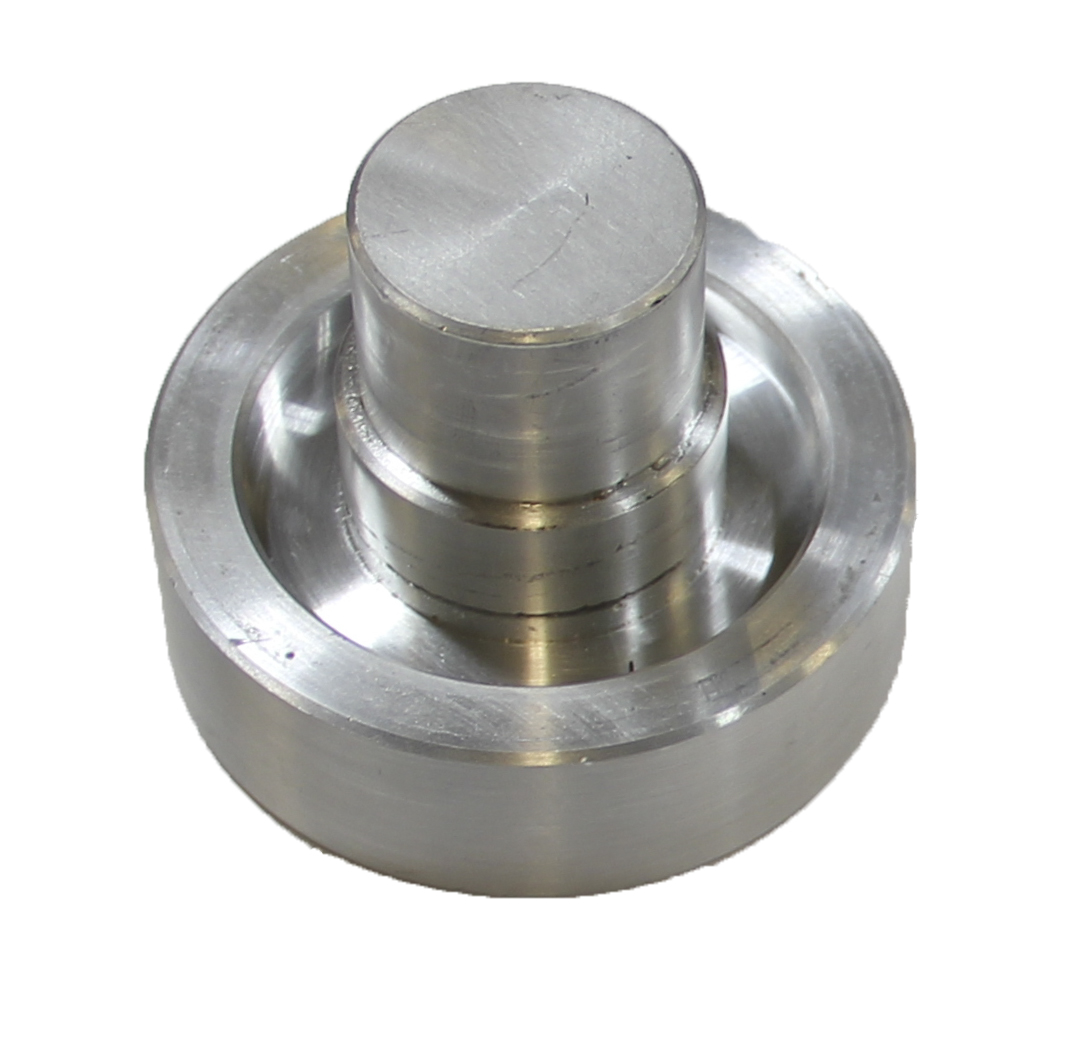

Install Tool, Output Seal, Model 3 (1131206-00-A)

Remove

Remove the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
Use the special tool to remove the LH output seal from the rear drive unit.

		1	Remove the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
		2	Use the special tool to remove the LH output seal from the rear drive unit.

Install

Use the seal install special tool to install the new seal into the rear drive unit.

Note: Fully tap around the seal install special tool to install the new seal. Make sure that the seal is flush with the rear drive unit casting.
Install the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).

		1	Use the seal install special tool to install the new seal into the rear drive unit. Note: Fully tap around the seal install special tool to install the new seal. Make sure that the seal is flush with the rear drive unit casting.
		2	Install the LH rear drive unit halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
