Cover - Seat Back - 2nd Row Seat - RH (Remove and Replace)

Correction code 1308100213081002

Remove

Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove and Install).

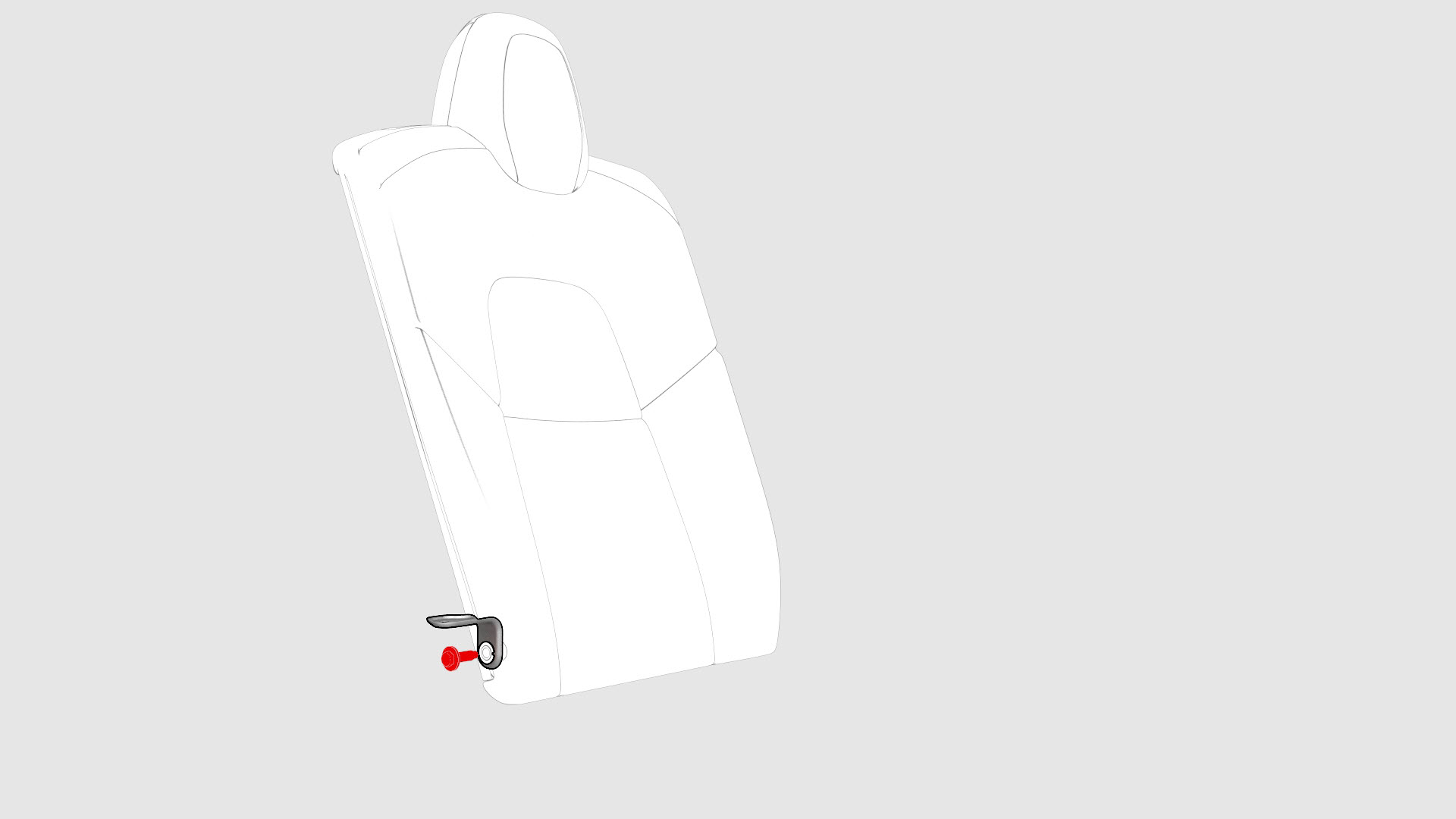

Release the clip that attaches the electrical harness connector to the seat back hinge bracket.

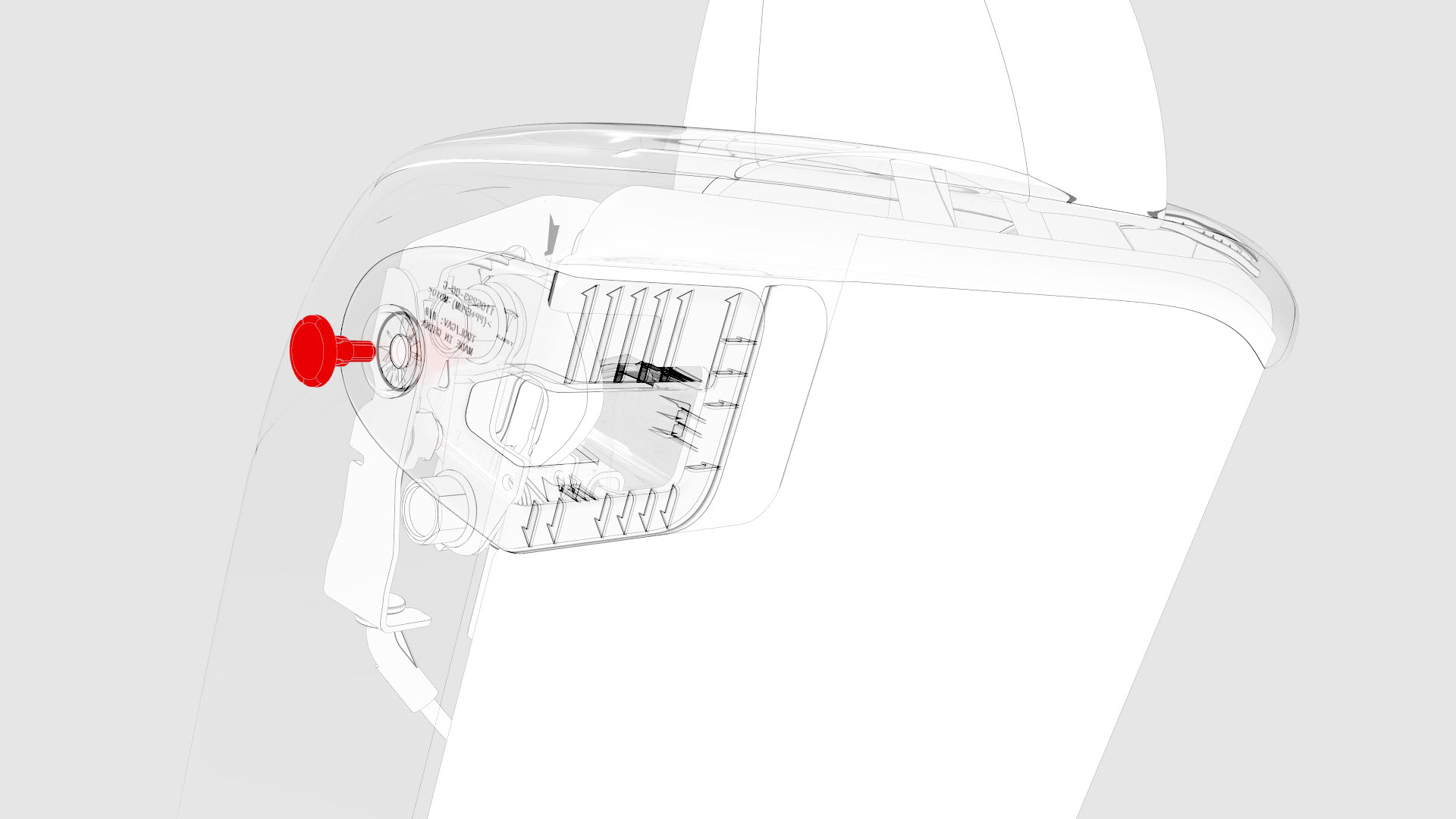

Remove the bolt that attaches the seat back hinge bracket to the RH seat back.
Torque 45 Nm

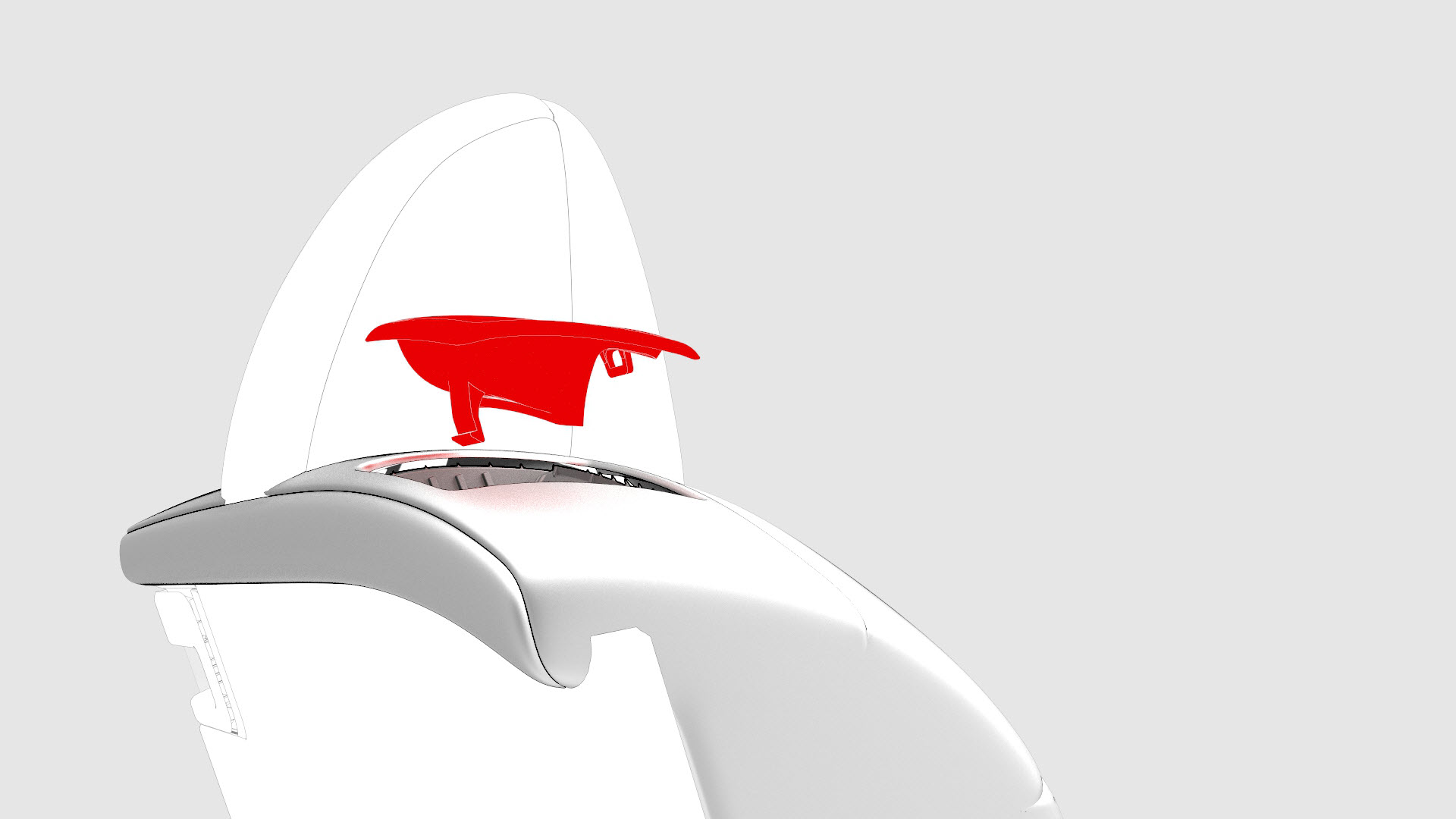

Release the clips that attach the 2nd row seat back bezel to the seat back.
Remove the push clip and release the clips that attach the 2nd row seat latch bezel to the seat back.
Unzip the RH 2nd row seat back cover, and then remove the cover from the seat.

		1	Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
		2	Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
		3	Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove and Install).
		4	Release the clip that attaches the electrical harness connector to the seat back hinge bracket.
		5	Remove the bolt that attaches the seat back hinge bracket to the RH seat back. Torque 45 Nm
		6	Release the clips that attach the 2nd row seat back bezel to the seat back.
		7	Remove the push clip and release the clips that attach the 2nd row seat latch bezel to the seat back.
		8	Unzip the RH 2nd row seat back cover, and then remove the cover from the seat.

Install

Installation procedure is the reverse of removal.
