Duct - Air Wave - LH (Remove and Replace)

Correction code 1810800218108002
Parent topic: 1810 - Cabin HVAC

Remove

  1. Remove the IP carrier. See IP Carrier (Remove and Replace).

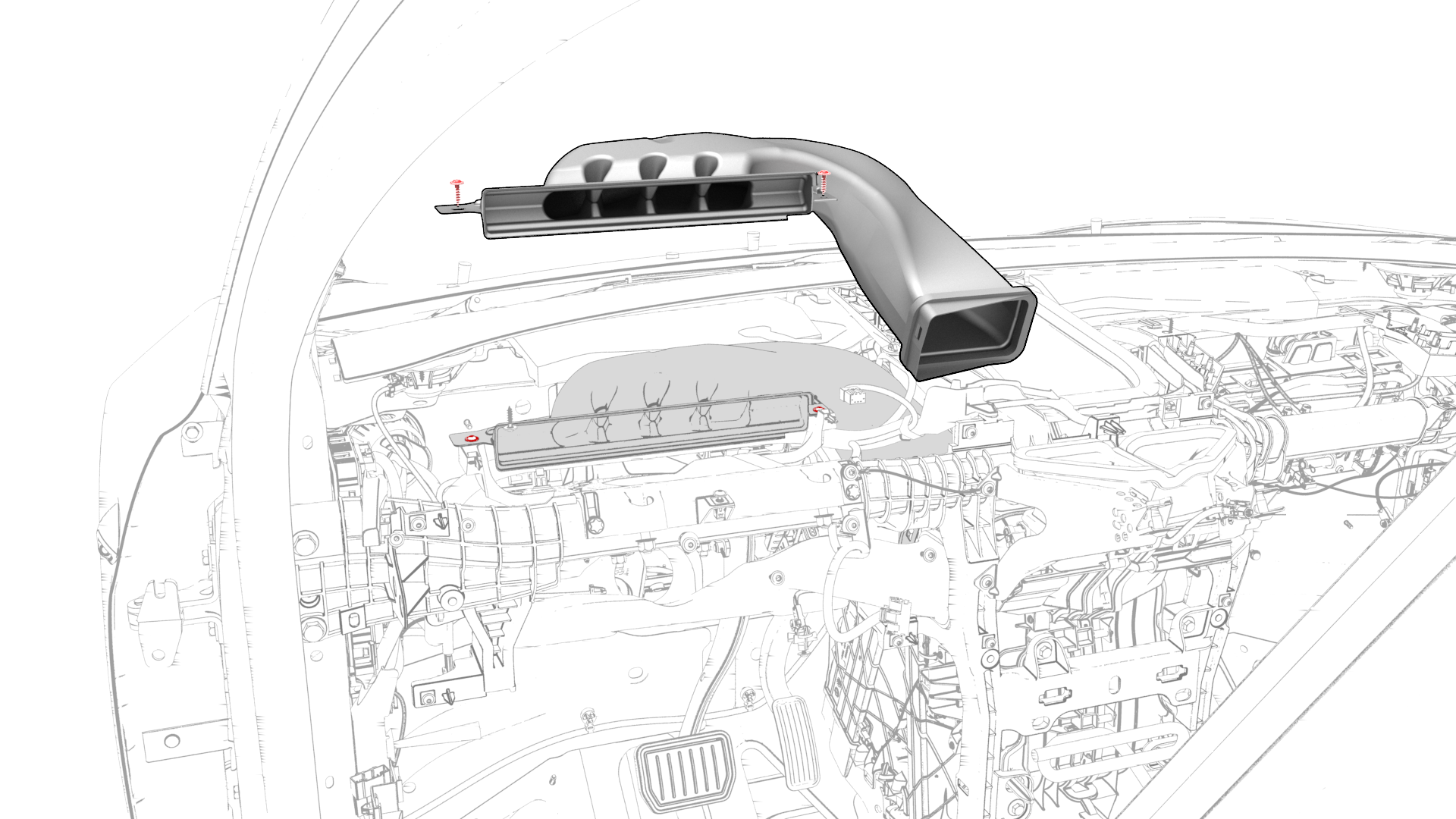

  2. Remove the screws (x2) that attach the LH air wave duct to the cross bar beam, and then remove the duct from the vehicle.
1Remove the IP carrier. See IP Carrier (Remove and Replace).
2Remove the screws (x2) that attach the LH air wave duct to the cross bar beam, and then remove the duct from the vehicle.

Install

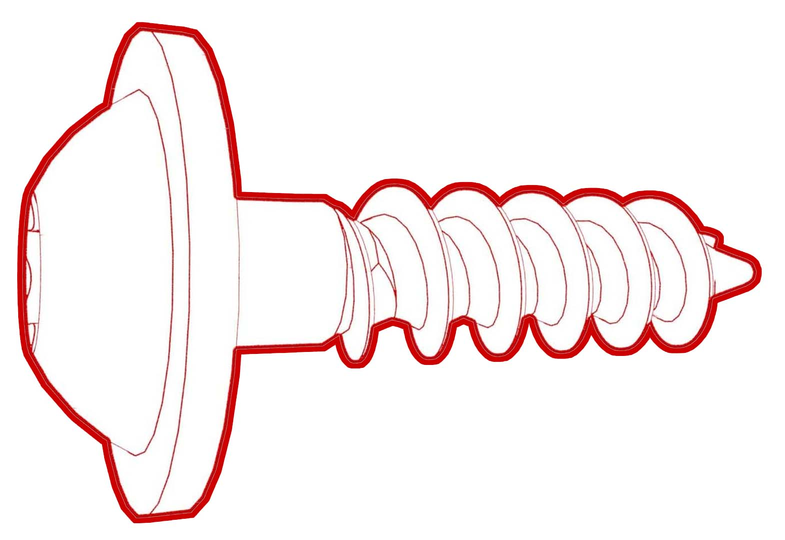

  1. Install the LH air wave duct to the cross car beam, and then install the screws (x2) that attach the duct to the beam.
    Torque 2.3 Nm
  2. Install the IP carrier. See IP Carrier (Remove and Replace).
1Install the LH air wave duct to the cross car beam, and then install the screws (x2) that attach the duct to the beam.
Torque 2.3 Nm
2Install the IP carrier. See IP Carrier (Remove and Replace).
