Light - Brake - High Mounted (Remove and Replace)

Correction code 1740250217402502
Parent topic: 1740 - Exterior Lights

Remove

  1. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  2. Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  3. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  4. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  5. Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  6. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  7. Remove the package tray trim. See Trim - Package Tray (Remove and Install).
  8. Disconnect the high mounted brake light electrical connector.

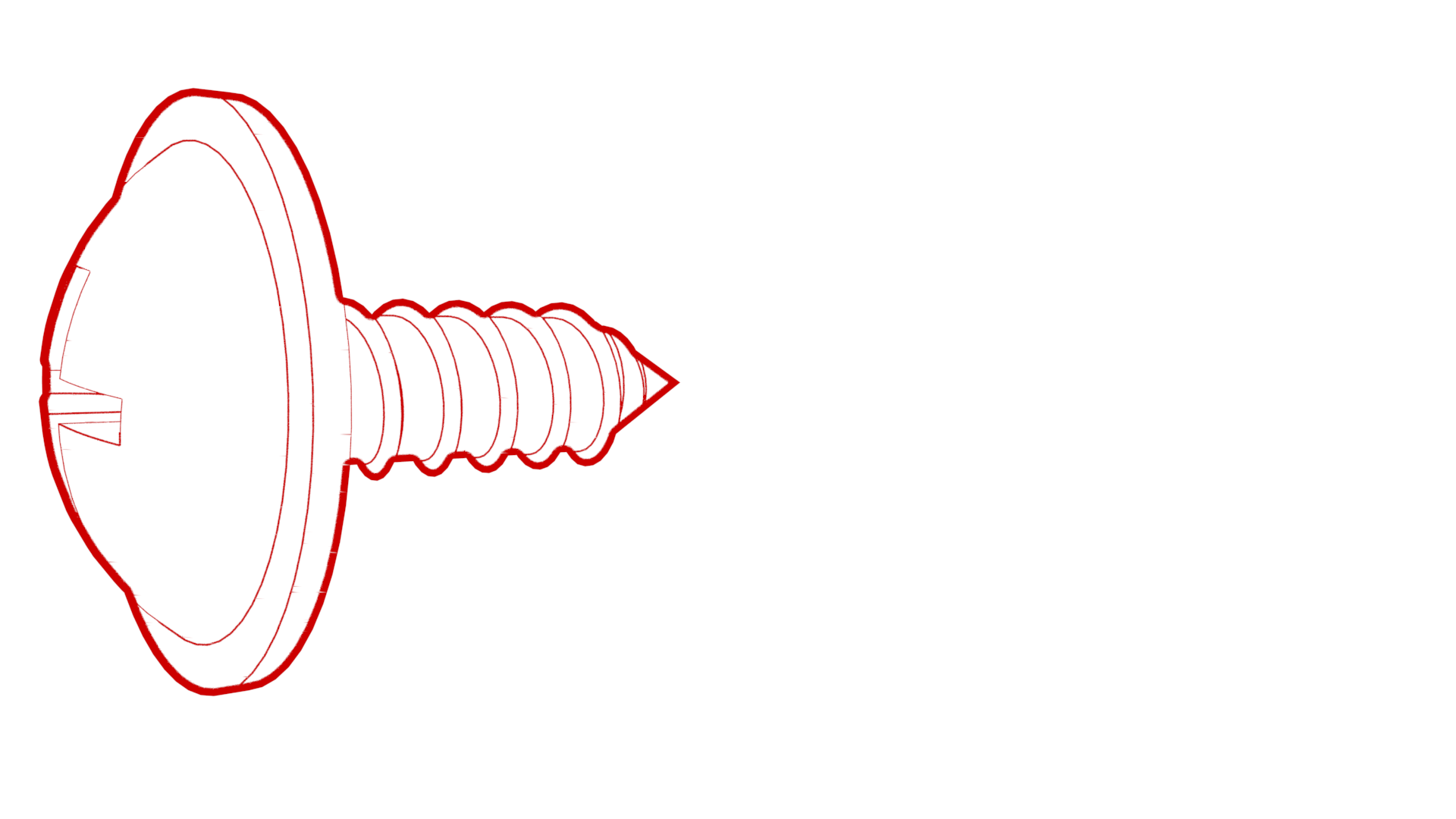

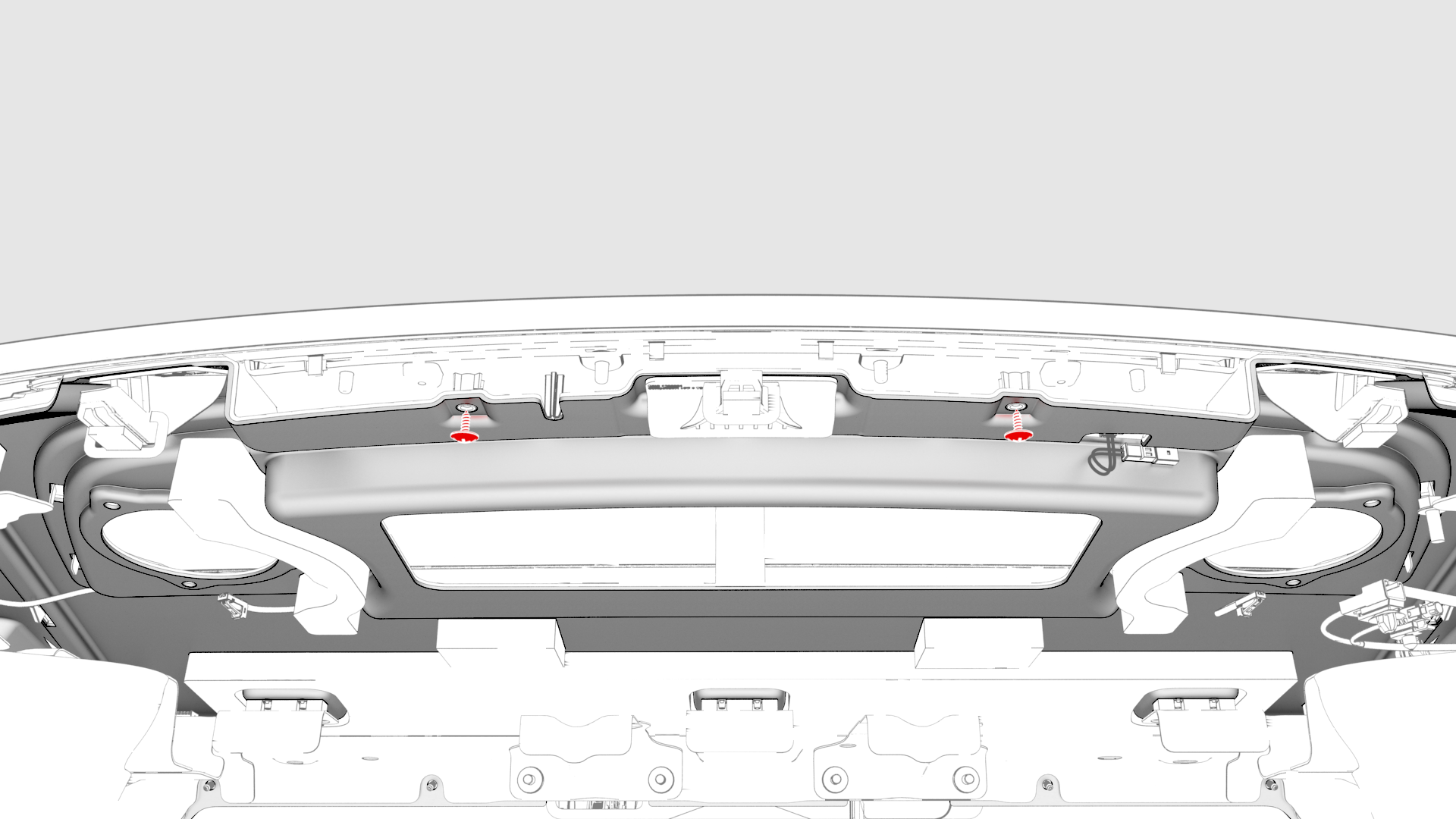

  9. Remove the screws that attach the high mounted brake light to the package tray.

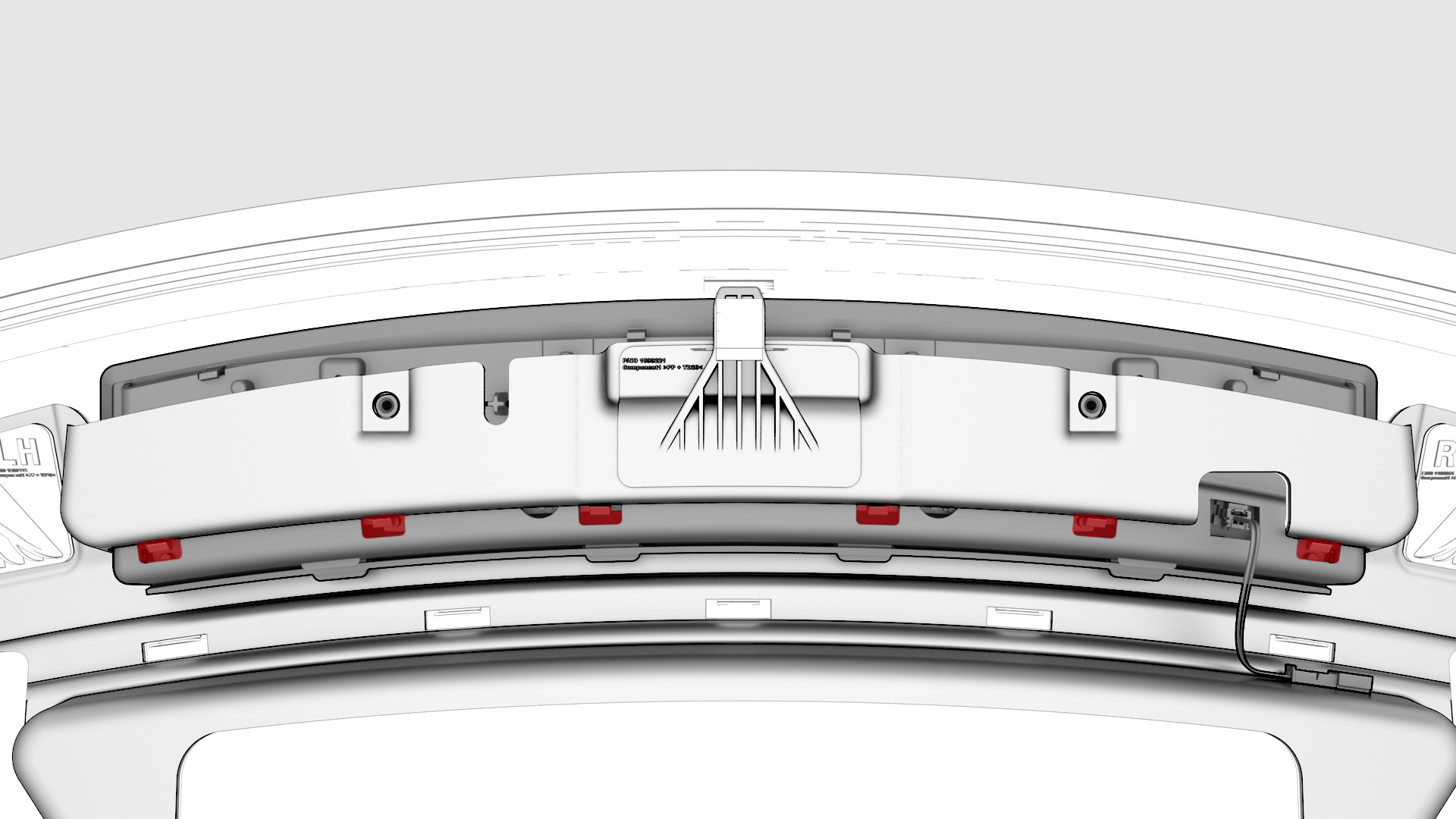

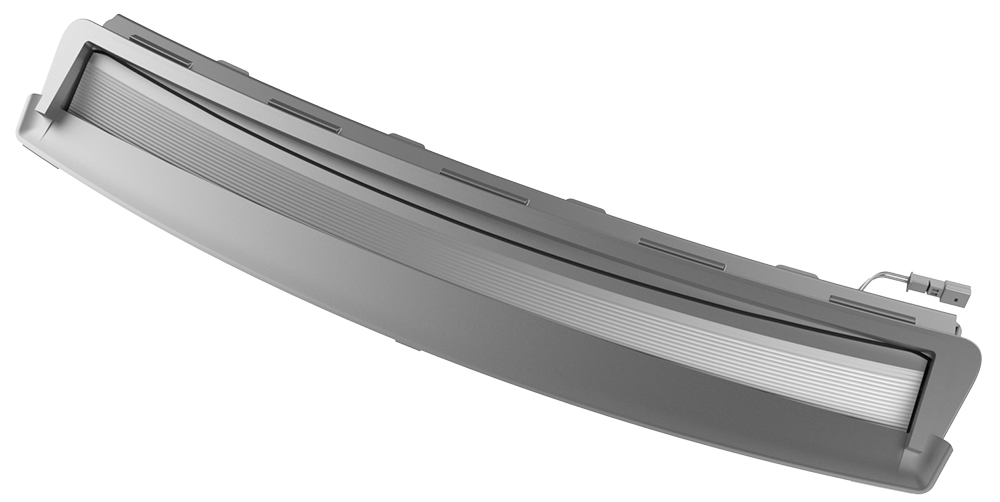

  10. Release the clips that attach the high mounted brake light to the package tray, and then remove the brake light from the vehicle.
1Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
2Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).
3Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
4Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
5Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
6Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
7Remove the package tray trim. See Trim - Package Tray (Remove and Install).
8Disconnect the high mounted brake light electrical connector.
9Remove the screws that attach the high mounted brake light to the package tray.
10Release the clips that attach the high mounted brake light to the package tray, and then remove the brake light from the vehicle.

Install

  1. Install the high mounted brake light on the package shelf and secure it with clips.
  2. Install the screws that attach the high mounted brake light to the package tray.
    Torque 0.5 Nm
  3. Connect the high mounted brake light electrical connector.
  4. Install the package tray trim. See Trim - Package Tray (Remove and Install).
  5. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  6. Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  7. Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  8. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  9. Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).
  10. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  11. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
1Install the high mounted brake light on the package shelf and secure it with clips.
2Install the screws that attach the high mounted brake light to the package tray.
Torque 0.5 Nm
3Connect the high mounted brake light electrical connector.
4Install the package tray trim. See Trim - Package Tray (Remove and Install).
5Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
6Install the RH side rail trim. See Trim - Side Rail - LH (Remove and Install).
7Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
8Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
9Install the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).
10Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
11Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
