Quad Camera Cover - Lower (Remove and Replace)

Correction code 1505080215050802

Remove

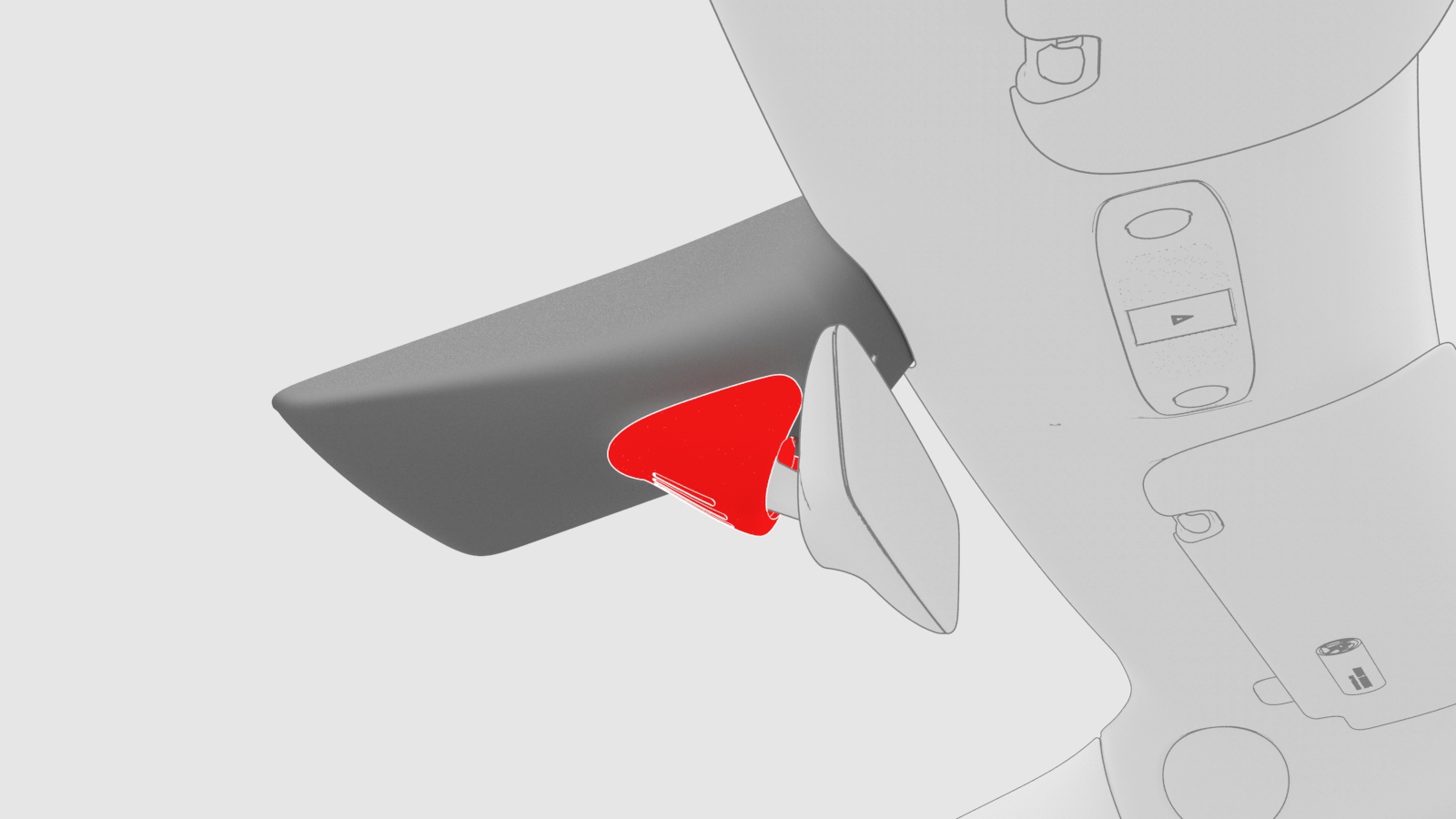

Use a trim tool to remove the lower quad camera cover.

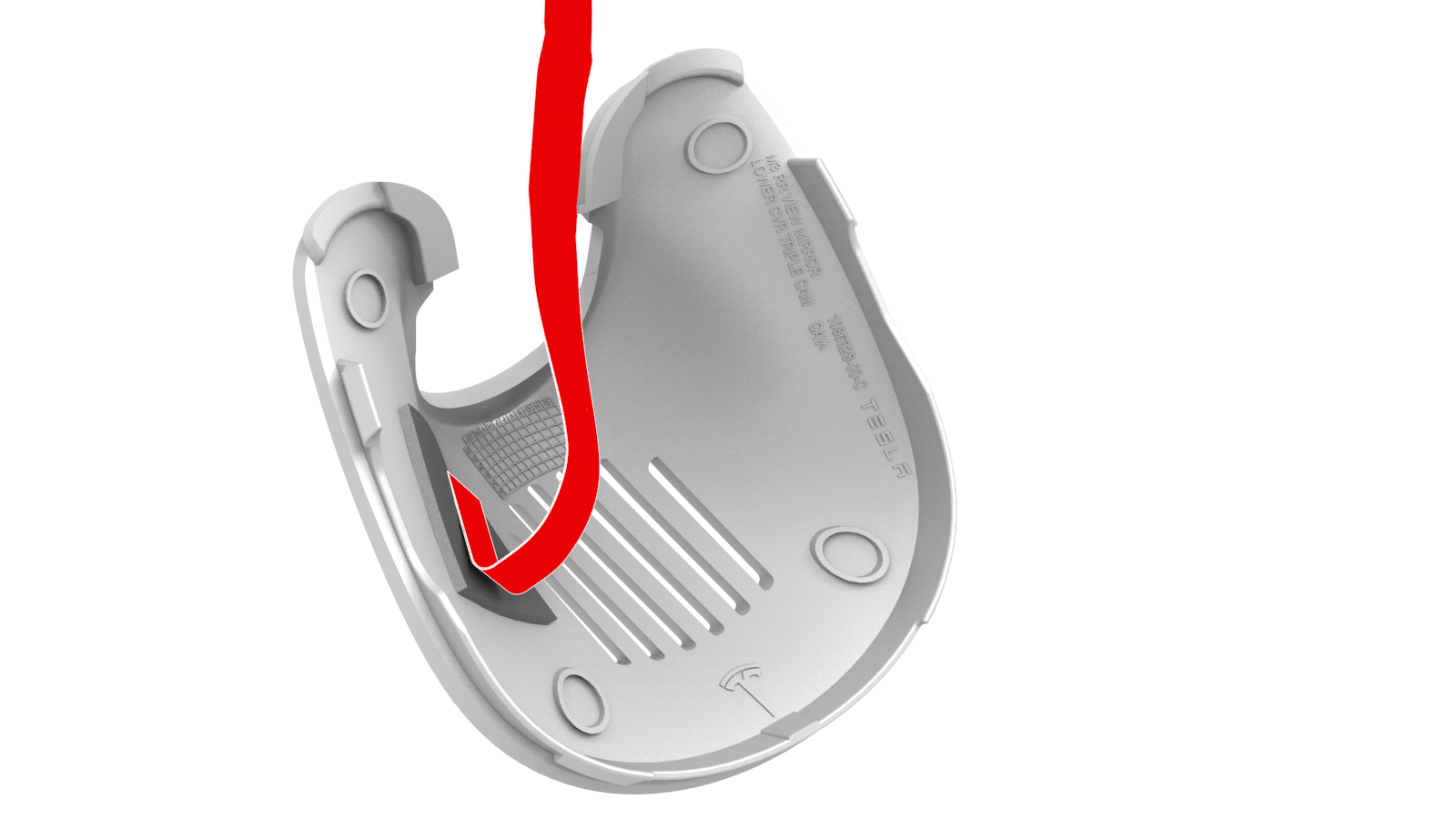

Remove the tether from the lower quad camera cover, and then remove the lower quad camera cover.

		1	Use a trim tool to remove the lower quad camera cover.
		2	Remove the tether from the lower quad camera cover, and then remove the lower quad camera cover.

Install

Installation procedure is the reverse of removal.
