Light - Turn Signal / Fog - Front - LH (Remove and Replace)

Correction code 1740400217404002

Remove

Remove the LH front wheel. See Wheel (Remove and Install).
Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

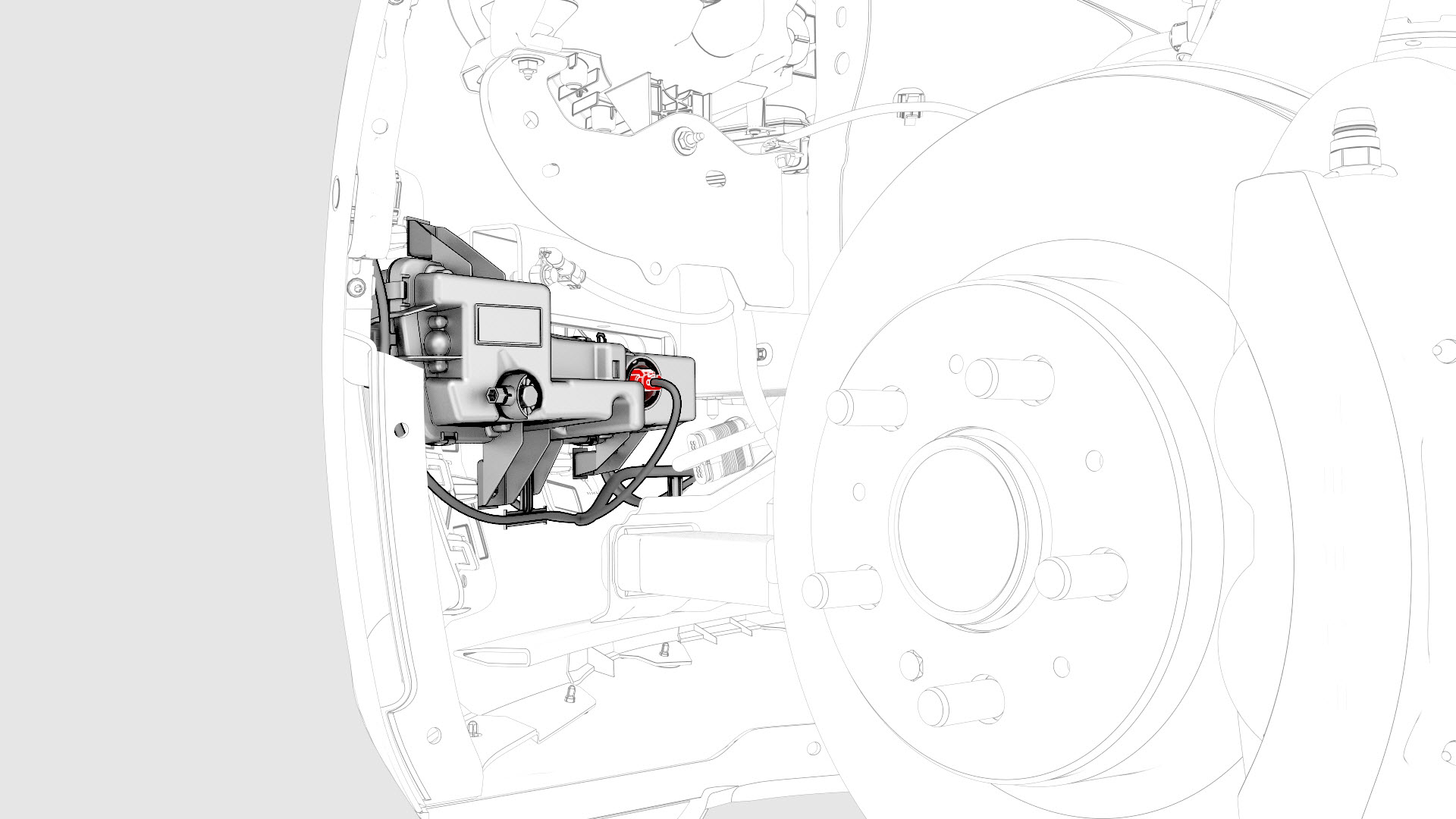

Disconnect the electrical connector from the LH front turn signal/fog light.
Release the clips that attach the fascia electrical harness to the LH front turn signal/fog light.

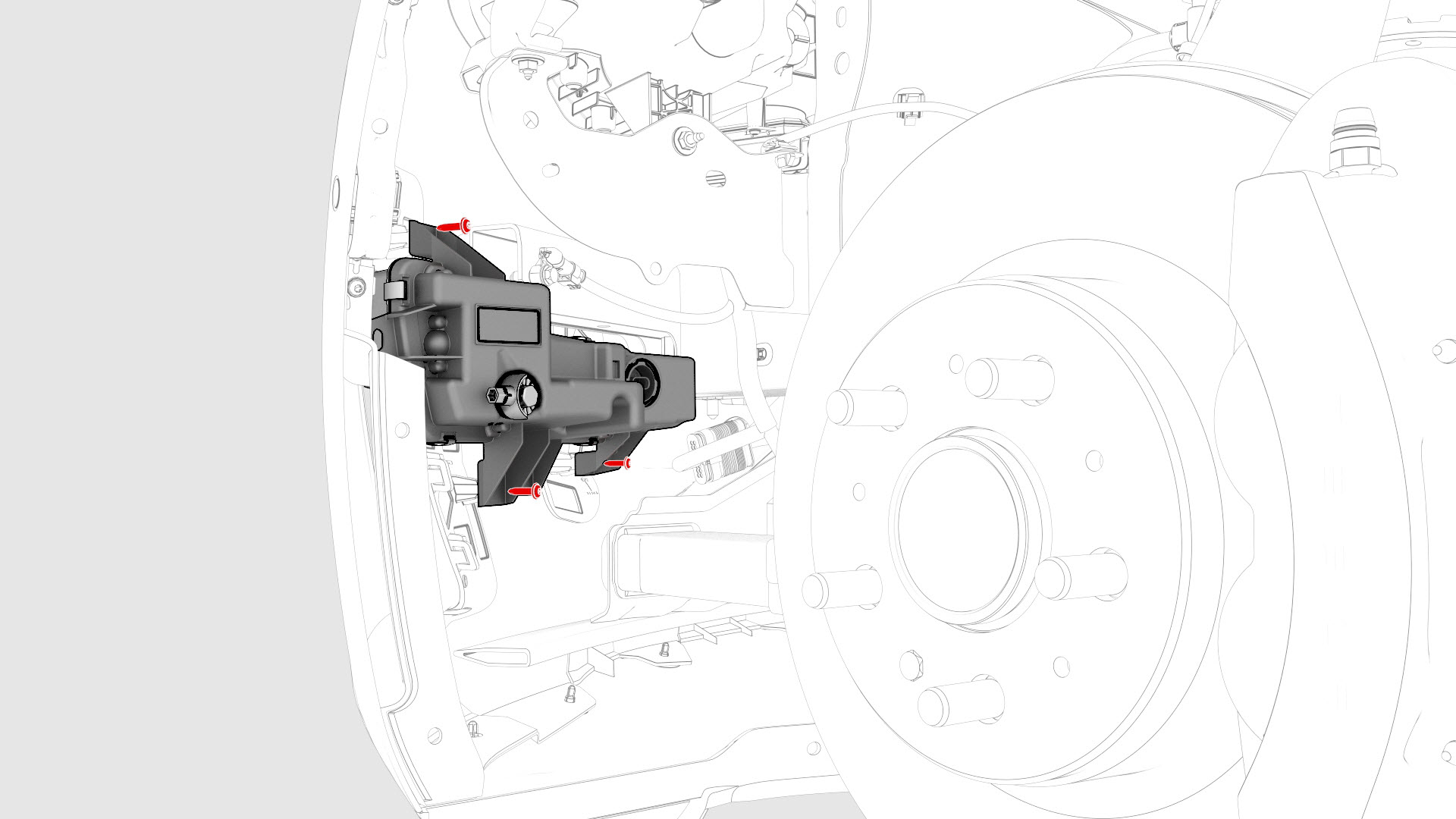

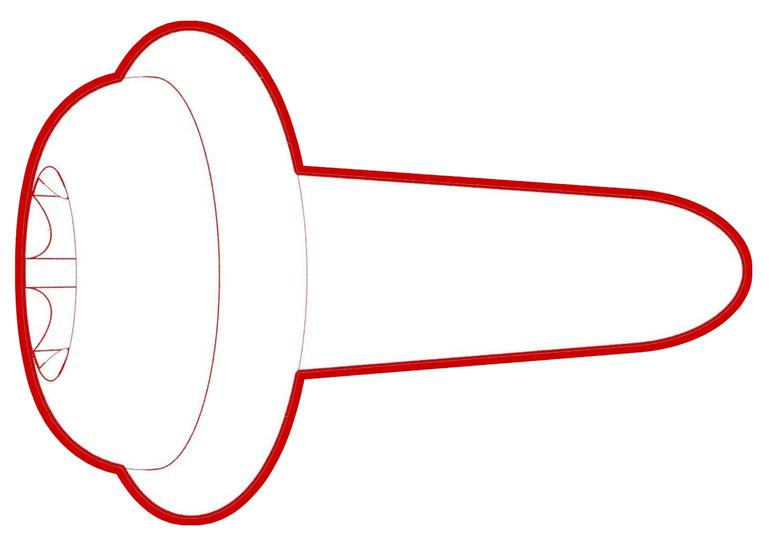

Remove the screws, and then release the tabs that attach the LH front turn signal/fog light to the front fascia.
Torque 2.8 Nm

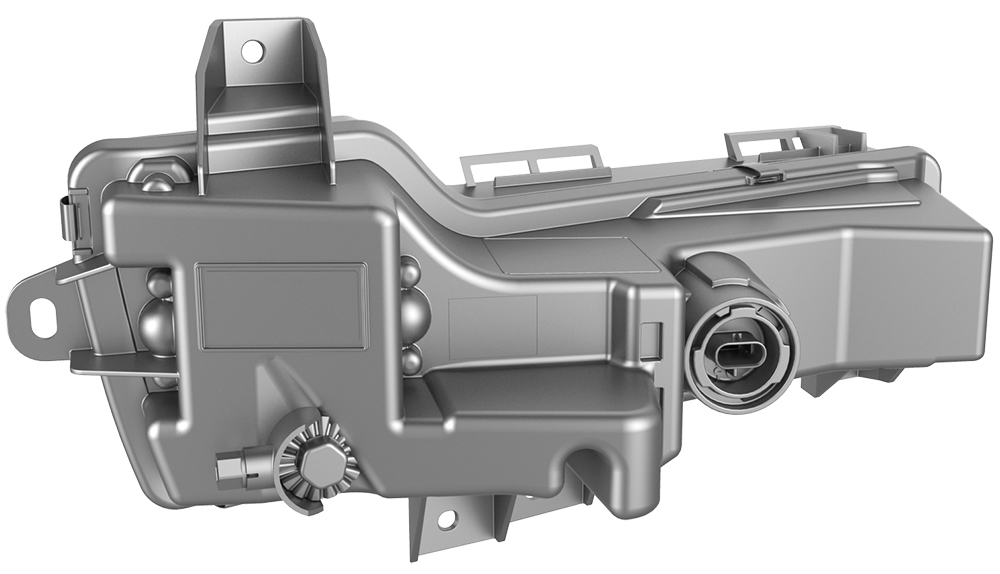

Remove the LH front turn signal/fog light from the vehicle.

		1	Remove the LH front wheel. See Wheel (Remove and Install).
		2	Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
		3	Disconnect the electrical connector from the LH front turn signal/fog light.
		4	Release the clips that attach the fascia electrical harness to the LH front turn signal/fog light.
		5	Remove the screws, and then release the tabs that attach the LH front turn signal/fog light to the front fascia. Torque 2.8 Nm
		6	Remove the LH front turn signal/fog light from the vehicle.

Install

Installation procedure is the reverse of removal.
