Window Motor / Regulator Assembly - Rear - LH (Remove and Replace)

Correction code 1150220211502202

1054712-00-A Rivnut Install Kit, for NA
1054712-01-A Rivnut Install Kit, for EMEA
1004296-00-AService rivnut
1015888-00-CService bolt

SPECIAL TOOLS

Rivnut Install Kit, for NA (1054712-00-A )

Rivnut Install Kit, for EMEA (1054712-01-A )

Service rivnut (1004296-00-A)

Service bolt (1015888-00-C)

Warning: The side impact airbag deployment depends on the front door sensor's ability to detect a side impact from air pressure. Make sure that there are no uncovered holes in the front door shells. Additionally, always reinstall plugs or tape when servicing or inspecting the front doors and their components.

Remove

Remove the rear LH door glass. See Glass - Door - LH - Rear (Remove and Replace).

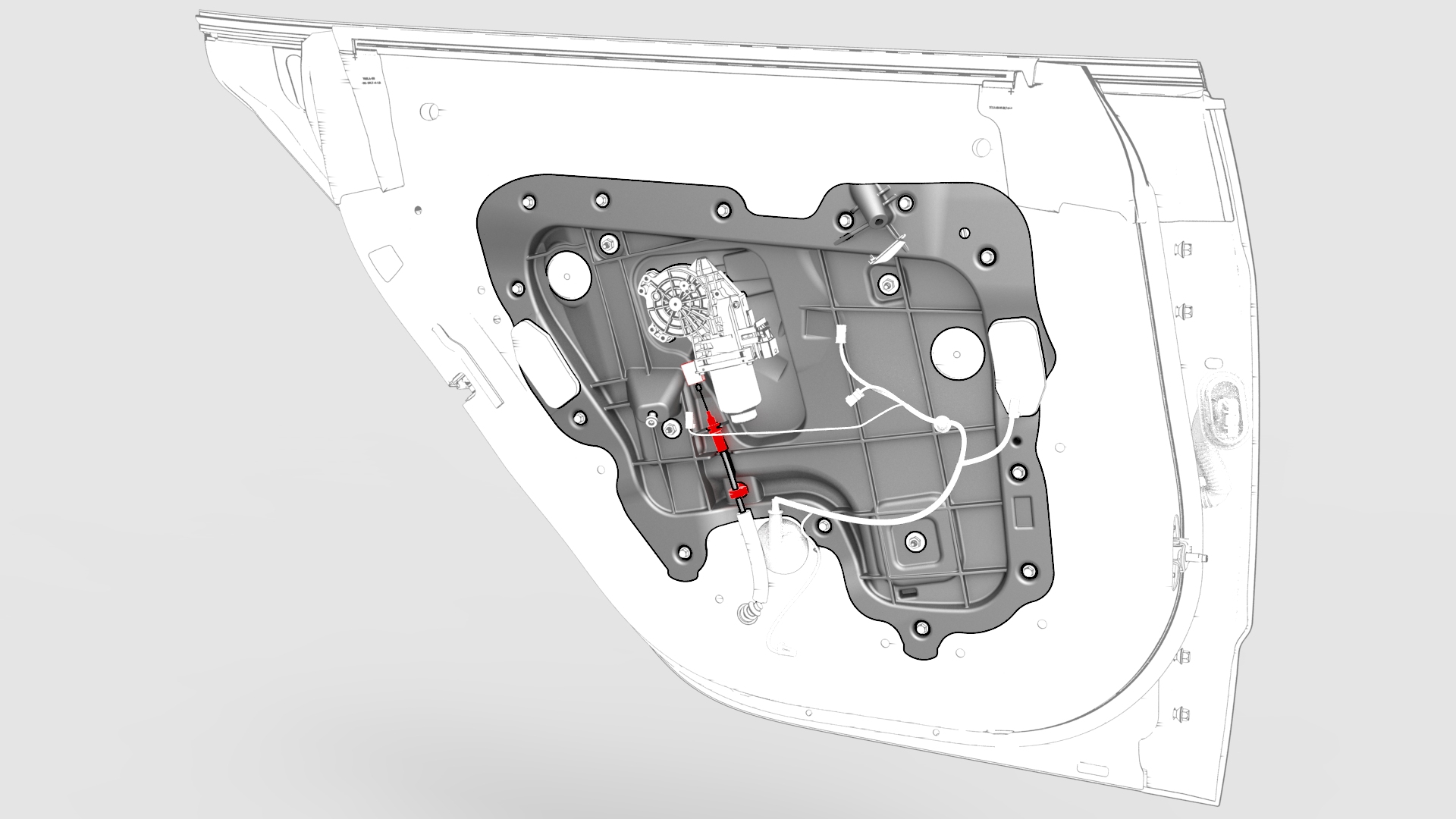

Disconnect the electrical connector to the motor.
Release the clips that attach the manual latch release cable to the window regulator panel.
Remove the screws (x13) and release the metal clip that attach the window regulator panel to the door, and then remove the regulator from the door.
Torque 4 Nm

Caution:
Never loosen or remove the nuts that attach the regulator arms to the closeout panel.

		1	Remove the rear LH door glass. See Glass - Door - LH - Rear (Remove and Replace).
		2	Disconnect the electrical connector to the motor.
		3	Release the clips that attach the manual latch release cable to the window regulator panel.
		4	Remove the screws (x13) and release the metal clip that attach the window regulator panel to the door, and then remove the regulator from the door. Torque 4 Nm Caution: Never loosen or remove the nuts that attach the regulator arms to the closeout panel.

Install

Installation procedure is the reverse of removal, except for the following:

Caution:

Repeated installations might strip the mounting holes for the window regulator panel. On installation, hand-start the screws so as to reduce the risk of stripping the threads.

Install rivnuts where any of the mounting holes for the window regulator panel are stripped. Use a 7.5mm drill to prepare the hole for rivnut installation.
