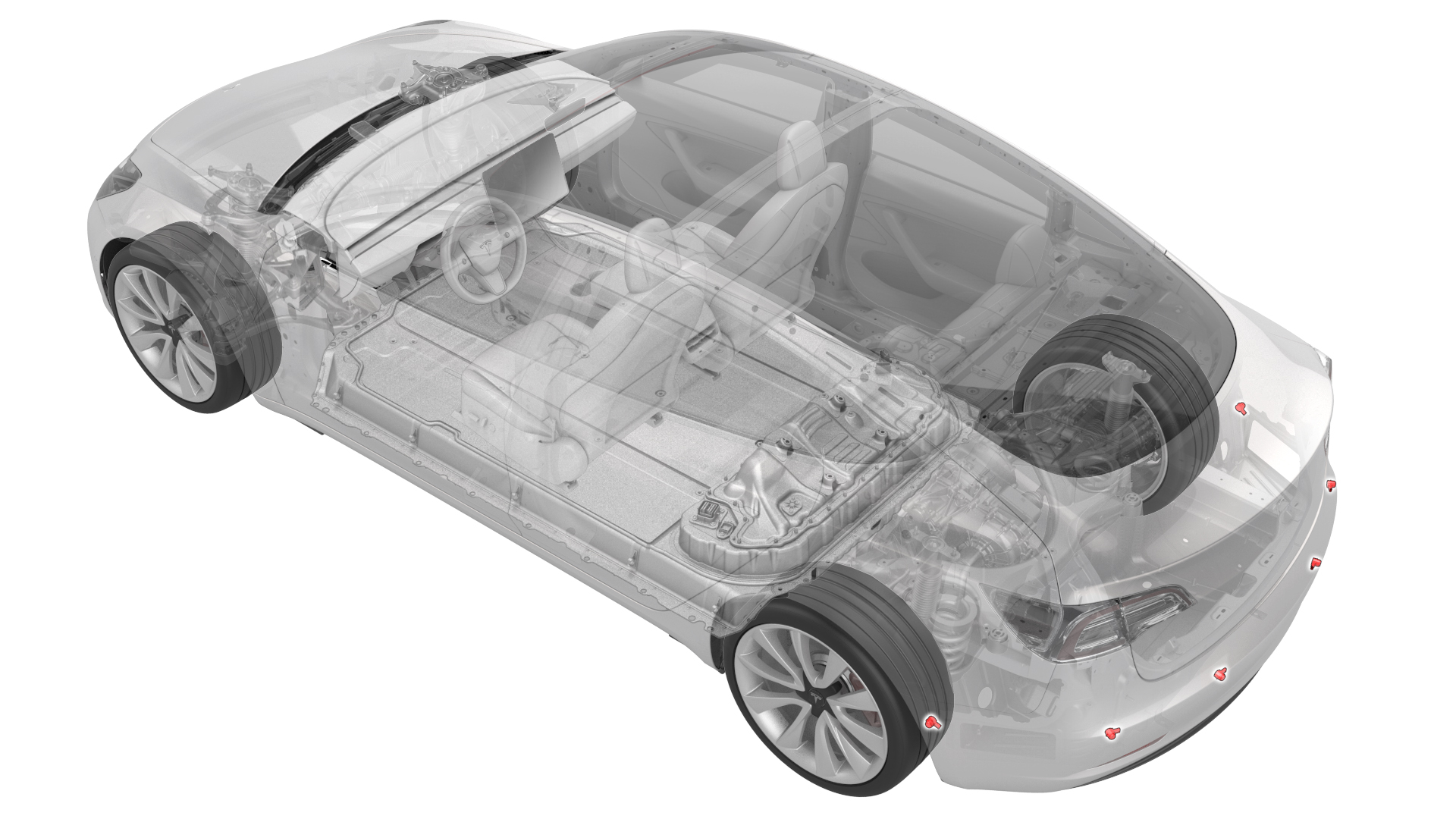

Sensor - Parking Distance - Rear - Each (Remove and Replace)

Correction code 1727120217271202

Remove

Remove the rear fascia. See Fascia - Rear (Remove and Install).

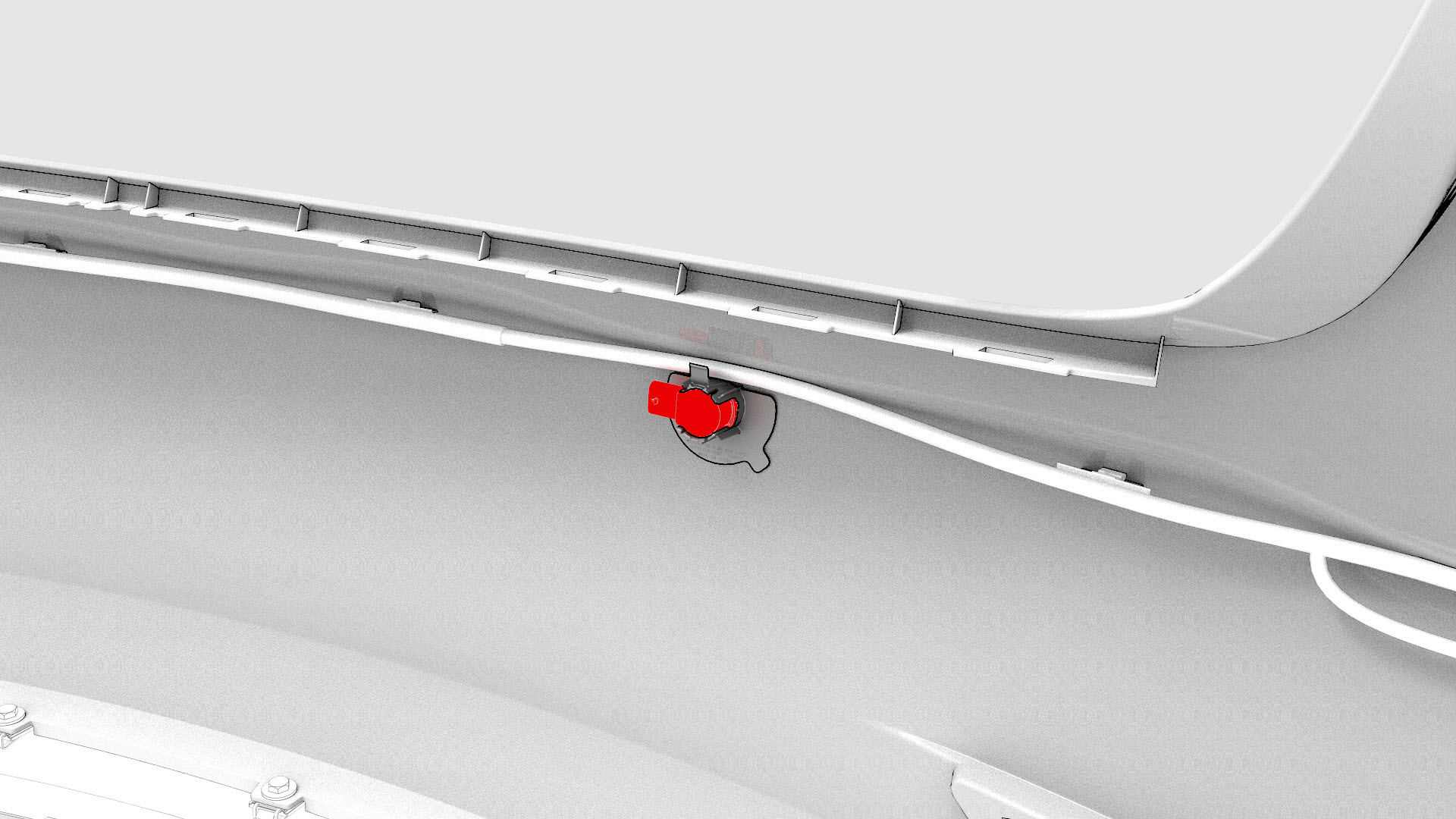

Disconnect the electrical harness from the rear parking distance sensor connector.

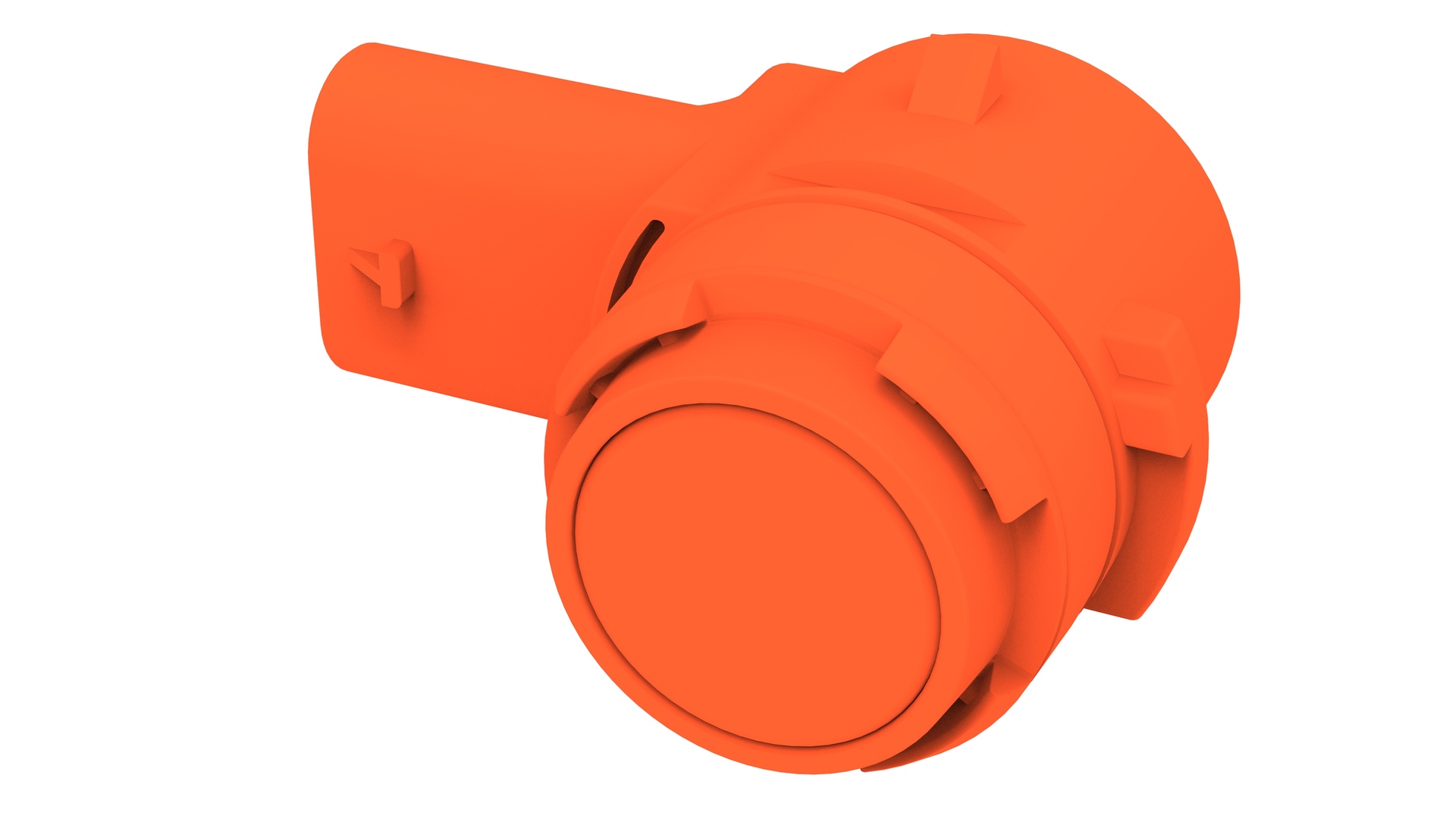

Release the clips that attach the rear parking distance sensor to the rear fascia, and then remove the sensor from the rear fascia.

		1	Remove the rear fascia. See Fascia - Rear (Remove and Install).

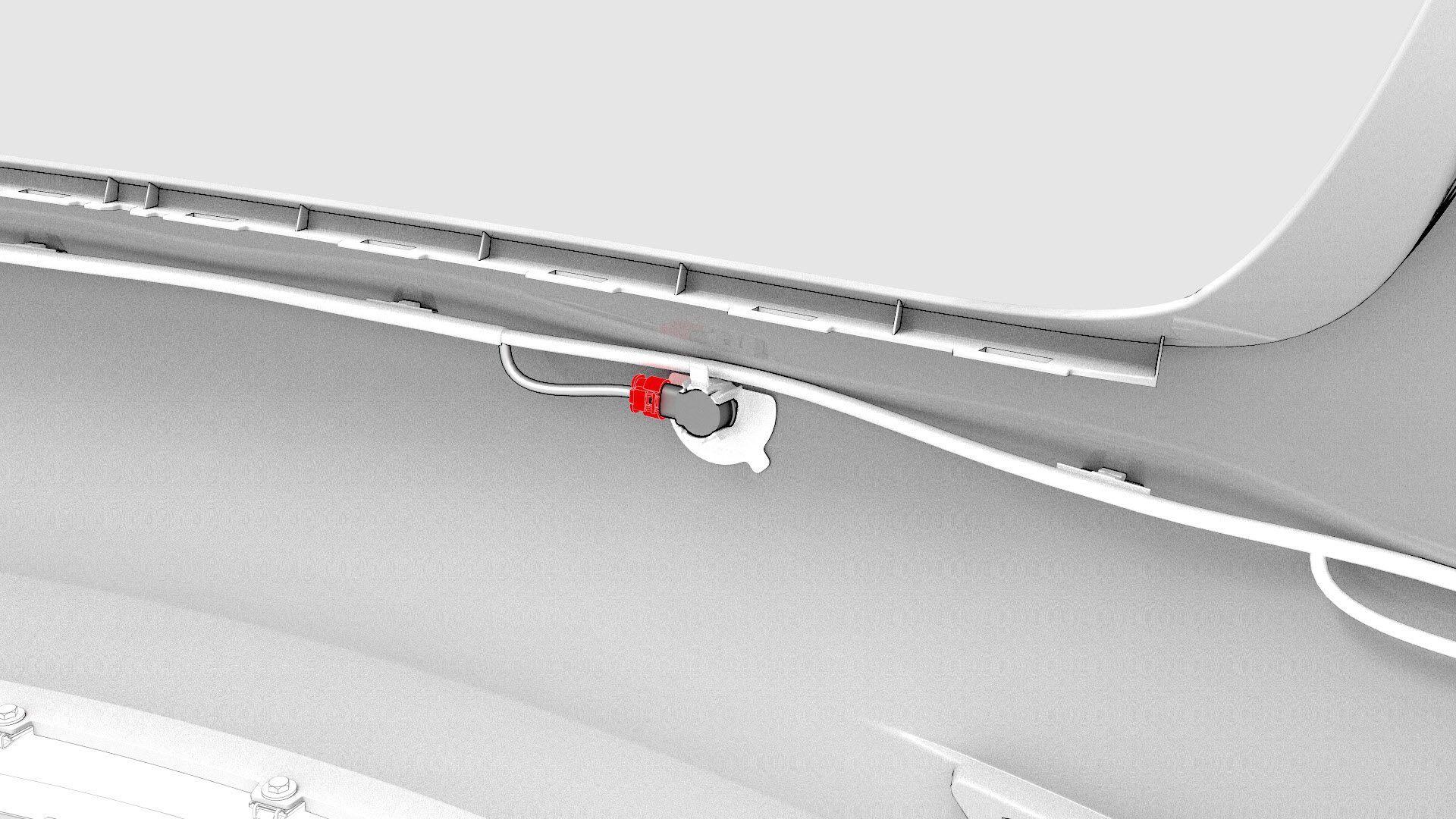

		2	Disconnect the electrical harness from the rear parking distance sensor connector.
		3	Release the clips that attach the rear parking distance sensor to the rear fascia, and then remove the sensor from the rear fascia.

Install

Installation procedure is the reverse of removal.
