Blower Motor - HVAC (Remove and Replace)

Correction code 1810320218103202
Parent topic: 1810 - Cabin HVAC

Remove

  1. Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).

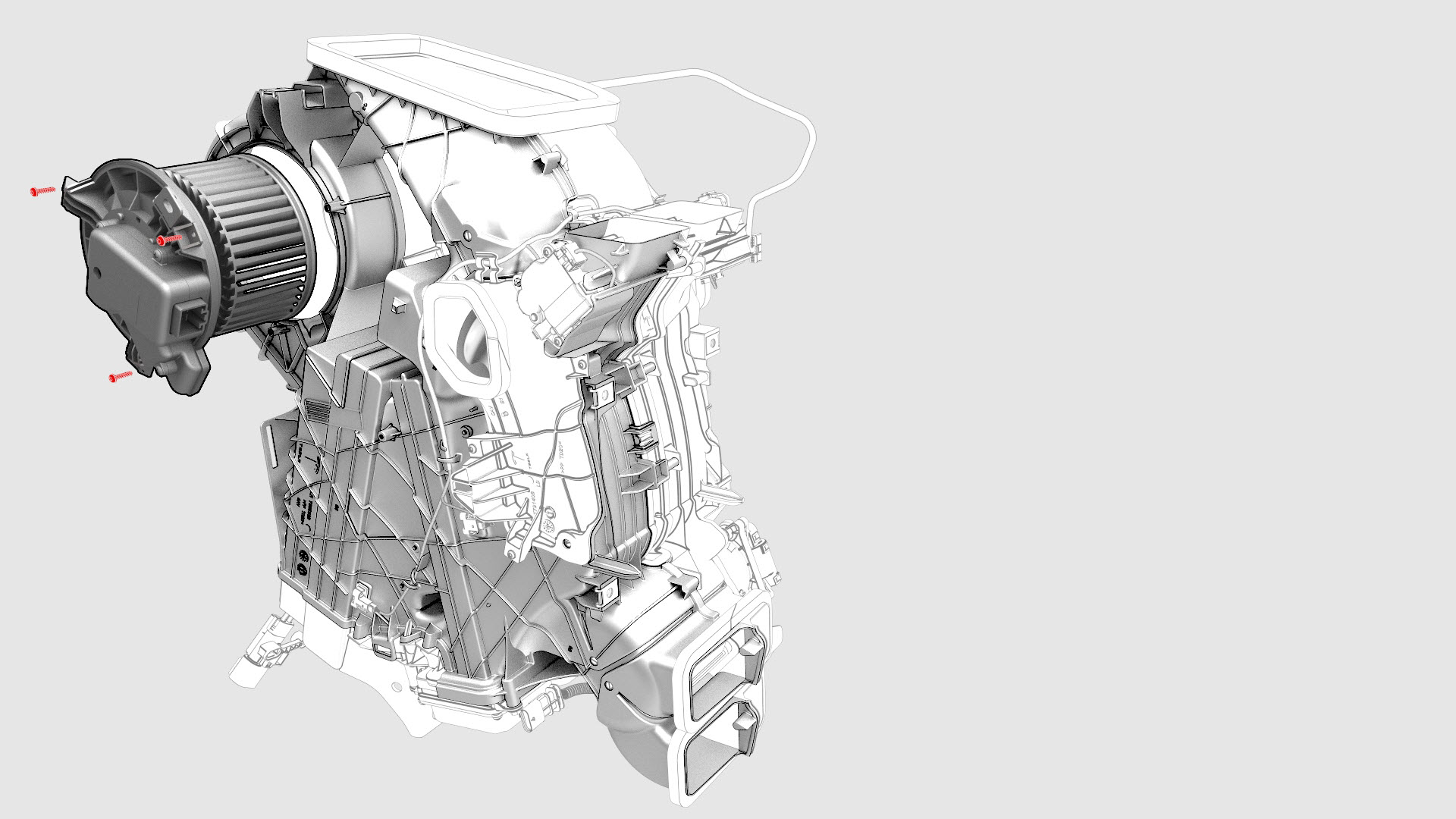

  2. Remove the screws that attach the HVAC fan motor to the HVAC assembly, and then remove the motor from the HVAC assembly.
1Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).
2Remove the screws that attach the HVAC fan motor to the HVAC assembly, and then remove the motor from the HVAC assembly.

Install

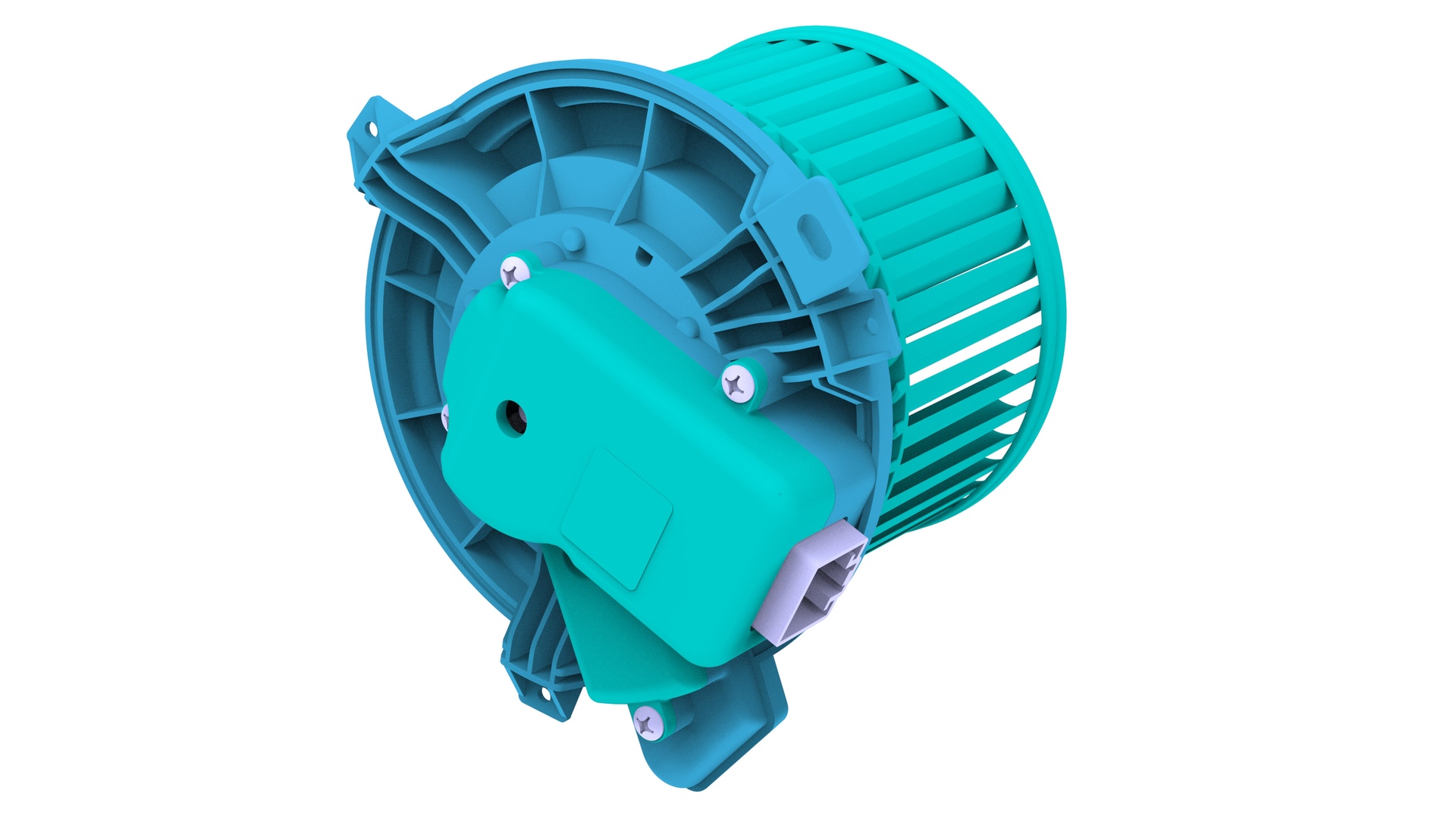

  1. Position the HVAC fan motor on the HVAC assembly.

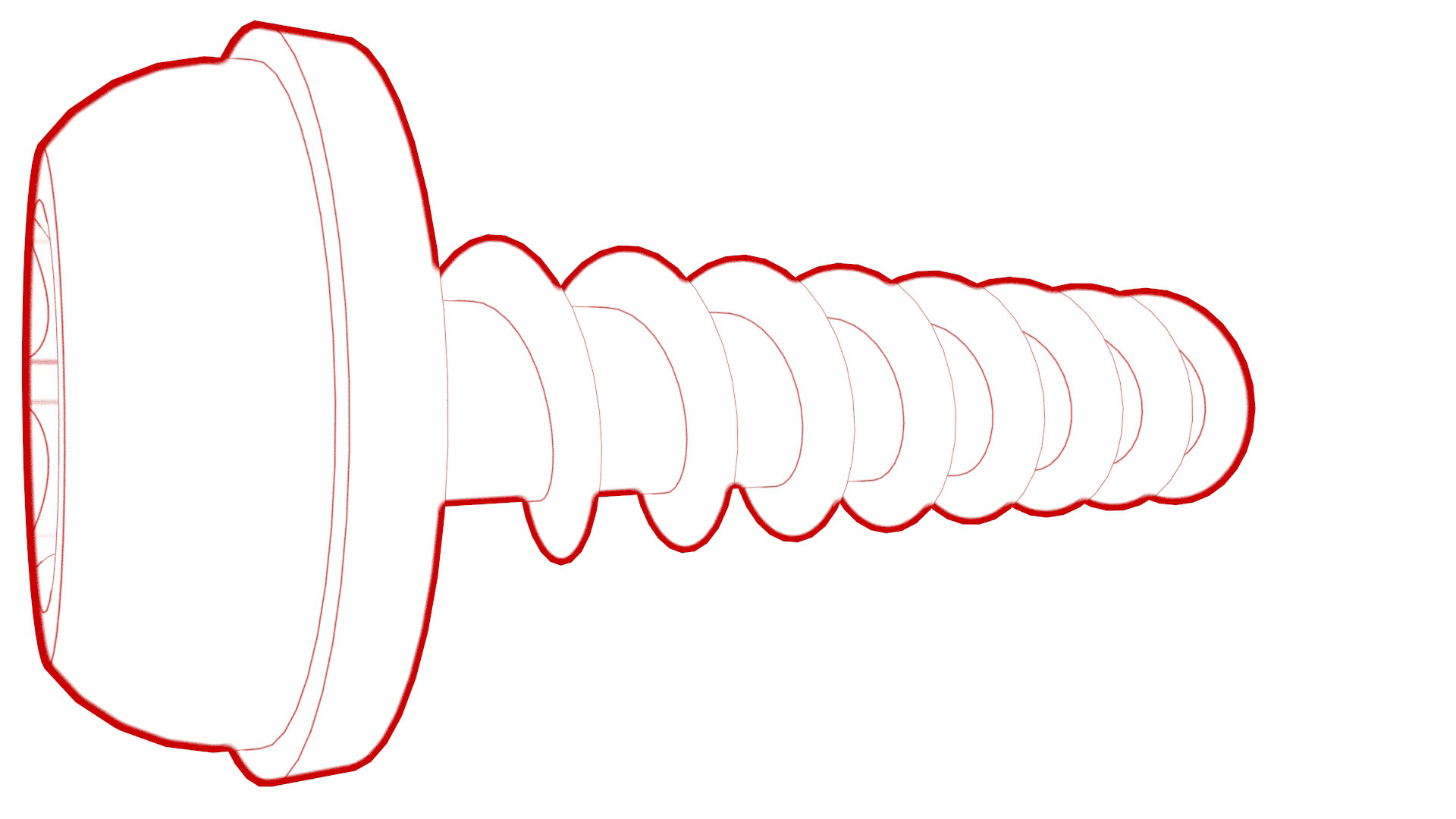

  2. Install the screws that attach the HVAC fan motor to the HVAC assembly.
    Torque 1.2 Nm
  3. Install the HVAC assembly. See HVAC Assembly (Remove and Replace).
1Position the HVAC fan motor on the HVAC assembly.
2Install the screws that attach the HVAC fan motor to the HVAC assembly.
Torque 1.2 Nm
3Install the HVAC assembly. See HVAC Assembly (Remove and Replace).
