Hose - Inverter Inlet - Front Drive Unit (Remove and Replace)

Correction code 3920101239201012
Parent topic: 3920 - Front Drive Inverter

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
  4. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  5. If equipped, remove the RH front wheel center cap. See Cap - Wheel (Remove and Replace).
  6. Loosen the RH front wheel lug nuts.
  7. Raise the vehicle. See Raise Vehicle - 2 Post Lift.
  8. Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
  9. Partially lower the vehicle, and then remove the RH front wheel. See Wheel (Remove and Install).
  10. Remove the RH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  11. Fully raise the vehicle, and then position a coolant drain container underneath the RH front side of the HV battery.

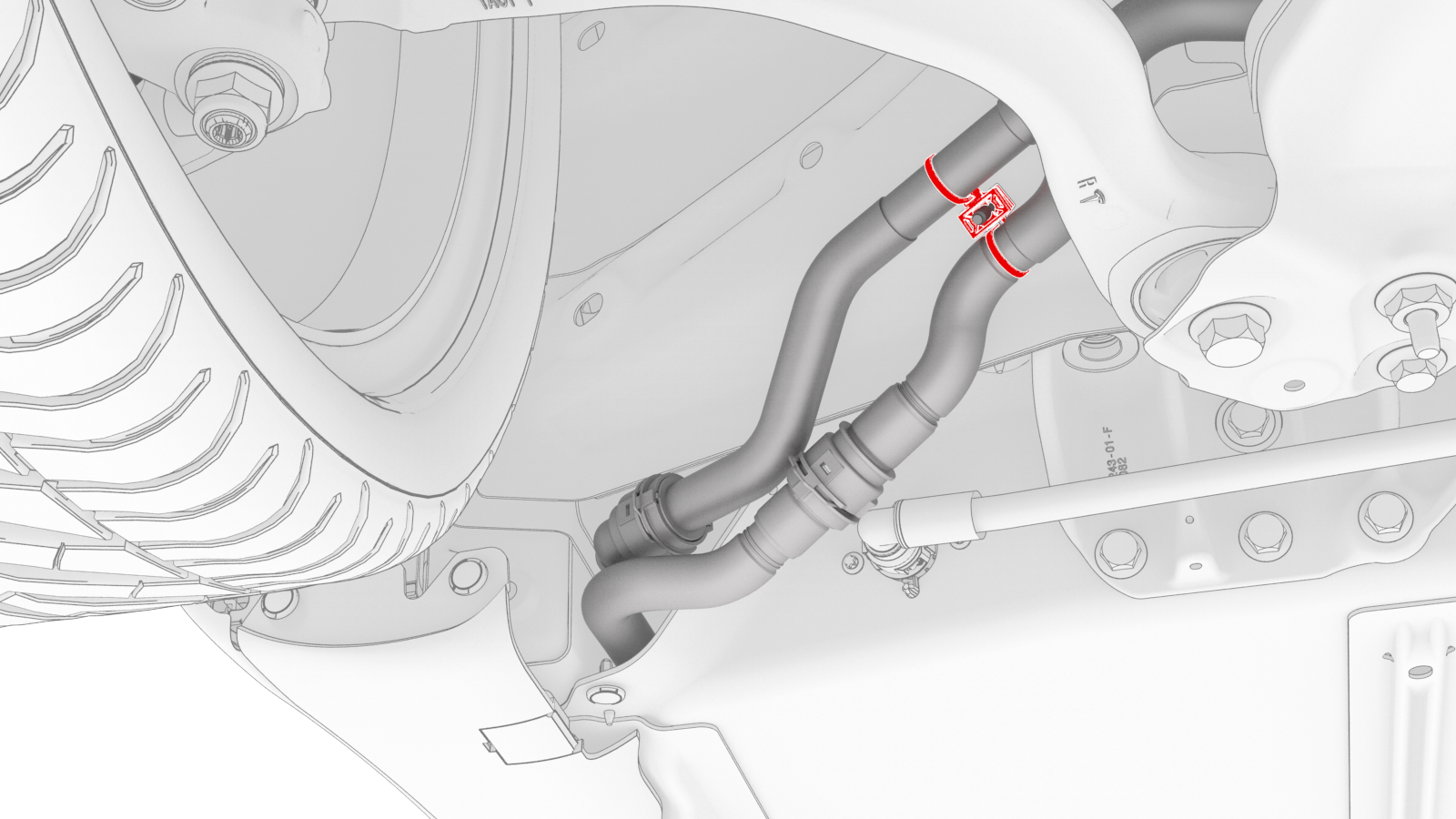

  12. Release the clip to separate the front drive unit inverter coolant inlet hose, and then drain the coolant into the coolant drain container.
  13. Plug the female side of the front drive unit inverter coolant inlet hose.

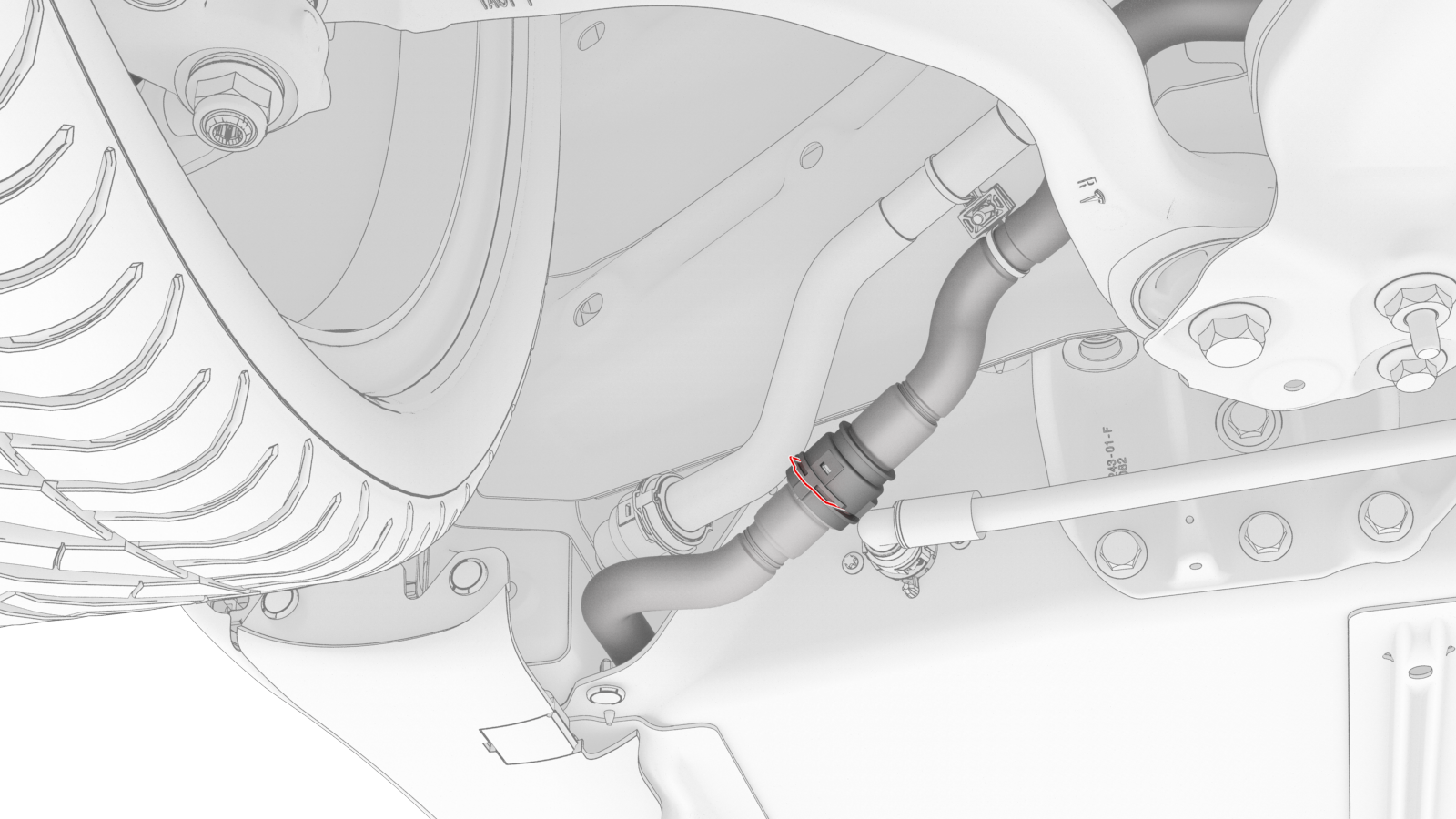

  14. Release the clip that attaches the front drive unit inverter inlet hose to the vehicle.
  15. Release the clip that attaches the front drive unit inverter inlet hose to the front subframe.

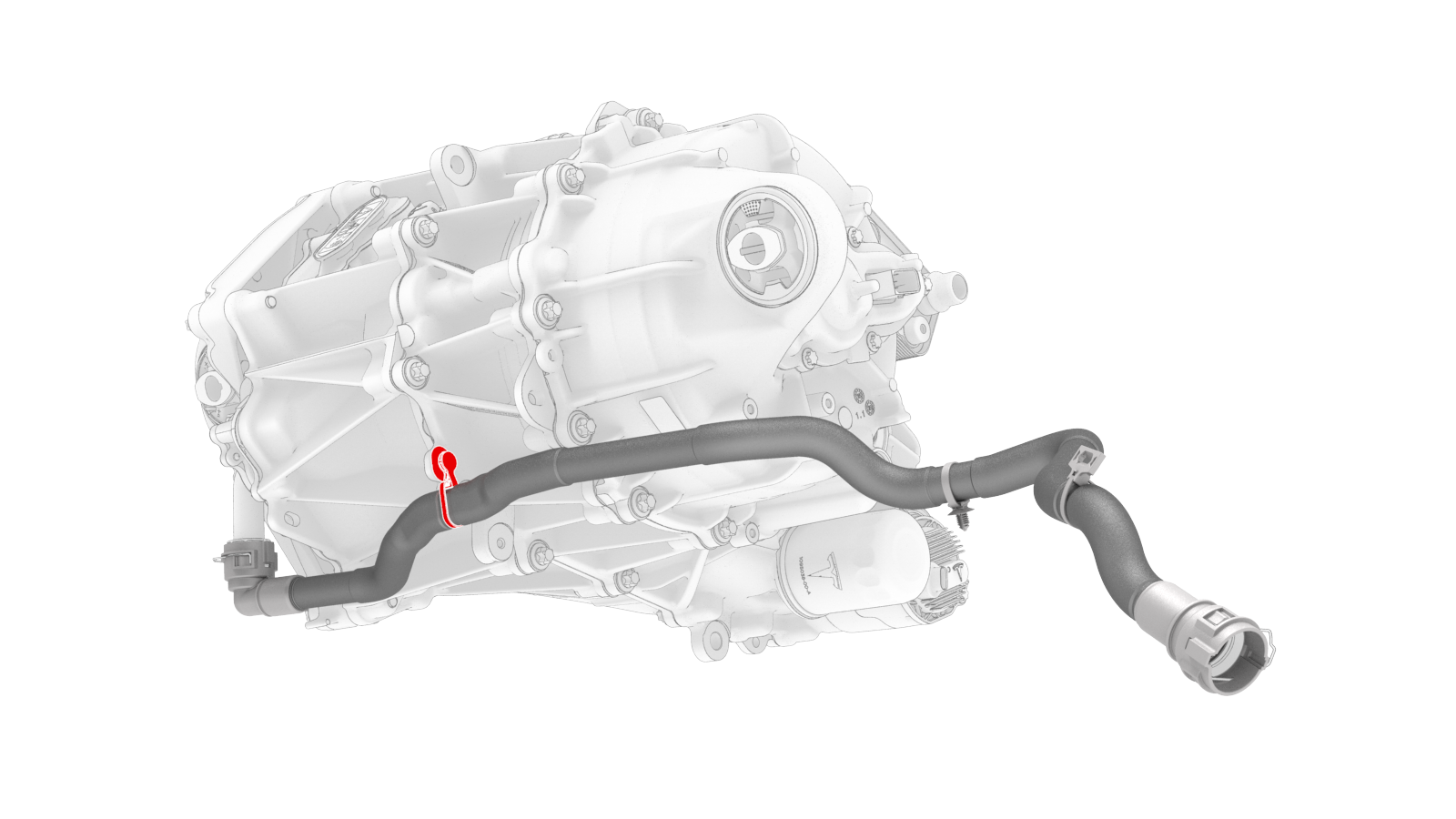

  16. Release the clip that attaches the front drive unit inverter inlet hose to the exterior of the front drive unit gearbox.
    Other assemblies hidden for clarity

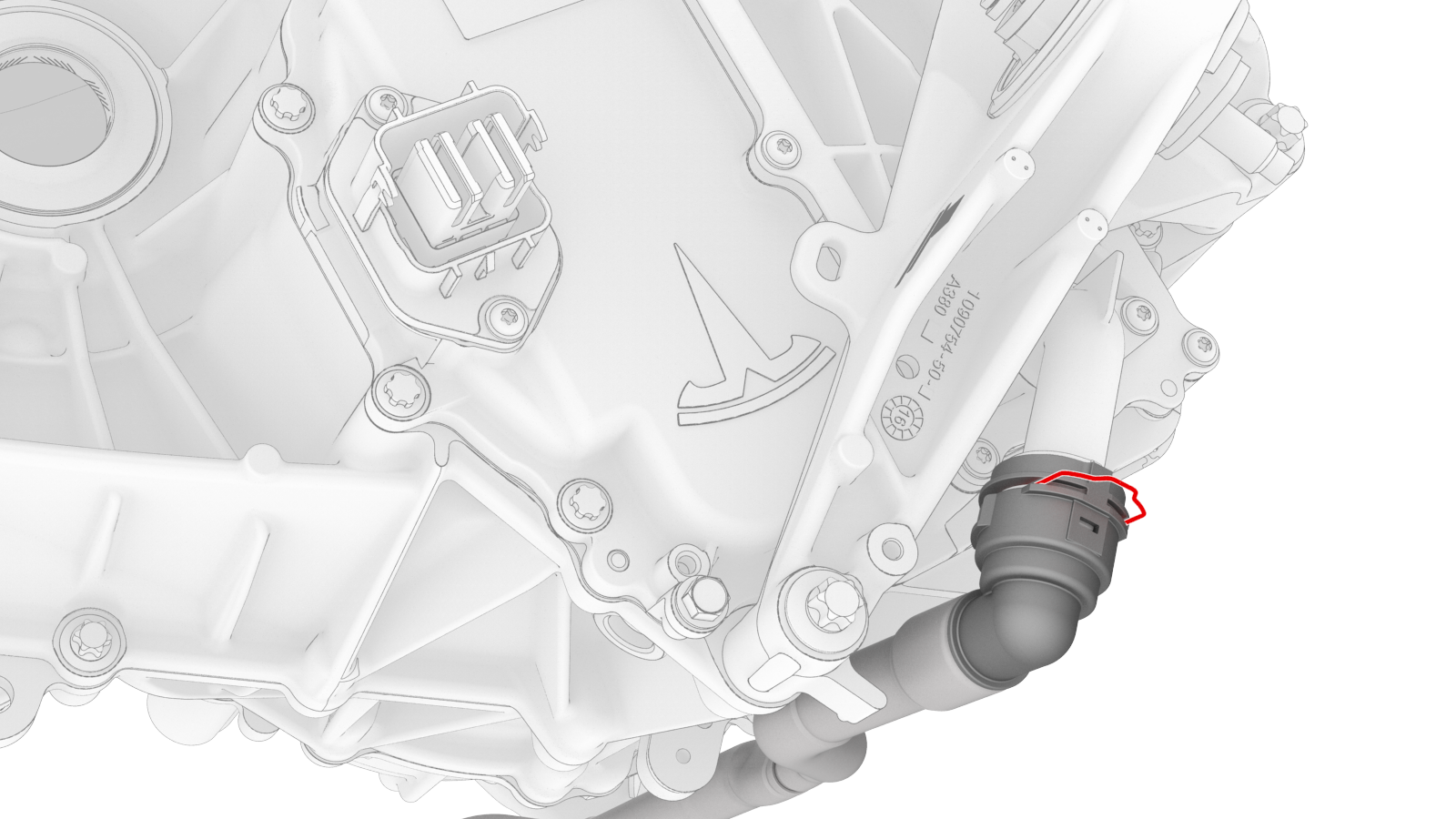

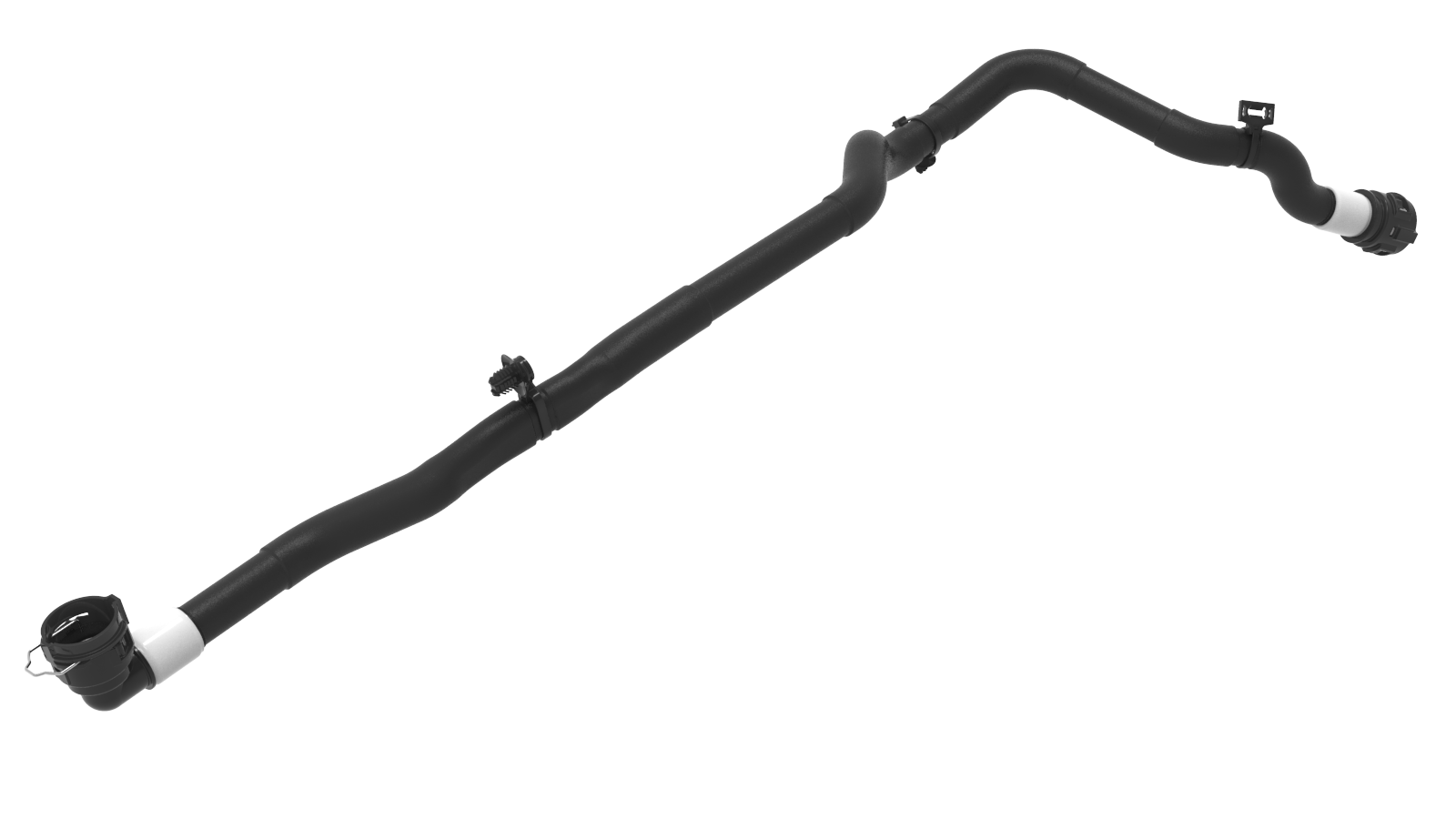

  17. Release the clip that connects the front drive unit inverter inlet hose to the front drive unit inverter coolant inlet, and then remove the hose from the vehicle.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
3Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
4Disconnect 12V power. See 12V Power (Disconnect and Connect).
5If equipped, remove the RH front wheel center cap. See Cap - Wheel (Remove and Replace).
6Loosen the RH front wheel lug nuts.
7Raise the vehicle. See Raise Vehicle - 2 Post Lift.
8Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
9Partially lower the vehicle, and then remove the RH front wheel. See Wheel (Remove and Install).
10Remove the RH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
11Fully raise the vehicle, and then position a coolant drain container underneath the RH front side of the HV battery.
12Release the clip to separate the front drive unit inverter coolant inlet hose, and then drain the coolant into the coolant drain container.
13Plug the female side of the front drive unit inverter coolant inlet hose.
14Release the clip that attaches the front drive unit inverter inlet hose to the vehicle.
15Release the clip that attaches the front drive unit inverter inlet hose to the front subframe.
Other assemblies hidden for clarity
16Release the clip that attaches the front drive unit inverter inlet hose to the exterior of the front drive unit gearbox.
17Release the clip that connects the front drive unit inverter inlet hose to the front drive unit inverter coolant inlet, and then remove the hose from the vehicle.

Install

  1. Position the front drive unit inverter inlet hose to the vehicle, and then install the clip that connects the hose to the front drive unit inverter coolant inlet.
    Caution:
    Perform a push-pull test to verify that the hose is fully seated.
  2. Install the clip that attaches the front drive unit inverter inlet hose to the exterior of the front drive unit gearbox.
    Other assemblies hidden for clarity
  3. Install the clip that attaches the front drive unit inverter inlet hose to the front subframe.
  4. Remove the plug, and then install the clip to reconnect the front drive unit inverter inlet hose.
    Caution:
    Perform a push-pull test to verify that the hose is fully seated.
  5. Install the clip that attaches the front drive unit inverter inlet hose the vehicle.
  6. Remove the coolant drain container from underneath the vehicle.
  7. Install the RH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  8. Position the RH front wheel on the vehicle, and then hand-tighten the wheel lug nuts.
  9. Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
  10. Lower the vehicle, and then tighten the RH front wheel lug nuts. See Wheel (Remove and Install).
    Note: Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
    Note: Use a 6 point socket. Do not use a 12 point socket or a specialty socket.
  11. If equipped, install the RH front wheel center cap. See Cap - Wheel (Remove and Replace).
  12. Connect 12V power. See 12V Power (Disconnect and Connect).
  13. Refill the cooling system. See Cooling System (Vacuum Refill).
  14. Install the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
  15. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  16. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
1Position the front drive unit inverter inlet hose to the vehicle, and then install the clip that connects the hose to the front drive unit inverter coolant inlet.
Caution:
Perform a push-pull test to verify that the hose is fully seated.
Other assemblies hidden for clarity
2Install the clip that attaches the front drive unit inverter inlet hose to the exterior of the front drive unit gearbox.
3Install the clip that attaches the front drive unit inverter inlet hose to the front subframe.
4Remove the plug, and then install the clip to reconnect the front drive unit inverter inlet hose.
Caution:
Perform a push-pull test to verify that the hose is fully seated.
5Install the clip that attaches the front drive unit inverter inlet hose the vehicle.
6Remove the coolant drain container from underneath the vehicle.
7Install the RH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
8Position the RH front wheel on the vehicle, and then hand-tighten the wheel lug nuts.
9Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace).
10Lower the vehicle, and then tighten the RH front wheel lug nuts. See Wheel (Remove and Install).
Note: Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
Note: Use a 6 point socket. Do not use a 12 point socket or a specialty socket.
11If equipped, install the RH front wheel center cap. See Cap - Wheel (Remove and Replace).
12Connect 12V power. See 12V Power (Disconnect and Connect).
13Refill the cooling system. See Cooling System (Vacuum Refill).
14Install the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
15Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
16Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
