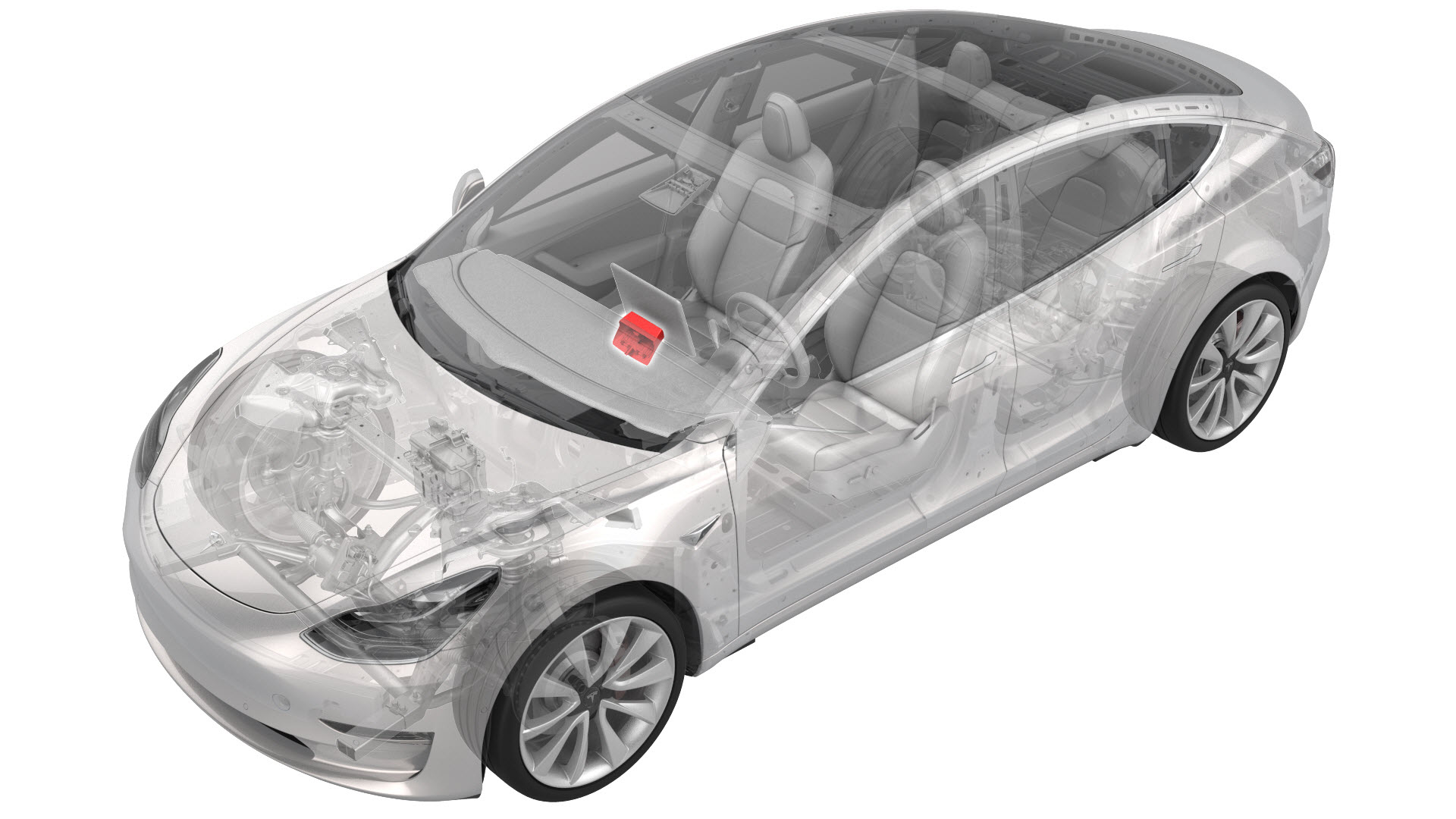

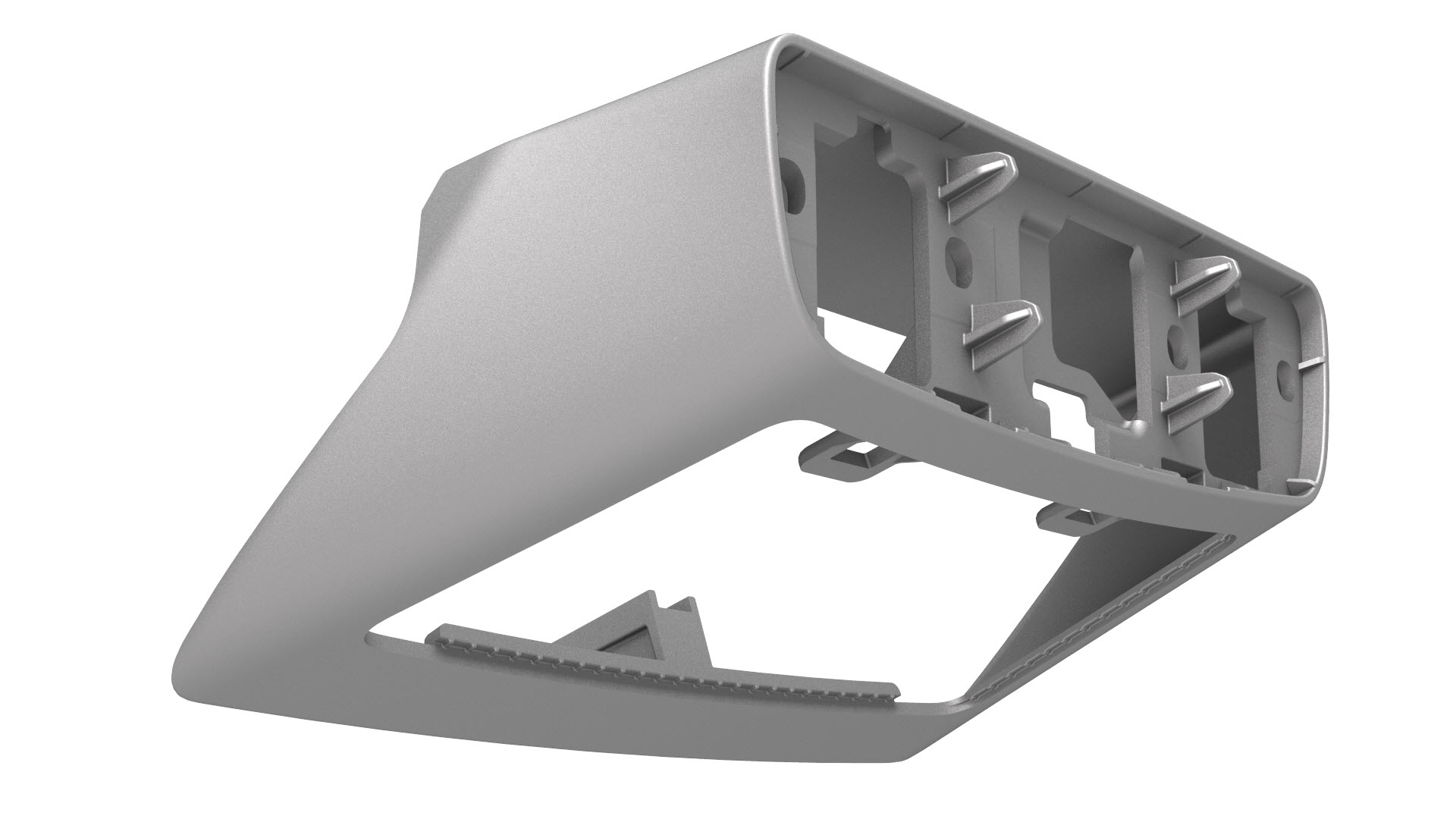

Housing - Center Display (Remove and Replace)

Correction code 1405780214057802

Remove

Remove the touchscreen. See Touchscreen (Remove and Replace).

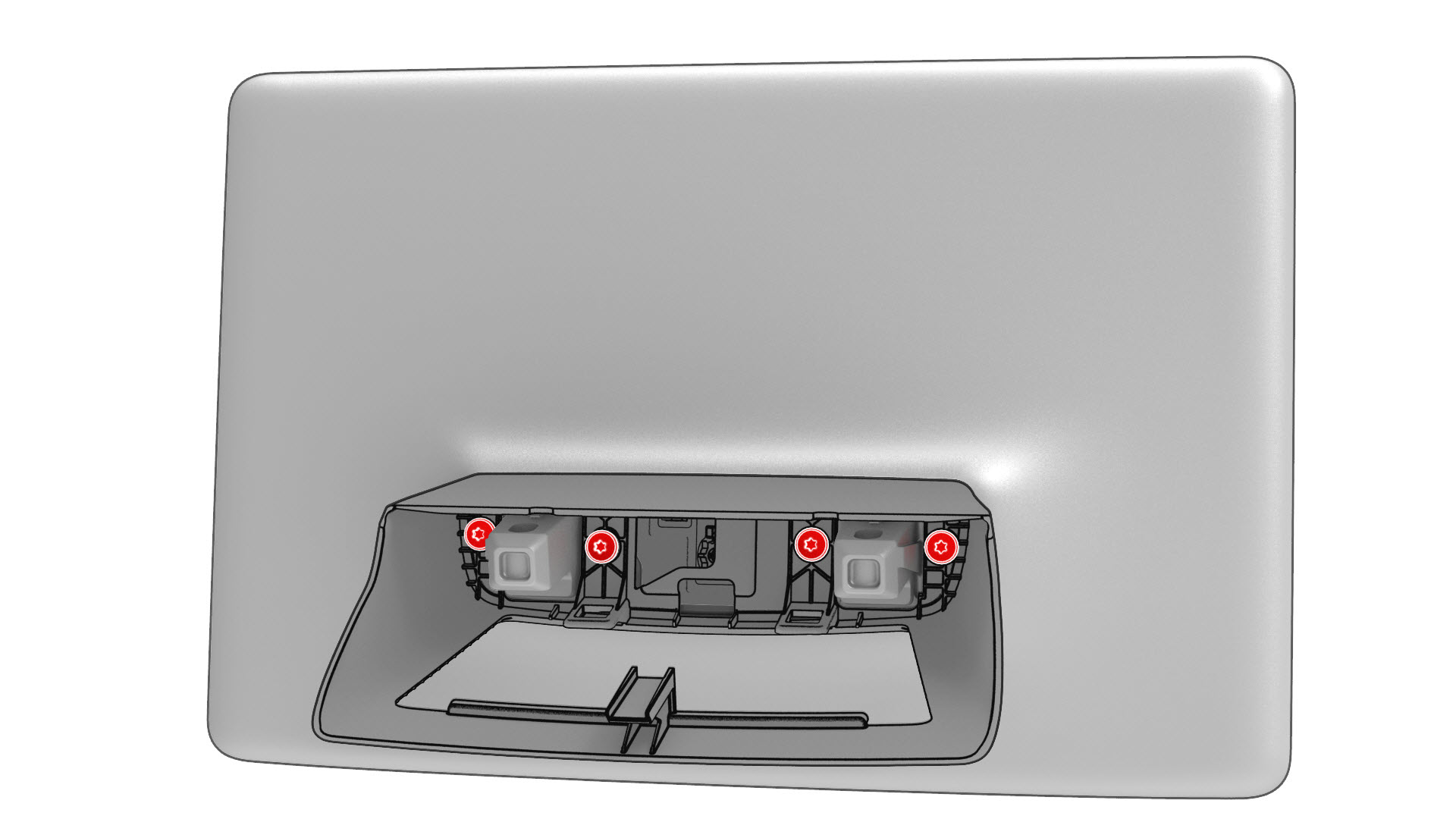

Remove the screws that attach the center display housing to the touchscreen, and then slide the center display housing from the touchscreen.
Torque 3 Nm

		1	Remove the touchscreen. See Touchscreen (Remove and Replace).
		2	Remove the screws that attach the center display housing to the touchscreen, and then slide the center display housing from the touchscreen. Torque 3 Nm

Install

Installation procedure is the reverse of removal.
