Manual Release - Door - Rear - LH (Actuate)
Correction code 1135800511358005
Open Rear Door Using Manual Release Cable
Note: This procedure describes how to manually open the rear door on a vehicle that does not have 12V power.
-

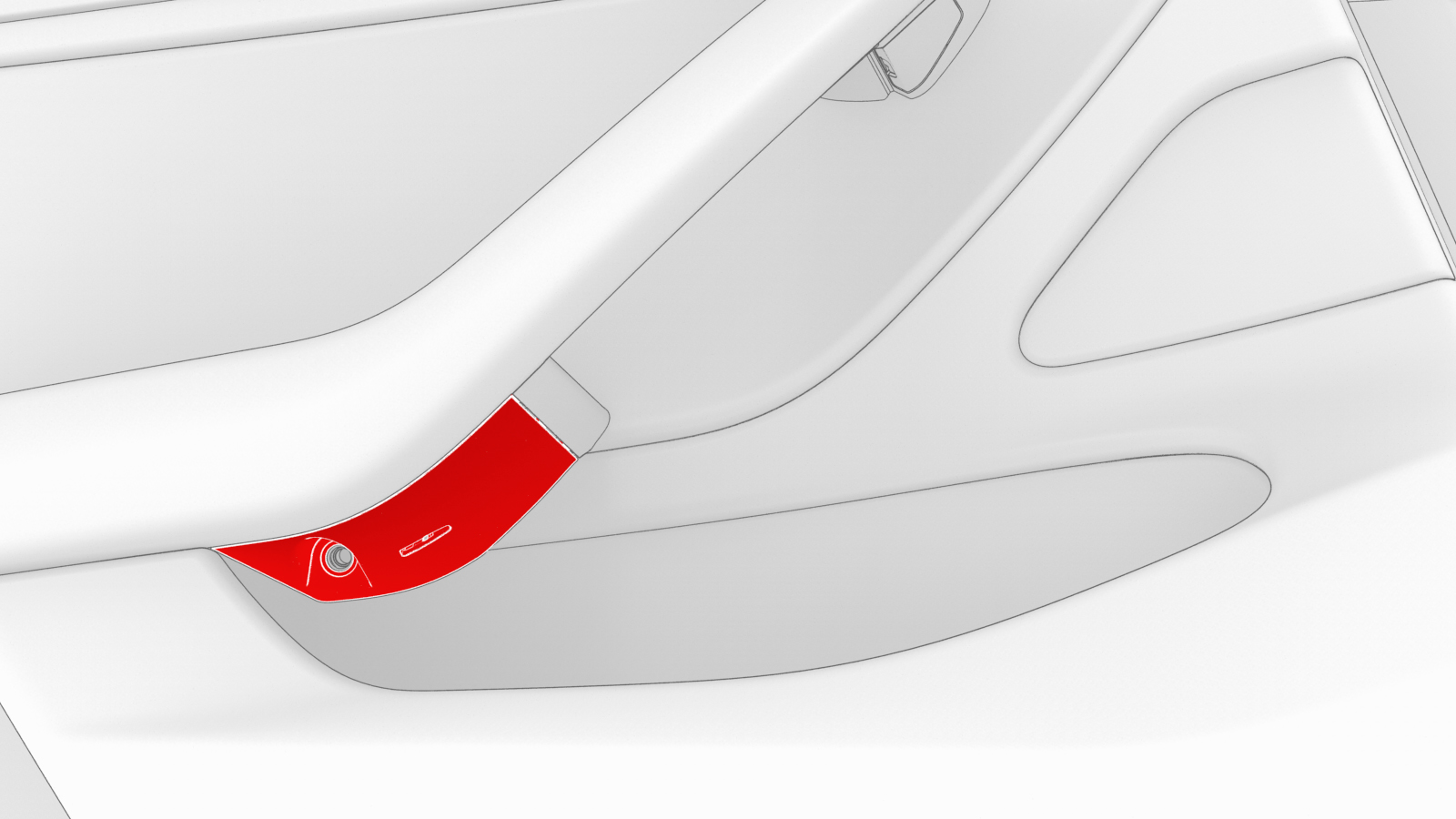

Remove the bolt that attaches the access panel to the underside of the armrest.
Torque 6 Nm
-
Release the clips that attach the access panel to the underside of the LH rear door armrest, and then remove the access panel from the vehicle.
-

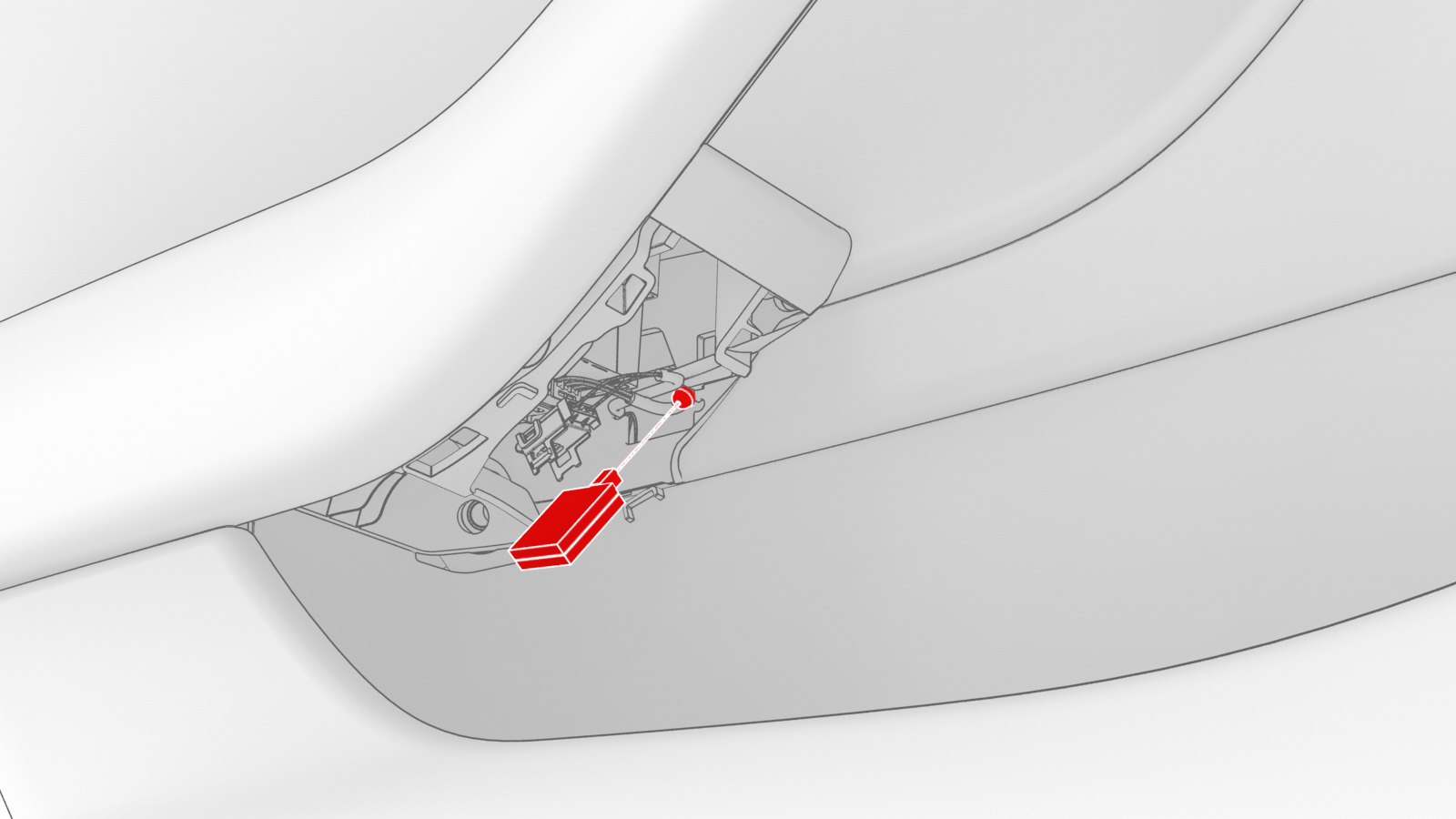

Use a pick to pull the manual release cable out from the opening under the armrest.
Note: The manual release cable is hidden behind a small hole in the door panel.Note: The insulating foam may be damaged during this step. Check for and remove any fragments of the foam.
-
Remove the insulating foam from the manual release cable.
| 1 | Remove the bolt that attaches the access panel to the underside of the armrest. Torque 6 Nm | |
| 2 | Release the clips that attach the access panel to the underside of the LH rear door armrest, and then remove the access panel from the vehicle. | |
| 3 | Use a pick to pull the manual release cable out from the opening under the armrest. Note: The manual release cable is hidden behind a small hole in the door panel.
Note: The insulating foam may be damaged during this step. Check for and remove any fragments of the foam.
| |
| 4 | Pull the manual release cable to open the LH rear door. | ||
| 5 | Remove the insulating foam from the manual release cable. |
Install
Installation procedure is the reverse of removal, except for the following:
Fold a new piece of 25 mm x 64 mm x 3mm adhesive foam over the manual release cable ring.
