Actuator - Lower Mode (Remove and Replace)

Correction code 1810250218102502

Remove

Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).

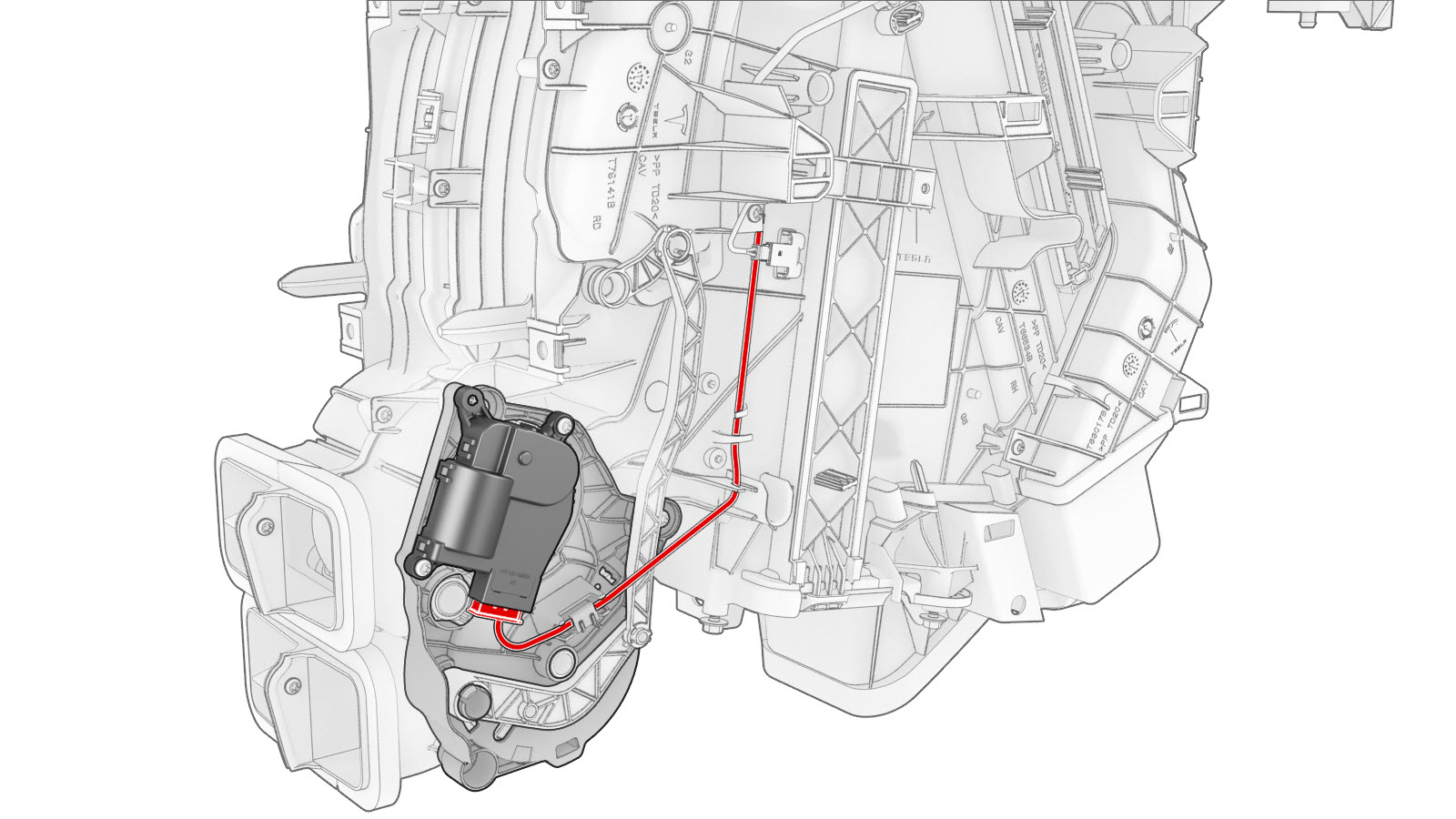

Disconnect the lower mode actuator electrical connector.

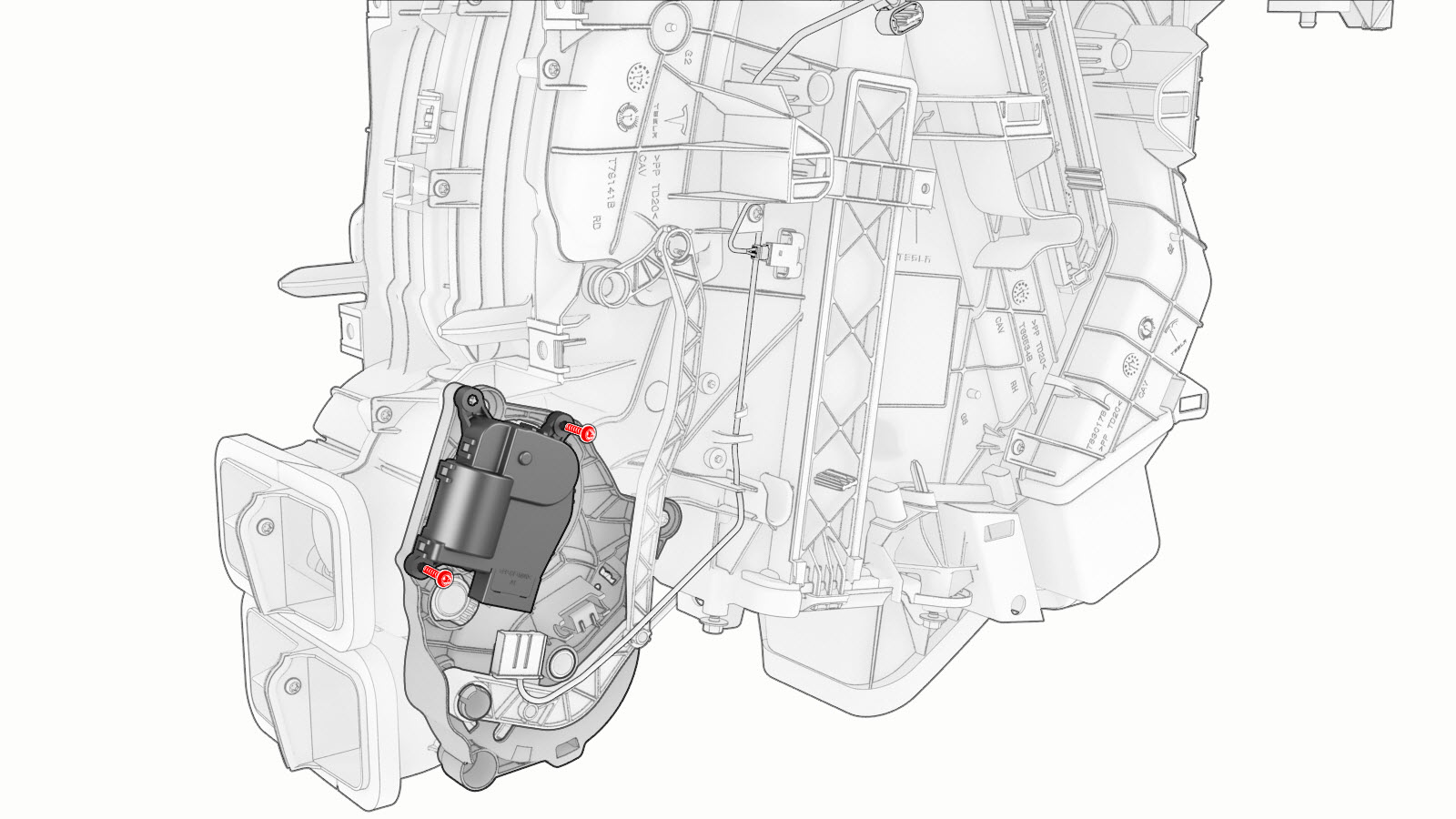

Remove the screws that attach the lower mode actuator to the HVAC assembly, and then remove the actuator from the HVAC assembly.

		1	Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).
		2	Disconnect the lower mode actuator electrical connector.
		3	Remove the screws that attach the lower mode actuator to the HVAC assembly, and then remove the actuator from the HVAC assembly.

Install

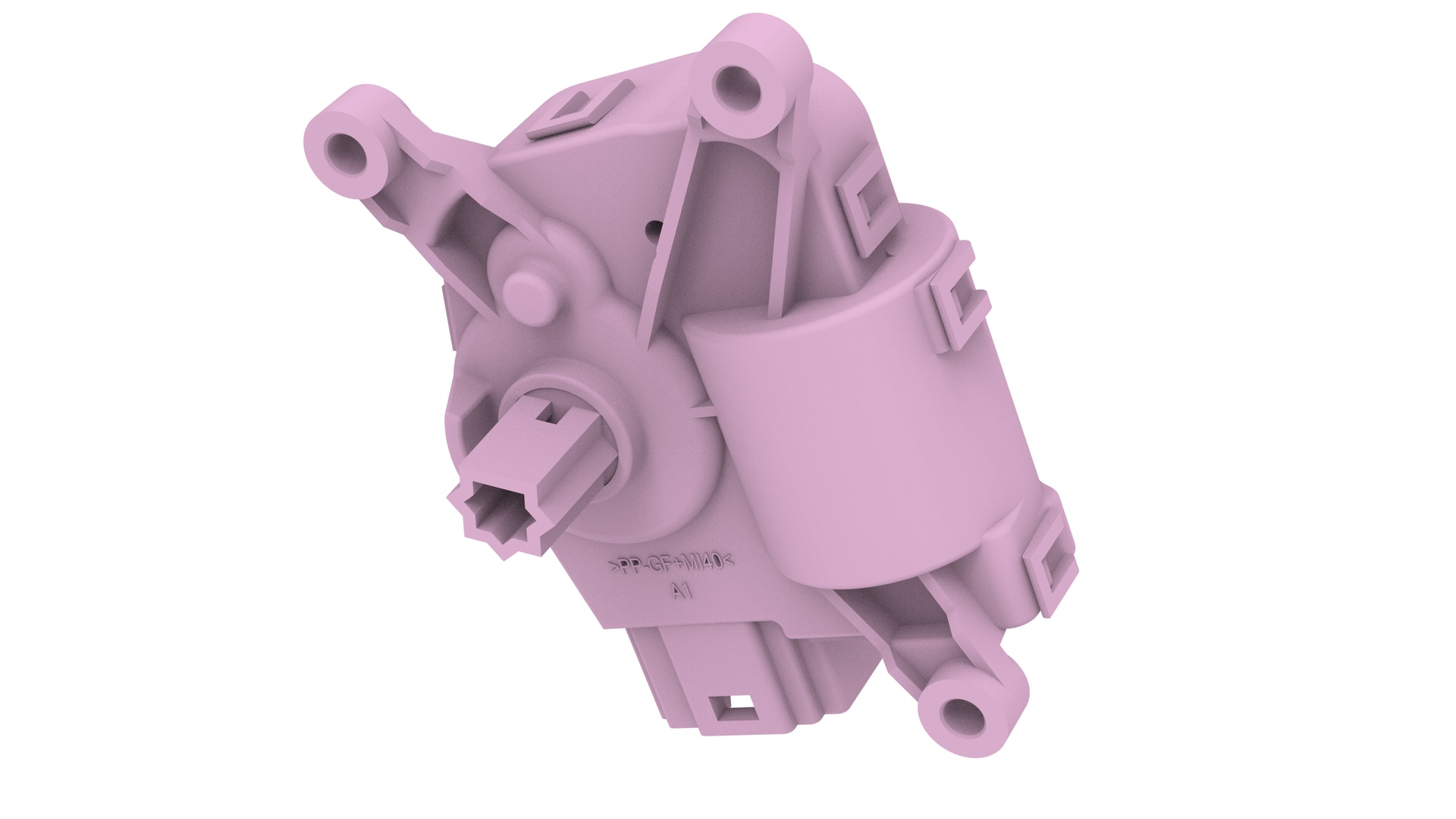

Position the lower mode actuator on the HVAC assembly; align the guide, and then push the lower mode actuator towards the left to install.

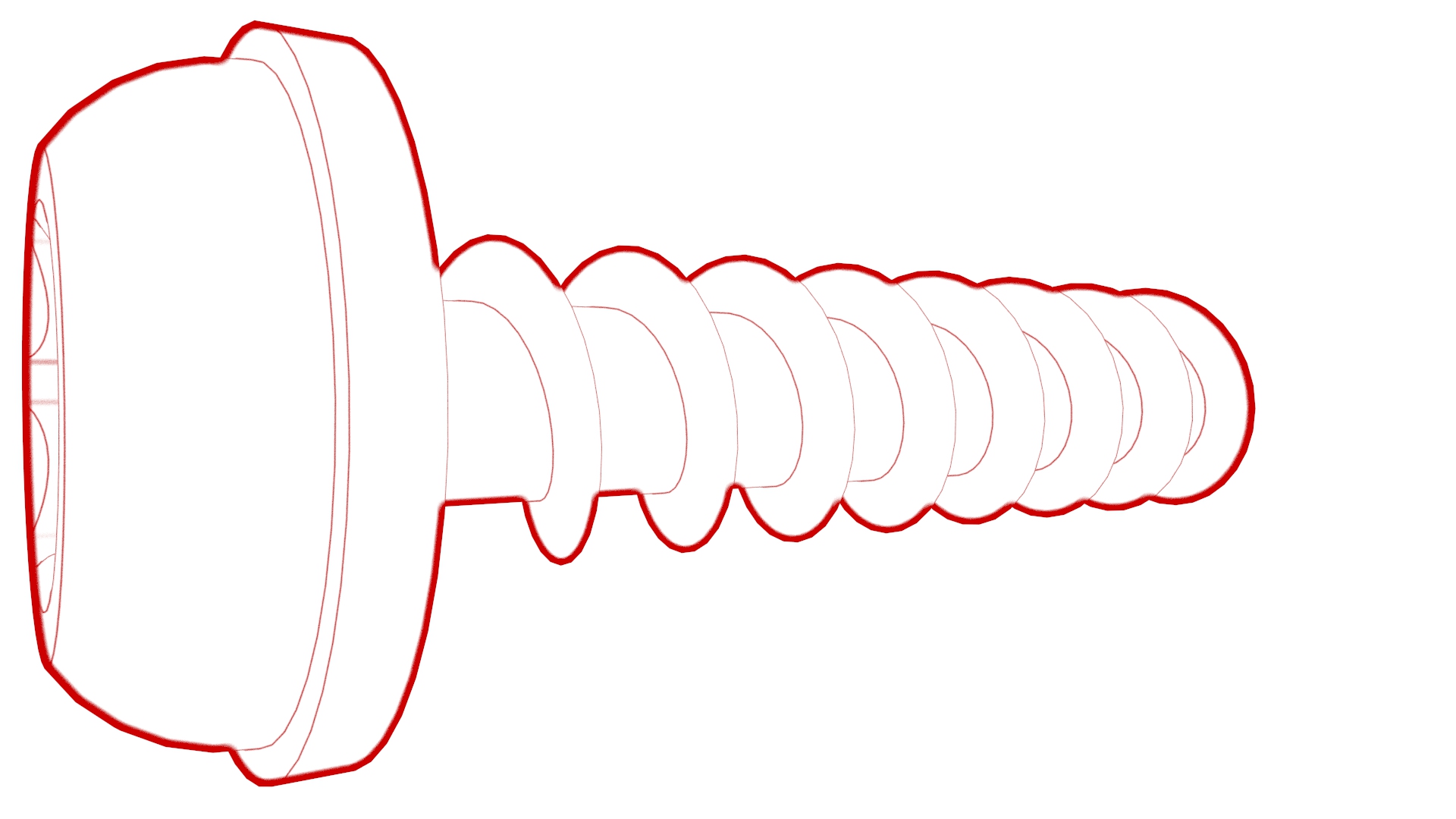

Install the screws that attach the lower mode actuator to the HVAC assembly.
Torque 1.2 Nm
Connect the lower mode actuator electrical connector.
Install the HVAC assembly. See HVAC Assembly (Remove and Replace).

		1	Position the lower mode actuator on the HVAC assembly; align the guide, and then push the lower mode actuator towards the left to install.
		2	Install the screws that attach the lower mode actuator to the HVAC assembly. Torque 1.2 Nm
		3	Connect the lower mode actuator electrical connector.
		4	Install the HVAC assembly. See HVAC Assembly (Remove and Replace).
