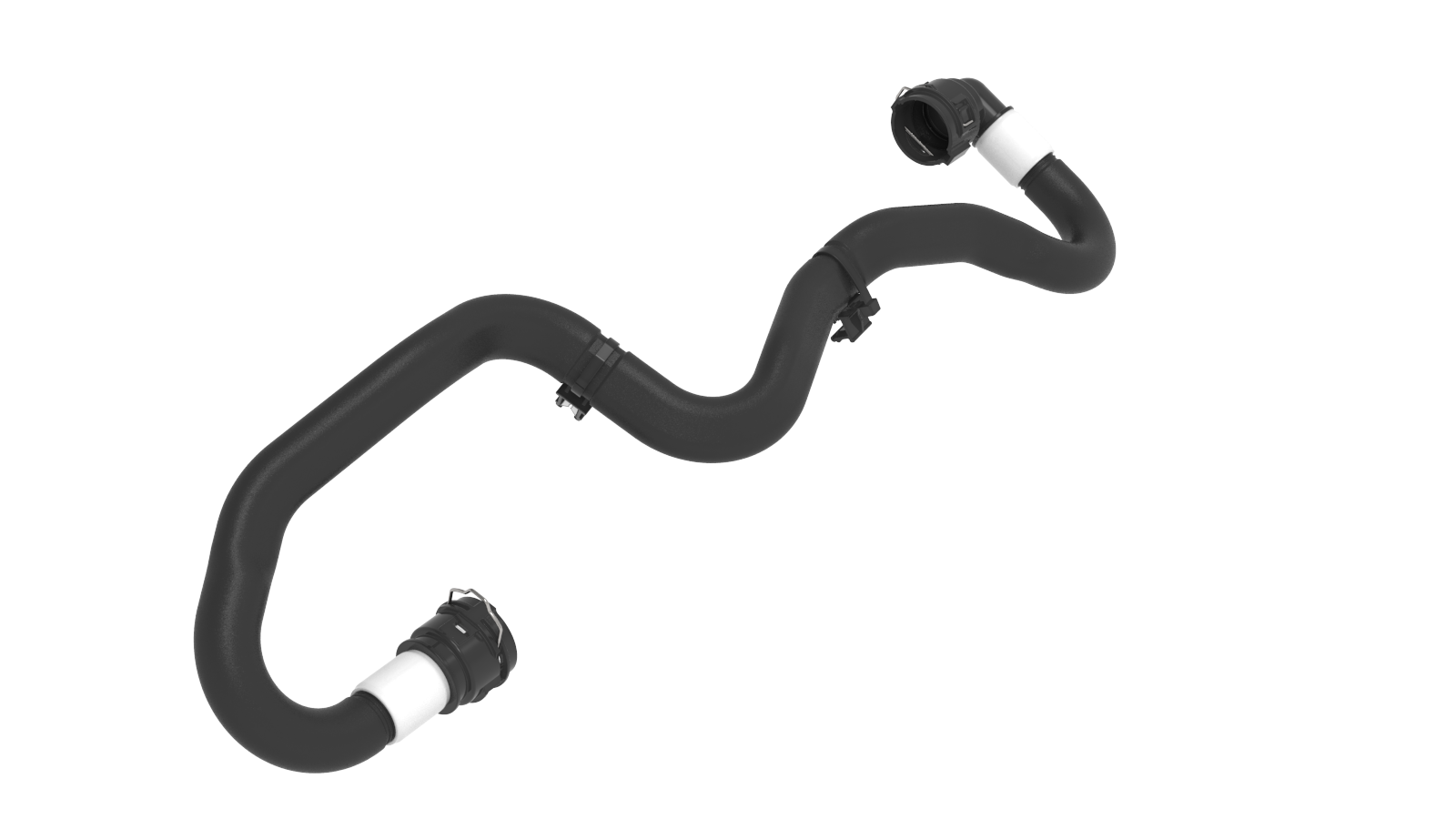

Hose - Inverter to Heat Exchanger - Front Drive Unit (Remove and Replace)

Correction code 3920100239201002

Remove

Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).

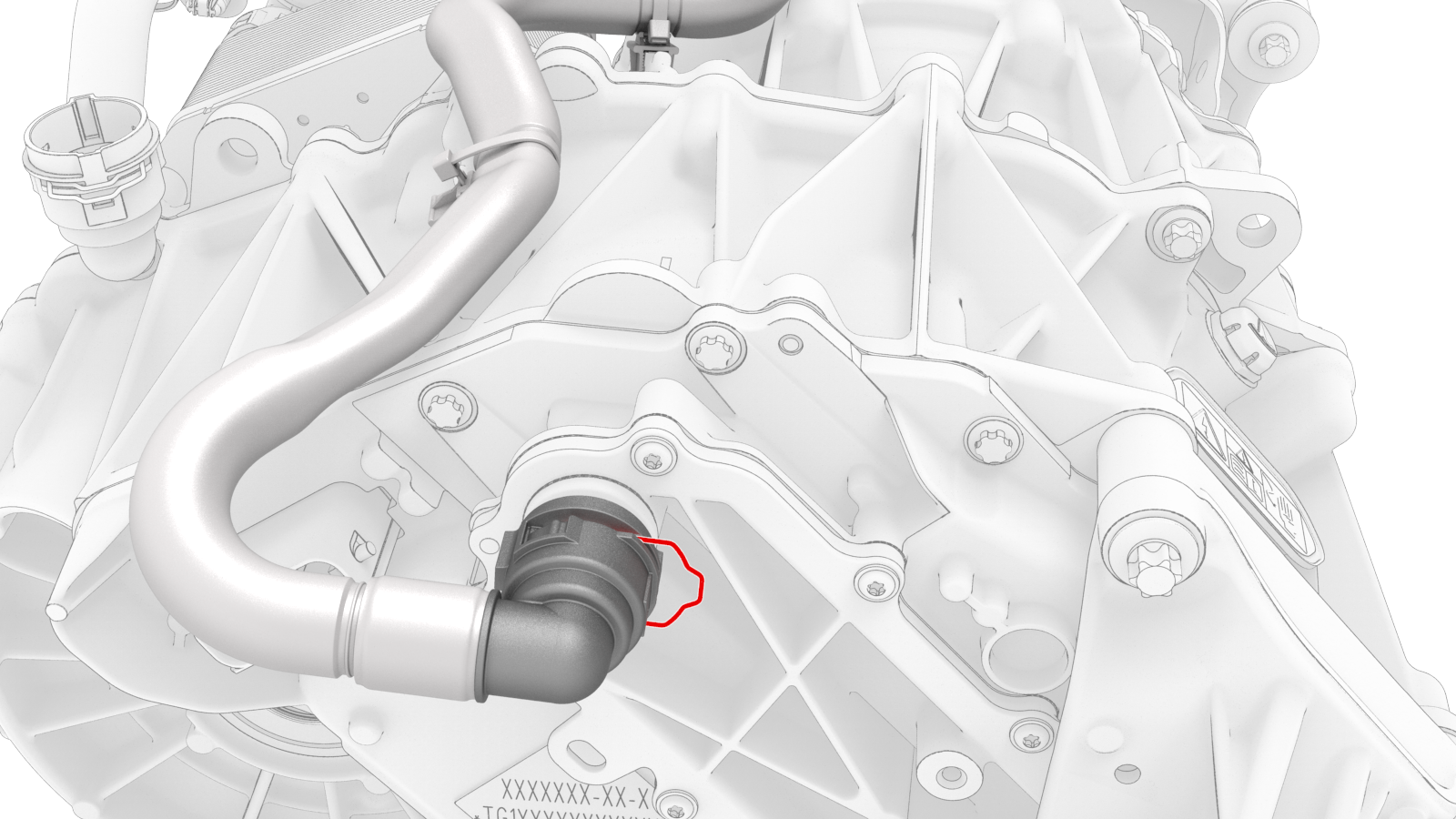

Release the clip that attaches the front drive unit inverter-heat exchanger hose to the inverter coolant outlet, and then disconnect the hose.

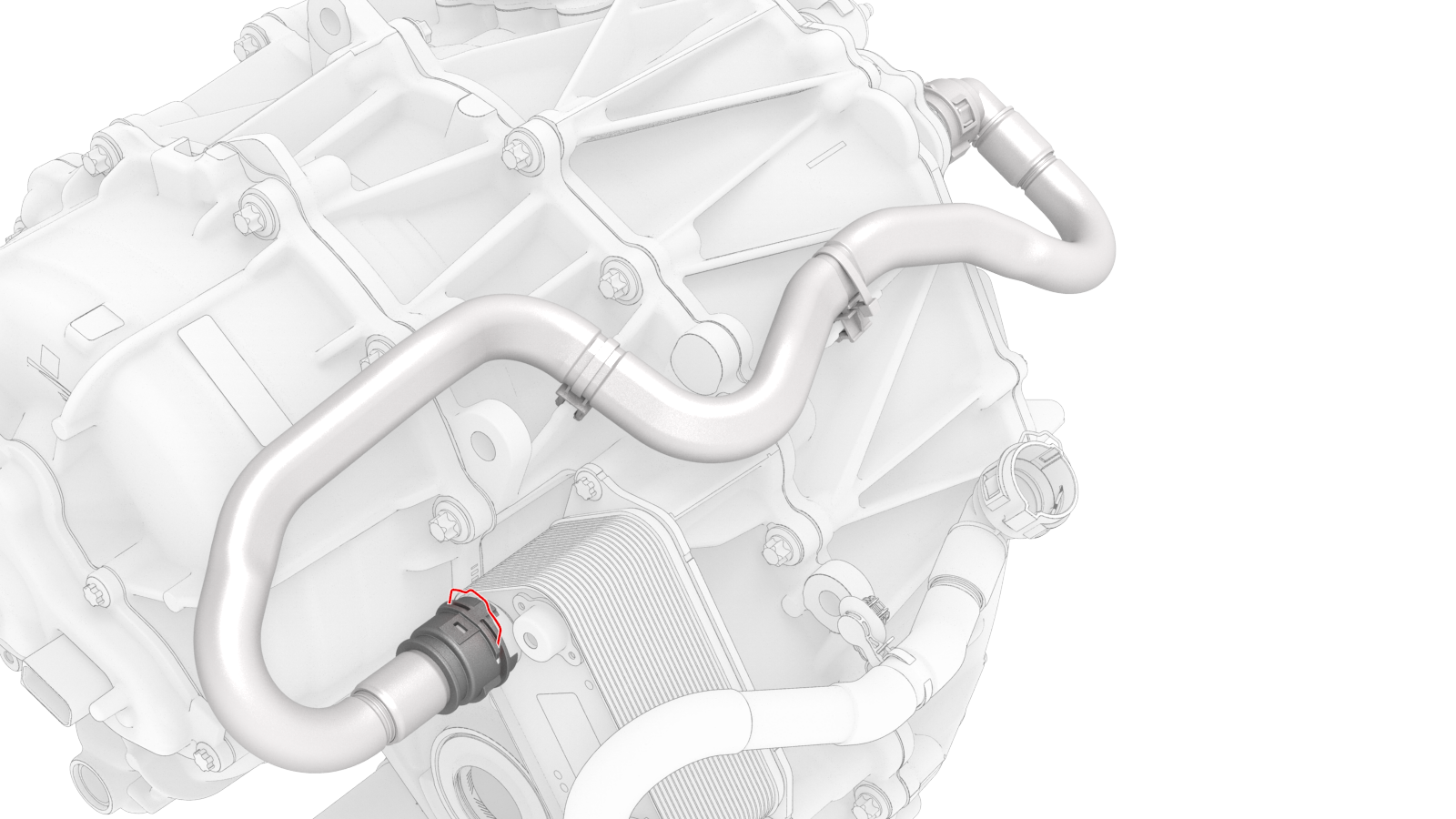

Release the clip that attaches the front drive unit inverter-heat exchanger hose to the heat exchanger coolant inlet, and then disconnect the hose.

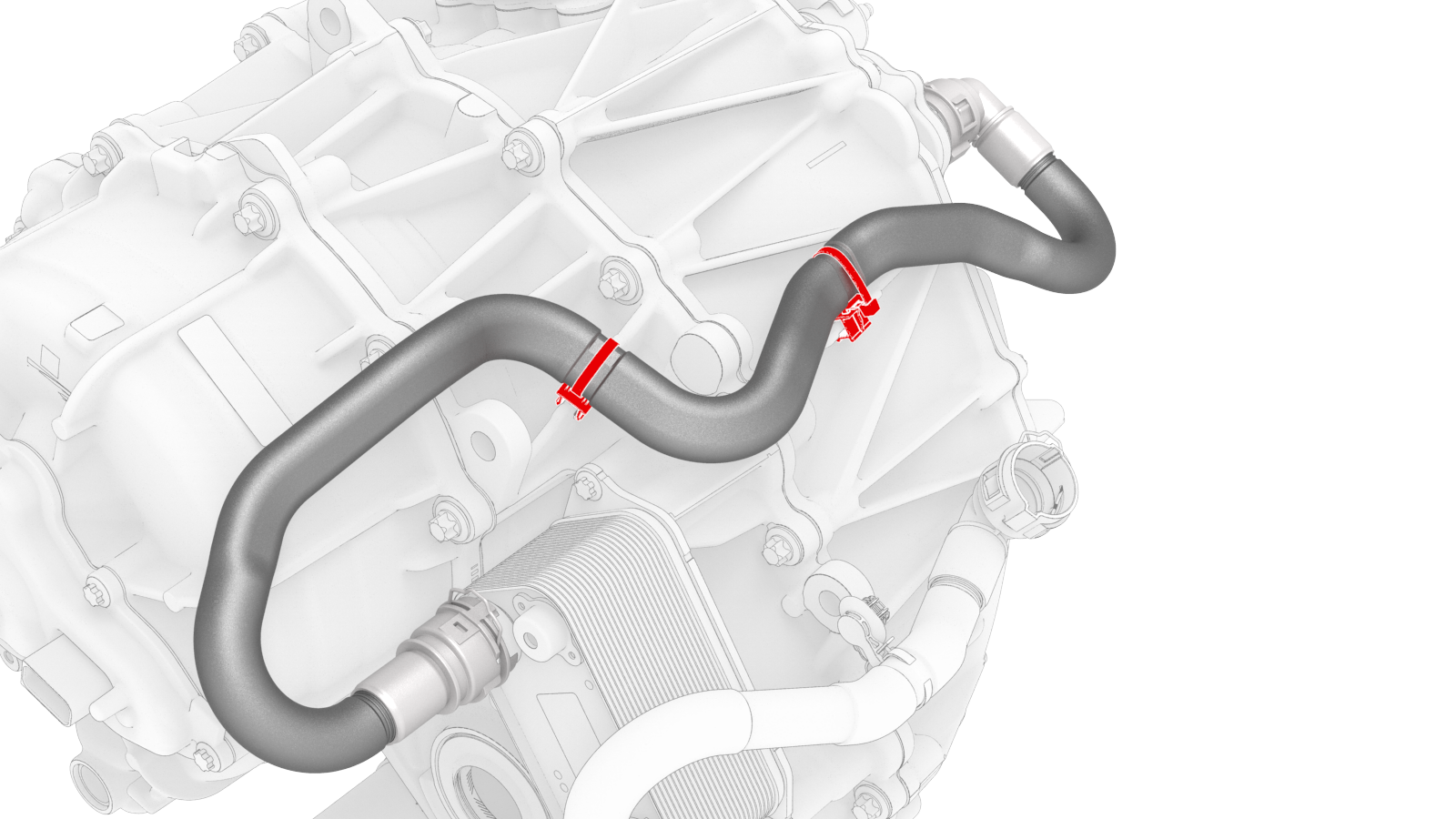

Release the clips that attach the front drive unit inverter-heat exchanger hose to the exterior of the front drive unit, and then remove the hose from the front drive unit.

		1	Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
		2	Release the clip that attaches the front drive unit inverter-heat exchanger hose to the inverter coolant outlet, and then disconnect the hose.
		3	Release the clip that attaches the front drive unit inverter-heat exchanger hose to the heat exchanger coolant inlet, and then disconnect the hose.
		4	Release the clips that attach the front drive unit inverter-heat exchanger hose to the exterior of the front drive unit, and then remove the hose from the front drive unit.

Install

Installation procedure is the reverse of removal.

Caution:

Perform a push-pull test to verify that the hose is fully seated.
