Switch - Window - Driver (Remove and Replace)

Correction code 1150250211502502

Remove

Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

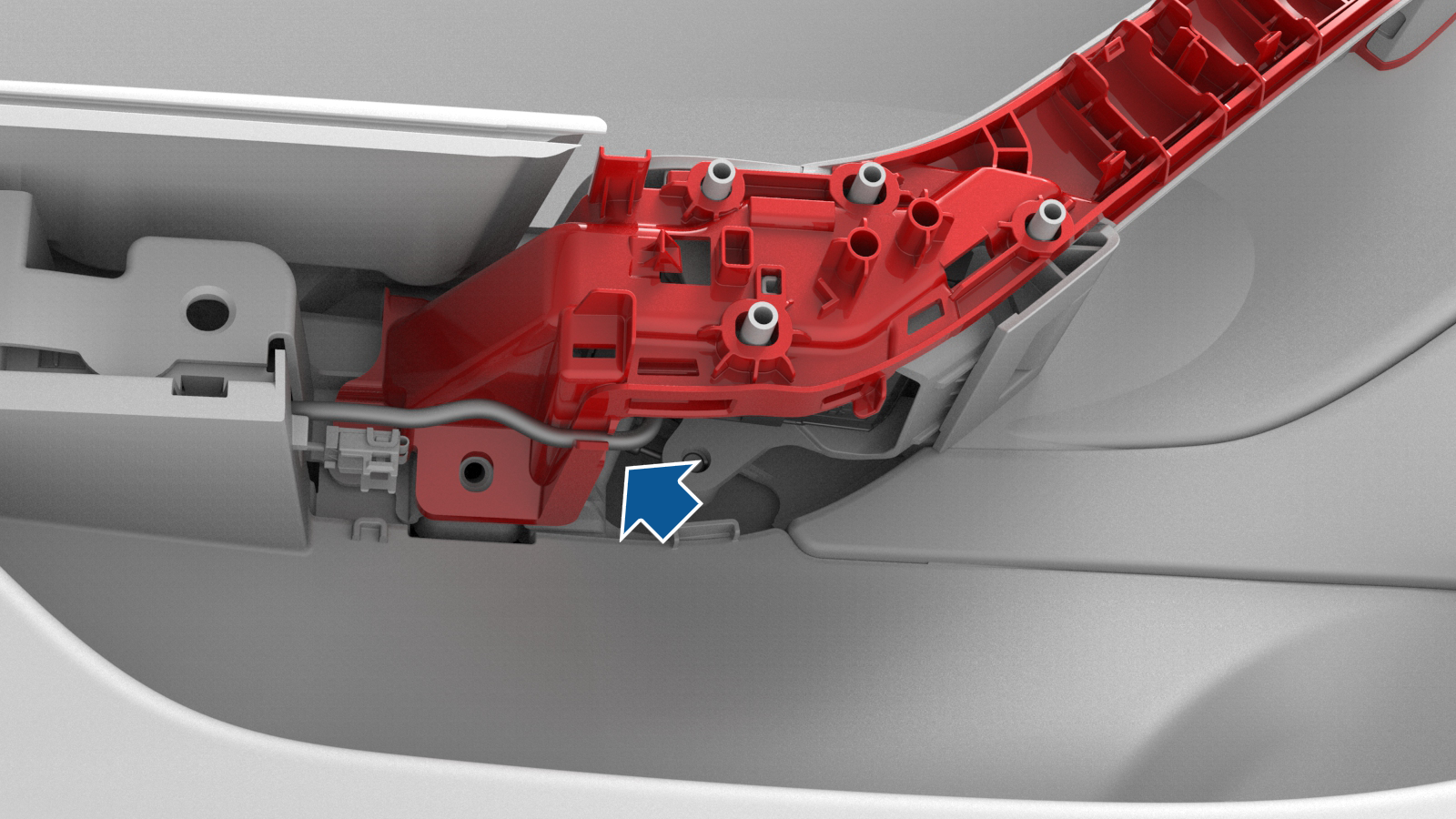

Release the clip that attaches the driver window switch electrical harness to the door trim panel.

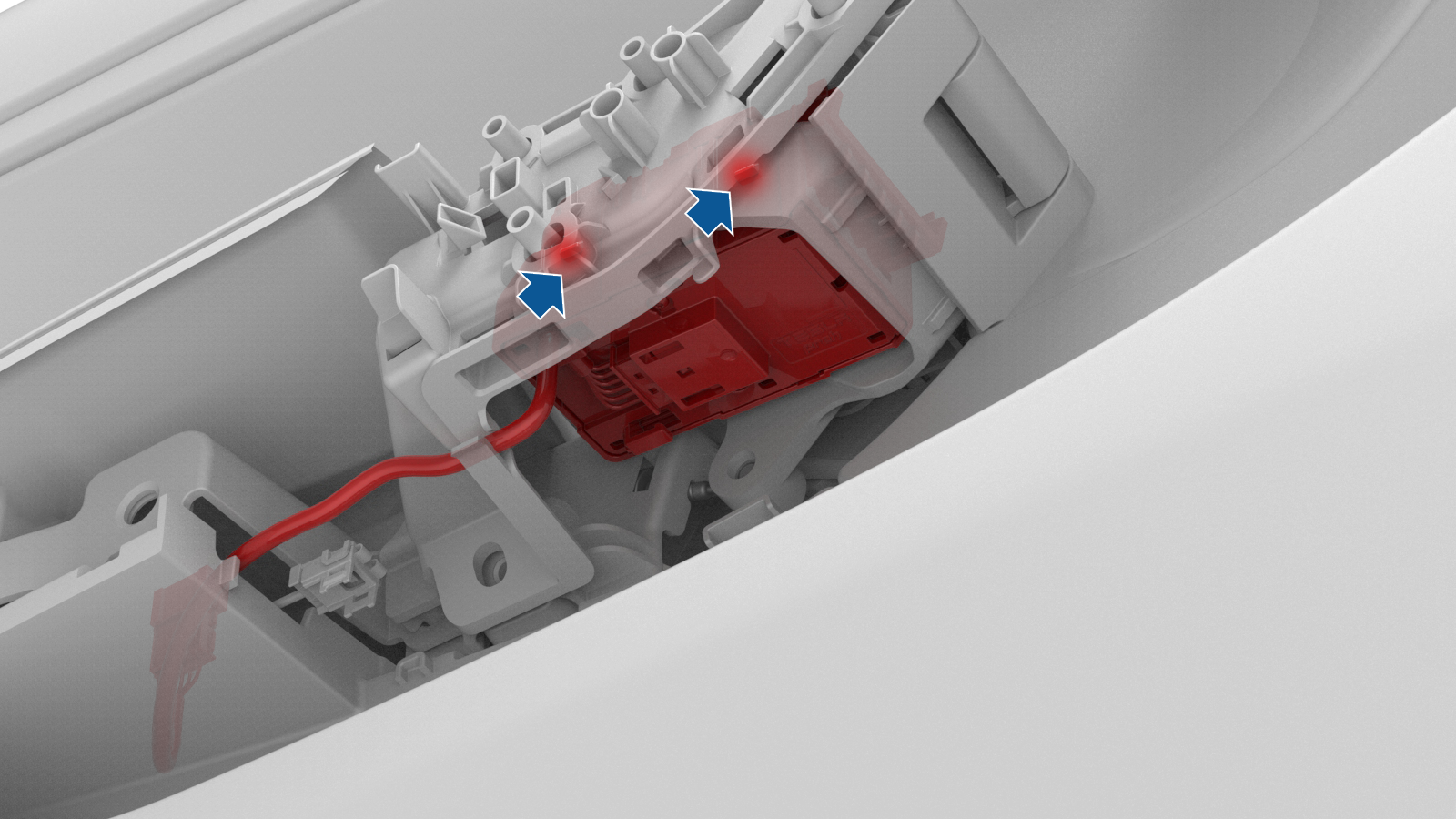

Release the clips that attach the driver window switch to the door trim panel.

Tip: Release the outer clips first, and then release the inner clips while pushing the driver window switch to release from the door trim panel.

Note: Feed the electrical harness through the door trim panel hole to remove the electrical harness from the driver window switch.

Note: Replace any broken door panel clips
Remove the driver window switch from the vehicle.

		1	Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
		2	Release the clip that attaches the driver window switch electrical harness to the door trim panel.
		3	Release the clips that attach the driver window switch to the door trim panel. Tip: Release the outer clips first, and then release the inner clips while pushing the driver window switch to release from the door trim panel. Note: Feed the electrical harness through the door trim panel hole to remove the electrical harness from the driver window switch. Note: Replace any broken door panel clips
		4	Remove the driver window switch from the vehicle.

Install

Install the electrical harness connector to the driver window switch.
Secure the clips that attach the driver window switch to the door trim panel.
Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

		1	Install the electrical harness connector to the driver window switch.
		2	Secure the clips that attach the driver window switch to the door trim panel.
		3	Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
