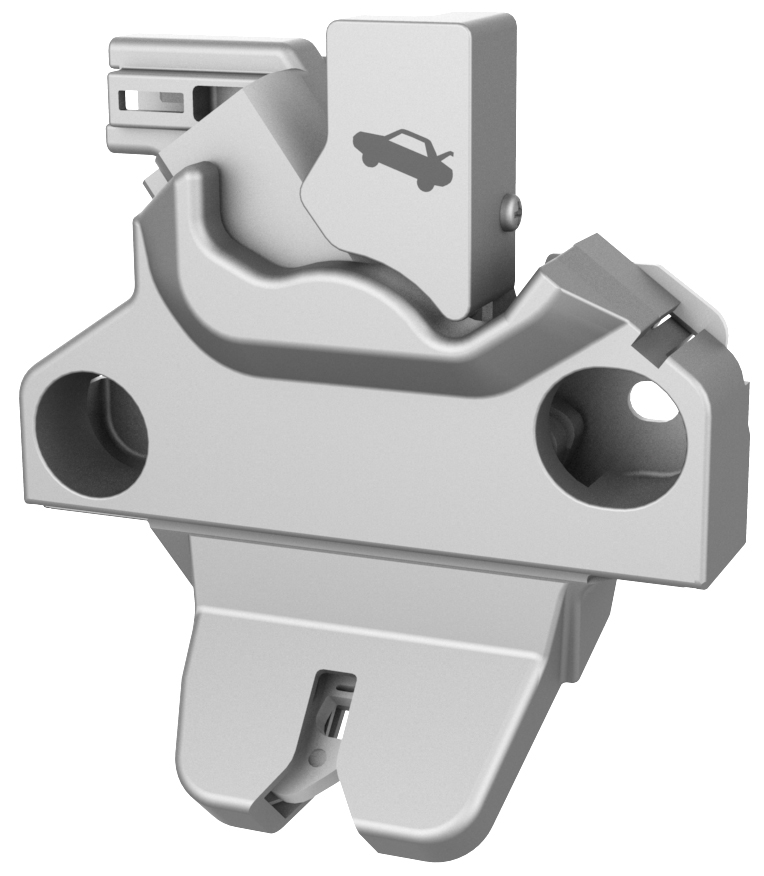

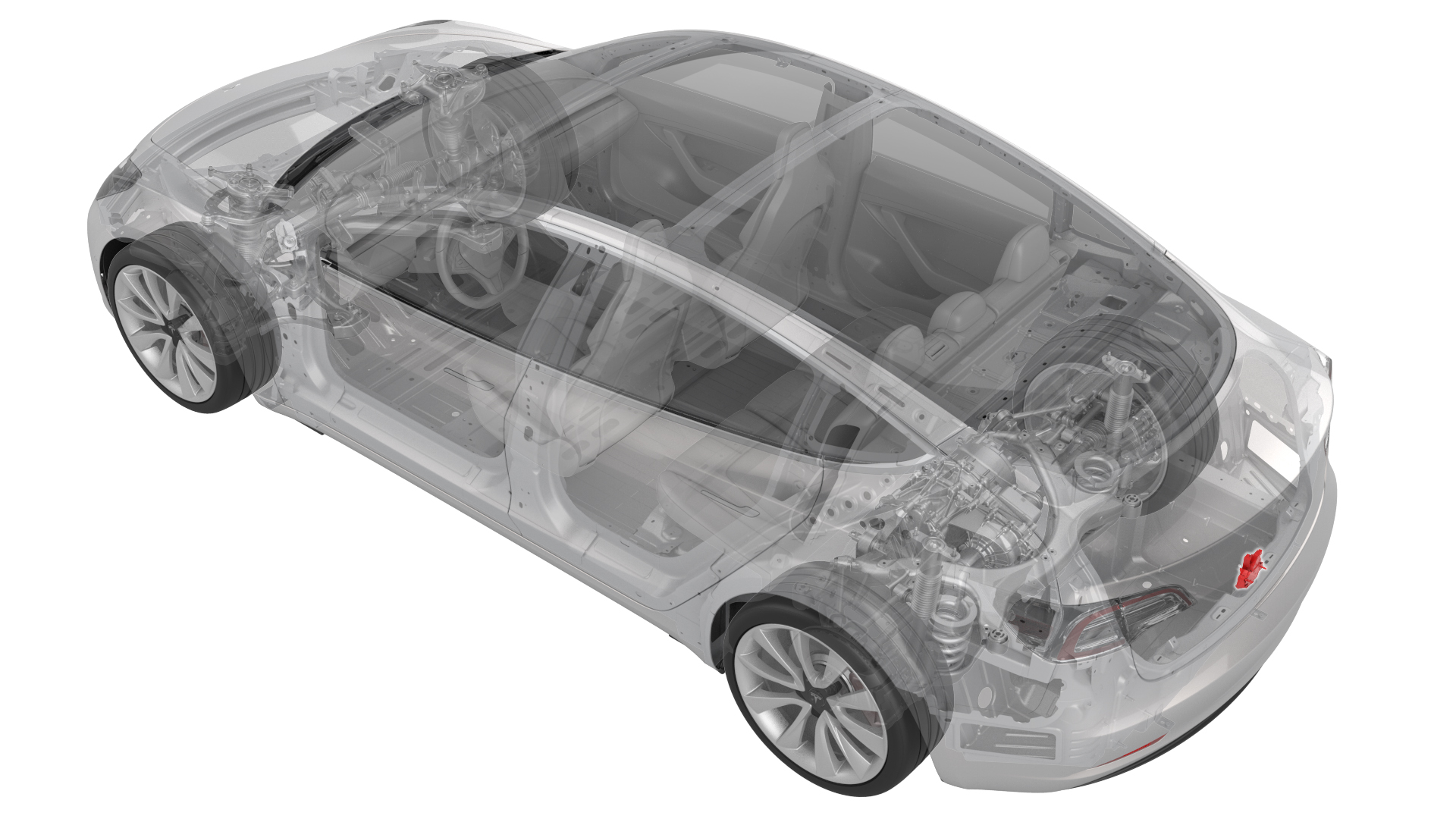

Latch - Trunk (Remove and Replace)

Correction code 1135500211355002
Parent topic: 1135 - Latches Strikers and Pinch Sensors

Remove

  1. Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
  2. Disconnect the electrical connector from the trunk latch.
  3. Remove the bolts that attach the trunk latch to the trunk lid, and then remove the latch from the vehicle.
1Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
2Disconnect the electrical connector from the trunk latch.
3Remove the bolts that attach the trunk latch to the trunk lid, and then remove the latch from the vehicle.

Install

  1. Position the trunk latch and loosely install the bolts that attach the trunk latch to the trunk lid.
  2. Connect the electrical connector to the trunk latch.
  3. Close the trunk to check gap/flush and if necessary, perform adjustments.
  4. Open the trunk and torque the bolts that attach the trunk latch to the trunk lid.
    Torque 8 Nm
  5. Install the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
1Position the trunk latch and loosely install the bolts that attach the trunk latch to the trunk lid.
2Connect the electrical connector to the trunk latch.
3Close the trunk to check gap/flush and if necessary, perform adjustments.
4Open the trunk and torque the bolts that attach the trunk latch to the trunk lid.
Torque 8 Nm
5Install the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
