Radiator (Remove and Replace)

Correction code 1830100218301002

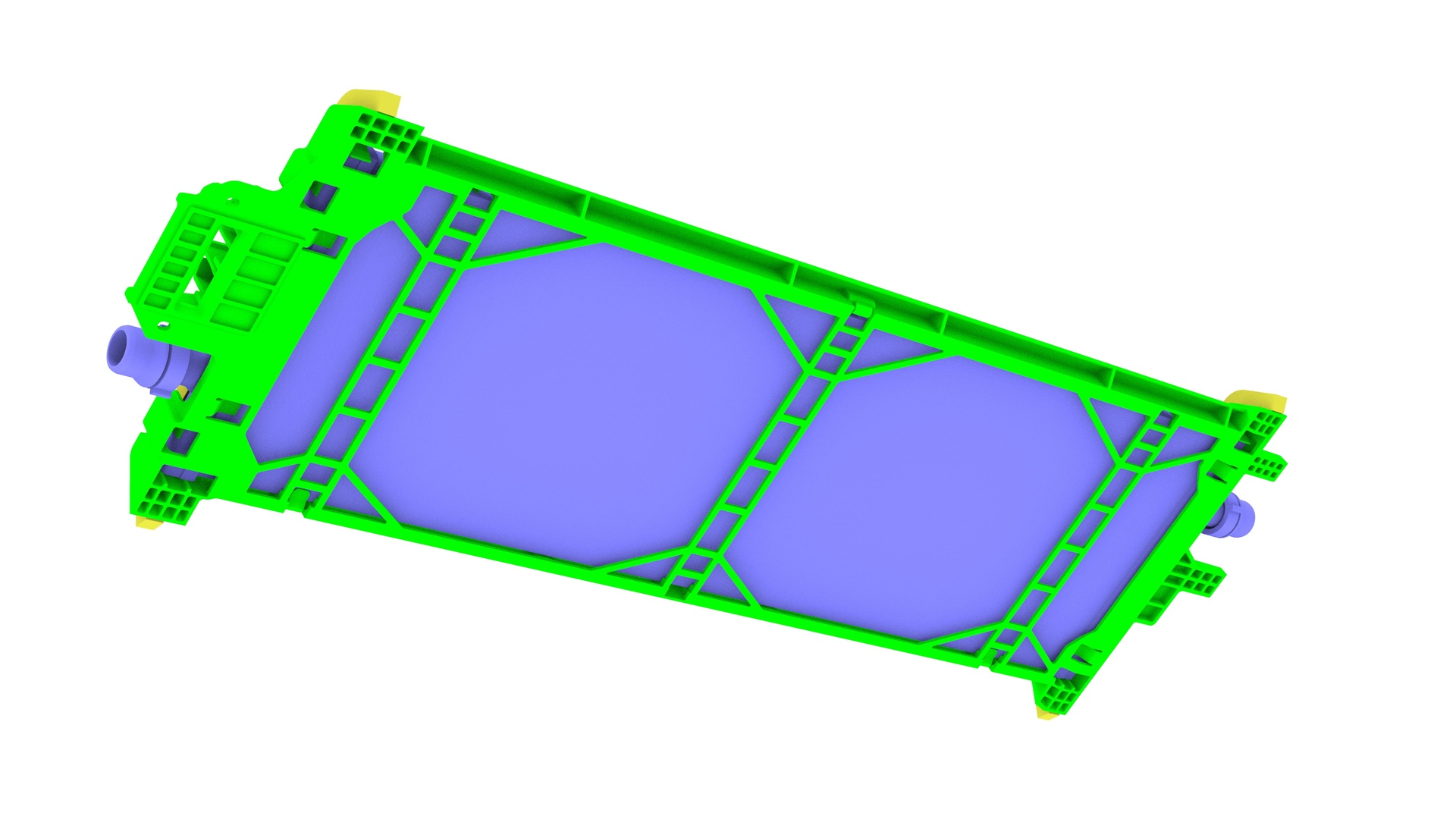

Remove

Remove the cooling fan module. See Module - Cooling Fan (Remove and Install).
Release the clips that attach the active grille shutter to the cooling fan module, and then remove the active grille shutter from the module.
Remove the screws that attach the radiator to the condenser fan module.
Torque 10 Nm
Release the clip that attaches the radiator to the condenser fan module, and then remove the radiator from the condenser fan module.

		1	Remove the cooling fan module. See Module - Cooling Fan (Remove and Install).
		2	Release the clips that attach the active grille shutter to the cooling fan module, and then remove the active grille shutter from the module.
		3	Remove the screws that attach the radiator to the condenser fan module. Torque 10 Nm
		4	Release the clip that attaches the radiator to the condenser fan module, and then remove the radiator from the condenser fan module.

Install

Installation procedure is the reverse of removal, except for the following:

Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill).
