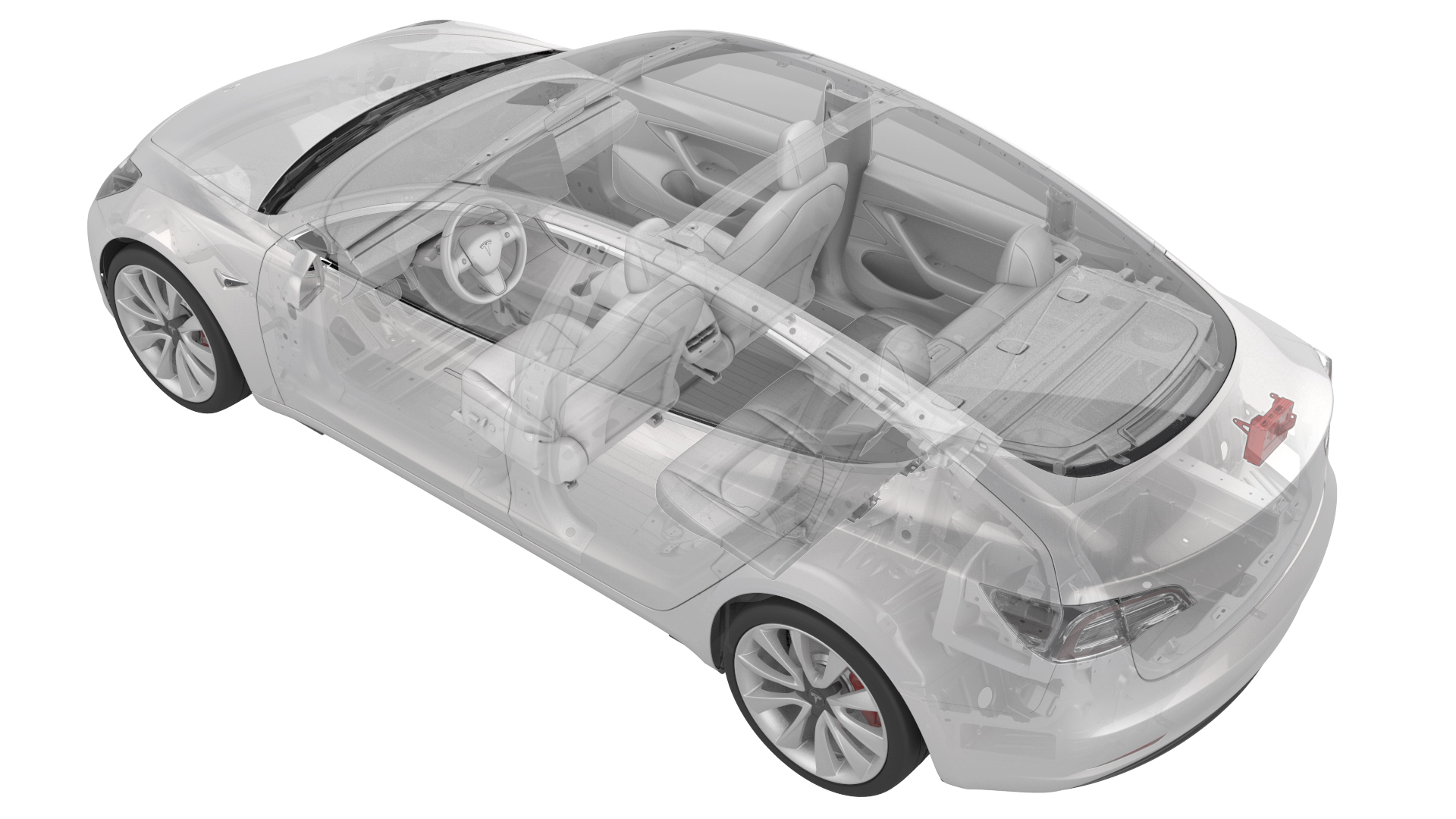

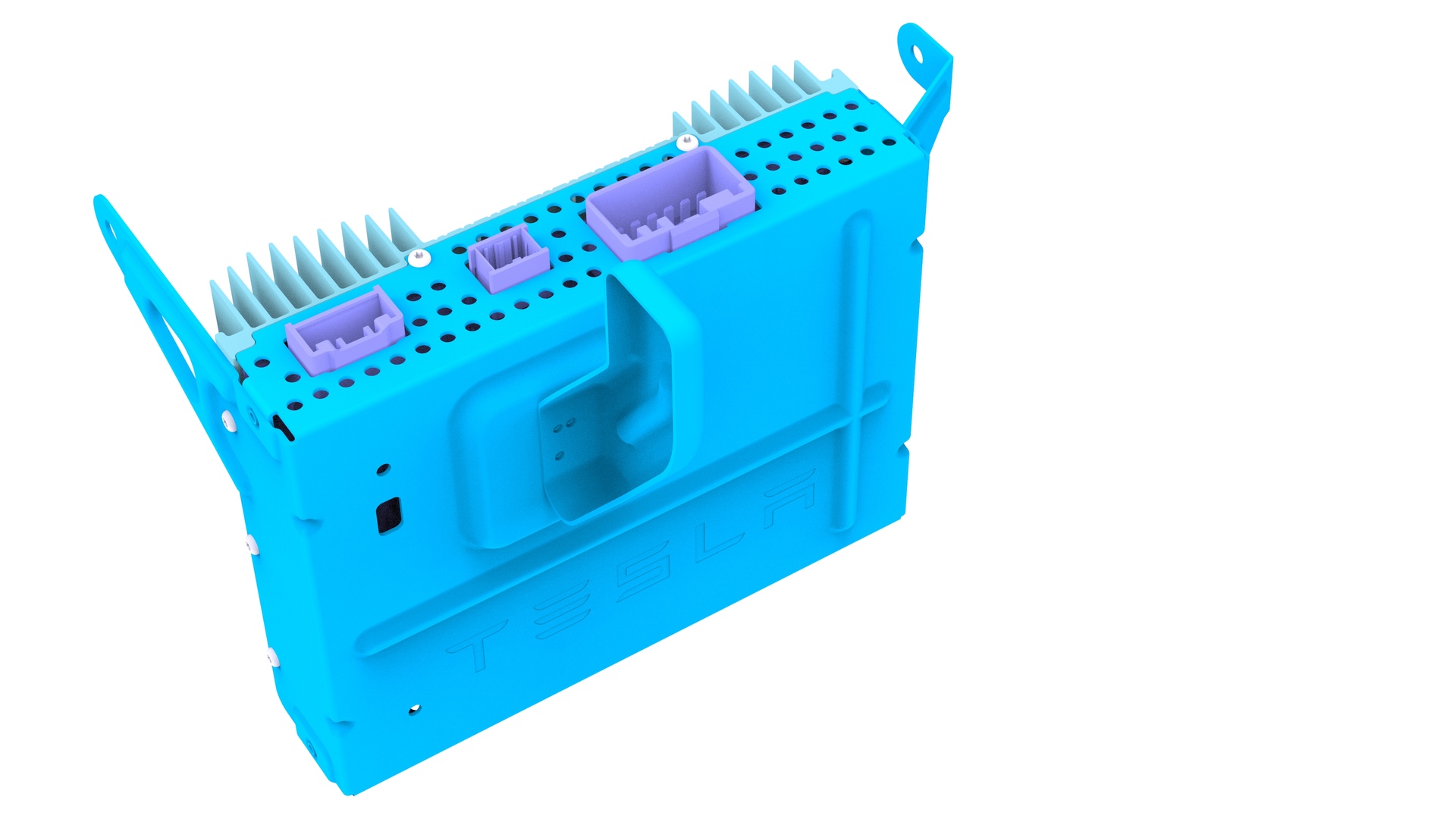

Amplifier - Audio - External (Remove and Replace)

Correction code 2121350221213502

Remove

Remove the subwoofer. See Subwoofer (Remove and Replace).

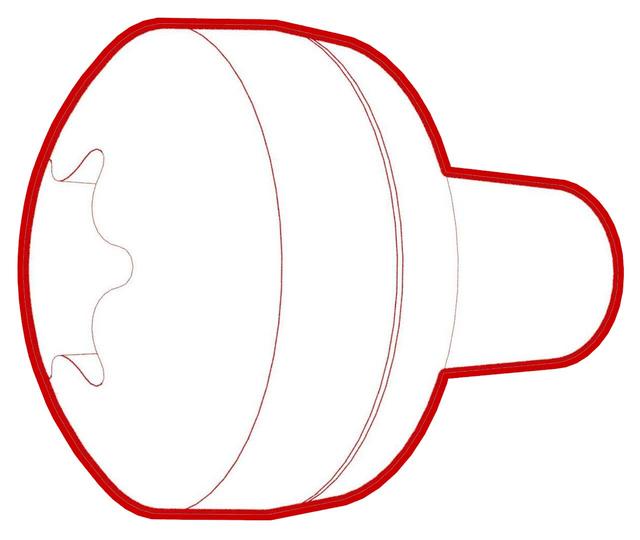

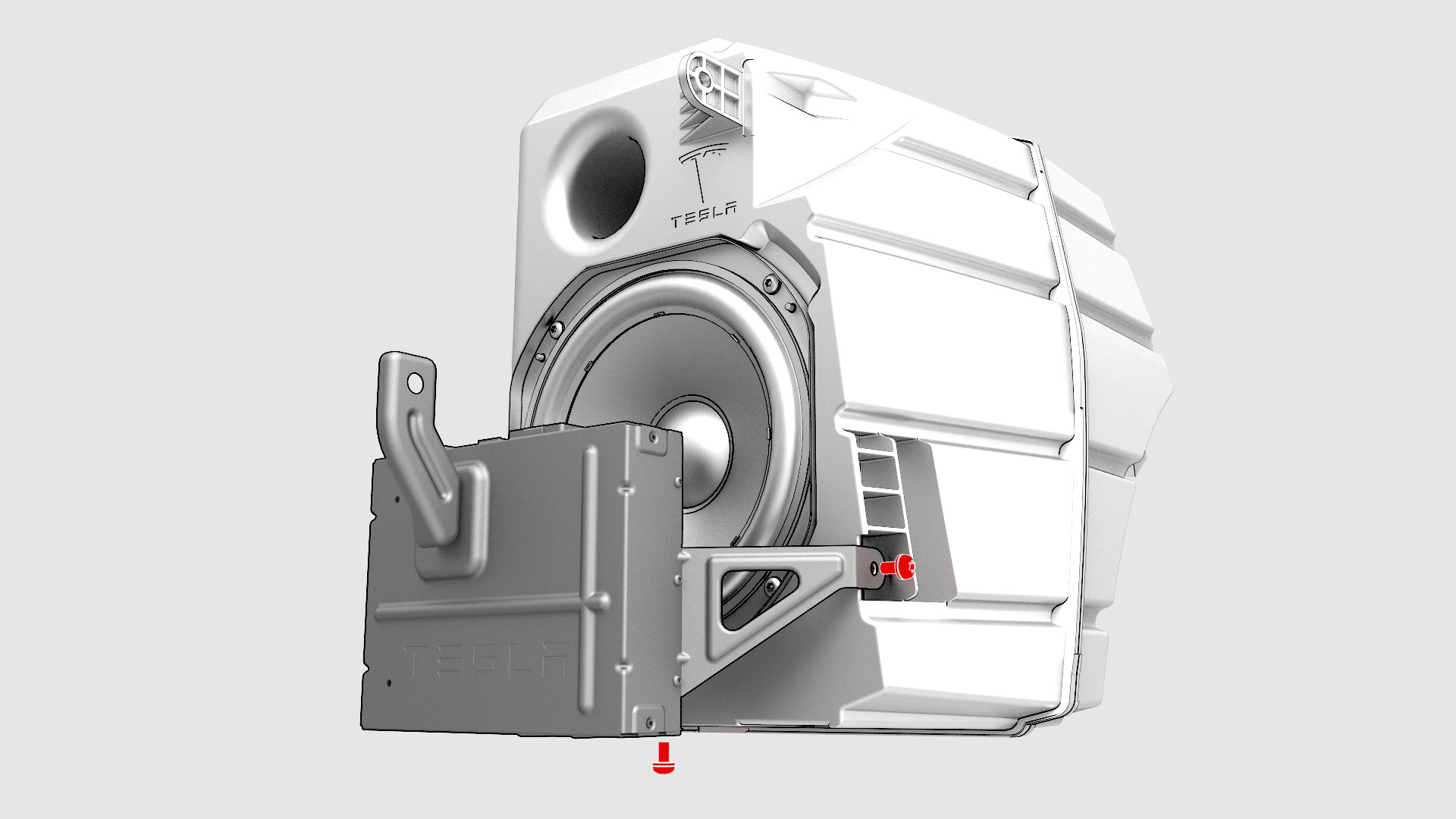

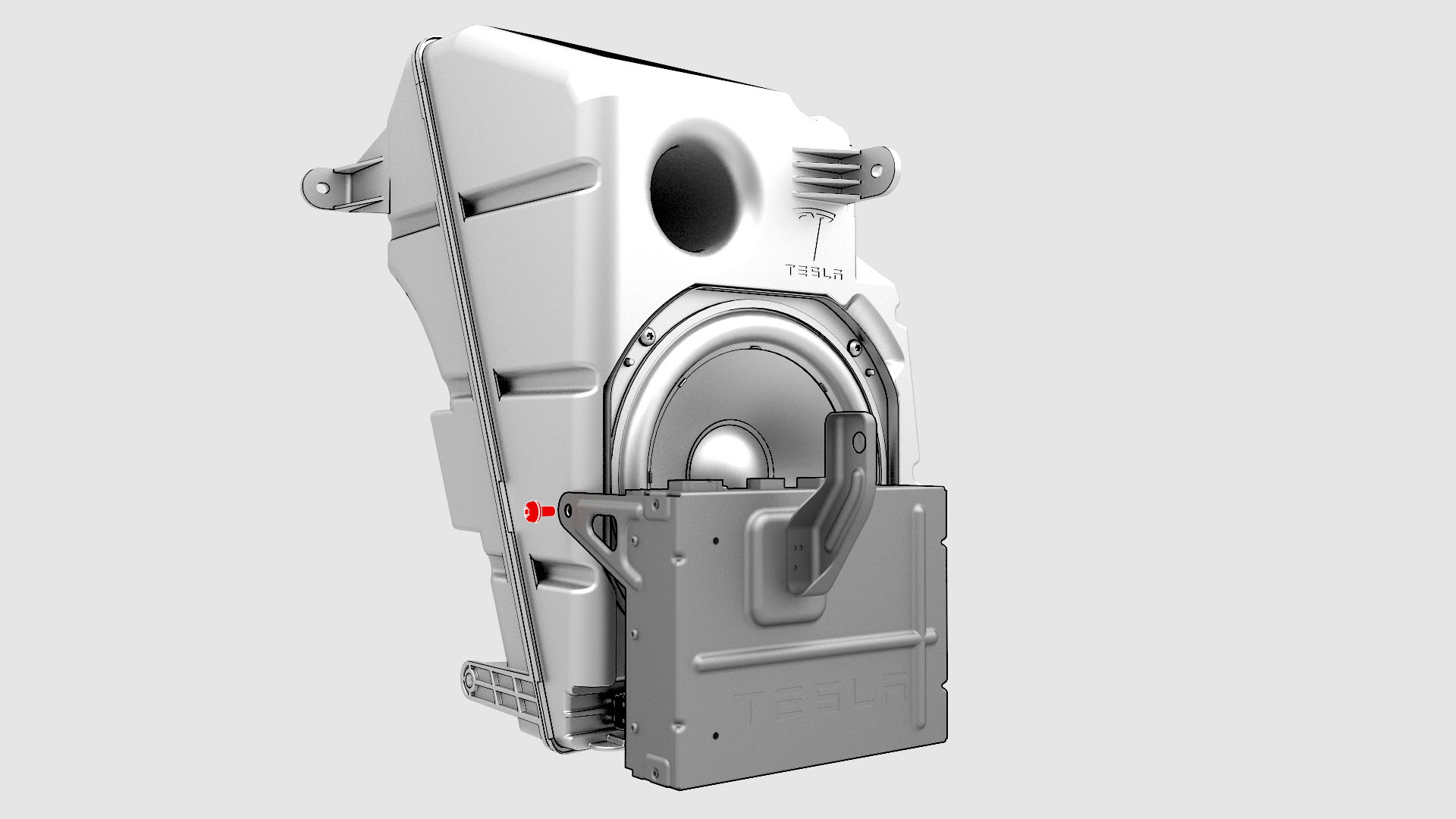

Remove the screws that attach the audio amplifier to the subwoofer assembly, and remove the amplifier from the subwoofer.
Torque 4.4 Nm

		1	Remove the subwoofer. See Subwoofer (Remove and Replace).
		2	Remove the screws that attach the audio amplifier to the subwoofer assembly, and remove the amplifier from the subwoofer. Torque 4.4 Nm

Install

Installation procedure is the reverse of removal.
