Cup Holder - 2nd Row (Remove and Replace)

Correction code 1308200213082002
Parent topic: 1308 - 2nd Row Seat Covers Pads and Trims

Remove

  1. Open the RH rear door.

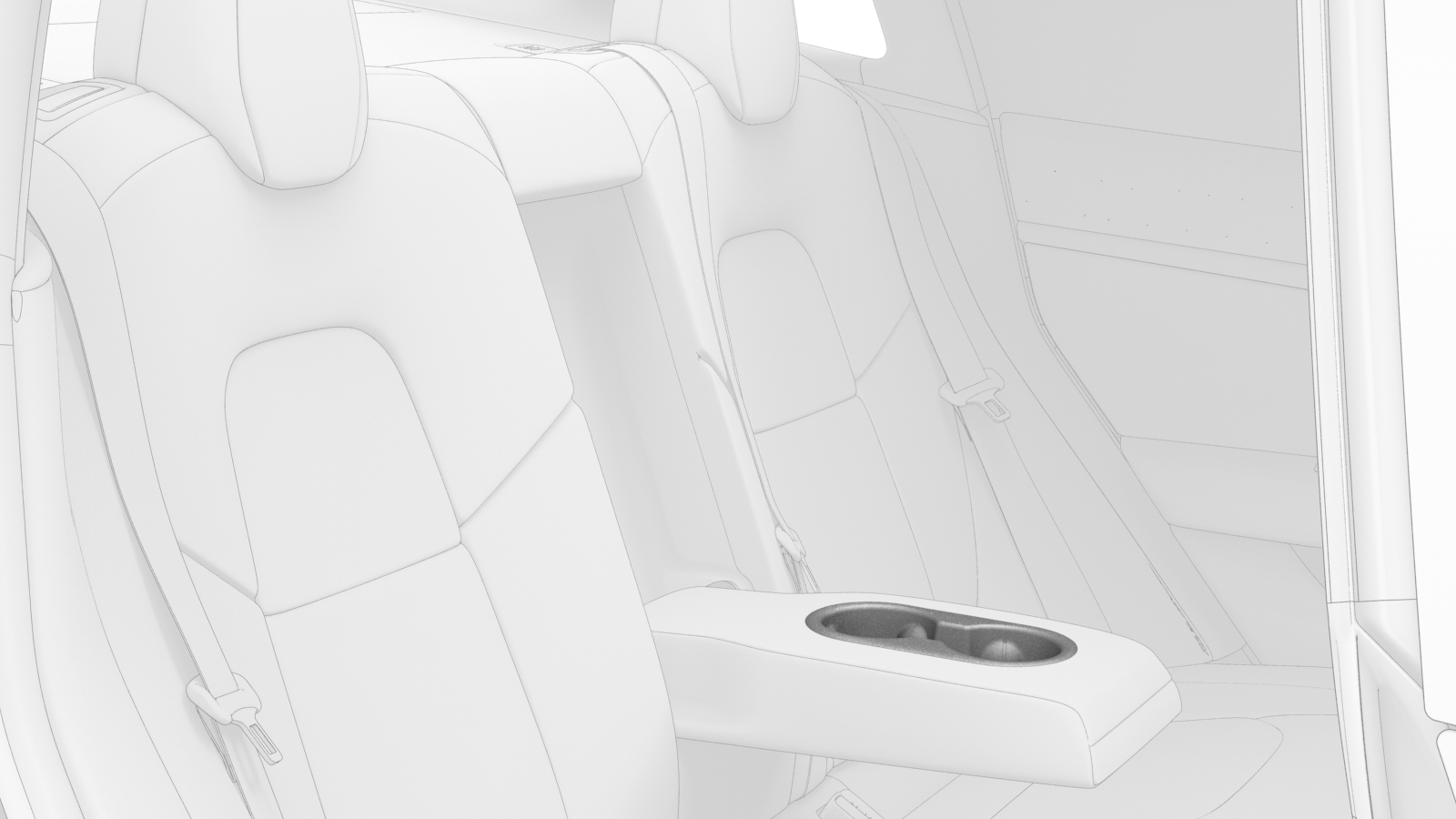

  2. Fold down the armrest.

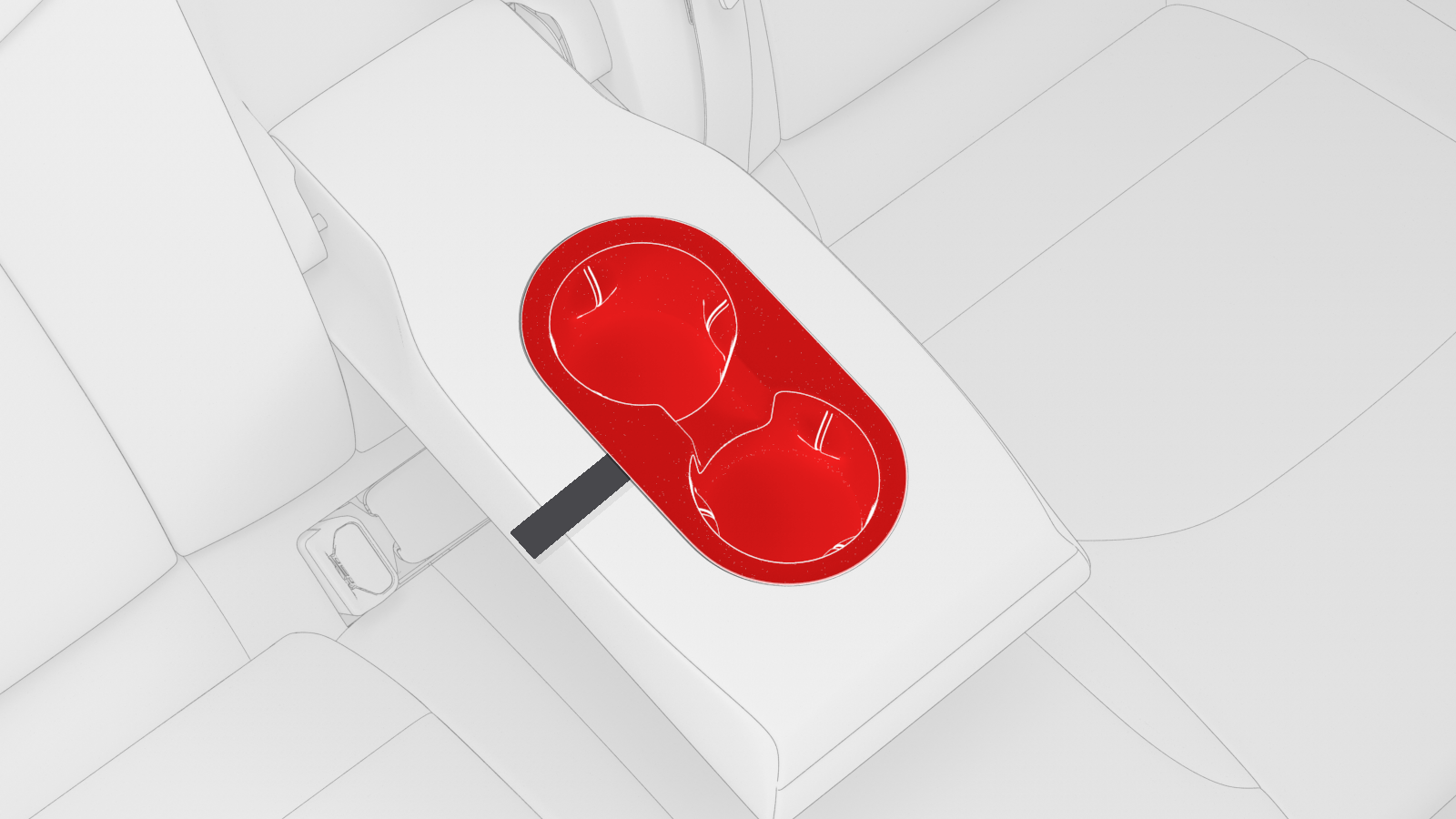

  3. Use a plastic trim tool to release the cup holder from the locking tabs.

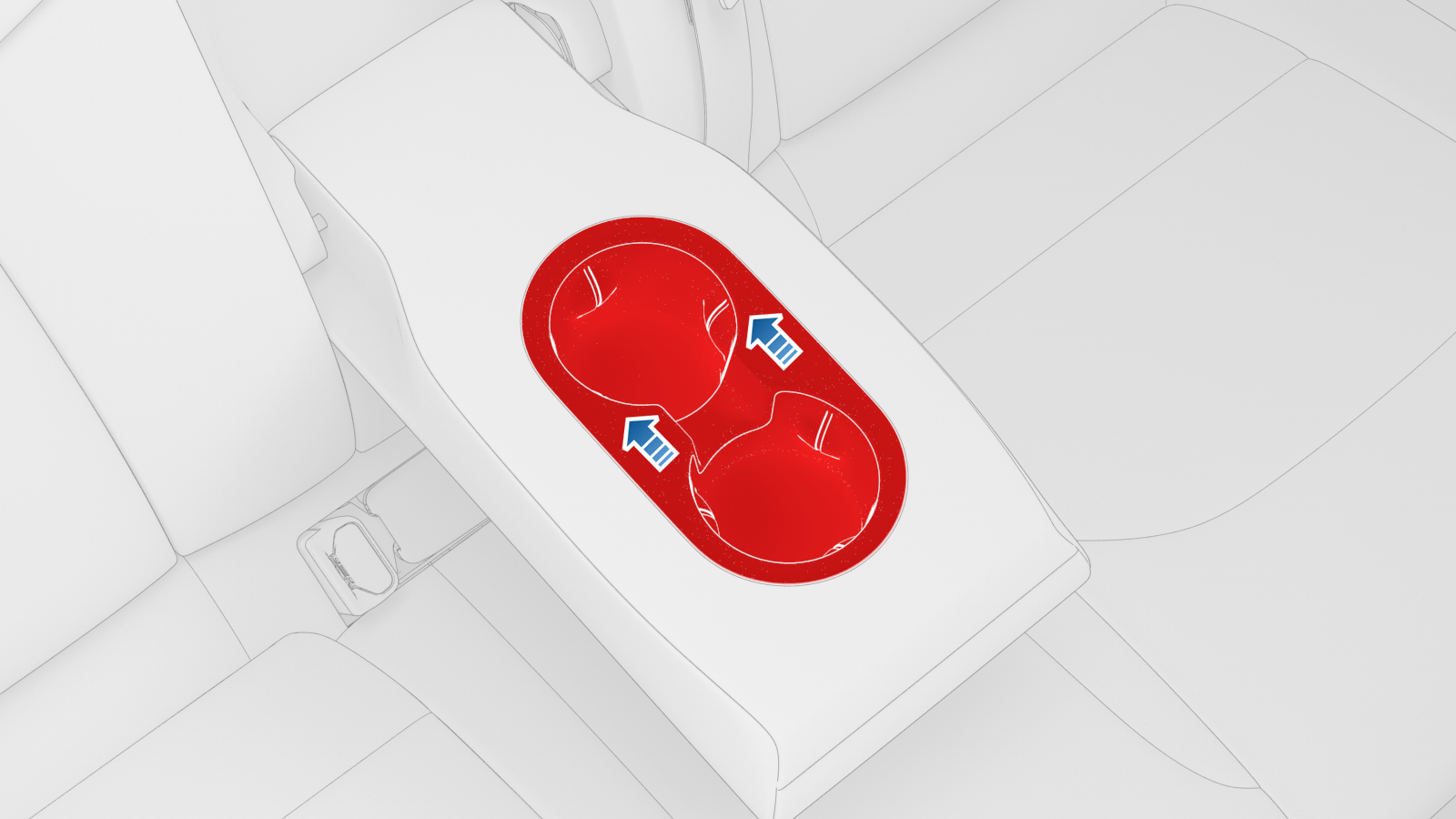

  4. Lift up on the cup holder and remove it from the vehicle.
1Open the RH rear door.
2Fold down the armrest.
3Use a plastic trim tool to release the cup holder from the locking tabs.
4Lift up on the cup holder and remove it from the vehicle.

Install

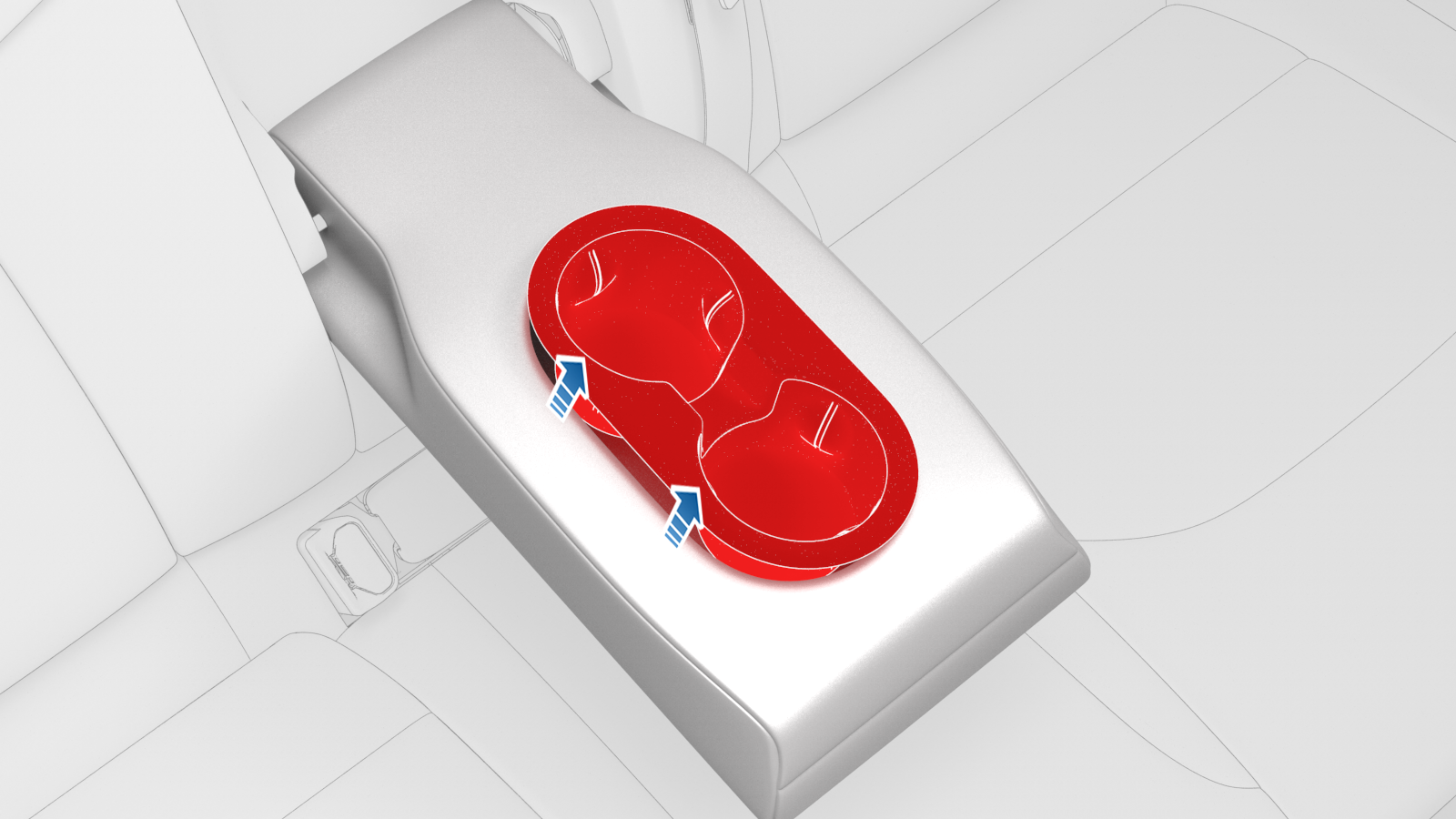

  1. Install a new cup holder into the armrest.
    Note: Press firmly on the edges of the cup holder to engage the locking tabs.

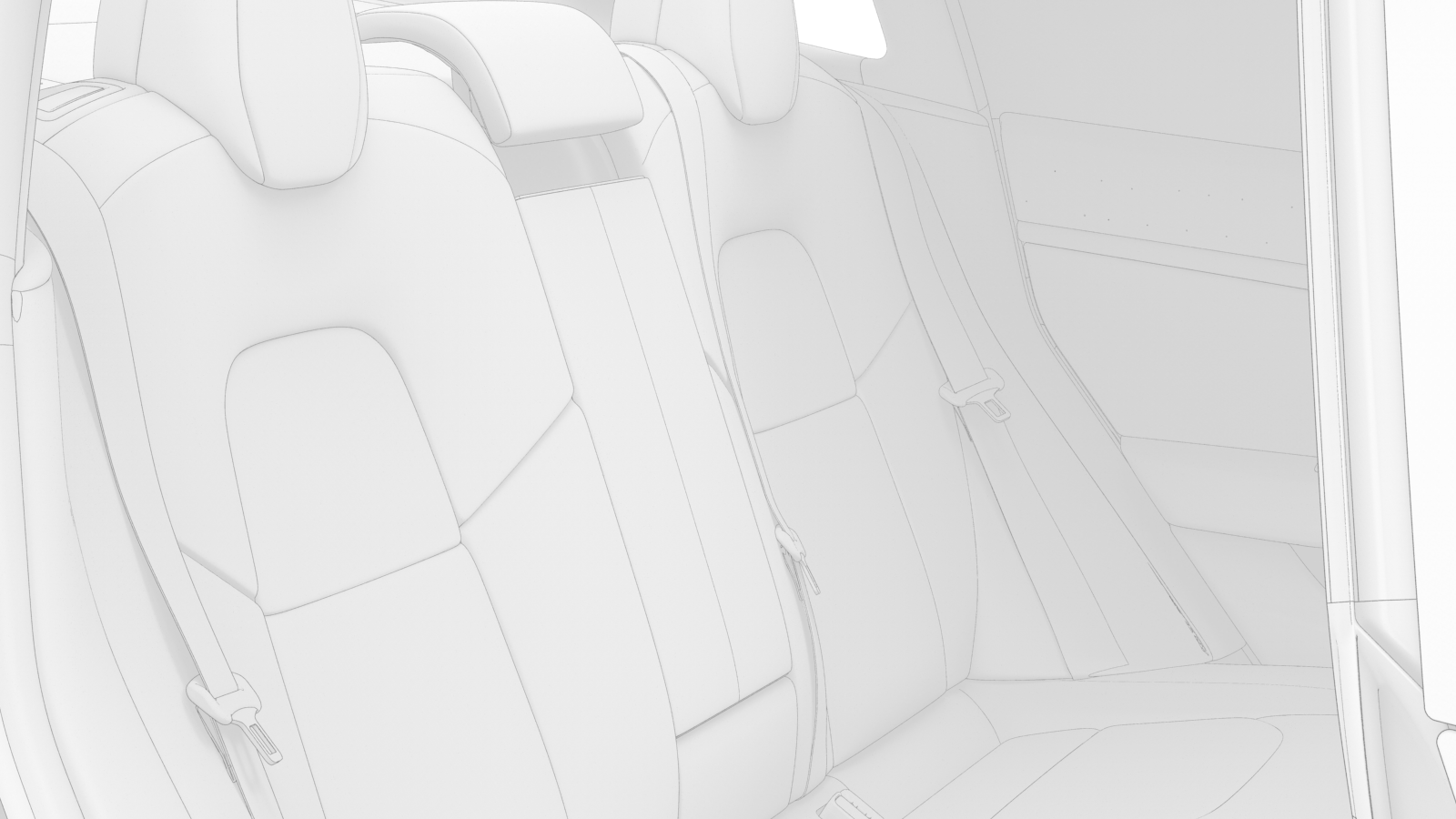

  2. Return the armrest to the upright position.
  3. Close the RH rear door.
1Install a new cup holder into the armrest.
Note: Press firmly on the edges of the cup holder to engage the locking tabs.
2Return the armrest to the upright position.
3Close the RH rear door.
